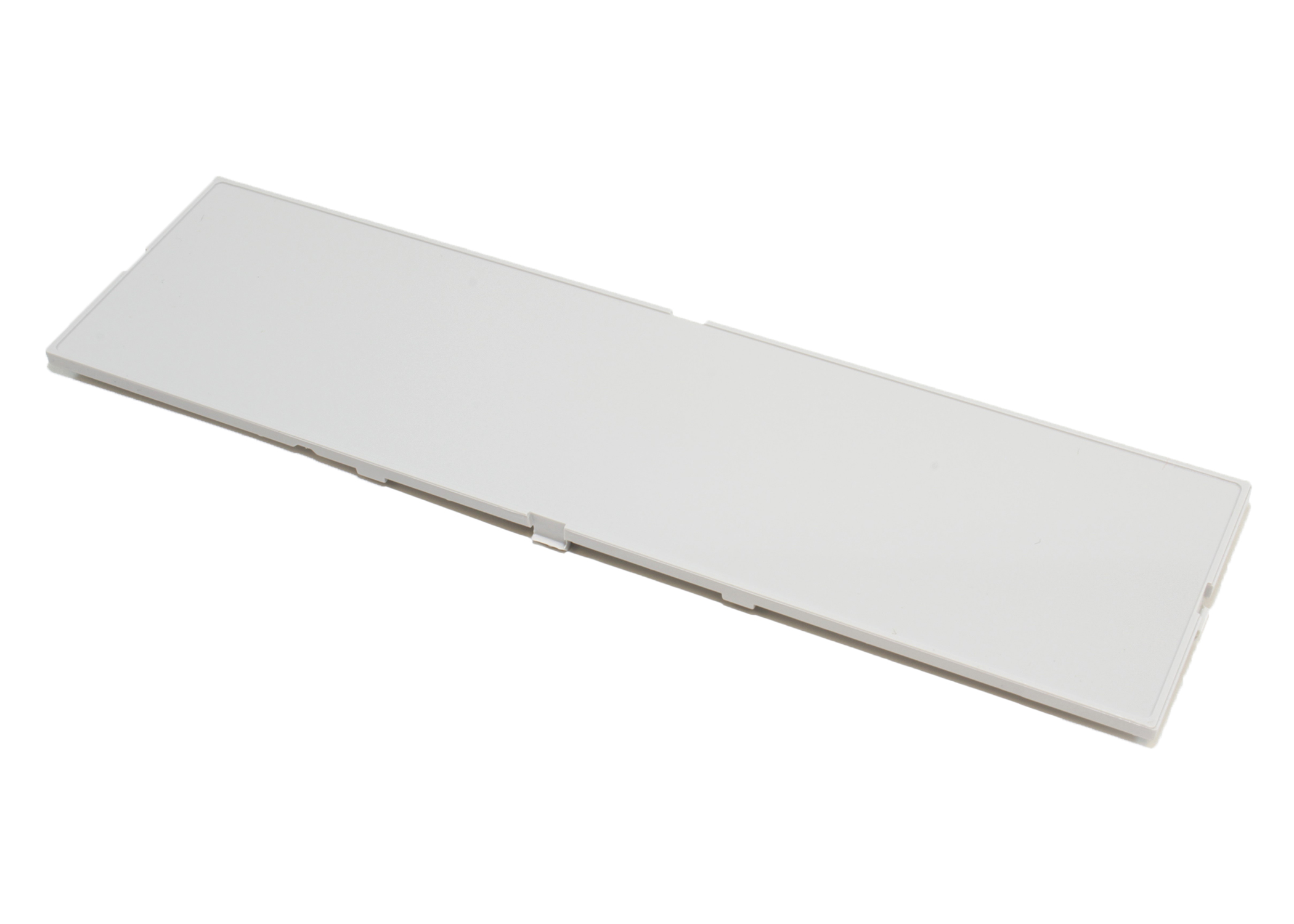

Hammond 1597D9MPRH DIN 9 Gray Top Cover with Inlay, PC-ABS
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Gray top cover with inlay for DIN 9 1597DM DIN rail enclosures
- PC-ABS with UL94 V-0 flame rating
- 155 mm x 42 mm x 3 mm (6.11 in x 1.65 in x 0.1 in)
- Listed as an accessory on the 1597DIN9MDH53 drawing
- RoHS and REACH compliant
- Shipping weight 0.03 lbs (0.01 kg)
The 1597D9MPRH is a gray Italtronic top cover with inlay for the DIN 9 size of the 1597DM Series DIN rail mounted enclosures. It is intended for OEM and panel designers who want to cover the top of an open-top DIN 9 housing with a gray inlay-style cover.
The part page lists it as "Italtronic D9 top cover, inlay, gray" with the short description "D9 TOP PANEL INLAY, CLIPS"; the series ordering table lists "Top Cover With Inlay, Gray" for compatible size DIN 9.
It is made from PC-ABS with a UL94 V-0 flame rating. Size is 6.11 in x 1.65 in x 0.1 in (155 mm x 42 mm x 3 mm), 1 mm thicker than the flat 1597D9MPH, and shipping weight is 0.03 lbs (0.01 kg). The part is RoHS and REACH compliant.
The drawing for the 1597DIN9MDH53 enclosure shows the 1597D9MPRH as a "Top Cover With Inlay, Grey" accessory, not included with the enclosure. Hammond recommends checking the enclosure drawing to confirm compatibility within a DIN size group. Some chemicals can damage or weaken plastic; consult the Chemical Resistance Statement.
Ideal For
- Inlay-style cover for open-top DIN 9 enclosures
- Wide DIN rail electronics housings
- Control panel instrumentation
Overview
| Series | 1597DM Series DIN Rail Mounted Enclosures |
| Brand Line | Italtronic |
| Part Number | 1597D9MPRH |
| Accessory Type | Top Covers |
| Compatible Size | DIN 9 |
| Long Description | Italtronic D9 top cover, inlay, gray |
| Short Description | D9 TOP PANEL INLAY, CLIPS |
| Drawing Description | Top Cover With Inlay, Grey |
| Ordering Table Description | Top Cover With Inlay, Gray |
| Listed On Enclosure Drawing(s) | 1597DIN9MDH53 |
Dimensions
| Size (L X W X H) | 6.11 in x 1.65 in x 0.1 in (155 mm x 42 mm x 3 mm) |
Identifiers
| UPC | 623980795416 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.03 lbs (0.01 kg) |
Construction & Finish
| Colour | Gray |
| Material | PC-ABS |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see the Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size enclosure does the 1597D9MPRH fit?▾
Compatible size DIN 9; it is listed on the 1597DIN9MDH53 enclosure drawing.
What is the difference from 1597D9MPH?▾
The 1597D9MPRH is the gray top cover with inlay (3 mm thick), while 1597D9MPH is the flat gray top cover (2 mm thick).
What material is used?▾
PC-ABS, UL94 V-0 flame rated.
Is it included with the enclosure?▾
No, the drawing marks the top cover as not included.
Is it REACH compliant?▾
Yes, it is REACH and RoHS compliant.
