Hammond 1597DIN6MC53 DIN 6 Closed Top Enclosure, One Terminal Side Blocked

The 1597DIN6MC53 is an Italtronic DIN 6 enclosure in the 1597DM Series with a closed top, a closed terminal on one side and a blocked terminal on the other side. The 106 mm wide housing is suited to PCBs and DIN rail mounted electronics where only one terminal side is needed.

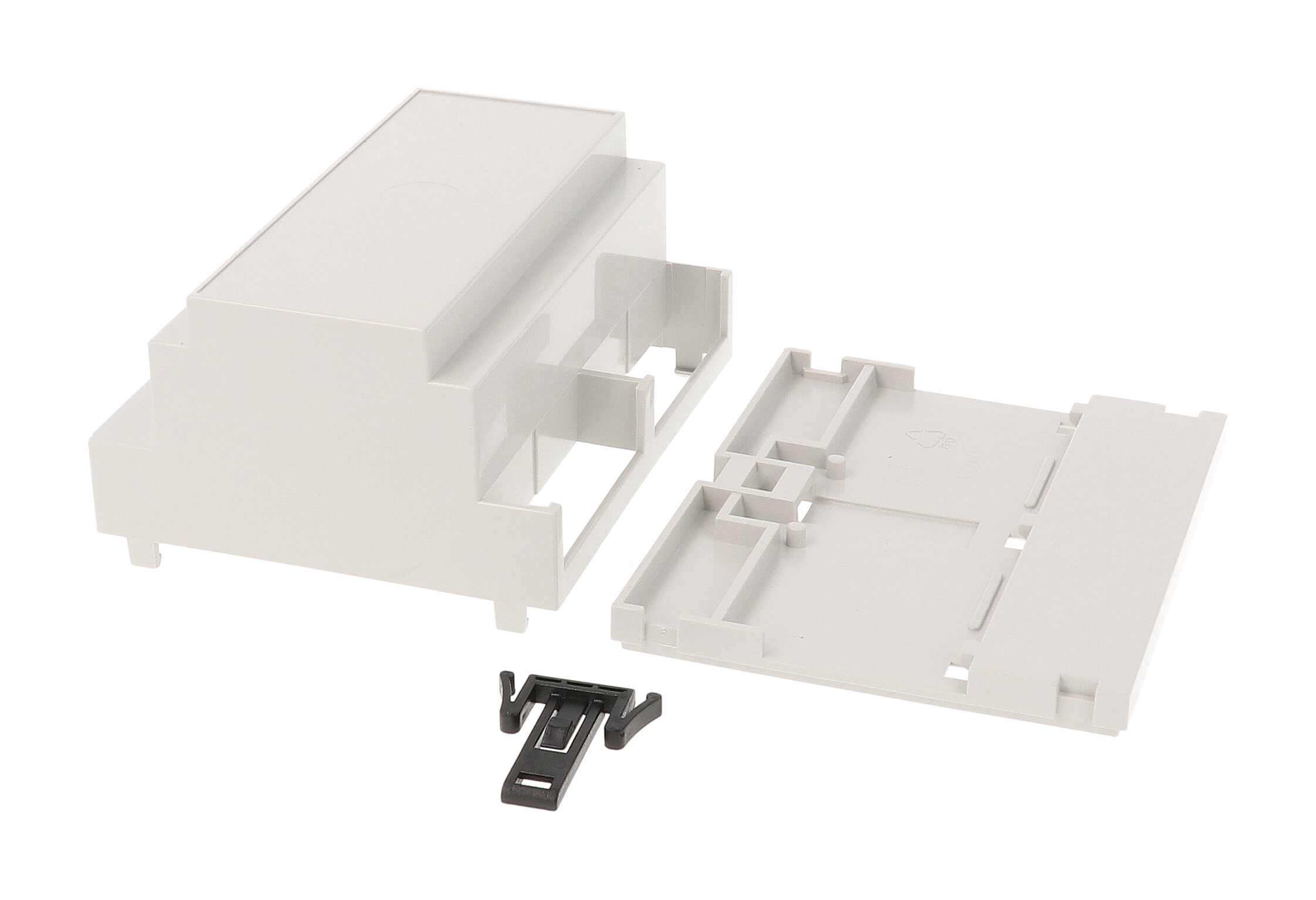

The long description reads "DIN6, CLOSED TOP, CLOSED TERMINAL 1 SIDE, BLOCKED TERMINAL 1 SIDE, GREY", and the series ordering table lists "Closed Top, Closed Terminals, 1 Terminal Side Blocked". It is made of RAL7035 light grey PPO with a UL94 V-0 flame rating, assembles with snap closures and no hardware, and mounts on standard 35mm DIN rail via its integrated clip. The purchased enclosure includes base, cover and DIN clip.

Nominal dimensions are 3.54 in x 4.17 in x 2.28 in (90 mm x 106 mm x 58 mm), and shipping weight is 0.17 lbs (0.08 kg). It is RoHS and REACH compliant.

The drawing lists terminal covers 1597D3MTC (blank closed), 1597D3MTC6 (with holes), 1597D3MTCKO (with punch-out holes), 1597D3MBC (with bus connector) and 1597D3MTCP (blank open), plus the 1597D4MADP bread board and 1597DINCLIPXT DIN clip. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
