Hammond 1597D5MTC6 DIN 5 Terminal Cover With Holes

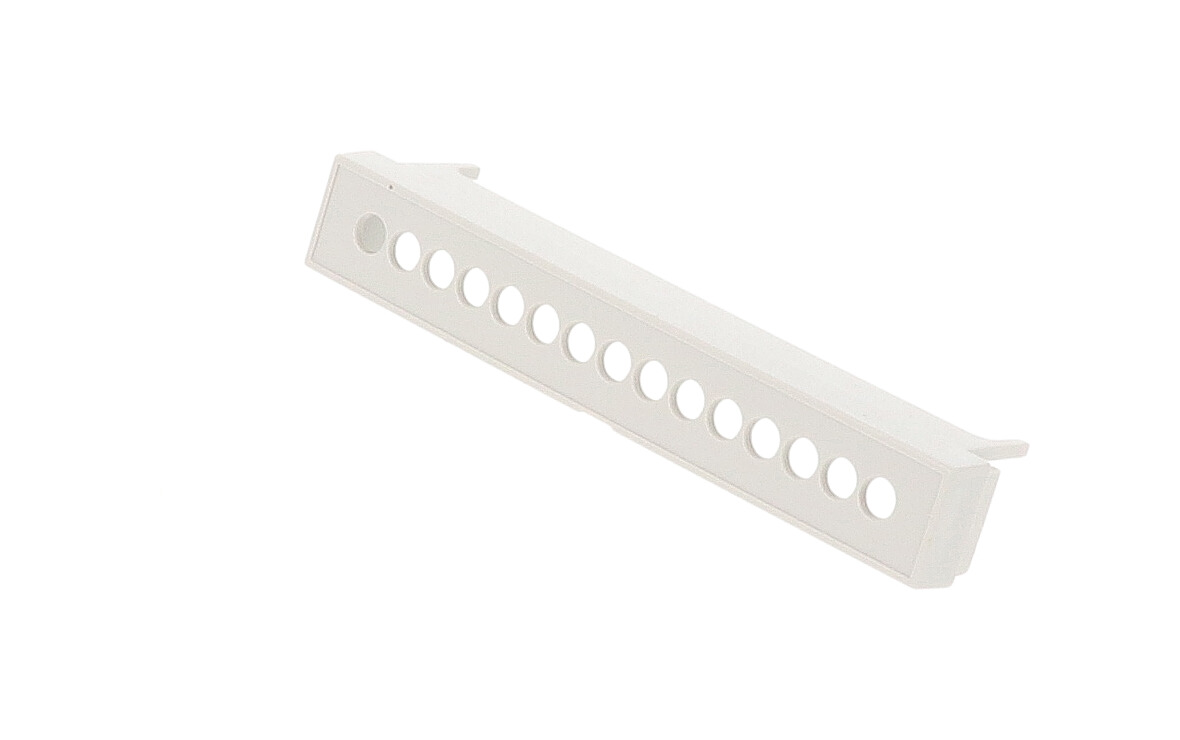

The 1597D5MTC6 is an Italtronic terminal insert with holes for DIN 5 enclosures in the 1597DM Series of DIN rail mounted enclosures. The series accessory table lists it as the DIN 5 terminal cover "With Holes", and the DIN 5 top-cover drawing includes it among the accessories for the grey Module 5 enclosure.

It is PC-ABS with a UL94 V-0 flame rating and measures 3.43 in x 0.54 in x 0.79 in (87 mm x 14 mm x 20 mm). Shipping weight is 0.01 lbs (0.00 kg). It is RoHS and REACH compliant.

In the 1597DM range, DIN group numbers refer to the number of terminals on each side of the enclosure; the DIN 5 enclosure listed in the series table is the 1597DIN5MH53, with open top and open terminals. The DIN 5 terminal-cover family also includes the blank closed 1597D5MTC and the punch-out 1597D5MTCKO. Hammond notes that some accessories are not compatible with all enclosures in a DIN size group, so check the enclosure drawing to confirm fit.

The 1597D5MTC6 is a straightforward option for electricians, integrators and OEM engineers who want pre-holed terminal access on a DIN 5 housing for PCBs and terminal blocks. Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
