Hammond 1597D3MTCKO DIN 3, 6 & 9 Terminal Cover, Punch-Out Holes
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Terminal insert with punch-out holes, opened only where needed
- Compatible with DIN 3, DIN 6 and DIN 9 1597DM enclosures
- PC-ABS with UL94 V-0 flame rating
- 53 x 14 x 20 mm (2.07 x 0.54 x 0.79 in)
- RoHS and REACH compliant
- Same footprint as the D3 closed, open, holed and bus-connector covers

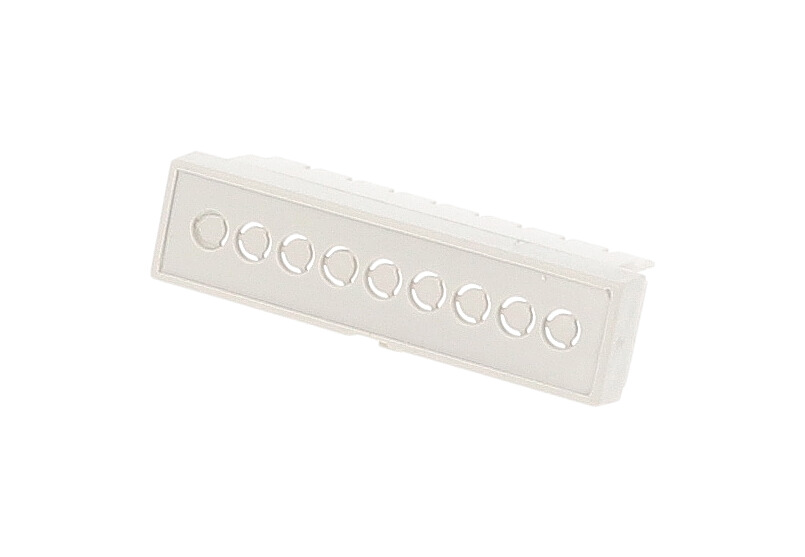

The 1597D3MTCKO is an Italtronic terminal insert with punch-out holes for the 1597DM Series DIN rail mounted enclosures. Punch-outs let you open only the terminal positions a design needs, which makes this cover a flexible choice for OEM engineers and panel builders working across several product variants. The series accessory table lists it for the DIN 3, DIN 6 and DIN 9 size groups.
The cover is made from PC-ABS with a UL94 V-0 flame rating. It measures 2.07 in x 0.54 in x 0.79 in (53 mm x 14 mm x 20 mm) and has a shipping weight of 0.01 lbs (0.00 kg). It is RoHS and REACH compliant.
In the 1597DM range, DIN group numbers describe the number of terminals on each side of the enclosure, and the DIN 3, 6 and 9 housings share the D3 terminal-cover family. The same drawing shows the 1597D3MTCKO next to blank closed, blank open, holed and bus-connector versions. Hammond notes that some accessories are not compatible with all enclosures in a DIN size group and recommends checking the enclosure drawing to confirm fit.
Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
Ideal For
- Configurable terminal access on DIN 3, DIN 6 and DIN 9 enclosures
- DIN rail housings for terminal blocks and PCBs
- Product variants that use different terminal positions
Overview
| Series | 1597DM Series DIN Rail Mounted Enclosures (Italtronic brand) |
| Description | Italtronic D3 terminal insert w. punchouts |
| Part Number | 1597D3MTCKO |
| Accessory Type | With Punch-Out Holes |
| Also Described As | Terminal insert with punchouts |
| Short Description | D3 TERM INSERTS, PUNCHOUT HOLE |
| Accessory Category | Terminal Covers |
| Compatible DIN Size | DIN 3, DIN 6, DIN 9 |
Dimensions
| Size (L X W X H) | 2.07 in x 0.54 in x 0.79 in (53 mm x 14 mm x 20 mm) |
Identifiers
| UPC | 623980795164 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | PC-ABS |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are punch-out holes?▾
The 1597D3MTCKO is listed as a terminal cover "With Punch-Out Holes"; the part page describes it as a terminal insert with punchouts.
Which enclosure sizes does it fit?▾
DIN 3, DIN 6 and DIN 9 per the 1597DM accessory table. Hammond recommends checking the enclosure drawing to confirm compatibility.
What is it made of?▾
PC-ABS, rated UL94 V-0.
What size is it?▾
2.07 in x 0.54 in x 0.79 in (53 mm x 14 mm x 20 mm).
Is a pre-holed version available?▾
Yes, the 1597D3MTC6 is the D3 terminal cover with holes.
