Hammond 1597D4MPRHTPC DIN 4 Top Cover With Inlay, Clear PC
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear top cover with inlay for 1597DM DIN 4 enclosures
- PC construction with UL94 V-2 flame rating
- Drawn on enclosure 1597DIN4MH53; top cover not included with it
- Clip-on inlay-style top panel
- 67 x 42 x 3 mm (2.63 x 1.65 x 0.1 in)
- RoHS and REACH compliant

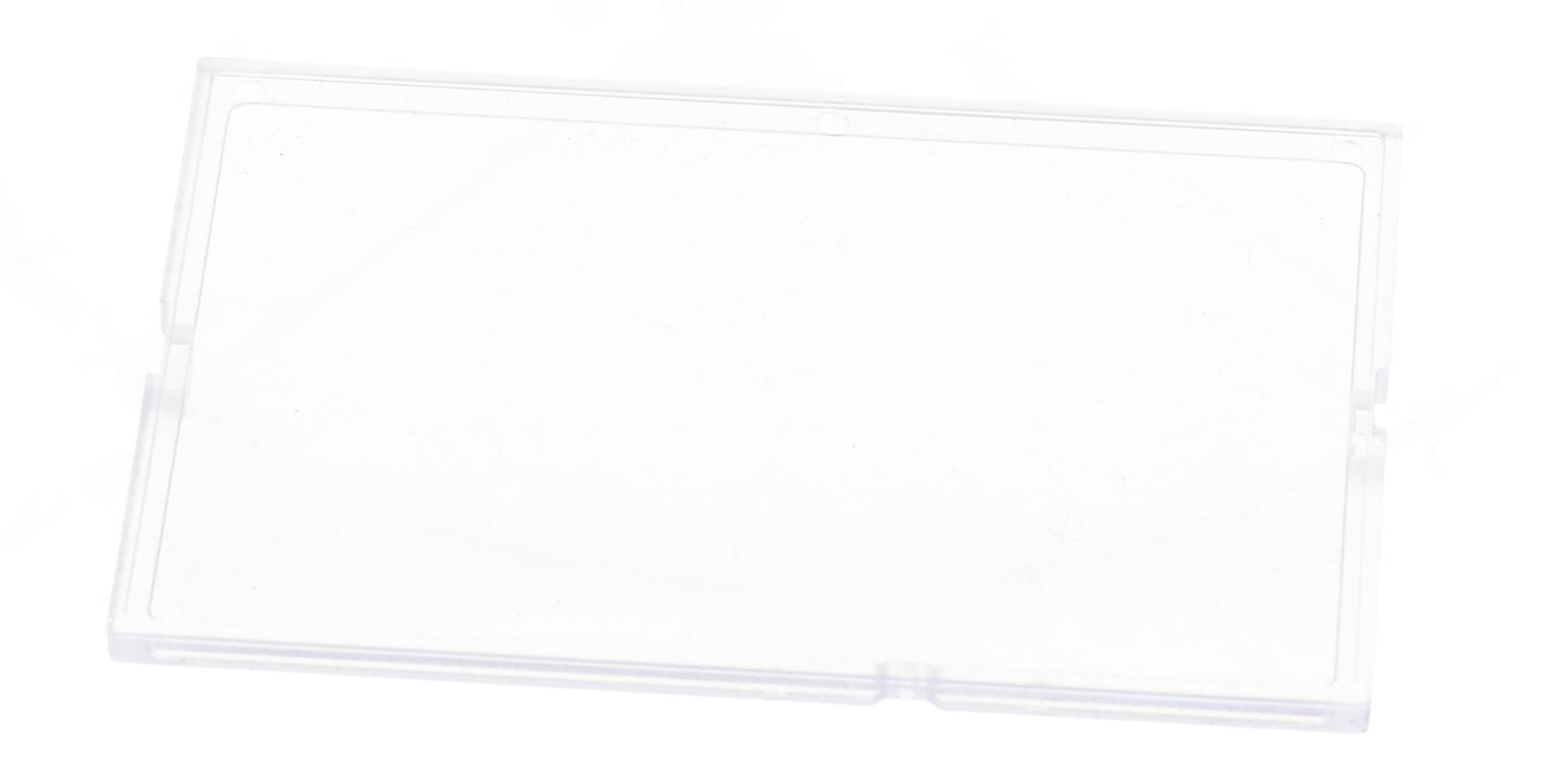

The 1597D4MPRHTPC is a clear Italtronic top cover with inlay for DIN 4 enclosures in the 1597DM Series. Its short description is "D4 TOP PNL INLAY CLEAR, CLIPS", making it the transparent version of the clip-in inlay top panel. It is drawn on the grey Module 4 enclosure 1597DIN4MH53, and the drawing marks the top cover as not included with the enclosure.
It is made from PC with a UL94 V-2 flame rating, as the series specifies for clear accessories, and measures 2.63 in x 1.65 in x 0.1 in (67 mm x 42 mm x 3 mm). Shipping weight is 0.01 lbs (0.00 kg). It is RoHS and REACH compliant.
The gray PC-ABS equivalent is the 1597D4MPRH; DIN 4 also has flat gray and clear covers and a clear hinged cover, 1597D4MPHGTPC. The enclosure ships with base, cover and DIN clip in PPO. In the 1597DM range the DIN group number refers to the number of terminals on each side. Hammond notes that some accessories are not compatible with all enclosures in a DIN size group; confirm fit against the enclosure drawing.
Use the 1597D4MPRHTPC where the inside of a DIN rail housing for PCBs or terminal blocks should stay visible. Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
Ideal For
- Clear inlay top for 1597DM DIN 4 enclosures
- Visible DIN rail electronics housings
- PCB and terminal block enclosures
Overview
| Colour | Clear |
| Series | 1597DM Series DIN Rail Mounted Enclosures (Italtronic brand) |
| Cover Style | With inlay |
| Description | Italtronic D4 top cover, inlay, clear |
| Part Number | 1597D4MPRHTPC |
| Accessory Type | Top Cover With Inlay, Clear |
| Short Description | D4 TOP PNL INLAY CLEAR, CLIPS |
| Accessory Category | Top Covers |
| Compatible DIN Size | DIN 4 |
| Drawing Shows Enclosure | Enclosure grey Module 4 1597DIN4MH53 |
| Included With Enclosure | No (top cover not included) |
Dimensions
| Size (L X W X H) | 2.63 in x 1.65 in x 0.1 in (67 mm x 42 mm x 3 mm) |
Identifiers
| UPC | 623980795287 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | PC |
| Flame Rating | UL94 V-2 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What material is the 1597D4MPRHTPC?▾
PC with a UL94 V-2 flame rating.
How does it compare to 1597D4MPRH?▾
Same 67 x 42 x 3 mm inlay design; the 1597D4MPRHTPC is clear PC (UL94 V-2) and the 1597D4MPRH is gray PC-ABS (UL94 V-0).
Which enclosure is it drawn with?▾
Enclosure grey Module 4, 1597DIN4MH53. Hammond recommends checking the enclosure drawing to confirm compatibility.
Is the top cover included with the enclosure?▾
No, it is marked as not included.
Is it RoHS compliant?▾
Yes, RoHS and REACH compliant.
