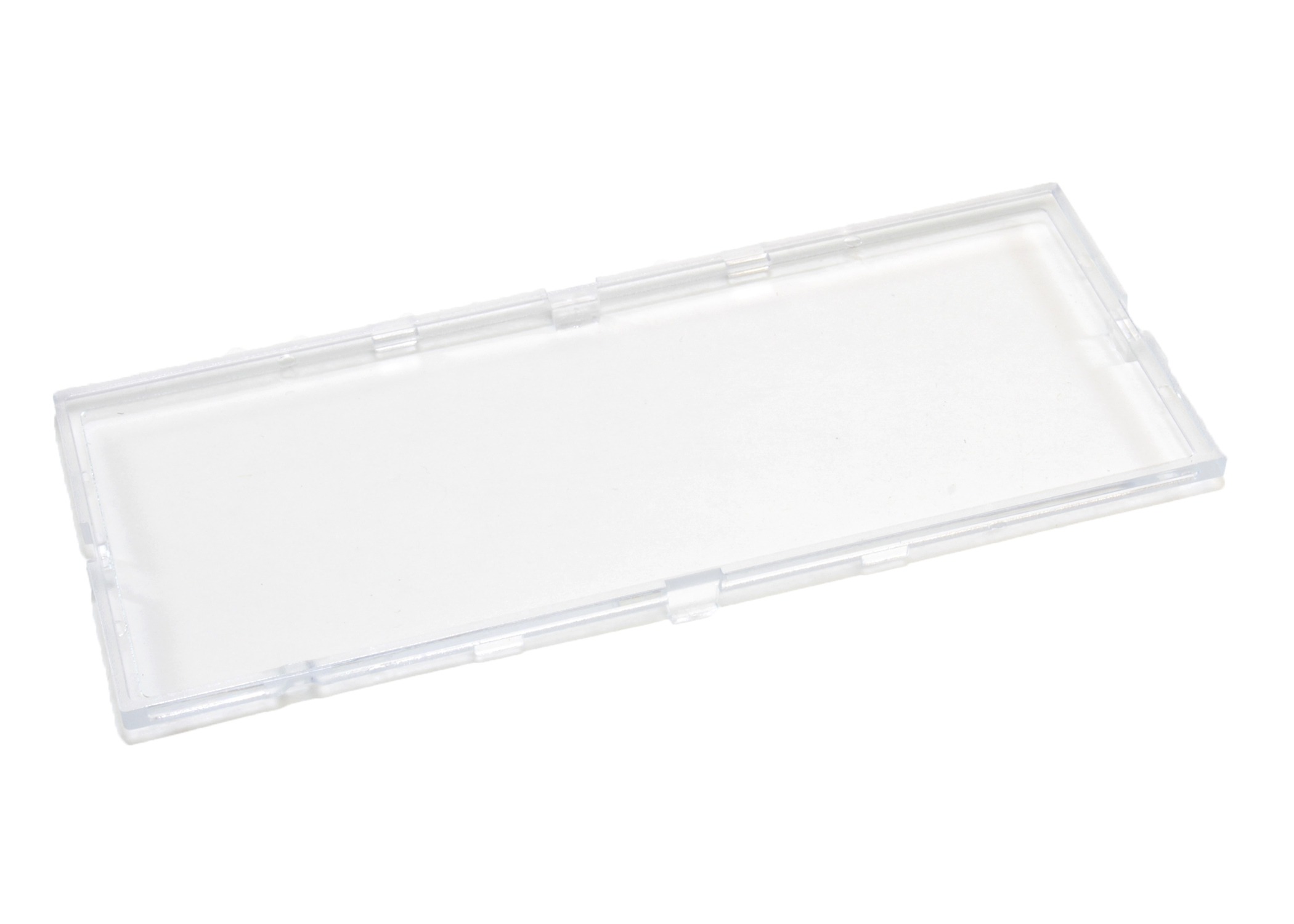

Hammond 1597D6MPTPC DIN 6 Clear Top Cover, Polycarbonate

The 1597D6MPTPC is a clear Italtronic top cover for the DIN 6 size of the 1597DM Series DIN rail mounted enclosures. A clear cover lets the top opening of an open-top DIN 6 housing be closed while keeping what sits beneath it visible, which suits panel builders and OEM designers using indicators or labels inside the housing.

Descriptions of this part vary between sources. The part page calls it "Italtronic D6 top cover, flat, clear" with the short description "D6 TOP PNL FLAT CLEAR, CLIPS", while the series ordering table and the enclosure drawing list it as "Top Cover With Inlay, Clear". Both references tie the part number to DIN 6.

The cover is made from PC (polycarbonate) with a UL94 V-2 flame rating, in line with the series note that clear accessories are PC rated UL 94 V-2. It measures 4.02 in x 1.65 in x 0.1 in (102 mm x 42 mm x 3 mm) and has a shipping weight of 0.02 lbs (0.01 kg). It is RoHS and REACH compliant.

The 1597D6MPTPC is shown as a separately purchased accessory on the drawings for the 1597DIN6MDH53, 1597DIN6MDH68 and 1597DIN6MH53 open-top enclosures. Because some accessories do not fit every enclosure in a DIN size group, confirm against the enclosure drawing. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement.
