Hammond 1597DIN9MHC53V DIN9 Vented Closed Top Enclosure, 1 Side Blocked
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- DIN9 size: 90.20 x 159.40 x 58.00 mm per drawing (series table 90 x 159 x 58 mm)
- Closed top with vents
- One terminal side closed, one terminal side blocked
- RAL7035 light grey PPO rated UL94 V-0
- Mounts to standard 35 mm DIN rail via integrated clip
- Snap-together assembly, no hardware required
- Includes base, cover and DIN clip
- RoHS and REACH compliant

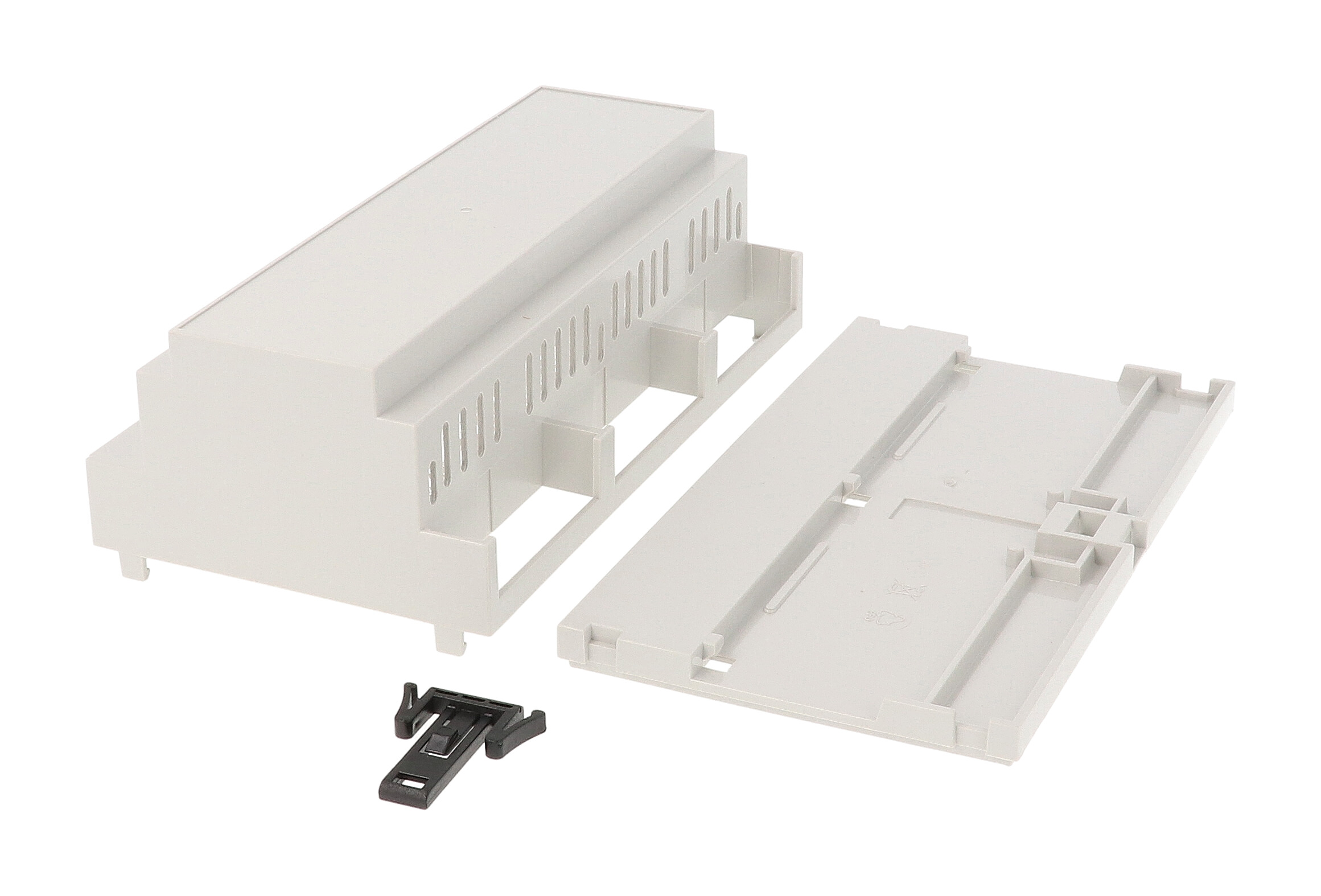

The 1597DIN9MHC53V is a vented Italtronic DIN9 enclosure in the 1597DM series. It has a closed top, a closed terminal on one side and a blocked terminal on the other, giving panel builders a nine-module housing for printed circuit boards and DIN rail mounted electronics where ventilation matters and the top does not need a separate cover.
It is moulded from RAL7035 light grey PPO thermoplastic with a UL94 V-0 flame rating, and the cover and base are both PPO. An integrated clip mounts it to a standard 35 mm DIN rail, and snap closures let it go together without hardware. The purchased enclosure includes the base, cover and DIN clip.
Per the part page it measures 3.54 x 6.28 x 2.28 in (90 x 160 x 58 mm); the series ordering table lists 90 x 159 x 58 mm, and the drawing shows 90.20 mm [3.55 in] by 159.40 mm [6.28 in] by 58.00 mm [2.28 in]. Shipping weight is 0.22 lbs (0.10 kg).
The drawing lists compatible accessories: 1597D3M terminal covers (blank closed 1597D3MTC, blank open 1597D3MTCP, with holes 1597D3MTC6, with punch-out holes 1597D3MTCKO, with bus connector 1597D3MBC), bread board 1597D4MADP and replacement DIN clip 1597DINCLIPXT. Some accessories do not fit every enclosure in a DIN size group, so confirm on the drawing.
The 1597DIN9MHC53V is RoHS and REACH compliant. Factory modification (milling, drilling, printing) is offered, and solid models are available in .stp or .x_t.
Ideal For
- Vented DIN rail housing for PCBs
- Terminal block and interface electronics in control cabinets
- DIN rail mounted electronics with one terminal side blocked
- Panel builds using 1597D3M terminal covers
Overview
| Series | 1597DM DIN Rail Mounted Enclosures (Italtronic) |
| DIN Size | DIN 9 |
| Features | Closed Top, 1 Terminal Side Blocked, Vents |
| Included | Base, cover and DIN clip |
| Description | Italtronic DIN9, closed top, closed terminal 1 side, blocked terminal 1 side, vented, grey |
| Solid Models | .stp or .x_t |
| DIN Group Number | Refers to the number of terminals on each side of the enclosure |
| Short Description | DIN9 CL TOP, CL BL TERM, VENT |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Replacement DIN Clip | 1597DINCLIPXT |
| Compatible Bread Board | 1597D4MADP |
| Compatible Terminal Covers | 1597D3MTC (blank closed), 1597D3MTC6 (with holes), 1597D3MTCKO (with punch-out holes), 1597D3MBC (with bus connector), 1597D3MTCP (blank open) |
Dimensions
| Overall Depth (Drawing) | 58.00 mm [2.28 in] |
| Overall Width (Drawing) | 159.40 mm [6.28 in] |
| Nominal Size (L X W X H) | 3.54 in x 6.28 in x 2.28 in (90 mm x 160 mm x 58 mm) |
| Overall Length (Drawing) | 90.20 mm [3.55 in] |
| Series Table Size (L X W X D) | 90 mm x 159 mm x 58 mm |
Identifiers
| UPC | 623980625591 |
| UNSPSC | 39121301 |
Rack Mounting
| Mounting | Standard 35 mm DIN rail, integrated DIN rail mounting clip |
Packaging & Shipping
| Shipping Weight | 0.22 lbs (0.10 kg) |
Construction & Finish
| Colour | RAL7035 light grey |
| Assembly | Snap closures, no hardware required |
| Material | PPO |
| Flame Rating | UL94 V-0 |
| Cover And Base Material | PPO |
Environmental & Protection
| Ventilation | Vented |
| Chemical Resistance | Some chemicals can damage or weaken plastic; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1597DIN9MHC53V vented?▾
Yes. It is described as vented, with a closed top, a closed terminal on one side and a blocked terminal on the other side.
Do I need a separate top cover?▾
The top is closed, and the drawing's accessory list for this part includes terminal covers, a bread board and a DIN clip but no top covers.
What size is it?▾
The drawing shows 90.20 x 159.40 x 58.00 mm [3.55 x 6.28 x 2.28 in]; the series table lists 90 x 159 x 58 mm.
What is included?▾
The purchased enclosure includes the base, cover and DIN clip.
What flame rating does it carry?▾
The PPO housing has a UL94 V-0 flame rating.
