Hammond 1597D6MPH DIN 6 Flat Top Cover, Gray PC-ABS

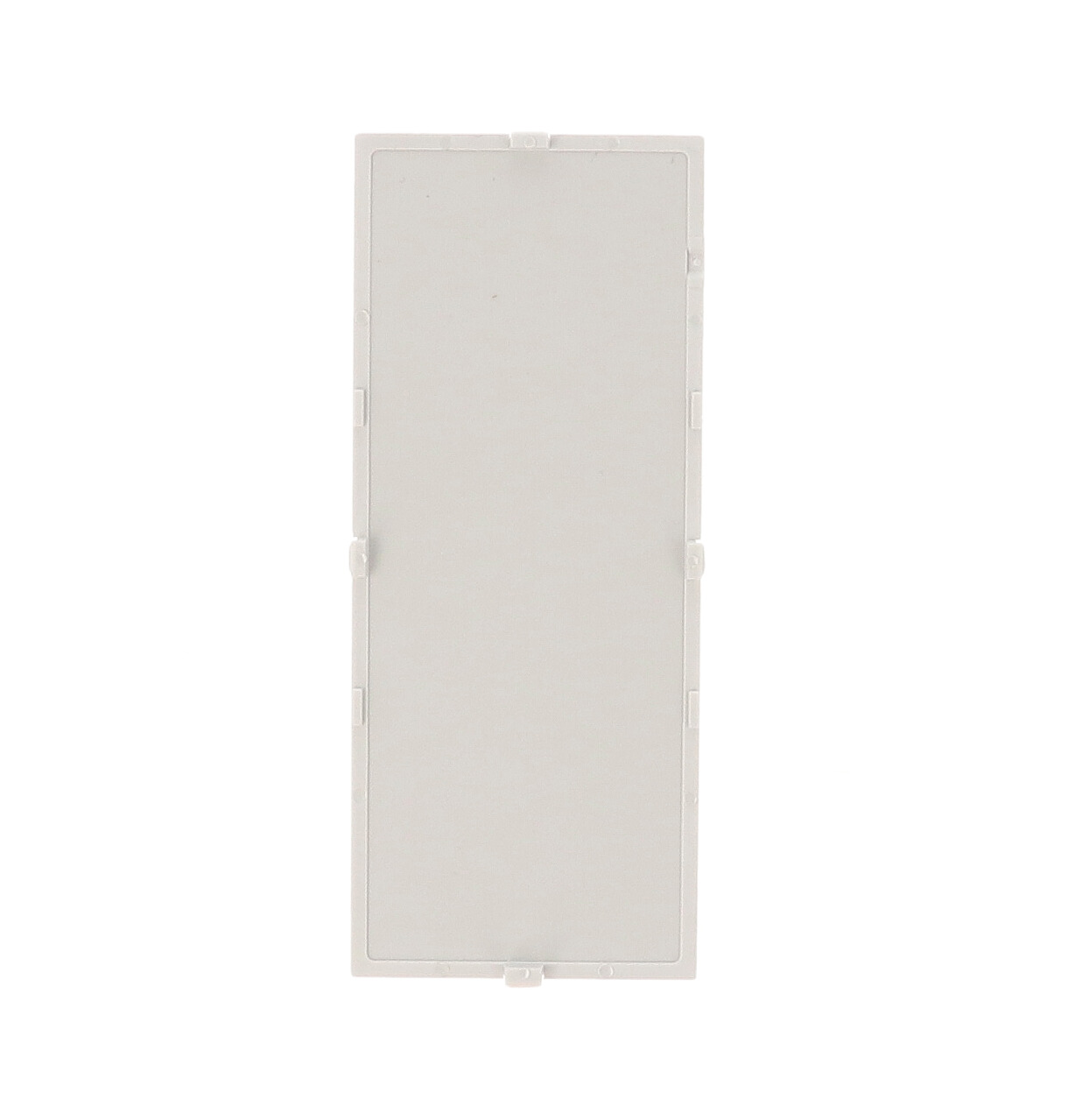

The 1597D6MPH is a flat, gray Italtronic top cover for DIN 6 enclosures in the 1597DM Series of DIN rail mounted enclosures. Its short description, "D6 TOP PANEL FLAT, CLIPS", identifies it as the flat clip-in top panel. The DIN 6 drawing shows it on the grey Module 6 enclosure 1597DIN6MDH68 and marks the top cover as not included with the enclosure.

It is PC-ABS with a UL94 V-0 flame rating and measures 4.02 in x 1.65 in x 0.09 in (102 mm x 42 mm x 2 mm). Shipping weight is 0.02 lbs (0.01 kg). It is RoHS and REACH compliant.

The DIN 6 drawing lists three other top-cover options: 1597D6MPHR (with inlay, gray), 1597D6MPTPC (with inlay, clear) and 1597D6MPTPL (top panel cover, clear). DIN 6 enclosures use the D3 family of terminal covers, which the same drawing lists. The purchased enclosure includes base, cover and DIN clip, with cover and base in PPO. Hammond notes that some accessories are not compatible with all enclosures in a DIN size group, so confirm fit on the enclosure drawing.

The 1597D6MPH suits panel builders and OEM engineers housing PCBs and terminal blocks in the wider DIN 6 enclosure. Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
