Hammond 1597D2MTC6 DIN 2 Terminal Cover Insert With Holes

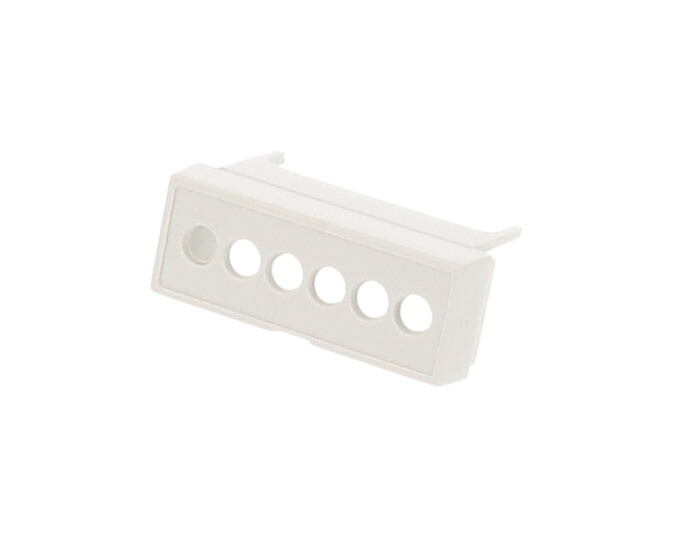

The 1597D2MTC6 is a terminal cover with holes for DIN 2 size enclosures in the Italtronic brand DIN rail enclosure line. The part page calls it an Italtronic D2 terminal insert with holes. It suits engineers housing printed circuit boards and terminal blocks who need screwdriver or wire access through the terminal side of a DIN rail mounted enclosure.

The insert measures 1.39 in x 0.54 in x 0.78 in (35 mm x 14 mm x 20 mm). The terminal cover drawing shows a 35.50 mm (1.40 in) length and a hole call-out of 4.00 mm (0.16 in) x 6. It is molded in PC-ABS with a UL94 V-0 flame rating.

• 1597D2MTC: blank, closed
• 1597D2MTC6: with holes
• 1597D2MTCKO: with punch-out holes
• 1597D2MBC: with bus connector

Those are the four DIN 2 terminal covers in the ordering table. DIN group numbers refer to the number of terminals on each side of the enclosure, and the manufacturer notes that some accessories are not compatible with all enclosures in a DIN size group, so check your enclosure's drawing to confirm fit. The 1597D2MTC6 is REACH and RoHS compliant, UPC 623980795089. Keep acetone, ketones, ethers, aromatic and chlorinated hydrocarbons and strong solvents away from the part.
