Hammond 1597DIN5MH53 DIN 5 Open Top and Terminals Rail Enclosure, 88 mm

The 1597DIN5MH53 is an Italtronic DIN 5 enclosure in the 1597DM Series with an open top and open terminals on both sides. The 88 mm wide housing is the only DIN 5 enclosure in the series ordering table and is intended for PCBs and DIN rail mounted electronics that need terminal access.

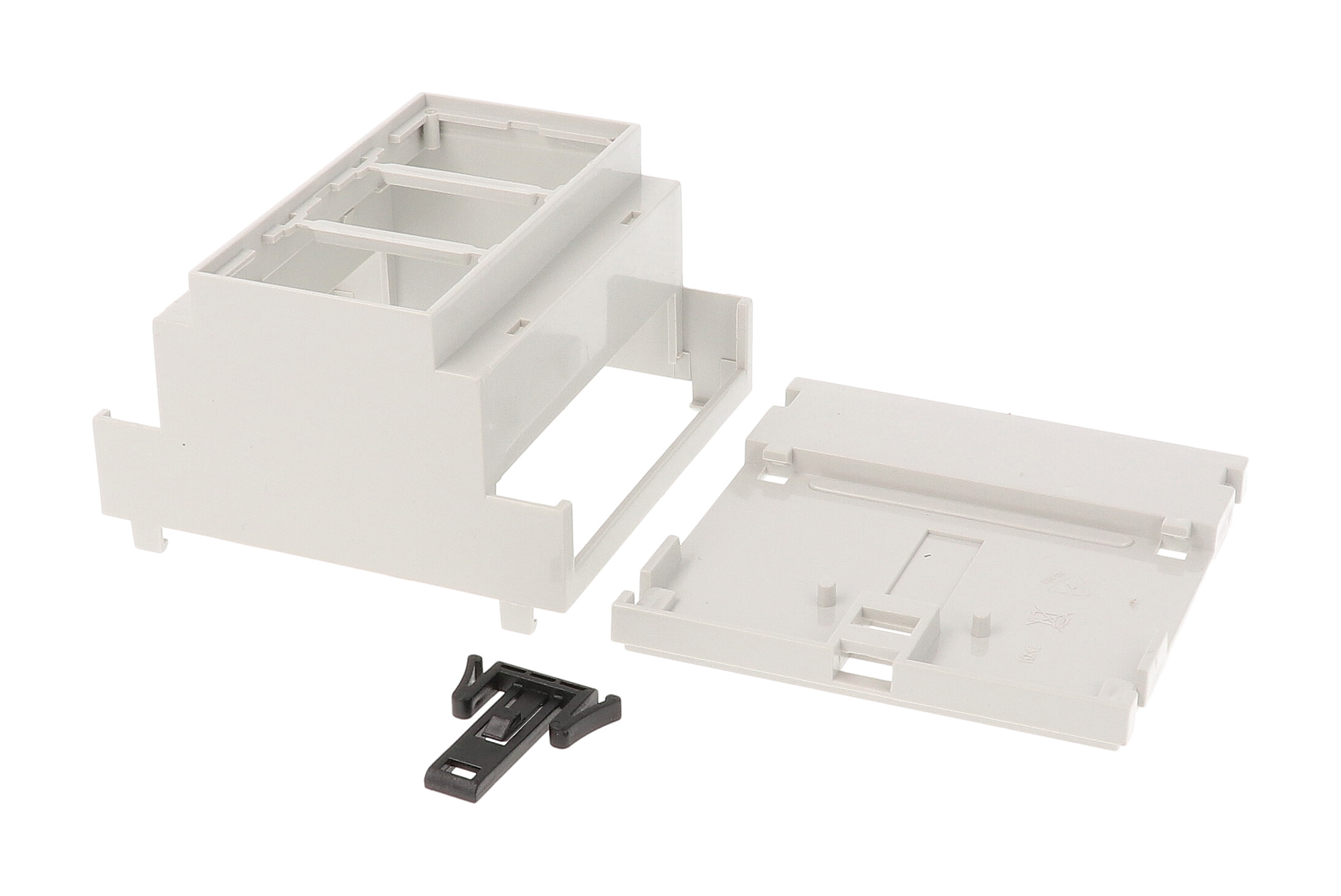

It is moulded from RAL7035 light grey PPO with a UL94 V-0 flame rating. Snap closures make assembly hardware-free, and the integrated DIN rail mounting clip fits standard 35mm DIN rail. The purchased enclosure includes base, cover and DIN clip.

Nominal dimensions are 3.54 in x 3.46 in x 2.28 in (90 mm x 88 mm x 58 mm), with a shipping weight of 0.11 lbs (0.05 kg). It is RoHS and REACH compliant.

The drawing lists DIN 5 top covers 1597D5MPH (gray), 1597D5MPRH (gray with inlay) and 1597D5MPRHTPC (clear with inlay), not included, as well as DIN 5 terminal covers 1597D5MTC (blank closed), 1597D5MTC6 (with holes) and 1597D5MTCKO (with punch-out holes), the 1597D4MADP bread board and the 1597DINCLIPXT DIN clip. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
