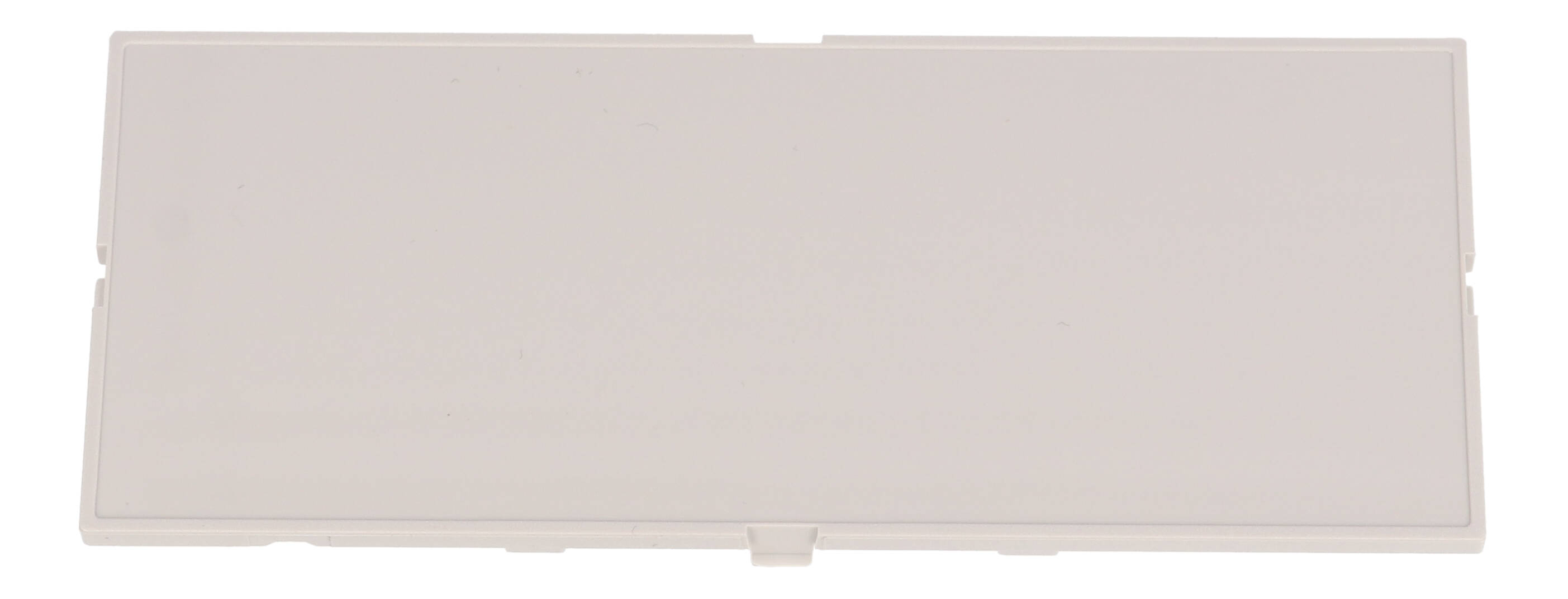

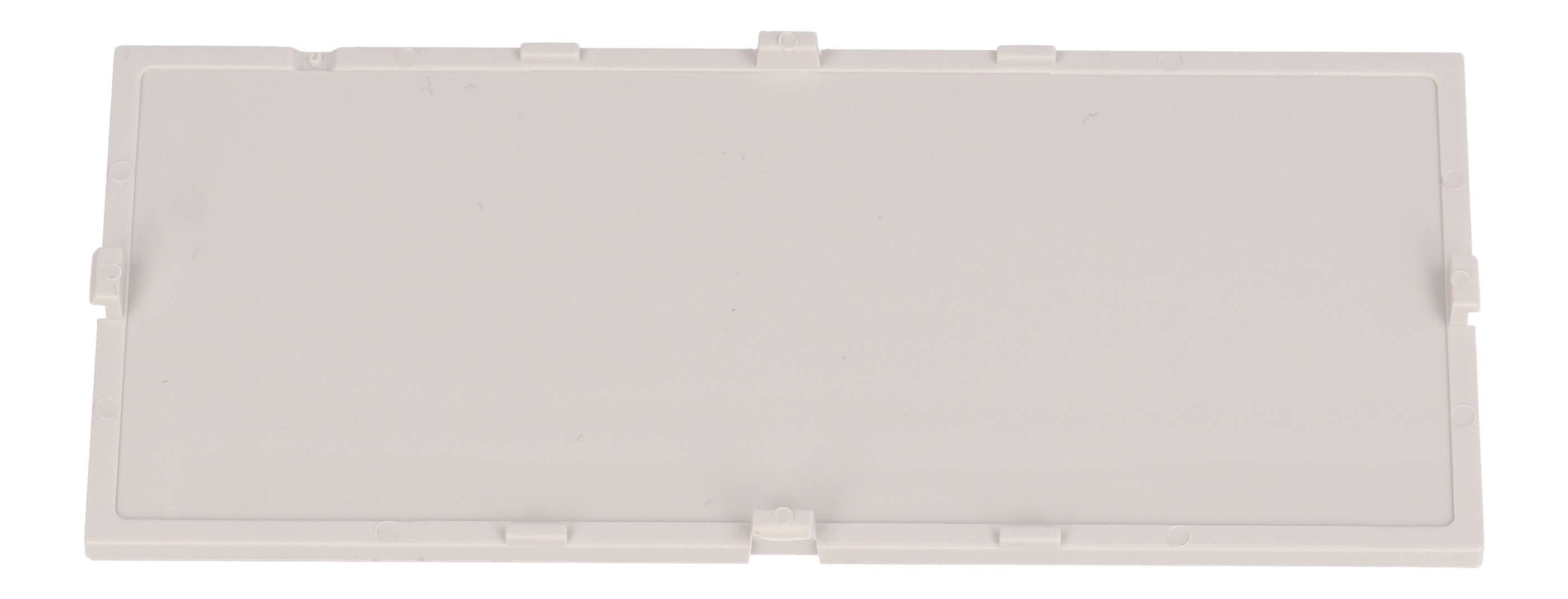

Hammond 1597D6MPHR DIN 6 Gray Top Cover with Inlay, PC-ABS

The 1597D6MPHR is an Italtronic top cover with inlay in gray, made for the DIN 6 size of the 1597DM Series DIN rail mounted enclosures. It is an accessory for panel builders and OEM engineers who want to close the top opening of an open-top DIN 6 housing and give the front face a finished look.

The cover is moulded from PC-ABS with a UL94 V-0 flame rating, matching the series statement that gray accessories are made of PC-ABS rated UL 94 V-0. The manufacturer short description reads "D6 TOP PANEL INLAY, CLIPS", and the series ordering table lists it as "Top Cover With Inlay, Gray" for compatible size DIN 6.

It measures 4.02 in x 1.65 in x 0.1 in (102 mm x 42 mm x 3 mm) and has a shipping weight of 0.02 lbs (0.01 kg). The part is RoHS and REACH compliant.

On the enclosure drawings supplied, the 1597D6MPHR appears as a separately purchased accessory (marked "not included") for the DIN 6 open-top enclosures 1597DIN6MDH53, 1597DIN6MDH68 and 1597DIN6MH53. Hammond notes that some accessories are not compatible with every enclosure in a DIN size group, so check the enclosure drawing to confirm fit. Some chemicals can damage or weaken plastic; refer to the Chemical Resistance Statement before cleaning or modifying.
