Hammond 1597D6MPTPL DIN 6 Clear Top Panel Cover, No Clip
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flat clear top panel cover for DIN 6 1597DM enclosures
- No-clip version, per the manufacturer short description
- PC (polycarbonate) with UL94 V-2 flame rating
- 102 mm x 42 mm x 2 mm (4.02 in x 1.65 in x 0.08 in)
- Listed on the 1597DIN6MDH53, 1597DIN6MDH68 and 1597DIN6MH53 drawings
- RoHS and REACH compliant

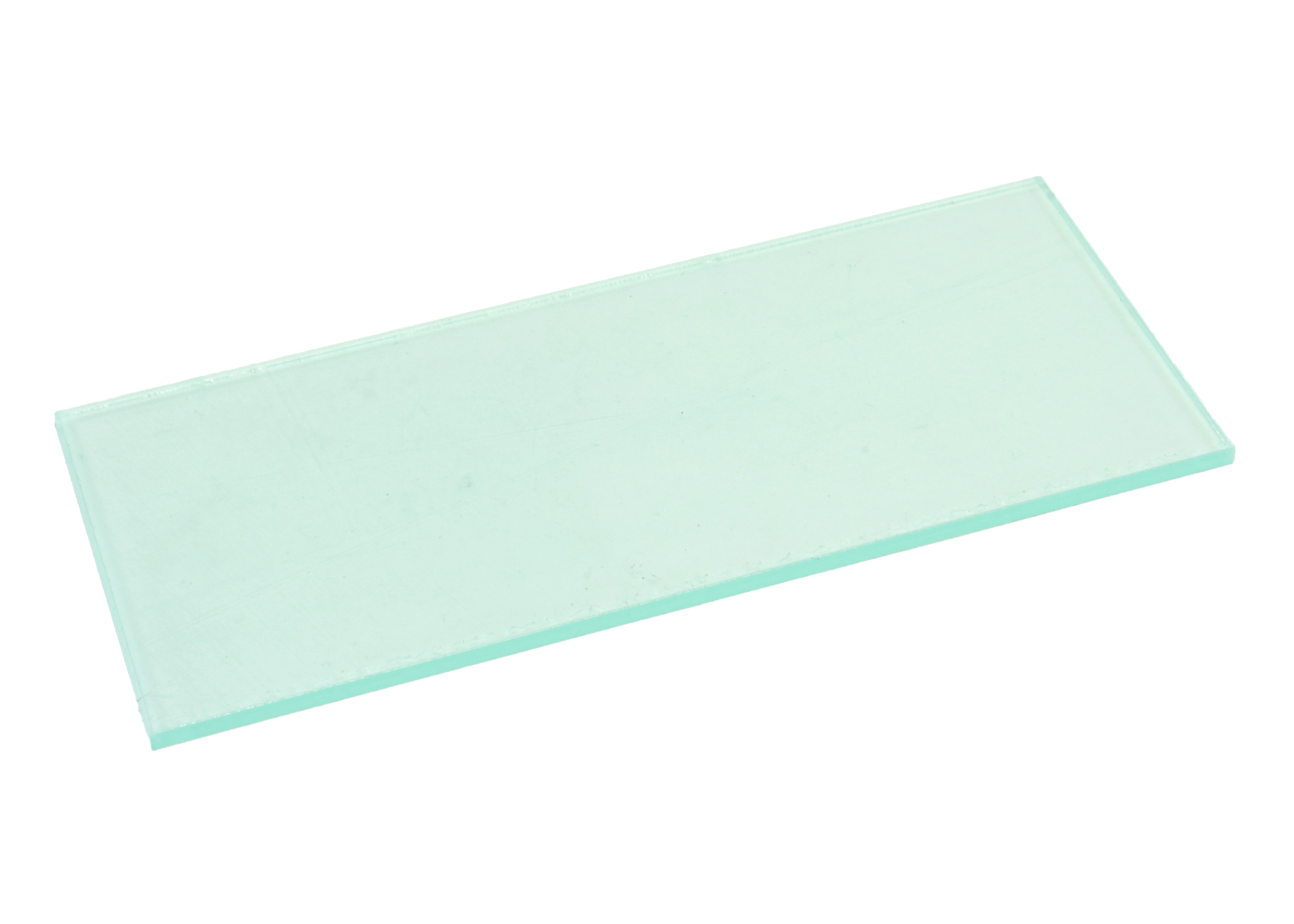

The 1597D6MPTPL is a clear Italtronic top panel cover for the DIN 6 size of the 1597DM Series DIN rail mounted enclosures. The part page describes it as "Italtronic D6 top cover, flat, clear, no clip", and the series ordering table lists it as "Top Panel Cover, Clear" for compatible size DIN 6.
This is the no-clip version among the DIN 6 top cover options: its short description reads "D6 TOP PNL FLAT CLEAR, NO CLIP". It is aimed at designers who want a thin, flat, clear panel over an open-top DIN 6 enclosure.
The cover is made of PC (polycarbonate) with a UL94 V-2 flame rating. It measures 4.02 in x 1.65 in x 0.08 in (102 mm x 42 mm x 2 mm), slightly thinner than the 3 mm DIN 6 covers, and has a shipping weight of 0.02 lbs (0.01 kg). The part is RoHS and REACH compliant.
The 1597D6MPTPL appears as a separately purchased accessory (marked "not included") on the drawings for the DIN 6 open-top enclosures 1597DIN6MDH53, 1597DIN6MDH68 and 1597DIN6MH53. Hammond advises checking the enclosure drawing to confirm compatibility, as not every accessory fits every enclosure in a DIN size group. Some chemicals can damage or weaken plastic; see the Chemical Resistance Statement.
Ideal For
- Flat clear top panel on open-top DIN 6 enclosures
- Viewing window over DIN rail mounted electronics
- OEM control and automation housings
Overview
| Series | 1597DM Series DIN Rail Mounted Enclosures |
| Brand Line | Italtronic |
| Part Number | 1597D6MPTPL |
| Accessory Type | Top Covers |
| Compatible Size | DIN 6 |
| Long Description | Italtronic D6 top cover, flat, clear, no clip |
| Short Description | D6 TOP PNL FLAT CLEAR, NO CLIP |
| Ordering Table Description | Top Panel Cover, Clear |
| Listed On Enclosure Drawing(s) | 1597DIN6MDH53, 1597DIN6MDH68, 1597DIN6MH53 |
Dimensions
| Size (L X W X H) | 4.02 in x 1.65 in x 0.08 in (102 mm x 42 mm x 2 mm) |
Identifiers
| UPC | 623980795393 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Colour | Clear |
| Material | PC |
Environmental & Protection
| Flame Rating | UL94 V-2 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see the Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1597D6MPTPL have clips?▾
No. The manufacturer describes it as a flat clear top cover with no clip.
How thick is it?▾
It measures 4.02 in x 1.65 in x 0.08 in (102 mm x 42 mm x 2 mm).
What material and flame rating?▾
PC with a UL94 V-2 flame rating.
Which enclosures list this panel?▾
The DIN 6 drawings for 1597DIN6MDH53, 1597DIN6MDH68 and 1597DIN6MH53 list it as an accessory.
Is it RoHS compliant?▾
Yes, it is both RoHS and REACH compliant.
