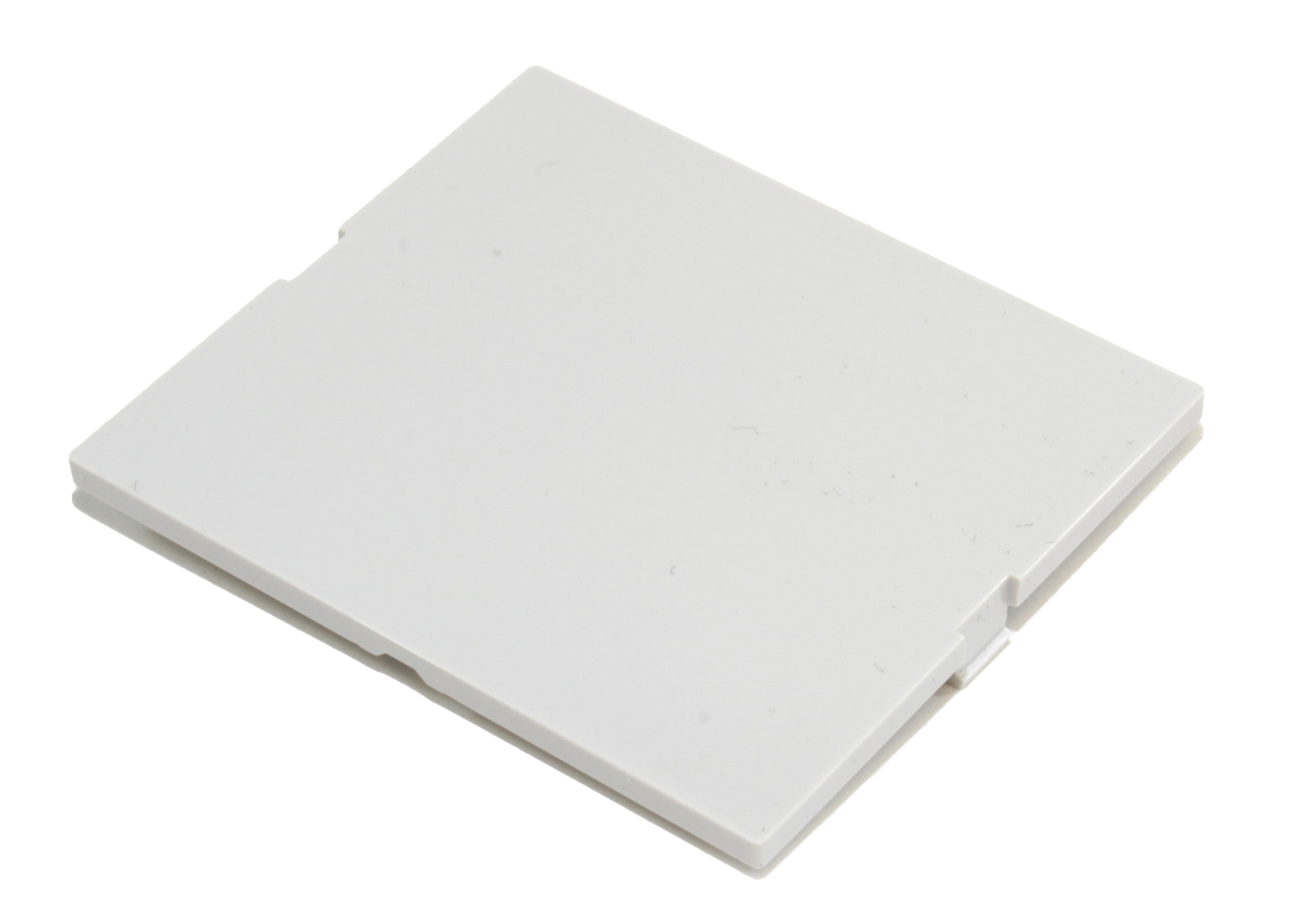

Hammond 1597D3MPH DIN 3 Flat Top Cover, Gray PC-ABS

The 1597D3MPH is a flat, gray Italtronic top cover for DIN 3 enclosures in the 1597DM Series of DIN rail mounted enclosures. Its short description, "D3 TOP PANEL FLAT, CLIPS", identifies it as a flat clip-in top panel. The part drawing shows it with the grey Module 3 enclosure 1597DIN3MH53 and marks the top cover as not included with the enclosure, so this is the part to order when you want to close off the top.

The cover is PC-ABS with a UL94 V-0 flame rating, matching the series specification for gray accessories. It measures 1.93 in x 1.65 in x 0.09 in (49 mm x 42 mm x 2 mm) and ships at 0.01 lbs (0.00 kg). RoHS and REACH compliance are both listed.

For DIN 3, the same drawing lists two other top-cover options: 1597D3MPRH (with inlay, gray) and 1597D3MPRTPC (with inlay, clear). The purchased enclosure itself includes base, cover and DIN clip, with cover and base made from PPO. Hammond notes that some accessories are not compatible with all enclosures in a DIN size group, so check the enclosure drawing before ordering.

The 1597D3MPH suits control panels and OEM equipment that house PCBs, terminal blocks and other DIN rail electronics on standard 35mm rail. Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
