Hammond 1597DIN6MH53 DIN 6 Open Top Enclosure, One Terminal Side Blocked

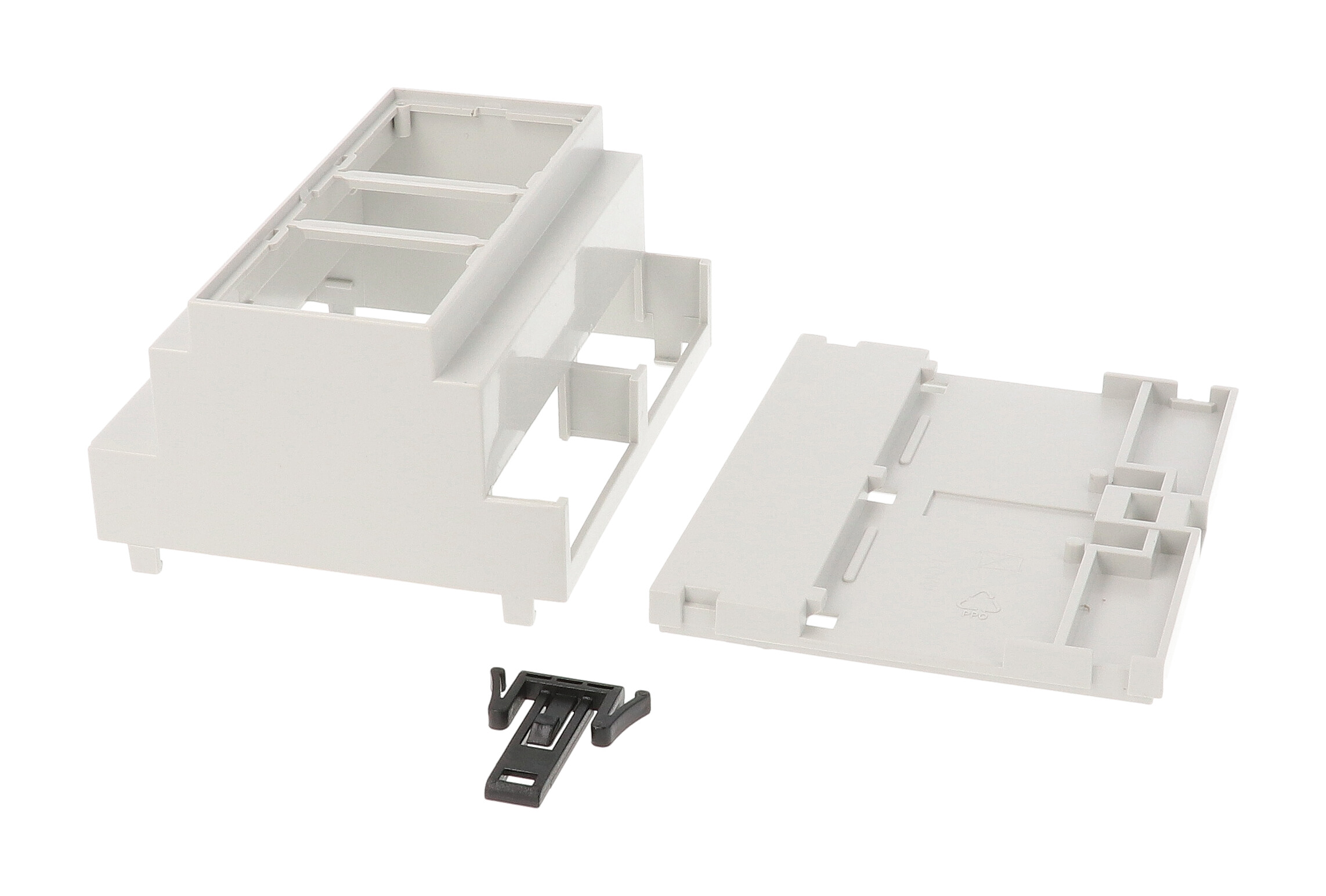

The 1597DIN6MH53 is an Italtronic DIN 6 enclosure from the 1597DM Series with an open top, an open terminal on one side and a blocked terminal on the other. The 106 mm wide housing suits PCB assemblies that need an accessible top and terminal access on one side only.

The long description reads "DIN6, OPEN TOP, OPEN TERMINAL 1 SIDE, BLOCKED TERMINAL 1 SIDE, GREY"; the ordering table lists "Open Top, Open Terminals, 1 Terminal Side Blocked". It is RAL7035 light grey PPO rated UL94 V-0, snaps together with no hardware and mounts on standard 35mm DIN rail through its integrated clip. The purchased enclosure includes base, cover and DIN clip.

Nominal dimensions are 3.54 in x 4.17 in x 2.28 in (90 mm x 106 mm x 58 mm), and the shipping weight is 0.15 lbs (0.07 kg). It is RoHS and REACH compliant.

The drawing lists four DIN 6 top covers, not included: 1597D6MPH gray, 1597D6MPHR gray with inlay, 1597D6MPTPC clear with inlay and 1597D6MPTPL clear top panel cover. The drawing also lists terminal covers 1597D3MTC (blank closed), 1597D3MTC6 (with holes), 1597D3MTCKO (with punch-out holes), 1597D3MBC (with bus connector) and 1597D3MTCP (blank open), the 1597D4MADP bread board and the 1597DINCLIPXT DIN clip. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
