Hammond 1597DIN4MH53 DIN 4 Open Top and Terminals Rail Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- DIN 4 size: 90 mm x 71 mm x 58 mm (3.54 x 2.8 x 2.28 in)
- Open top and open terminals on both sides
- Top covers 1597D4MPH, 1597D4MPHTPC, 1597D4MPRH, 1597D4MPRHTPC (not included)
- RAL7035 light grey PPO, UL94 V-0
- Snap closures; mounts on standard 35mm DIN rail
- Includes base, cover and DIN clip
- RoHS and REACH compliant
The 1597DIN4MH53 is an Italtronic DIN 4 enclosure in the 1597DM Series with an open top and open terminals on both sides. The 71 mm wide housing is aimed at PCB assemblies and DIN rail mounted electronics that need terminal access and a choice of gray or clear top cover.
It is made from RAL7035 light grey PPO with a UL94 V-0 flame rating. Snap closures mean no assembly hardware, and the integrated DIN rail mounting clip fits standard 35mm DIN rail. The purchased enclosure includes base, cover and DIN clip.
Nominal dimensions are 3.54 in x 2.8 in x 2.28 in (90 mm x 71 mm x 58 mm), with a shipping weight of 0.1 lbs (0.05 kg). It is RoHS and REACH compliant.
The drawing lists four top covers (not included): 1597D4MPH gray, 1597D4MPHTPC clear, 1597D4MPRH gray with inlay and 1597D4MPRHTPC clear with inlay. Terminal accessories 1597D4MTC6, 1597D4MTCKO, 1597D4MBC and 1597D4MHSC, the 1597D4MADP bread board and 1597DINCLIPXT DIN clip are also listed. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
Ideal For
- Open-top PCB housings on DIN rail
- Terminal-access control electronics
- DIN rail modules with clear or gray top covers
Mounting
| Mounting | Standard 35mm DIN rail via integrated DIN rail mounting clip |
Overview
| Series | 1597DM Series DIN Rail Mounted Enclosures |
| Features | Open Top, Open Terminals |
| Included | Base, cover and DIN clip |
| Brand Line | Italtronic |
| Part Number | 1597DIN4MH53 |
| Solid Models | .stp or .x_t |
| DIN Size Group | DIN 4 |
| Long Description | Italtronic DIN4, OPEN TOP, OPEN TERMINALS 2 SIDES, GREY |
| Short Description | DIN4 OPEN TOP, OPEN TERMINALS |
| Factory Modification | Milling, drilling, printing etc. available by quote |
| DIN Group Number Meaning | Refers to the number of terminals on each side of the enclosure |
| Compatible Accessories (Per Drawing) | 1597D4MPH (Top Cover, Grey); 1597D4MPHTPC (Top Cover, Clear); 1597D4MPRH (Top Cover with Inlay, Grey); 1597D4MPRHTPC (Top Cover with Inlay, Clear); 1597D4MTC6 (Terminal Cover with Holes); 1597D4MTCKO (Terminal Cover with Punch-Out Holes); 1597D4MBC (Terminal Cover with Bus Connector); 1597D4MHSC (Terminal Inside Cover); 1597D4MADP (Bread Board); 1597DINCLIPXT (DIN Clip) |
Dimensions
| Size (L X W X H) | 3.54 in x 2.8 in x 2.28 in (90 mm x 71 mm x 58 mm) |
| Depth (Ordering Table) | 58 mm |
| Width (Ordering Table) | 71 mm |
| Length (Ordering Table) | 90 mm |
Identifiers
| UPC | 623980625478 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Colour | RAL7035 light grey |
| Assembly | Snap closures, no hardware required |
| Material | PPO |
| Cover And Base Material (Drawing) | PPO |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see the Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which top covers fit the 1597DIN4MH53?▾
1597D4MPH, 1597D4MPHTPC, 1597D4MPRH and 1597D4MPRHTPC, sold separately.
What are the dimensions?▾
3.54 in x 2.8 in x 2.28 in (90 mm x 71 mm x 58 mm).
Is there a taller DIN 4 version?▾
Yes, 1597DIN4MH68 is the tall open-top, open-terminal DIN 4 version with 73 mm depth.
Is it vented?▾
No; the vented open-top, open-terminal DIN 4 version is 1597DIN4MH53V.
What is included?▾
Base, cover and DIN clip.
Related Products
Save 52%1597DIN4MC53 — Italtronic DIN4, CLOSED TOP, CLOSED TERMINALS 2 SIDES, GREY
Hammond Manufacturing · 1597DIN4MC53
Save 52%1597DIN4MH53V — Italtronic DIN4, OPEN TOP, OPEN TERMINALS 2 SIDES, VENTED, GREY
Hammond Manufacturing · 1597DIN4MH53V
Save 52%1597DIN4M53V — Italtronic DIN4, OPEN TOP, CLOSED TERMINALS 2 SIDES, VENTED, GREY
Hammond Manufacturing · 1597DIN4M53V

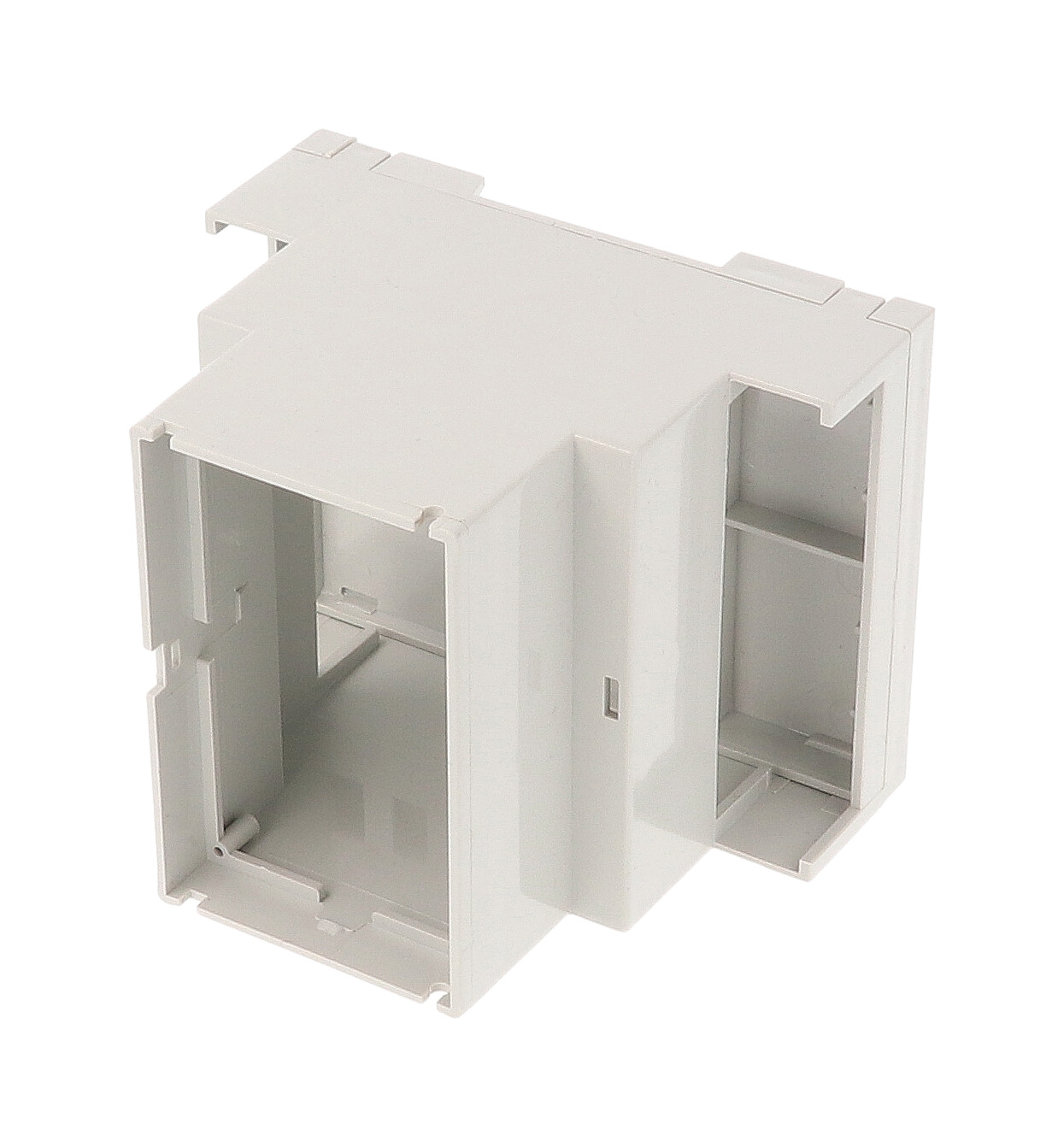

Save 52%1597DIN4MH68 — Italtronic DIN4, OPEN TOP, OPEN TERMINALS 2 SIDES, TALL, GREY
