Hammond 1597DIN3MH53 DIN 3 Open Top and Terminals Rail Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- DIN 3 size: 90 mm x 53 mm x 58 mm (3.54 x 2.09 x 2.28 in)
- Open top and open terminals on both sides
- Top covers 1597D3MPH, 1597D3MPRH, 1597D3MPRTPC (not included)
- Five DIN 3 terminal cover options listed
- RAL7035 light grey PPO, UL94 V-0; snap closures
- Mounts to standard 35mm DIN rail; includes DIN clip
- RoHS and REACH compliant

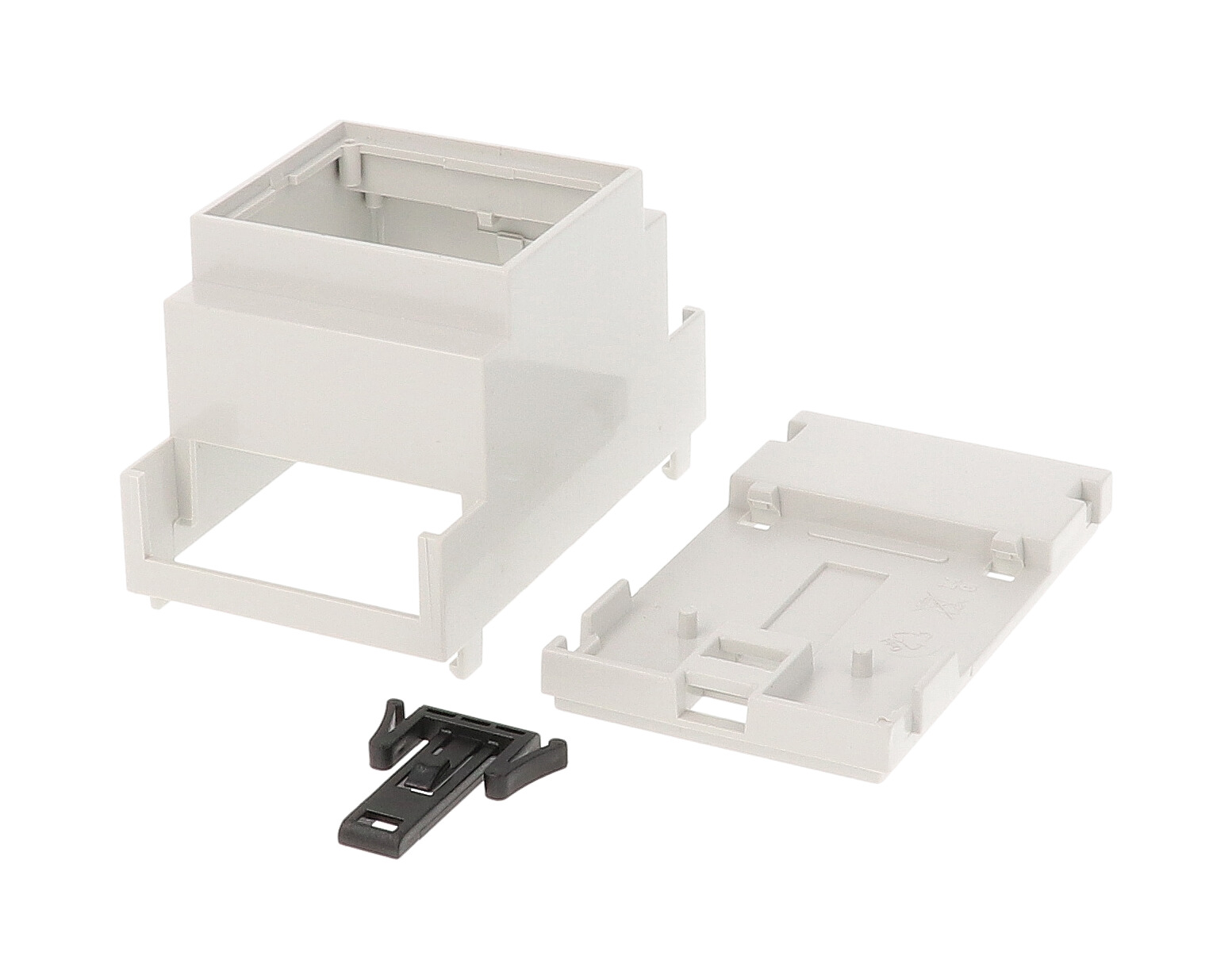

The 1597DIN3MH53 is an Italtronic DIN 3 enclosure in the 1597DM Series with an open top and open terminals on both sides. The 53 mm wide housing suits PCB assemblies and DIN rail mounted electronics that need terminal access and a top opening for a gray or clear cover.
The housing is RAL7035 light grey PPO rated UL94 V-0. Snap closures eliminate assembly hardware, and the integrated DIN rail mounting clip fits standard 35mm DIN rail. Base, cover and DIN clip are included with the purchased enclosure.
Nominal dimensions are 3.54 in x 2.09 in x 2.28 in (90 mm x 53 mm x 58 mm), with a shipping weight of 0.08 lbs (0.04 kg). The part is RoHS and REACH compliant.
The drawing lists top covers 1597D3MPH (gray), 1597D3MPRH (gray with inlay) and 1597D3MPRTPC (clear with inlay), which are not included, plus terminal covers 1597D3MTC, 1597D3MTC6, 1597D3MTCKO, 1597D3MBC and 1597D3MTCP, the 1597D4MADP bread board and the 1597DINCLIPXT DIN clip. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
Ideal For
- Open-top PCB housings on DIN rail
- Terminal block enclosures with field wiring access
- Control modules with clear viewing covers
Mounting
| Mounting | Standard 35mm DIN rail via integrated DIN rail mounting clip |
Overview
| Series | 1597DM Series DIN Rail Mounted Enclosures |
| Features | Open Top, Open Terminals |
| Included | Base, cover and DIN clip |
| Brand Line | Italtronic |
| Part Number | 1597DIN3MH53 |
| Solid Models | .stp or .x_t |
| DIN Size Group | DIN 3 |
| Long Description | Italtronic DIN3, OPEN TOP, OPEN TERMINALS 2 SIDES, GREY |
| Short Description | DIN3 OPEN TOP, OPEN TERMINALS |
| Factory Modification | Milling, drilling, printing etc. available by quote |
| DIN Group Number Meaning | Refers to the number of terminals on each side of the enclosure |
| Compatible Accessories (Per Drawing) | 1597D3MPH (Top Cover, Grey); 1597D3MPRH (Top Cover with Inlay, Grey); 1597D3MPRTPC (Top Cover with Inlay, Clear); 1597D3MTC (Terminal Cover Blank Closed); 1597D3MTC6 (Terminal Cover with Holes); 1597D3MTCKO (Terminal Cover with Punch-Out Holes); 1597D3MBC (Terminal Cover with Bus Connector); 1597D3MTCP (Terminal Cover Blank Open); 1597D4MADP (Bread Board); 1597DINCLIPXT (DIN Clip) |
Dimensions
| Size (L X W X H) | 3.54 in x 2.09 in x 2.28 in (90 mm x 53 mm x 58 mm) |
| Depth (Ordering Table) | 58 mm |
| Width (Ordering Table) | 53 mm |
| Length (Ordering Table) | 90 mm |
Identifiers
| UPC | 623980625454 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.08 lbs (0.04 kg) |
Construction & Finish
| Colour | RAL7035 light grey |
| Assembly | Snap closures, no hardware required |
| Material | PPO |
| Cover And Base Material (Drawing) | PPO |
Environmental & Protection
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see the Chemical Resistance Statement |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which top covers fit the 1597DIN3MH53?▾
1597D3MPH (gray), 1597D3MPRH (gray with inlay) and 1597D3MPRTPC (clear with inlay), sold separately.
What are the dimensions?▾
90 mm x 53 mm x 58 mm (3.54 in x 2.09 in x 2.28 in).
What does it weigh?▾
0.08 lbs (0.04 kg) shipping weight.
What rail does it mount on?▾
Standard 35mm DIN rail using the integrated mounting clip.
Is it RoHS compliant?▾
Yes, it is RoHS and REACH compliant.
