Hammond 1597D2MPH DIN 2 Flat Gray Top Cover With Clips

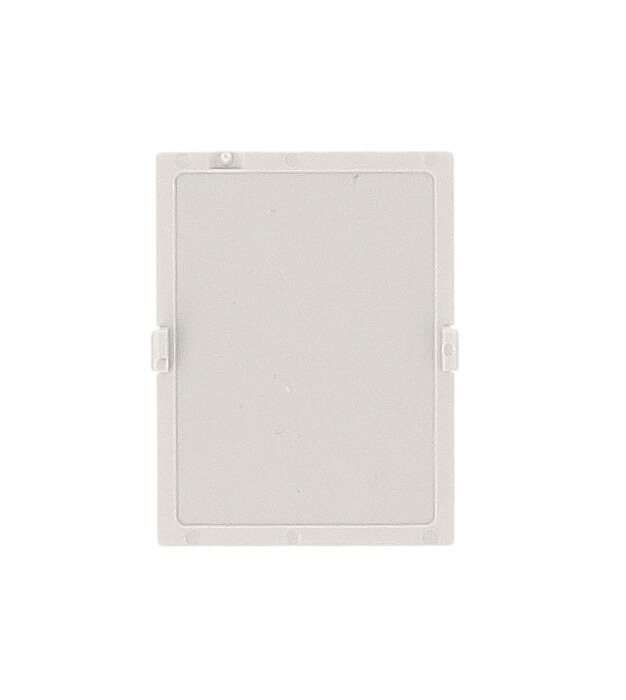

The 1597D2MPH is a flat gray top cover for DIN 2 size enclosures in the Italtronic brand DIN rail enclosure line. Its short description, D2 top panel flat, clips, indicates a clip-on flat panel. It is intended for builders who use an open-top DIN 2 enclosure and want to close the top with a plain gray panel.

The cover measures 1.65 in x 1.25 in x 0.08 in (42 mm x 32 mm x 2 mm), with the enclosure drawing showing the top cover at 42.00 mm (1.65 in) by 31.80 mm (1.25 in). It weighs 0.01 lbs (0.00 kg) shipped. The material is PC-ABS with a UL94 V-0 flame rating, consistent with the series note on gray accessories.

The 1597DIN2MH53 enclosure drawing (Enclosure grey Module 2) lists the 1597D2MPH as an accessory and marks the top cover as not included with that enclosure, which ships with base, cover and DIN clip in PPO. Other DIN 2 top covers are 1597D2MPRH with inlay in gray and 1597D2MPRTPC with inlay in clear. The manufacturer notes some accessories are not compatible with all enclosures in a DIN size group, so check the enclosure drawing.

The 1597D2MPH is REACH and RoHS compliant, UPC 623980795065. The manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers and strong solvents on its plastics.
