Hammond 1597DINCLIP1M DIN1 Replacement Rail Clip, 5 Pack
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 5 replacement DIN clips
- Fits DIN1 size 1597DM enclosures
- For mounting on standard 35 mm DIN rail
- PPO material with UL94 V-0 flame rating
- Size 32 x 11 x 20 mm (1.27 x 0.44 x 0.8 in)
- RoHS and REACH compliant
The 1597DINCLIP1M is a five-piece pack of replacement DIN clips for DIN 1 size enclosures in the 1597DM DIN Rail Mounted Enclosures series. The 1597DM enclosures mount onto standard 35 mm DIN rails using an integrated DIN rail mounting clip; this pack lets maintenance teams and panel builders replace lost or damaged clips on the single-module units.
The series ordering table lists it as a DIN Clip (5 pack) with compatible size DIN1. In this series the DIN 1 group covers enclosures such as 1597DIN1MC53 and 1597DIN1MH53. For DIN 2 through DIN 9 enclosures the series uses a different clip, 1597DINCLIPXT.
Each clip is made of PPO with a UL94 V-0 flame rating. The listed size is 1.27 x 0.44 x 0.8 in (32 x 11 x 20 mm) and the shipping weight is 0.01 lbs (0.00 kg). Hammond's long description reads "5PC BLACK DINCLIP REPLACEMENT Italtronic", while the short description reads "1M DINCLIP GRAY (5 PK)".
The 1597DINCLIP1M is RoHS and REACH compliant. Some chemicals can damage or weaken plastic, so check the manufacturer's chemical resistance guidance before exposing the clips to solvents, thread lockers or cutting fluid.
Ideal For
- Replacing DIN clips on DIN1 1597DM enclosures
- Spares for DIN rail mounted electronics
- Control panel maintenance
Overview
| Series | 1597DM DIN Rail Mounted Enclosures (Italtronic) |
| Description | DIN Clip (5 pack) |
| Pack Quantity | 5 |
| Compatible Size | DIN1 |
| Long Description | 5PC BLACK DINCLIP REPLACEMENT Italtronic |
| Short Description | 1M DINCLIP GRAY (5 PK) |
Dimensions
| Size (L X W X H) | 1.27 in x 0.44 in x 0.8 in (32 mm x 11 mm x 20 mm) |
Identifiers
| UPC | 623980795454 |
| UNSPSC | 39121301 |
Rack Mounting
| Rail Type | Standard 35 mm DIN rail |
Packaging & Shipping
| Shipping Weight | 0.01 lbs (0.00 kg) |
Construction & Finish
| Material | PPO |
| Flame Rating | UL94 V-0 |
Environmental & Protection
| Chemical Resistance | Some chemicals can damage or weaken plastic; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1597DINCLIP1M fit?▾
The series table lists its compatible size as DIN1, the single-module enclosures in the 1597DM series.
How many clips are in the pack?▾
Five.
What about DIN 2 to DIN 9 enclosures?▾
The series lists 1597DINCLIPXT as the DIN clip for DIN2, DIN3, DIN4, DIN5, DIN6 and DIN9 sizes.
What material are the clips?▾
PPO with a UL94 V-0 flame rating.
What colour are they?▾
The long description says black, while the short description says gray.
Related Products

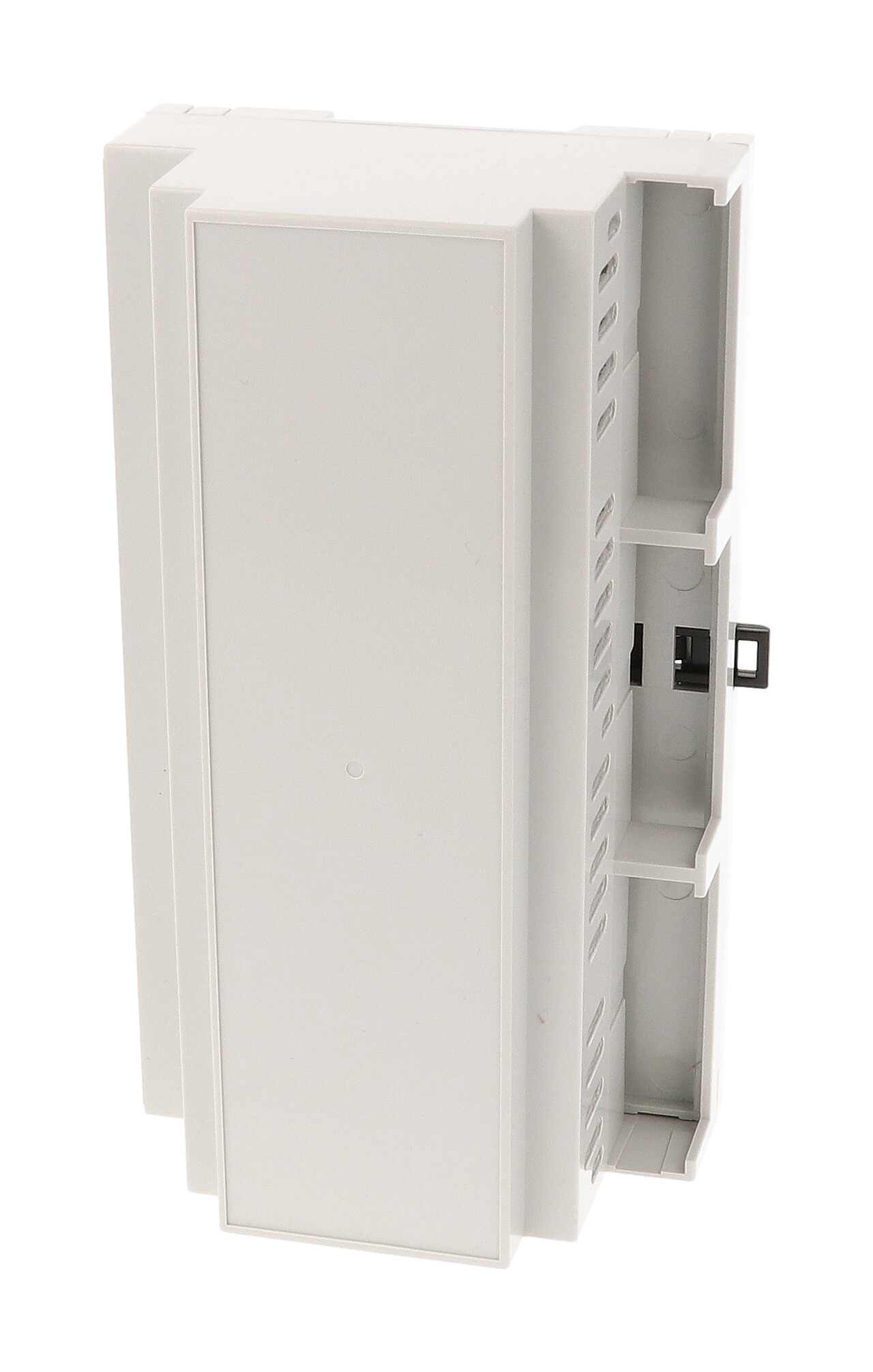

Save 52%1597DIN9MHC53V — Italtronic DIN9, CLOSED TOP, CLOSED TERMINAL 1 SIDE, BLOCKED TERMINAL 1 SIDE, VENTED, GREY
Hammond Manufacturing · 1597DIN9MHC53V
Save 52%1597DINCLIPXT — 5PC BLACK DINCLIP REPLACEMENT Italtronic
Hammond Manufacturing · 1597DINCLIPXT

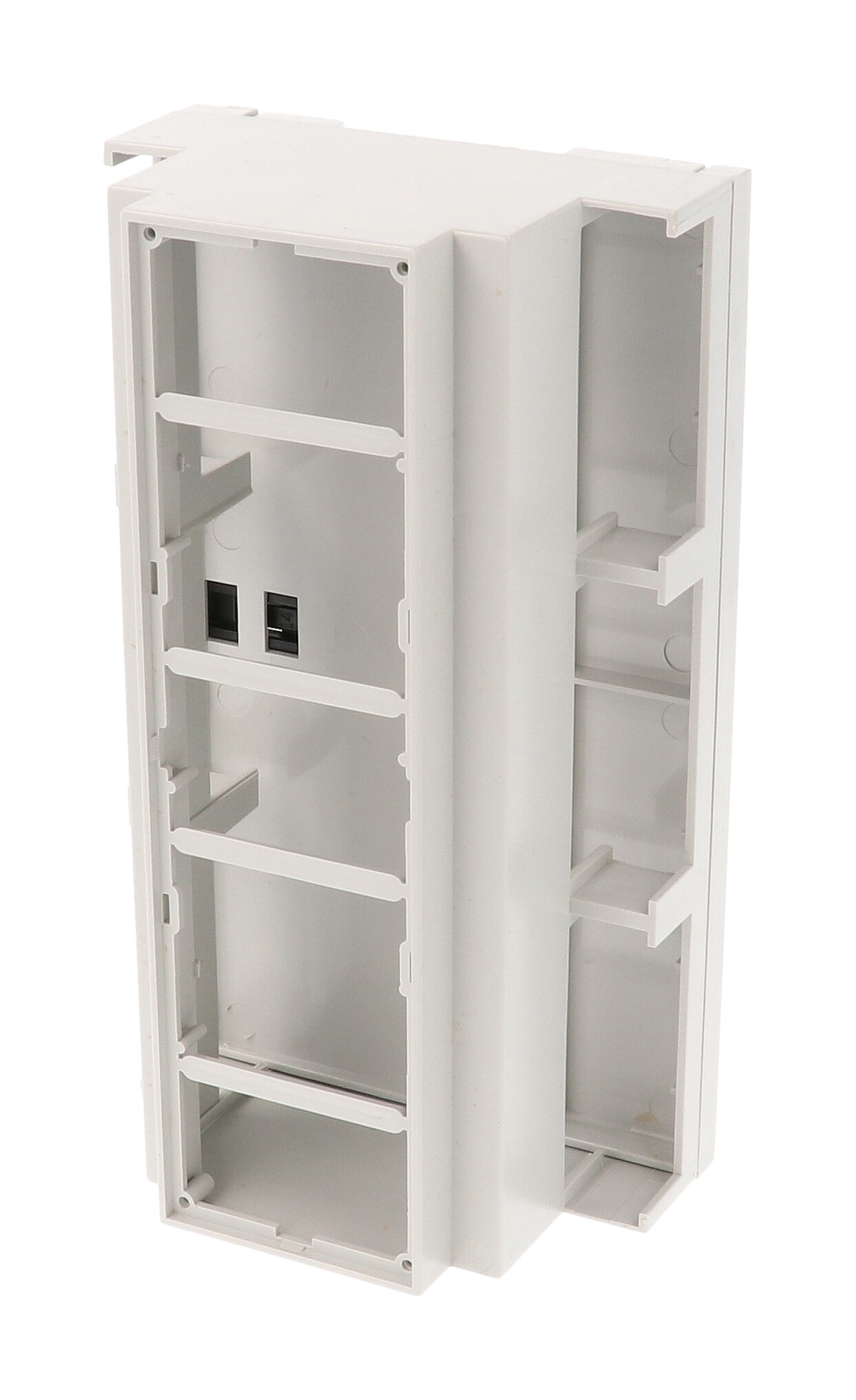

Save 52%1597DIN9MDH53 — Italtronic DIN9, OPEN TOP, OPEN TERMINALS 2 SIDES, GREY
Hammond Manufacturing · 1597DIN9MDH53

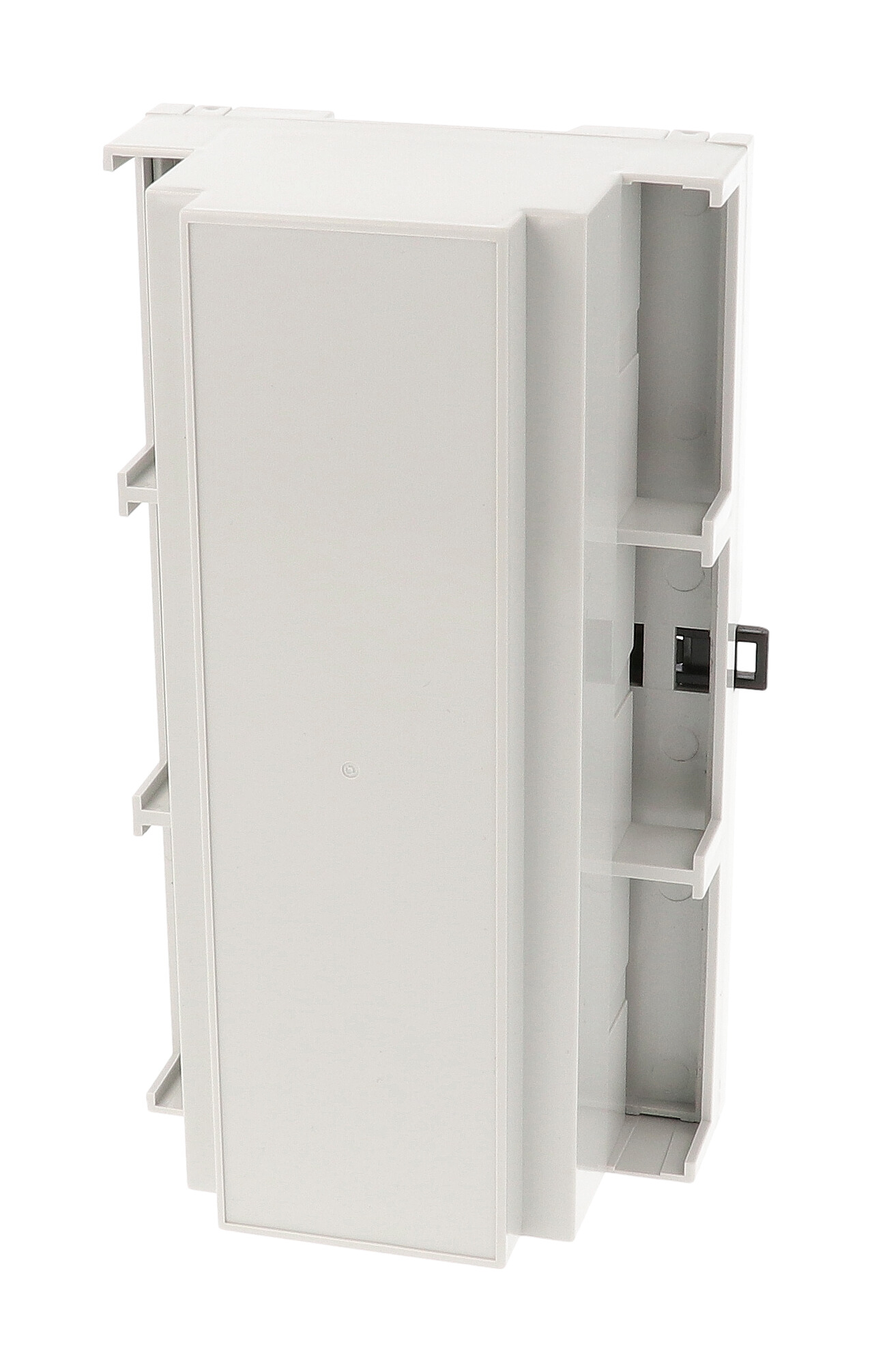

Save 52%1597DIN9MDC53 — Italtronic DIN9, CLOSED TOP, CLOSED TERMINAL 2 SIDE, GREY
Hammond Manufacturing · 1597DIN9MDC53

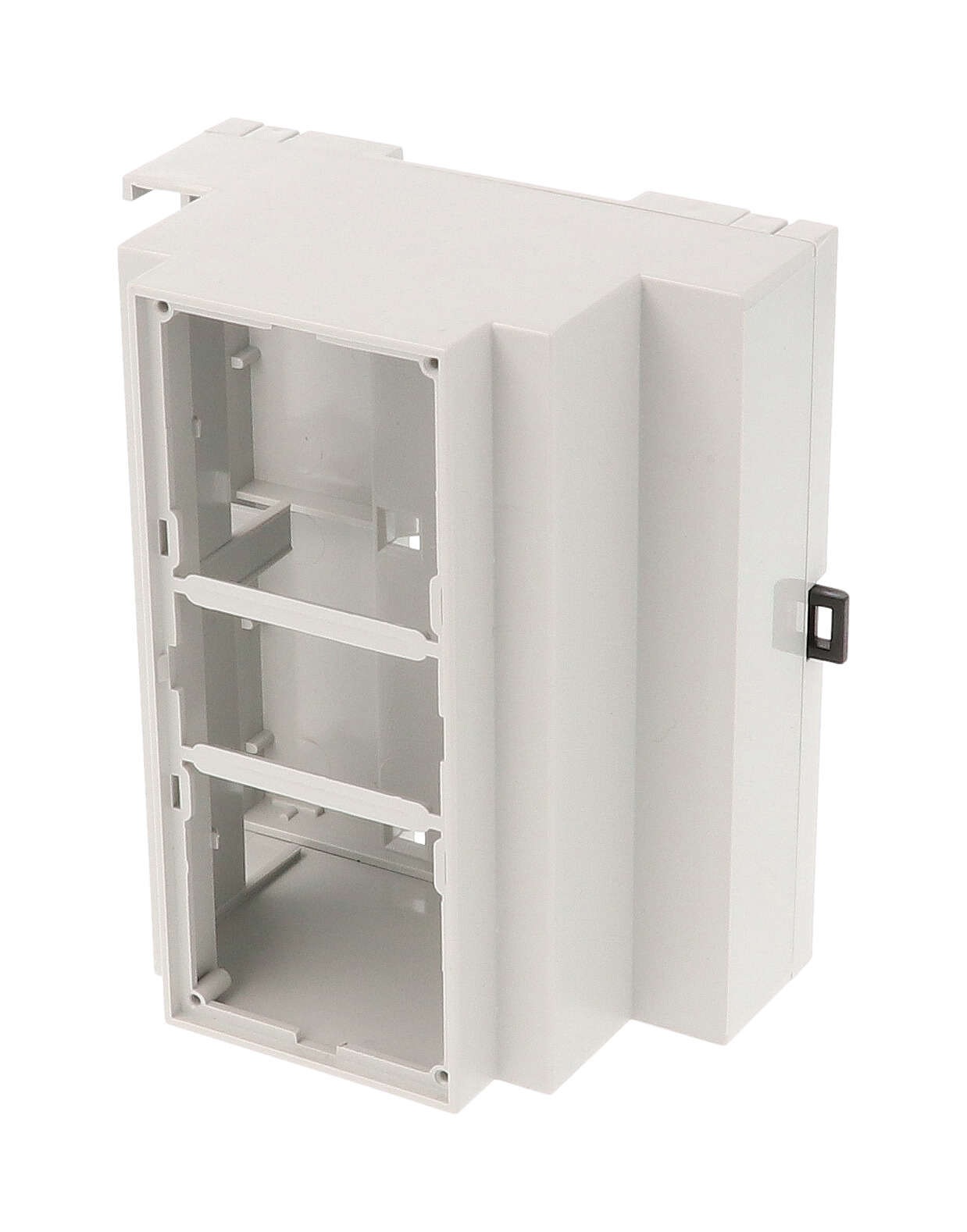

Save 52%1597DIN6MH53 — Italtronic DIN6, OPEN TOP, OPEN TERMINAL 1 SIDE, BLOCKED TERMINAL 1 SIDE, GREY
