Hammond 1597D5MPH DIN 5 Flat Top Cover, Gray PC-ABS

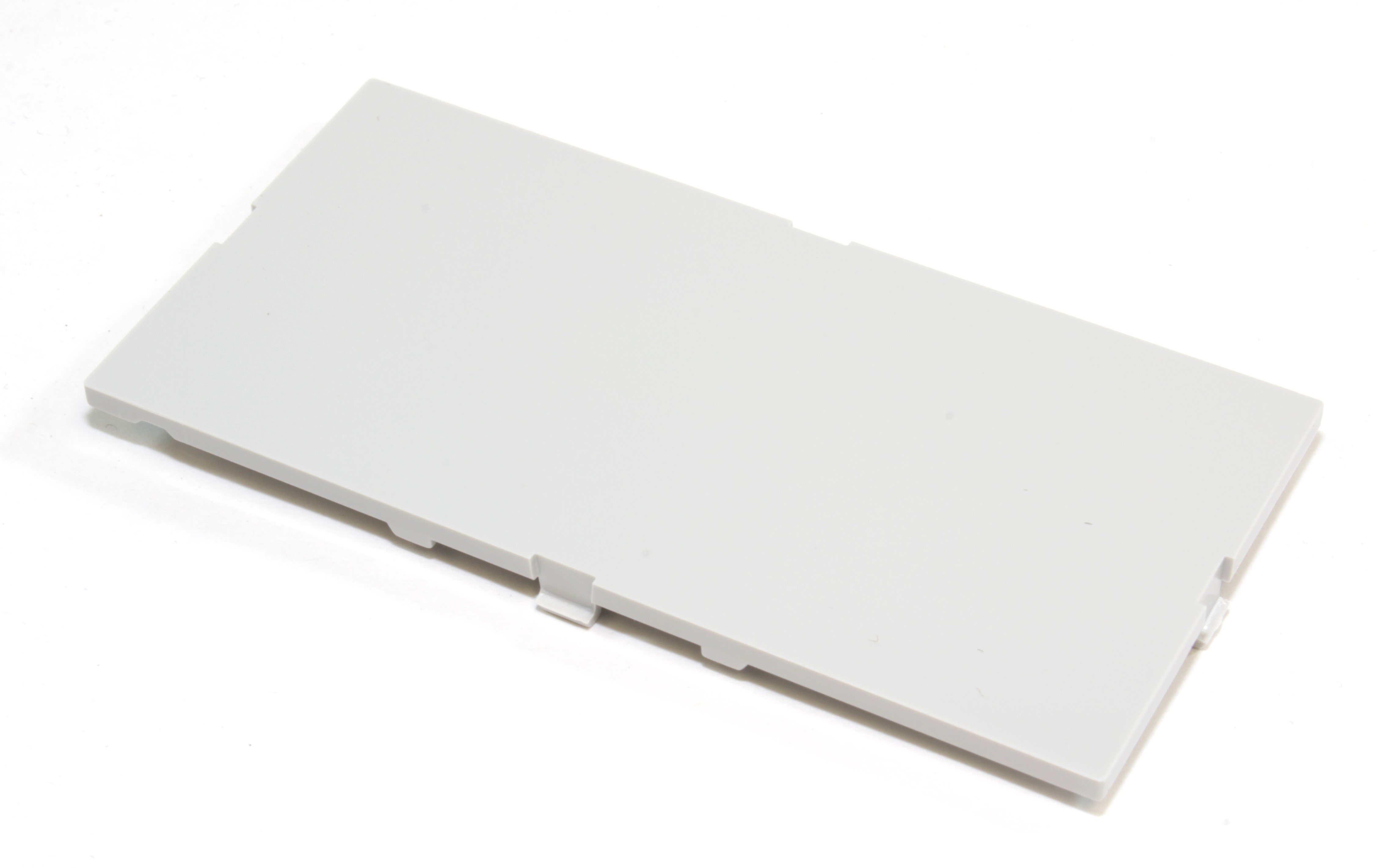

The 1597D5MPH is a flat, gray Italtronic top cover for DIN 5 enclosures in the 1597DM Series of DIN rail mounted enclosures. Its short description, "D5 TOP PANEL FLAT, CLIPS", identifies it as the flat clip-in top panel. The DIN 5 drawing shows it on the grey Module 5 enclosure and marks the top cover as not included with the enclosure; the series table lists 1597DIN5MH53 as the DIN 5 enclosure.

It is made from PC-ABS with a UL94 V-0 flame rating and measures 3.32 in x 1.65 in x 0.09 in (84 mm x 42 mm x 2 mm). Shipping weight is 0.02 lbs (0.01 kg). It is RoHS and REACH compliant.

Other DIN 5 top covers are the 1597D5MPRH (with inlay, gray) and 1597D5MPRHTPC (with inlay, clear). The enclosure itself includes base, cover and DIN clip, with cover and base in PPO, and the DIN 5 drawing also lists blank closed, holed and punch-out terminal covers. Hammond notes that some accessories are not compatible with all enclosures in a DIN size group and recommends checking the enclosure drawing to confirm fit.

The 1597D5MPH suits panel builders and OEM engineers housing printed circuit boards and terminal blocks on 35mm DIN rail. Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
