Hammond 1597D3MBC DIN 3, 6 & 9 Terminal Cover With Bus Connector

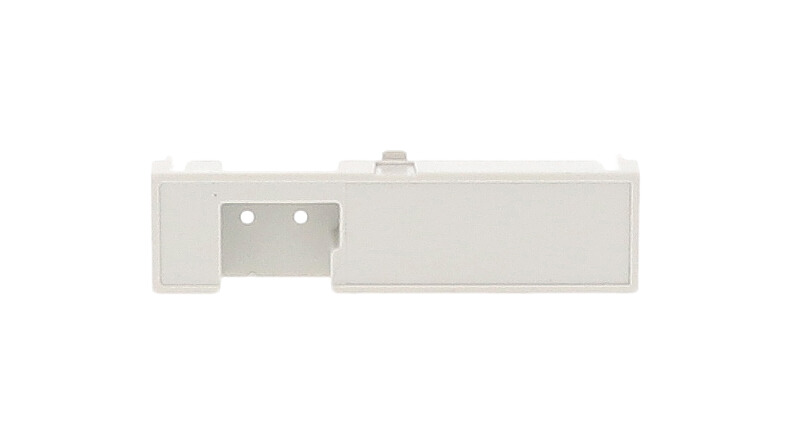

The 1597D3MBC is an Italtronic terminal insert with a bus connector, made for the 1597DM Series of DIN rail mounted enclosures. The series accessory table lists it as a terminal cover "With Bus Connector" for the DIN 3, DIN 6 and DIN 9 size groups, making it a useful part for panel builders and OEM engineers who want a bus-connector style terminal face on their DIN rail electronics housing.

It is moulded from PC-ABS with a UL94 V-0 flame rating, the material and rating the series specifies for its gray accessories. The part measures 2.07 in x 0.54 in x 0.79 in (53 mm x 14 mm x 20 mm) and has a shipping weight of 0.01 lbs (0.00 kg).

In the 1597DM range, DIN group numbers refer to the number of terminals on each side of the enclosure, and the DIN 3, 6 and 9 enclosures share this one family of terminal covers. The same D3 terminal-cover drawing also shows the blank closed, blank open, with-holes and punch-out versions, so you can mix terminal faces across a project. Hammond notes that some accessories are not compatible with every enclosure in a DIN size group, so confirm fit against your enclosure's drawing.

The 1597D3MBC is RoHS and REACH compliant. Some chemicals can damage or weaken plastic, so check the manufacturer's Chemical Resistance Statement before using solvents, thread-locking compounds or cutting fluids near the part.
