Hammond 1597D2MPRTPC DIN 2 Clear Top Cover With Inlay

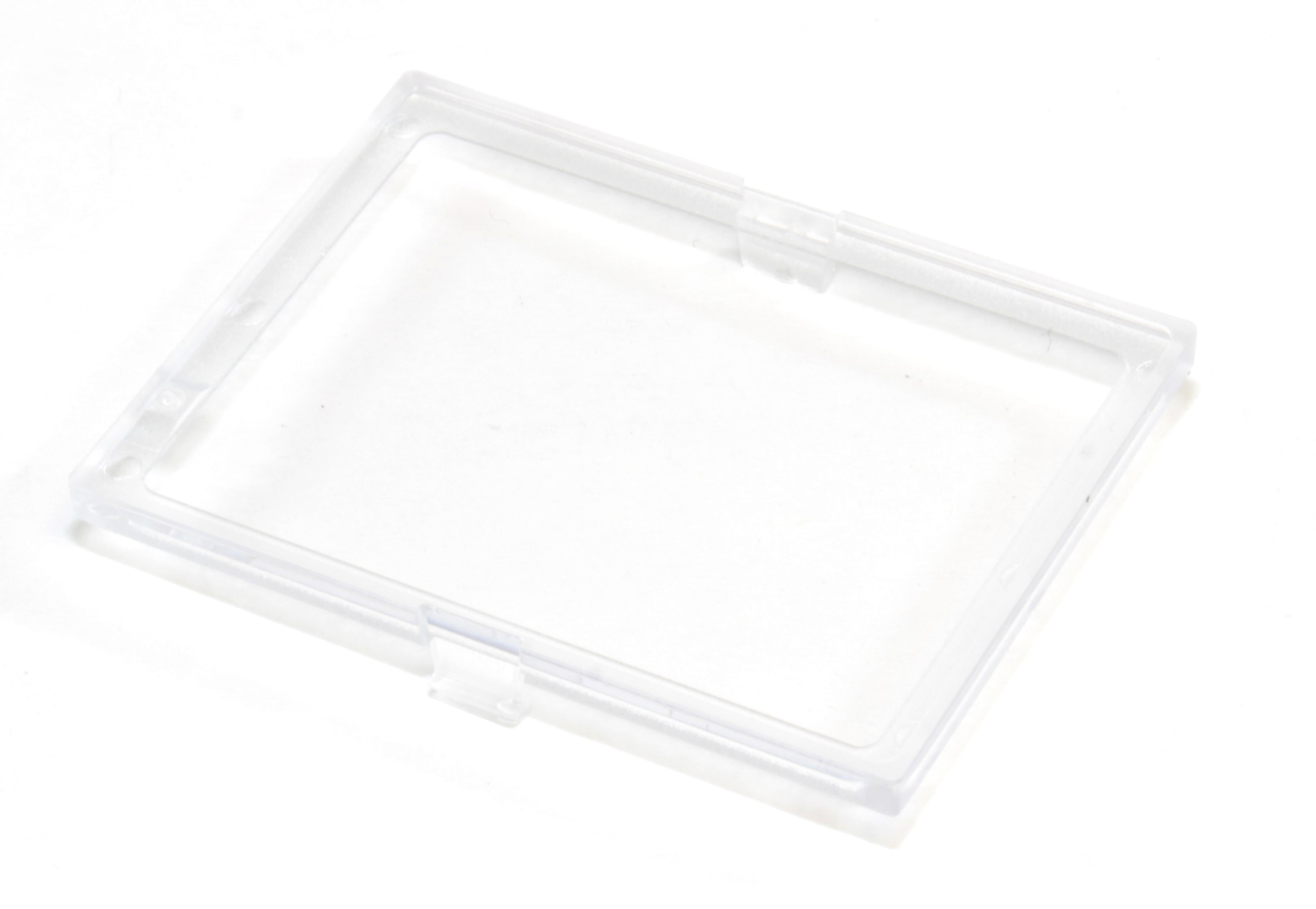

The 1597D2MPRTPC is a clear top cover with inlay for DIN 2 size enclosures in the Italtronic brand DIN rail enclosure line, described as a D2 top panel inlay, clear, with clips. A clear top lets installers and maintenance staff see LEDs or displays on the board inside a DIN rail mounted enclosure without opening it.

The cover measures 1.65 in x 1.25 in x 0.1 in (42 mm x 32 mm x 3 mm), with the drawing showing 42.00 mm (1.65 in) length and a 40.40 mm (1.59 in) inlay dimension, and weighs 0.01 lbs (0.00 kg) shipped. Unlike the gray covers, it is made of PC with a UL94 V-2 flame rating, matching the series statement that clear accessories are PC rated UL94 V-2.

The 1597DIN2MH53 enclosure drawing (Enclosure grey Module 2) lists 1597D2MPRTPC among its accessories and marks the top cover with inlay as not included. Gray alternatives are 1597D2MPRH with inlay and 1597D2MPH flat. The manufacturer notes that some accessories are not compatible with all enclosures in a DIN size group, so check the enclosure drawing before ordering.

The 1597D2MPRTPC is REACH and RoHS compliant, UPC 623980795126. Polycarbonate can be affected by some chemicals; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread lockers and strong solvents, and recommends cleaners listed as plastic safe.
