Hammond 1597DIN6MDC53 DIN 6 Closed Top and Terminals Rail Enclosure

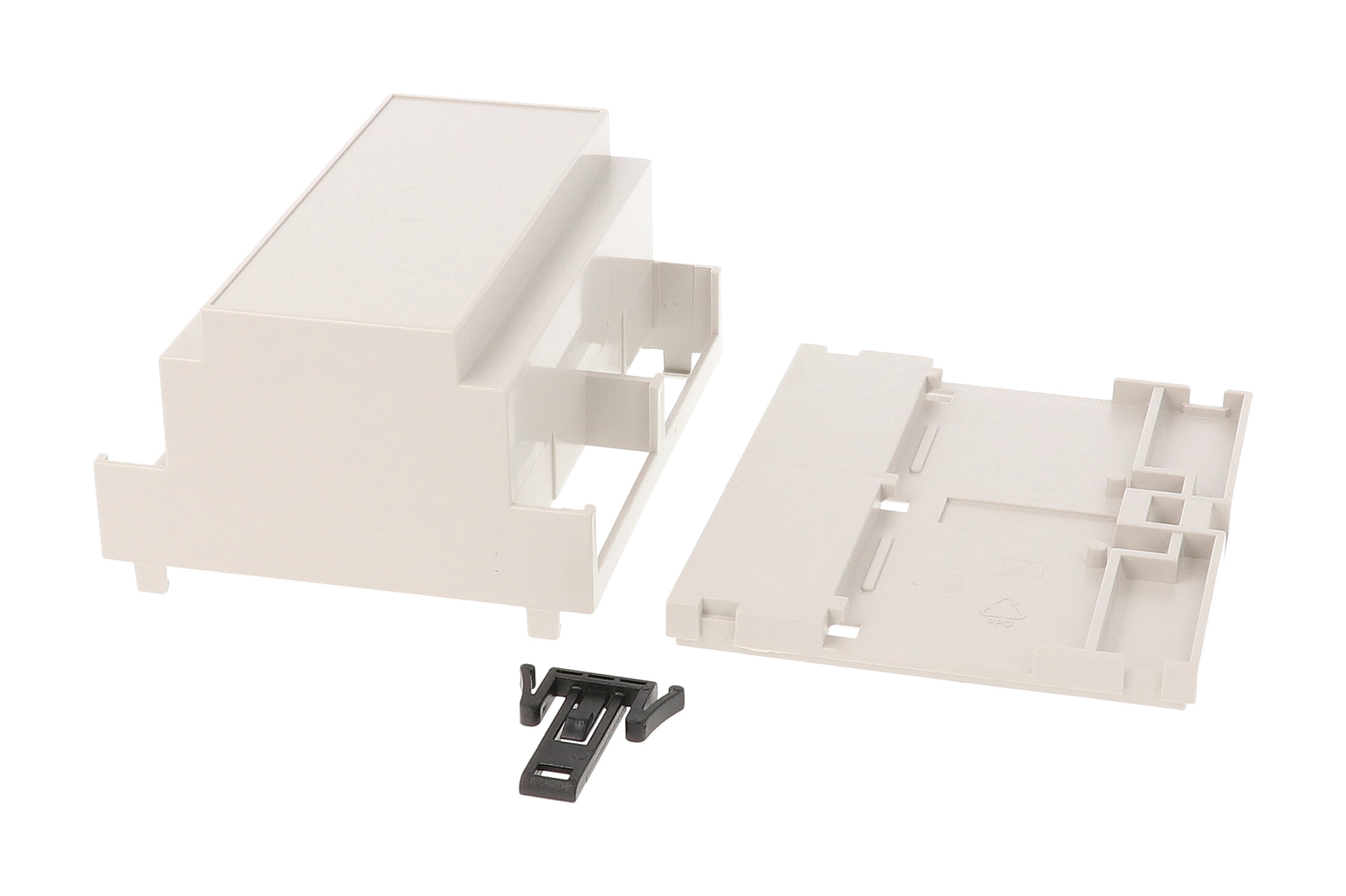

The 1597DIN6MDC53 is an Italtronic DIN 6 enclosure from the 1597DM Series with a closed top and closed terminals on both sides. The 106 mm wide housing gives room for wider printed circuit boards and DIN rail mounted electronics behind a closed face.

It is RAL7035 light grey PPO with a UL94 V-0 flame rating. Snap closures mean no hardware is required, and the integrated DIN rail mounting clip fits standard 35mm DIN rail. Base, cover and DIN clip are included with the purchased enclosure.

Nominal dimensions are 3.54 in x 4.17 in x 2.28 in (90 mm x 106 mm x 58 mm), with a shipping weight of 0.16 lbs (0.07 kg). It is RoHS and REACH compliant.

The 1597DIN6MDC53 drawing lists terminal covers 1597D3MTC (blank closed), 1597D3MTC6 (with holes), 1597D3MTCKO (with punch-out holes), 1597D3MBC (with bus connector) and 1597D3MTCP (blank open), together with the 1597D4MADP bread board and 1597DINCLIPXT DIN clip. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
