Hammond 1597DIN3MC53 DIN 3 Closed Top Rail Enclosure, 53 mm Wide

The 1597DIN3MC53 is an Italtronic DIN 3 enclosure from the 1597DM Series with a closed top and closed terminals on both sides. The 53 mm wide housing gives room for printed circuit boards, terminal blocks and other DIN rail mounted electronics behind a closed face.

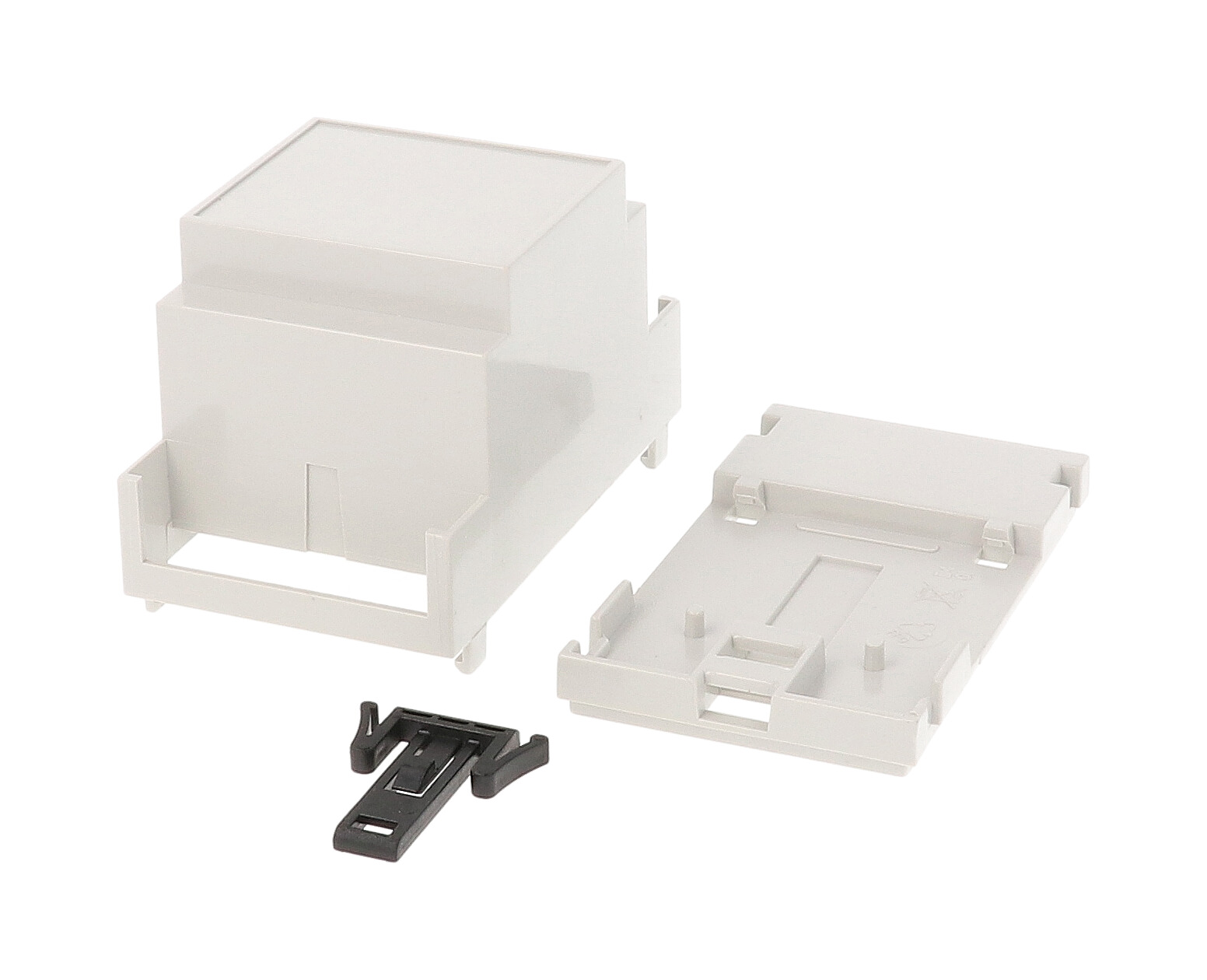

It is constructed of RAL7035 light grey PPO with a UL94 V-0 flame rating. Snap closures mean no hardware is required, and the integrated clip mounts it to a standard 35mm DIN rail. The purchased enclosure includes base, cover and DIN clip.

Nominal dimensions are 3.54 in x 2.09 in x 2.28 in (90 mm x 53 mm x 58 mm). Shipping weight is 0.09 lbs (0.04 kg). It is RoHS and REACH compliant.

The 1597DIN3MC53 drawing lists five terminal covers: 1597D3MTC (blank closed), 1597D3MTC6 (with holes), 1597D3MTCKO (with punch-out holes), 1597D3MBC (with bus connector) and 1597D3MTCP (blank open), along with the 1597D4MADP bread board and 1597DINCLIPXT DIN clip. Enclosures in this series can be factory modified (milling, drilling, printing etc.) on a quote basis, and solid models are available in .stp or .x_t formats. Some chemicals can damage or weaken plastic, so review the Chemical Resistance Statement before cleaning or machining.
