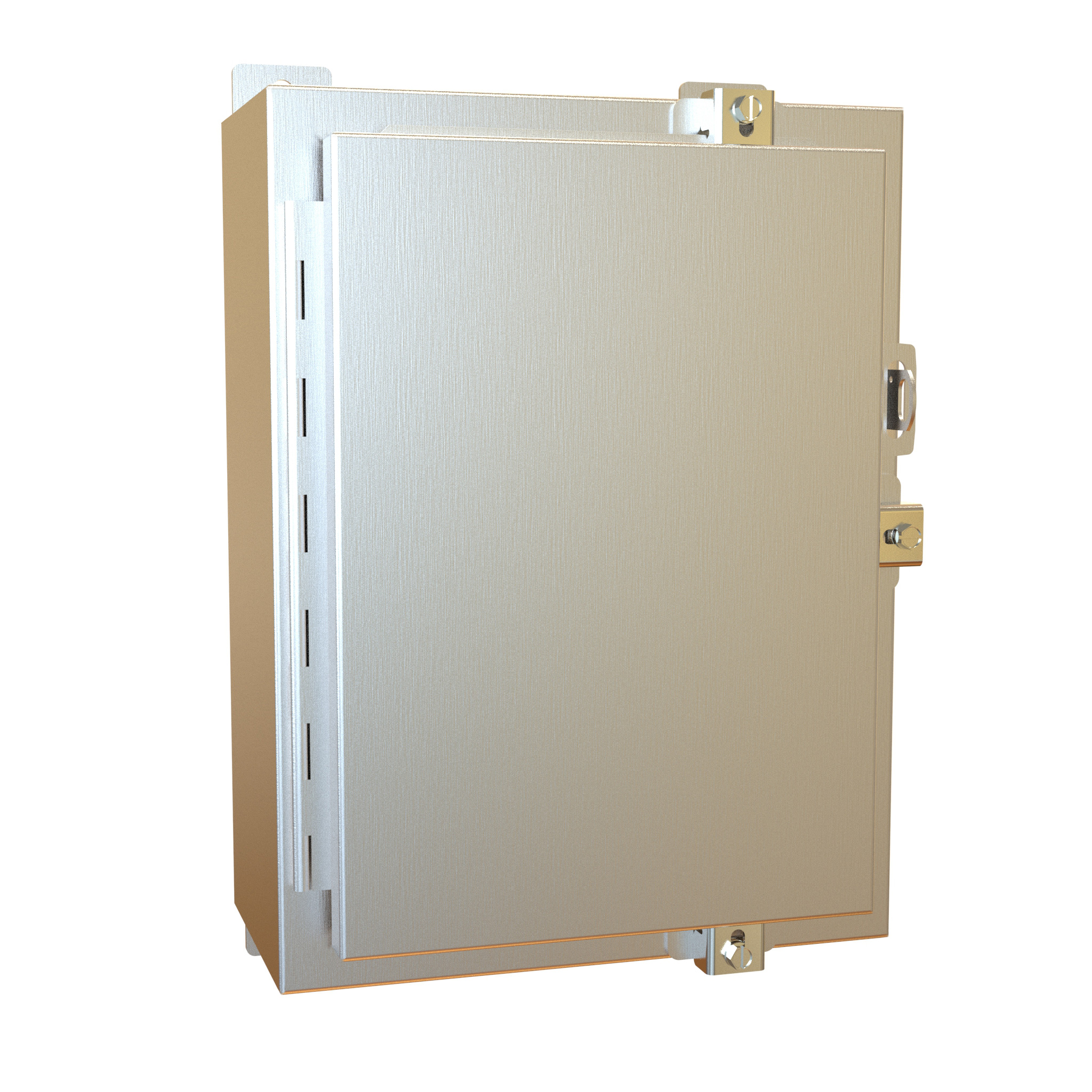

NEMA 4 316SS Enclosure 16X12X6
$817.80In stock
Buy now
Type 4X Stainless Steel Wallmount Enclosure · 1418 N4 SS Series
Brand: Hammond Manufacturing · 78 part numbers
Continuous Hinge Door with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
- ■UL 508A Type 3R, 4, 4X, and 12
- ■CSA Type 3R, 4, 4X, and 12
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
from $719.95
78 of 78 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1418 N4 SS Series part number
Filter 78 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
78 of 78 part numbers · 78 priced online

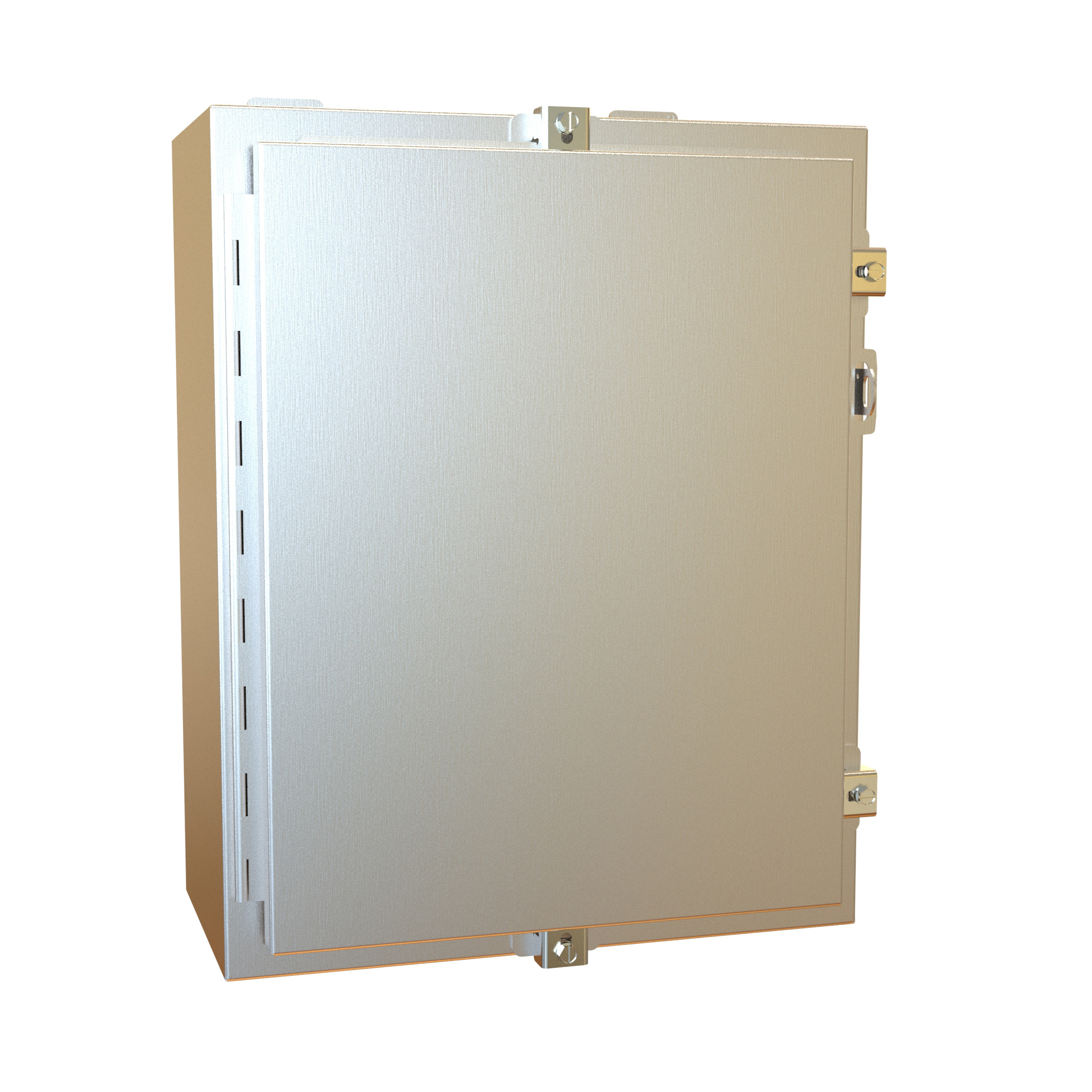

NEMA 4 316SS Enclosure 16X12X8
$929.07In stock
Buy now
NEMA 4 316SS Enclosure 20X16X10
$1,212.60In stock
Buy now
NEMA4 316SS Enclosure 20X16X6
$1,001.87In stock
Buy now
20X16X8 316SS Wallmount
$1,070.67In stock
Buy now
NEMA 4 316SS Enclosure 16X20X6
$1,065.83In stock
Buy now
NEMA 4 316SS Enclosure 20X20X6
$1,177.99In stock
Buy now
NEMA 4 316SS Enclosure 20X20X8
$1,251.10In stock
Buy now
NEMA 4 316SS Enclosure 24X20X10
$1,478.44In stock
Buy now

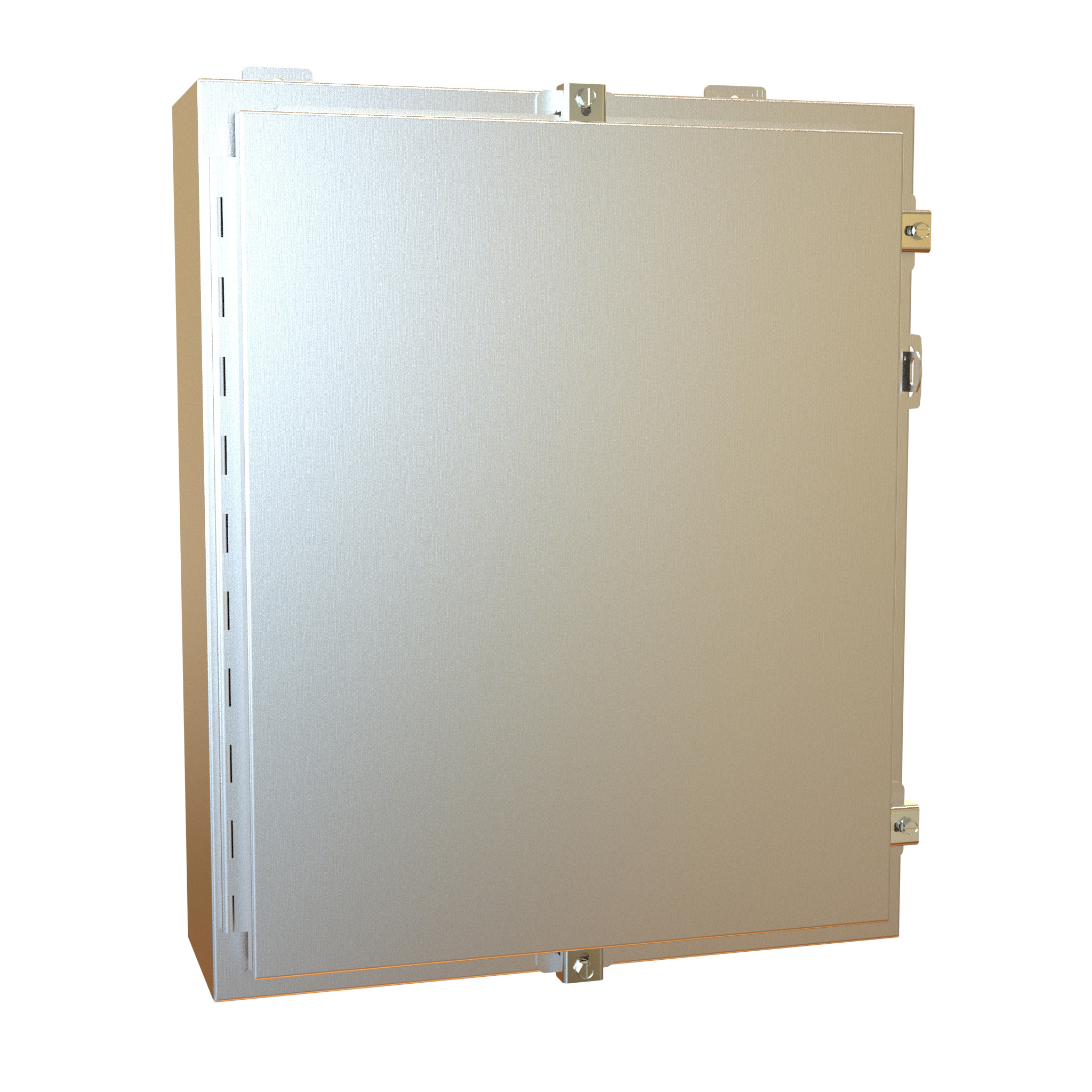

NEMA 4 316SS Enclosure 24X20X6
$1,298.35In stock
Buy now
NEMA 4 316SS Enclosure 24X20X8
$1,309.64In stock
Buy now

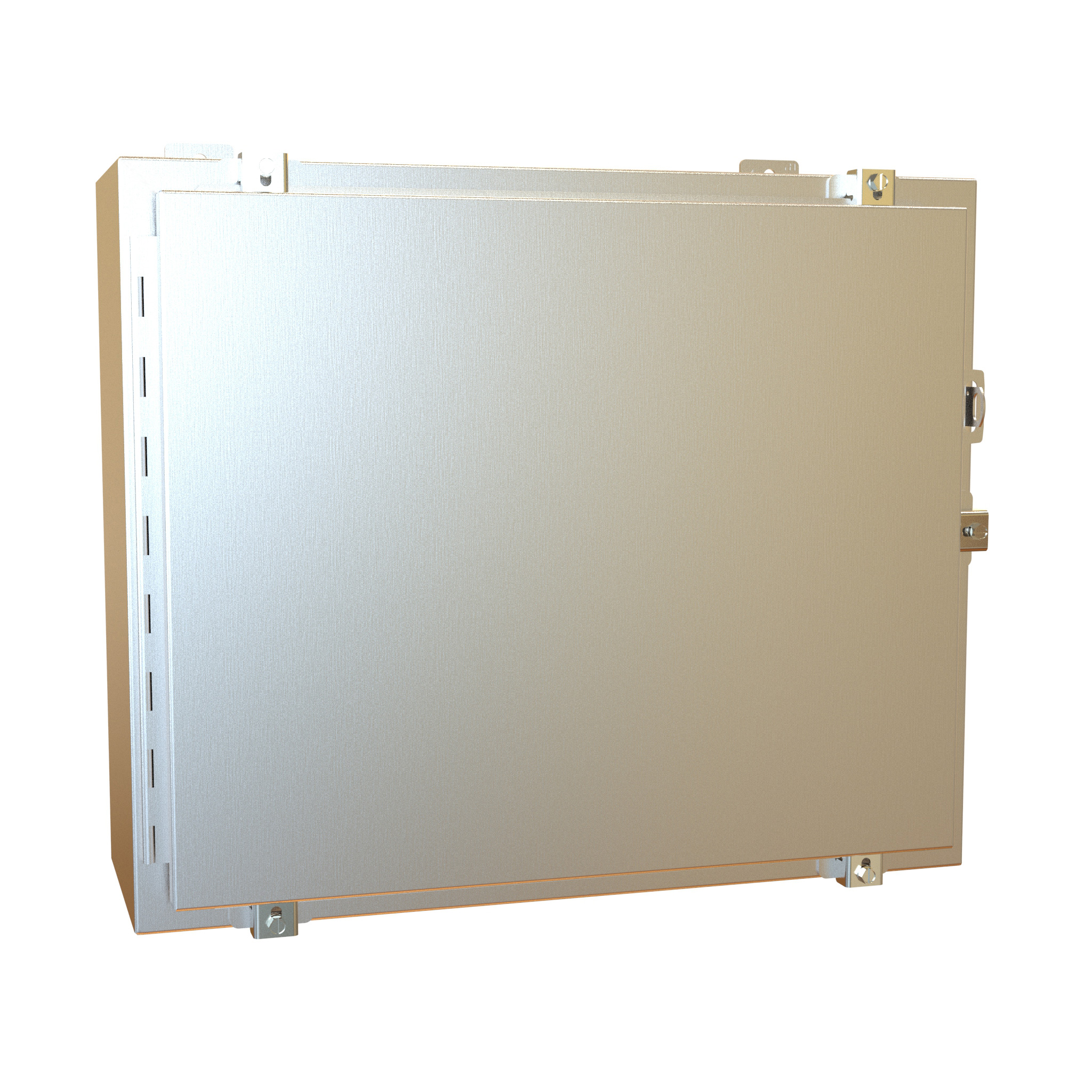

NEMA 4 316SS Enclosure 20X24X8
$1,387.06In stock
Buy now

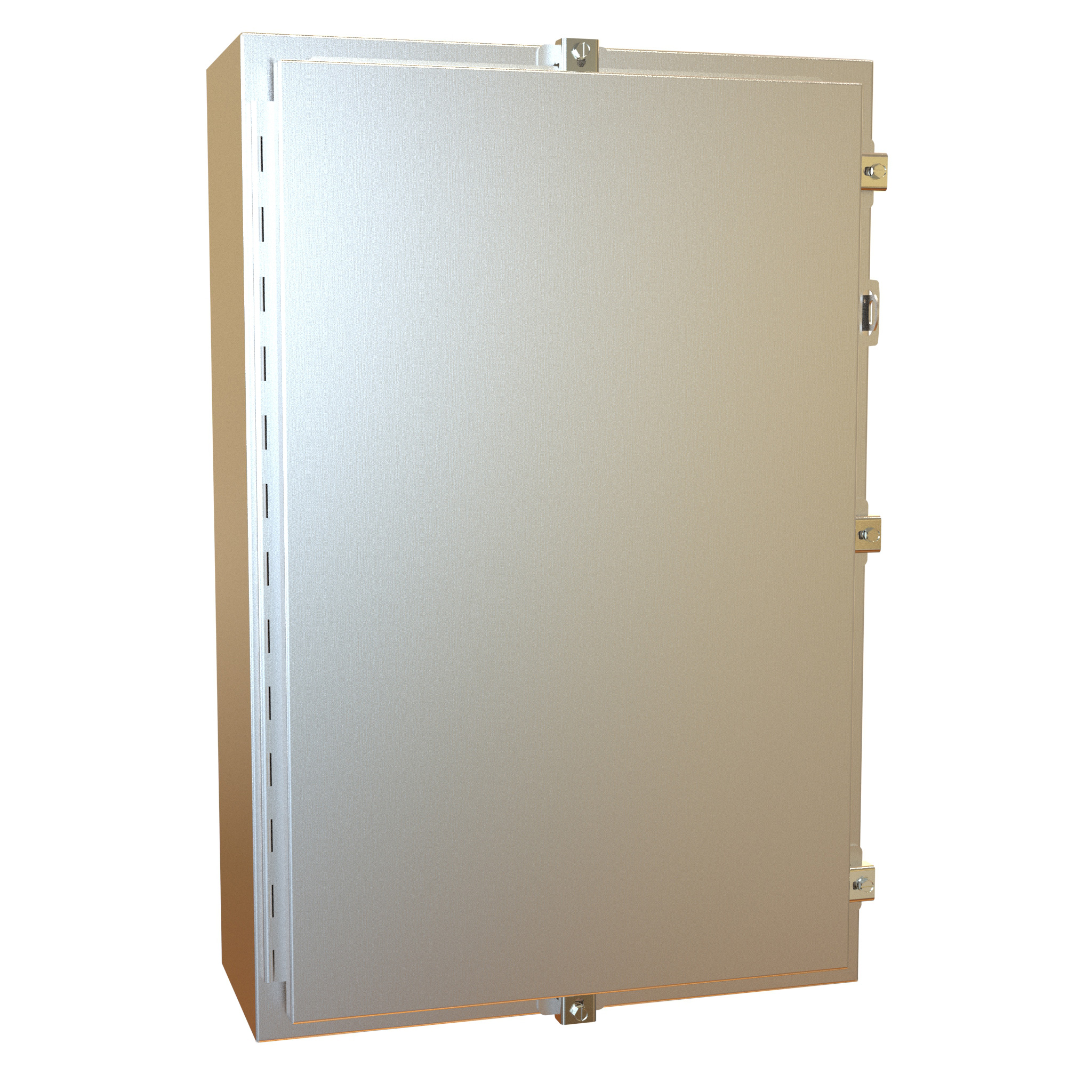

NEMA 4 316SS Enclosure 30X20X8
$1,573.55In stock
Buy now
NEMA 4 316SS Enclosure 16X16X6
$966.55In stock
Buy now
NEMA 4 316SS Enclosure 24X16X8
$1,243.74In stock
Buy now

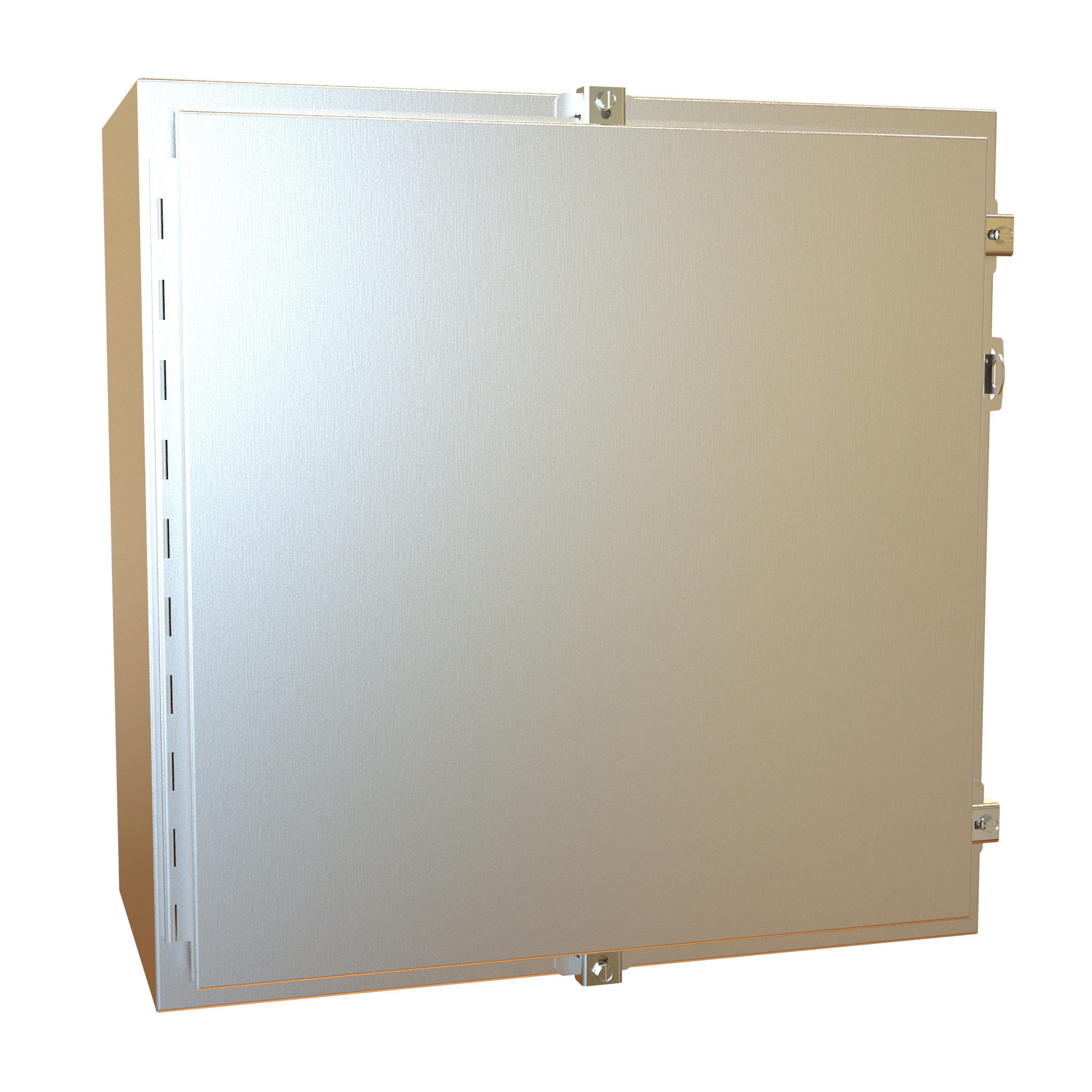

NEMA 4 316SS Enclosure 24X24X12
$1,728.38In stock
Buy now
NEMA 4 316SS Enclosure 24X24X6
$1,431.08In stock
Buy now
NEMA 4 316SS Enclosure 24X24X8
$1,441.84In stock
Buy now
NEMA 4 316SS Enclosure 30X24X10
$1,841.81In stock
Buy now
NEMA 4 316SS Enclosure 30X24X12
$1,847.71In stock
Buy now
NEMA 4 316SS Enclosure 30X24X16
$2,186.40In stock
Buy now
NEMA 4 316SS Enclosure 30X24X8
$1,641.82In stock
Buy now
30X30X8 316SS Wallmount
$2,006.30In stock
Buy now
NEMA 4 316SS Enclosure 24X30X8
$1,741.82In stock
Buy now
NEMA 4 316SS Enclosure 36X24X10
$2,076.73In stock
Buy now
NEMA 4 316SS Enclosure 36X24X8
$1,952.01In stock
Buy now
NEMA 4 316SS Enclosure 36X36X12
$2,843.35In stock
Buy now
NEMA 4 316SS Enclosure 36X30X10
$2,390.16In stock
Buy now
NEMA 4 316SS Enclosure 36X30X12
$2,526.70In stock
Buy now

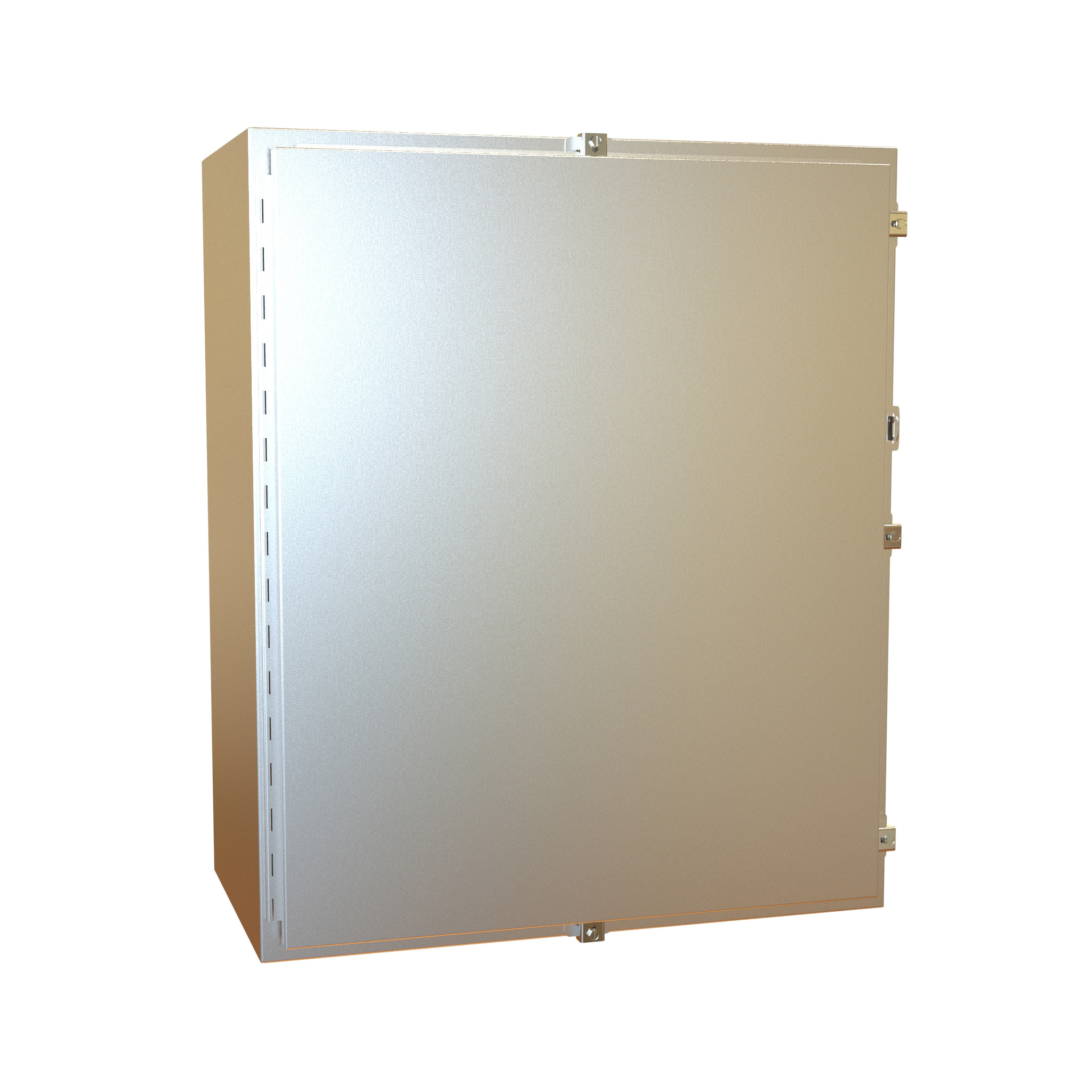

NEMA 4 316SS Enclosure 36X30X16
$2,798.19In stock
Buy now
NEMA 4 316SS Enclosure 36X30X8
$2,126.73In stock
Buy now
NEMA 4 316SS Enclosure 42X30X10
$2,654.11In stock
Buy now
NEMA 4 316SS Enclosure 42X36X8
$2,814.86In stock
Buy now
NEMA 4 316SS Enclosure 48X36X10
$3,344.40Backorder
Buy now
NEMA 4 316SS Enclosure 48X36X12
$3,474.48Backorder
Buy now
NEMA 4 316SS Enclosure 48X36X16
$3,601.90In stock
Buy now
NEMA 4 316SS Enclosure 48X36X8
$3,128.81In stock
Buy now
NEMA 4 316SS Enclosure 60X36X12
$4,106.70In stock
Buy now

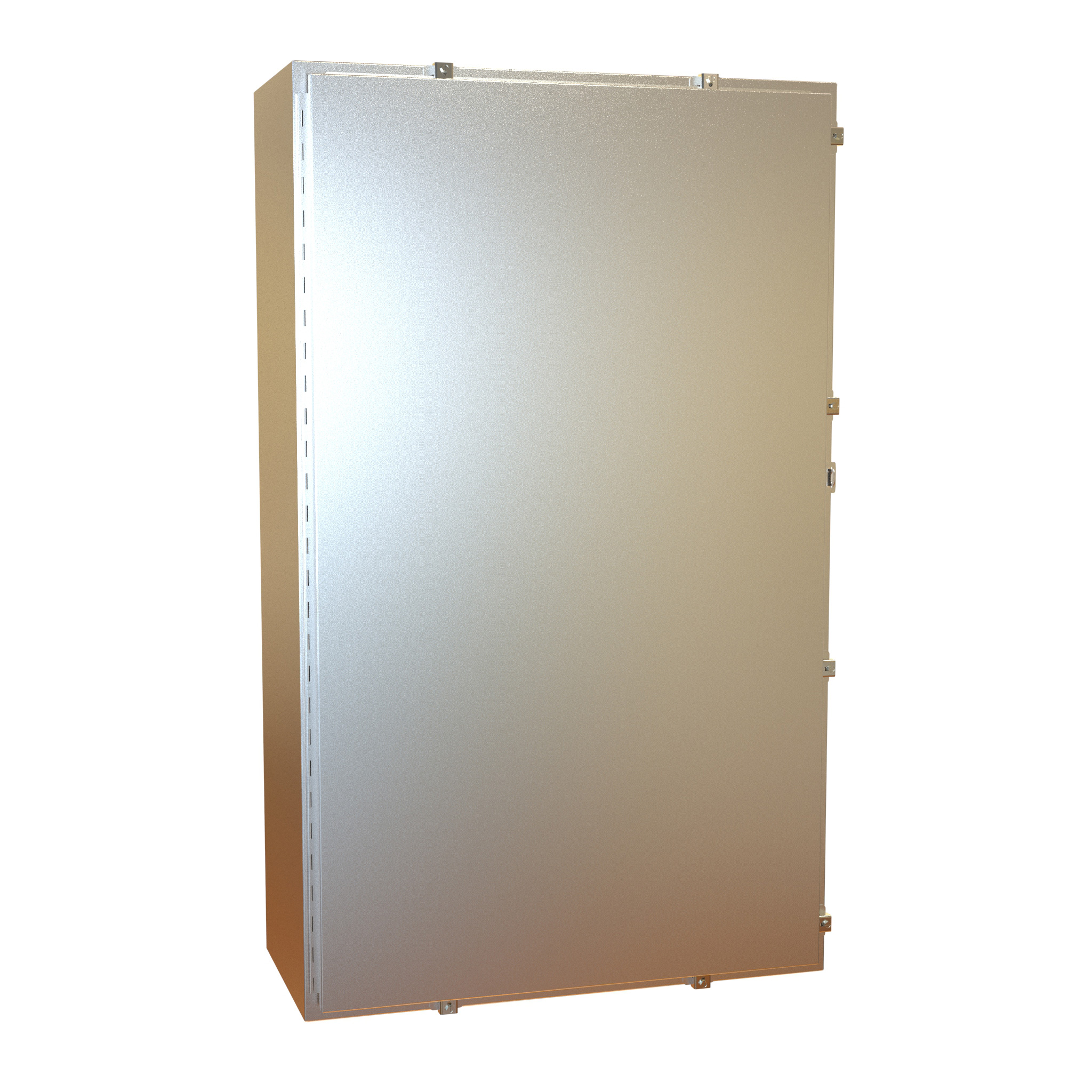

NEMA 4 316SS Enclosure 60X36X16
$4,542.14In stock
Buy now
NEMA 4X SS Enclosure 16X12X6
$719.95In stock
Buy now
NEMA 4X SS Enclosure 16X12X8
$768.33In stock
Buy now
NEMA 4X SS Enclosure 20X16X10
$1,004.55In stock
Buy now
NEMA 4X SS Enclosure 20X16X6
$883.06In stock
Buy now
NEMA 4X Enclosure Panl 20X16X8
$943.80Backorder
Buy now
NEMA 4X Enclosure Panl 16X20X6
$883.06In stock
Buy now
NEMA 4X SS Enclosure 20X20X6
$977.46Backorder
Buy now
NEMA 4X SS Encl. 20 X 20 X 8
$1,076.37In stock
Buy now
NEMA 4X SS Enclosure 24X20X10
$1,230.08In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| 1418N4SSB6 | 1418N4S16B6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 | $719.95In stock1418N4SSB6 | Buy now |

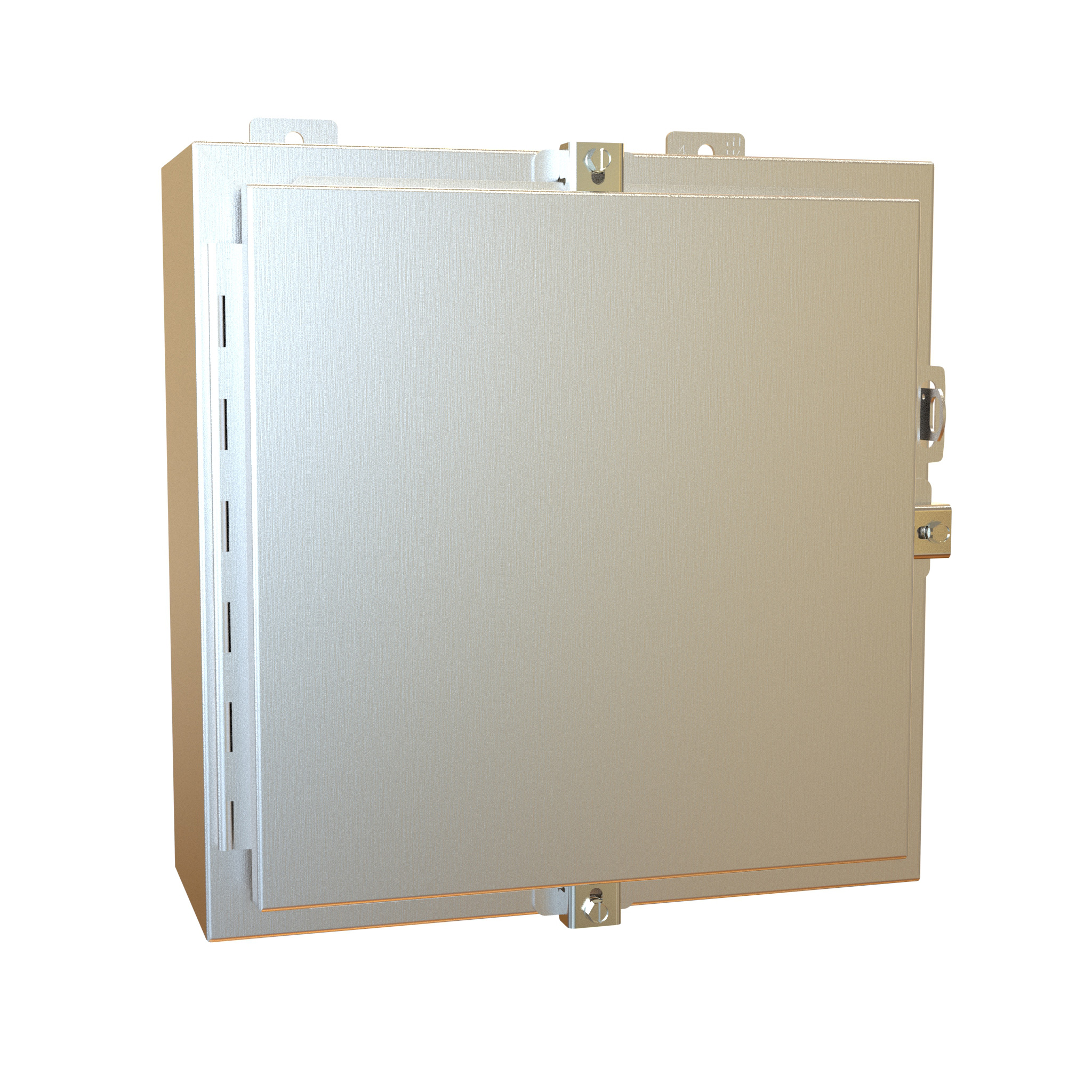

| 1418N4SSG6 | 1418N4S16G6 | 16.00 | 16.00 | 6.00 | 13.00 | 13.00 | $799.89In stock1418N4SSG6 | Buy now |

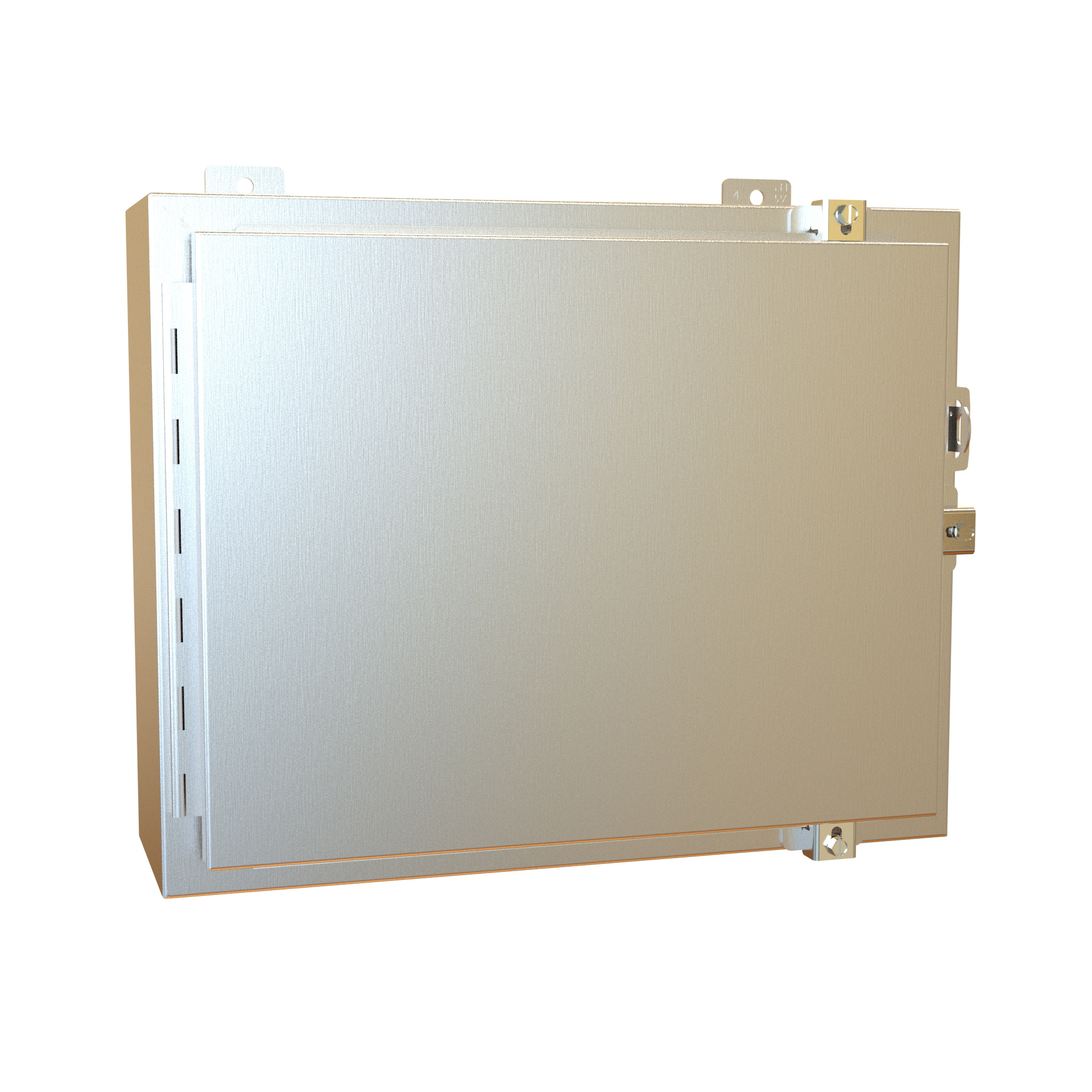

| 1418N4SSCR6 | 1418N4S16CR6 | 16.00 | 20.00 | 6.00 | 13.00 | 17.00 | $883.06In stock1418N4SSCR6 | Buy now |

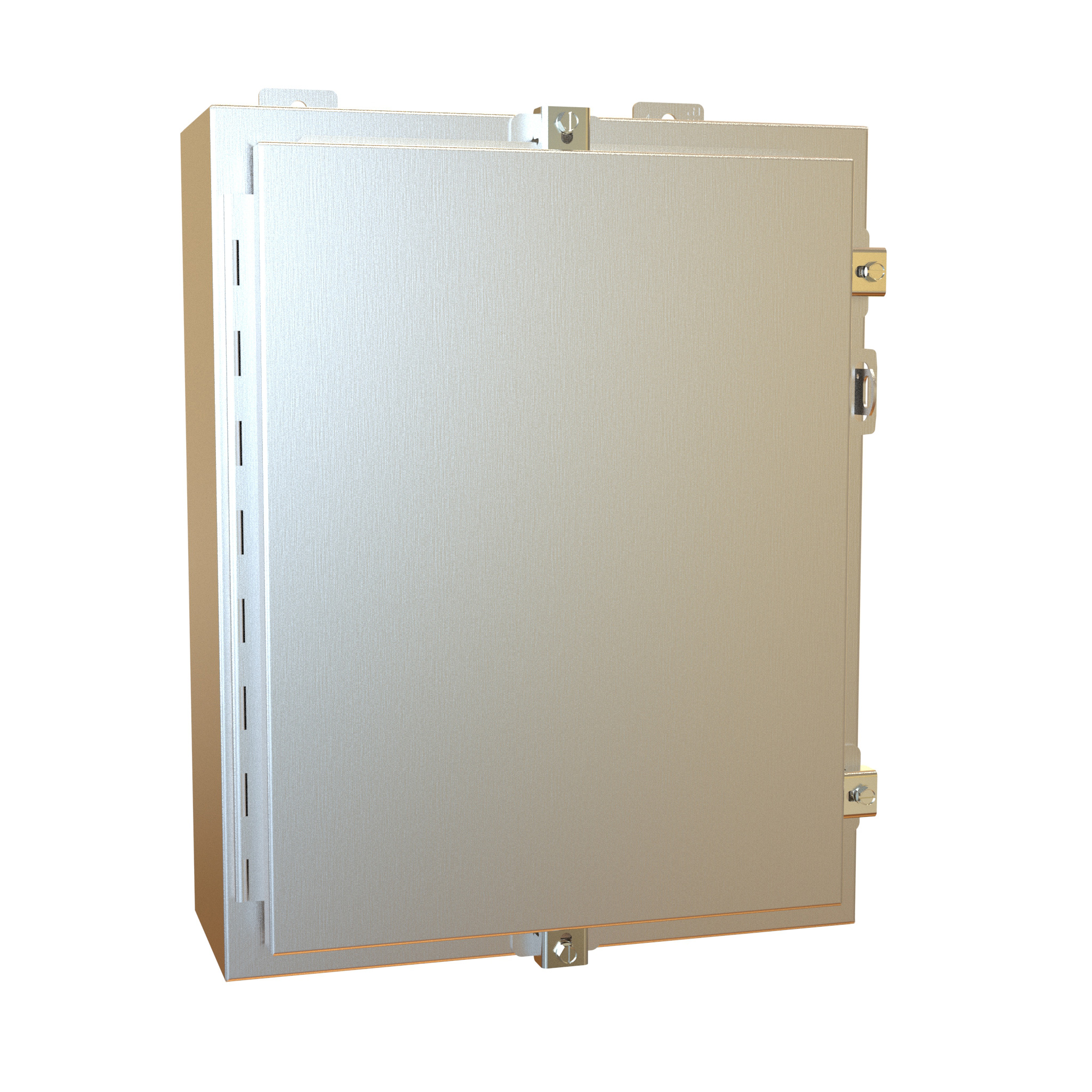

| 1418N4SSC6 | 1418N4S16C6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 | $883.06In stock1418N4SSC6 | Buy now |

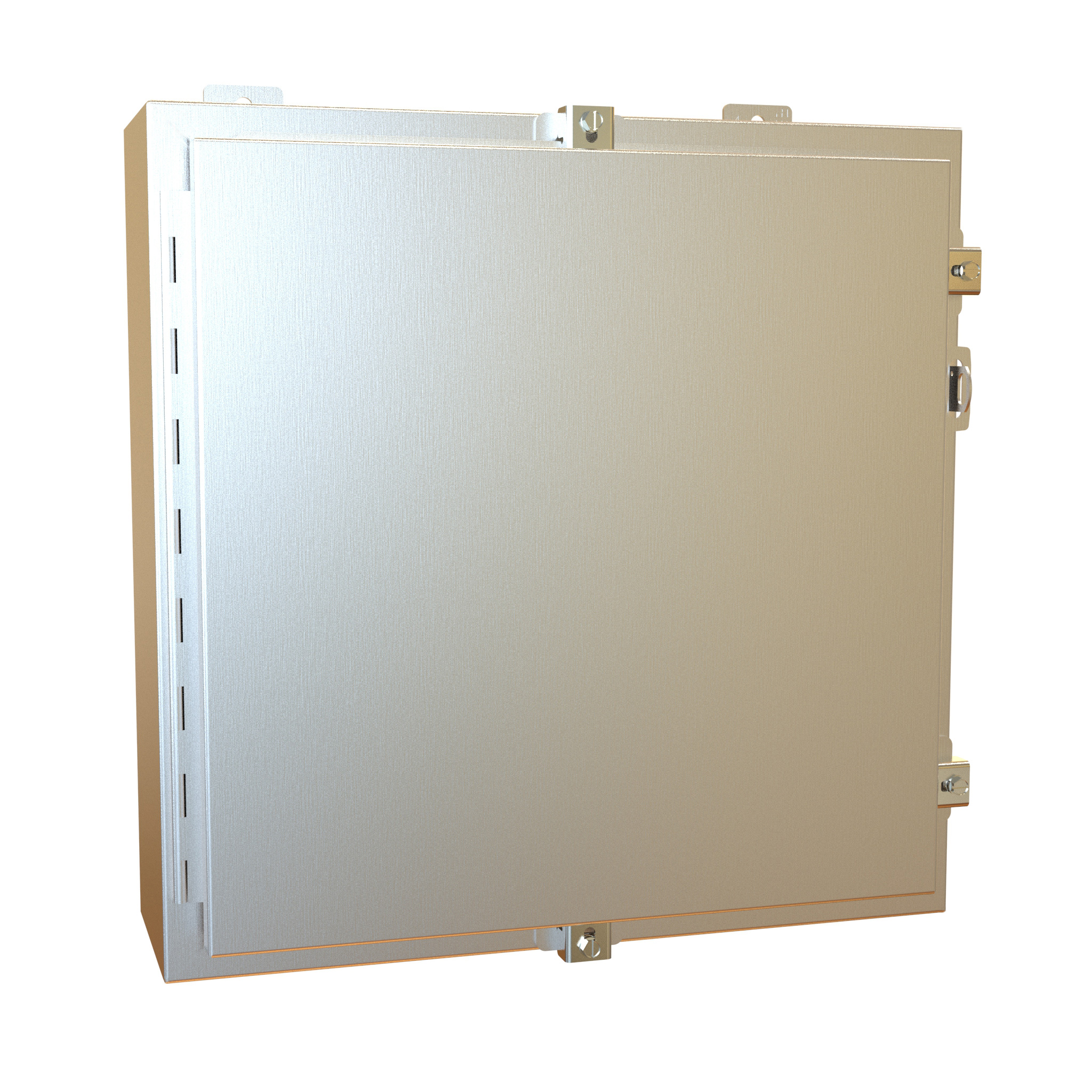

| 1418N4SSD6 | 1418N4S16D6 | 20.00 | 20.00 | 6.00 | 17.00 | 17.00 | $977.46Backorder1418N4SSD6 | Buy now |
| 1418N4SSE6 | 1418N4S16E6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 | $1,075.79In stock1418N4SSE6 | Buy now |

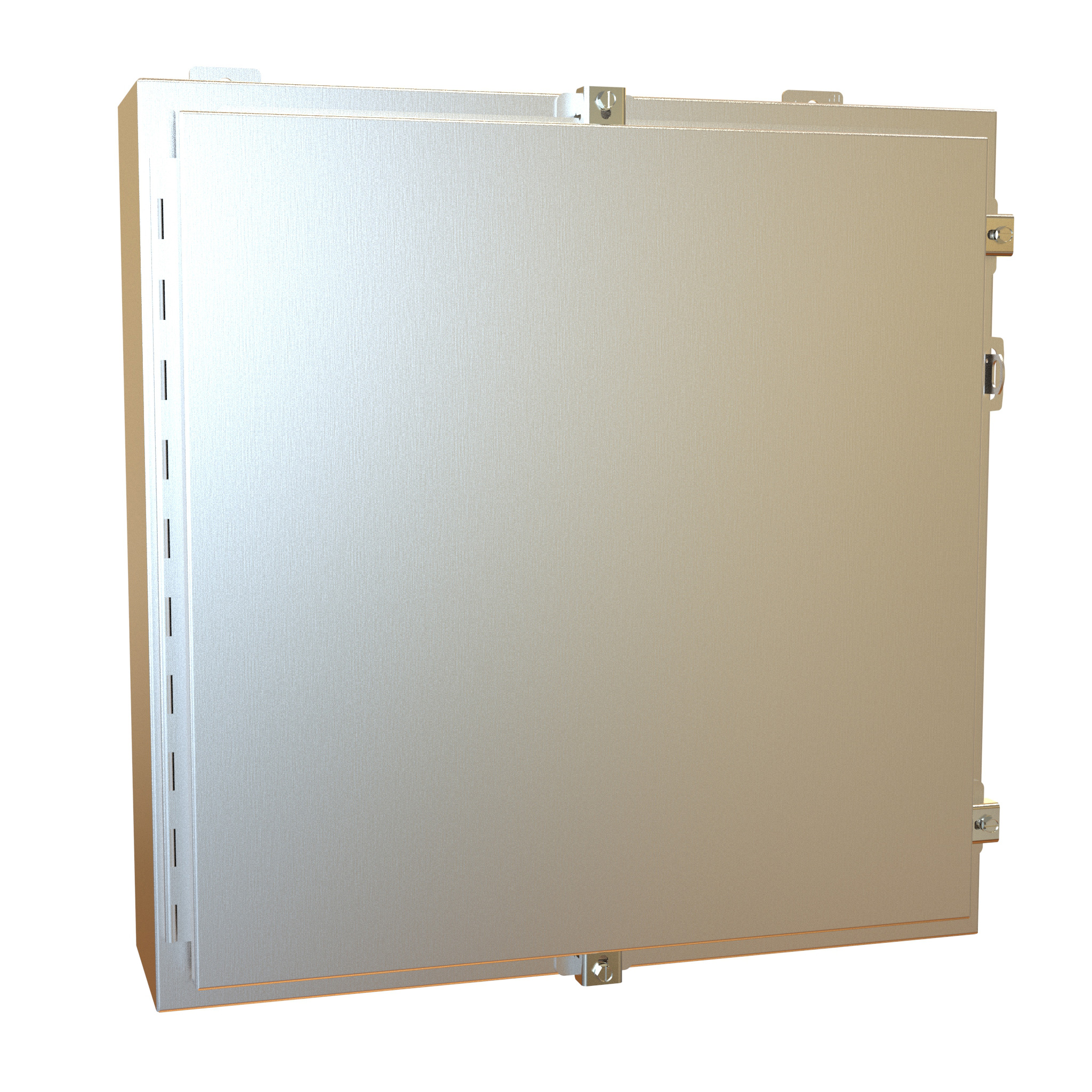

| 1418N4SSJ6 | 1418N4S16J6 | 24.00 | 24.00 | 6.00 | 21.00 | 21.00 | $1,234.32In stock1418N4SSJ6 | Buy now |

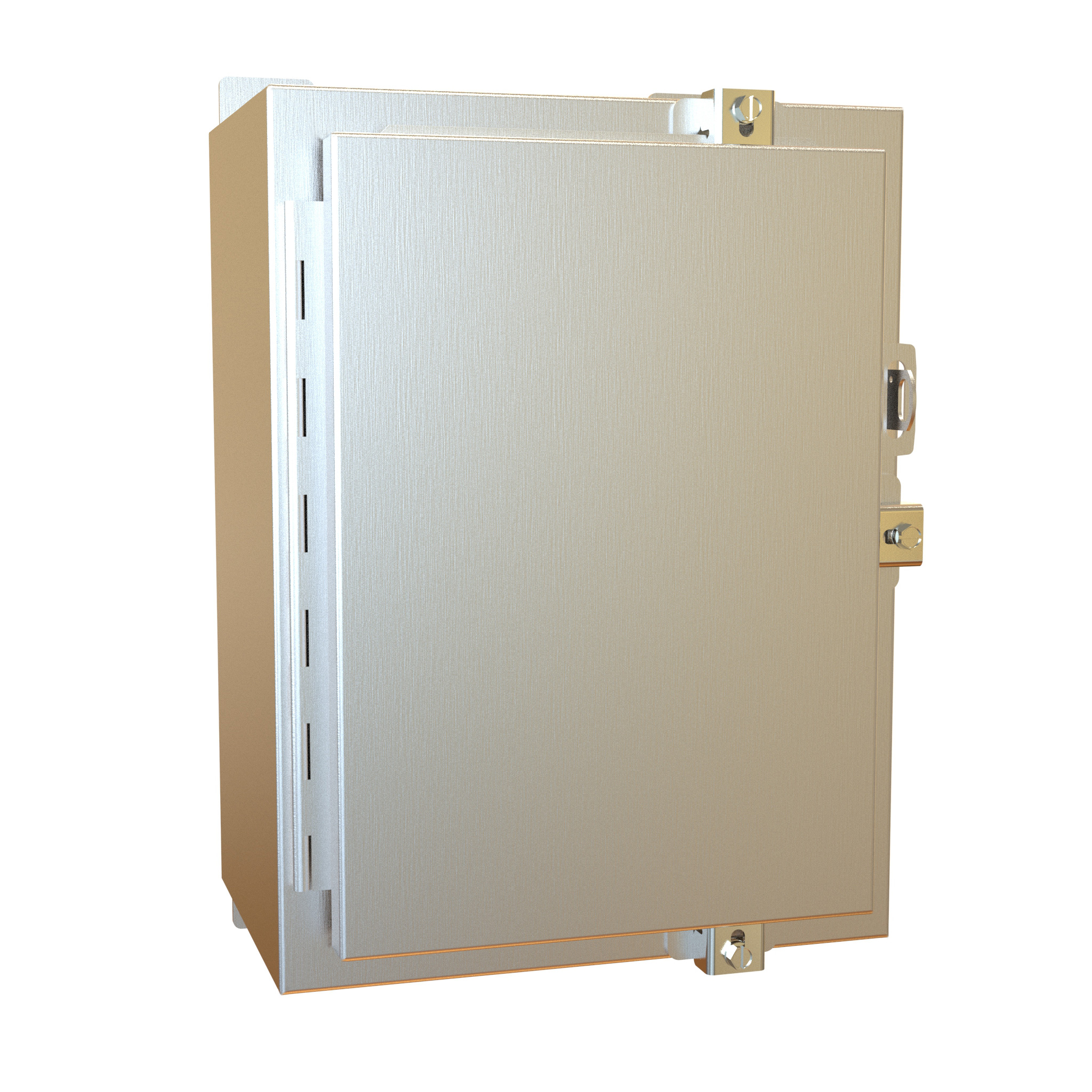

| 1418N4SSB8 | 1418N4S16B8 | 16.00 | 12.00 | 8.00 | 13.00 | 9.00 | $768.33In stock1418N4SSB8 | Buy now |
| 1418N4SSC8 | 1418N4S16C8 | 20.00 | 16.00 | 8.00 | 17.00 | 13.00 | $943.80Backorder1418N4SSC8 | Buy now |

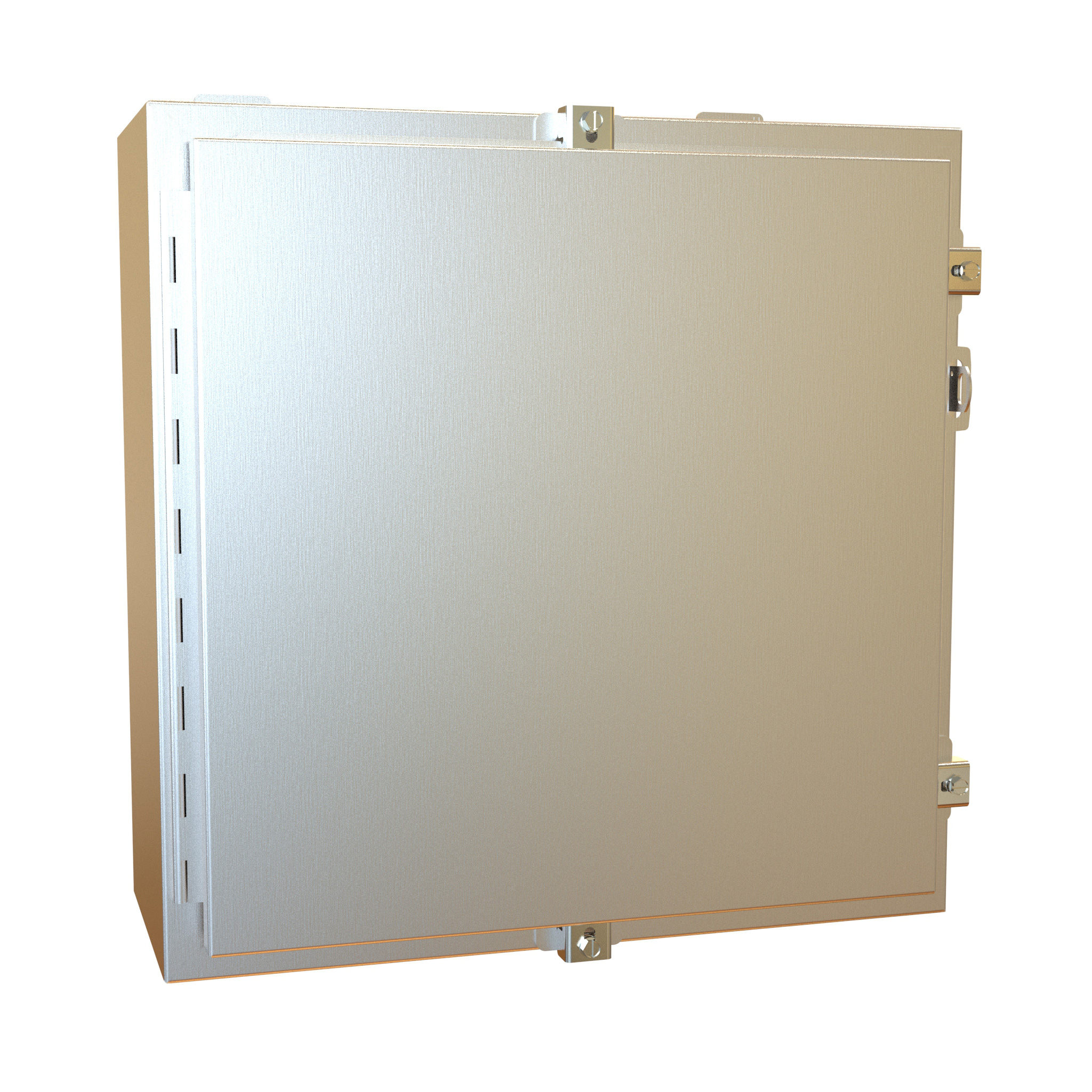

| 1418N4SSD8 | 1418N4S16D8 | 20.00 | 20.00 | 8.00 | 17.00 | 17.00 | $1,076.37In stock1418N4SSD8 | Buy now |
| 1418N4SSER8 | 1418N4S16ER8 | 20.00 | 24.00 | 8.00 | 17.00 | 21.00 | $1,153.74In stock1418N4SSER8 | Buy now |

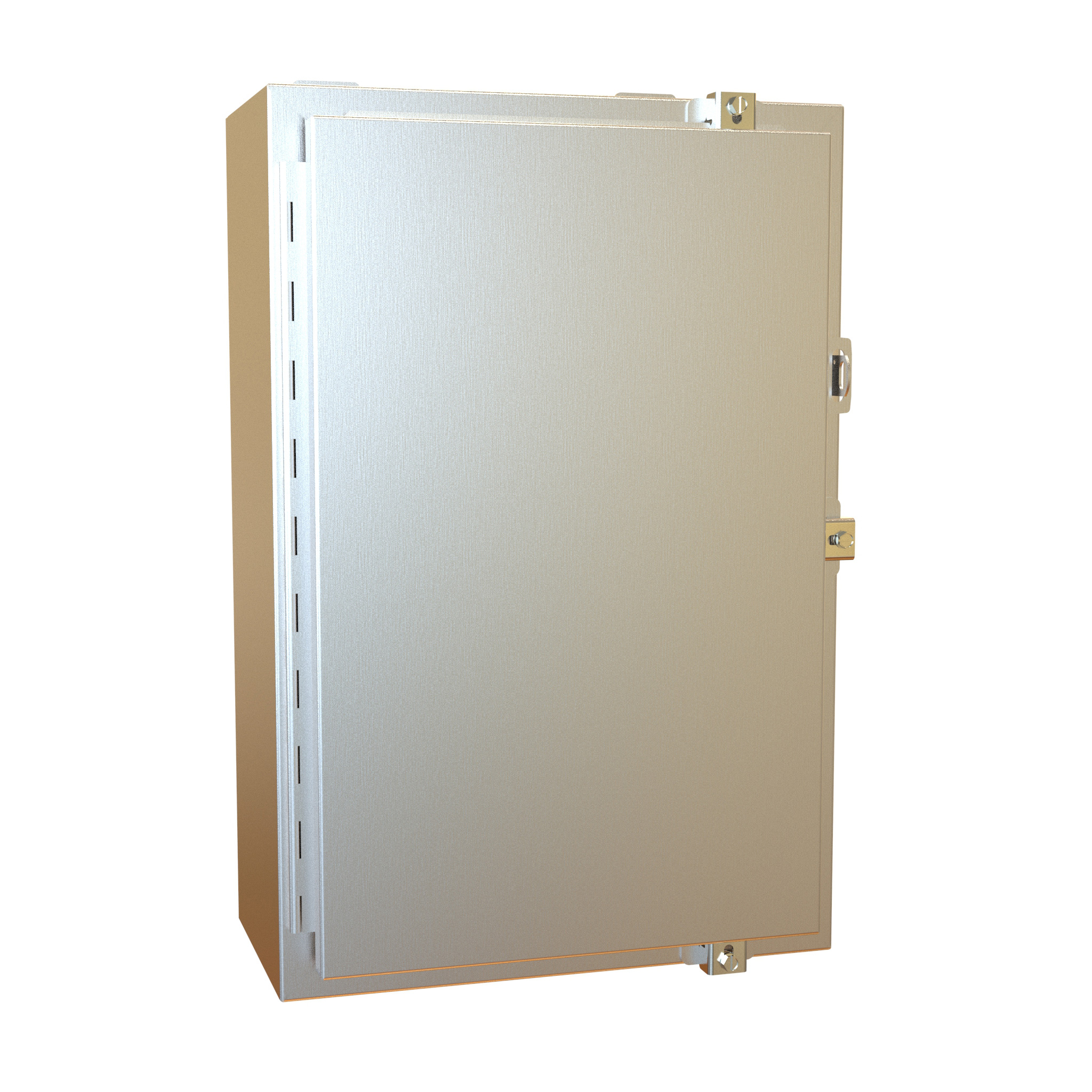

| 1418N4SSH8 | 1418N4S16H8 | 24.00 | 16.00 | 8.00 | 21.00 | 13.00 | $1,031.38In stock1418N4SSH8 | Buy now |
| 1418N4SSE8 | 1418N4S16E8 | 24.00 | 20.00 | 8.00 | 21.00 | 17.00 | $1,153.74In stock1418N4SSE8 | Buy now |
| 1418N4SSJ8 | 1418N4S16J8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 | $1,270.87Backorder1418N4SSJ8 | Buy now |

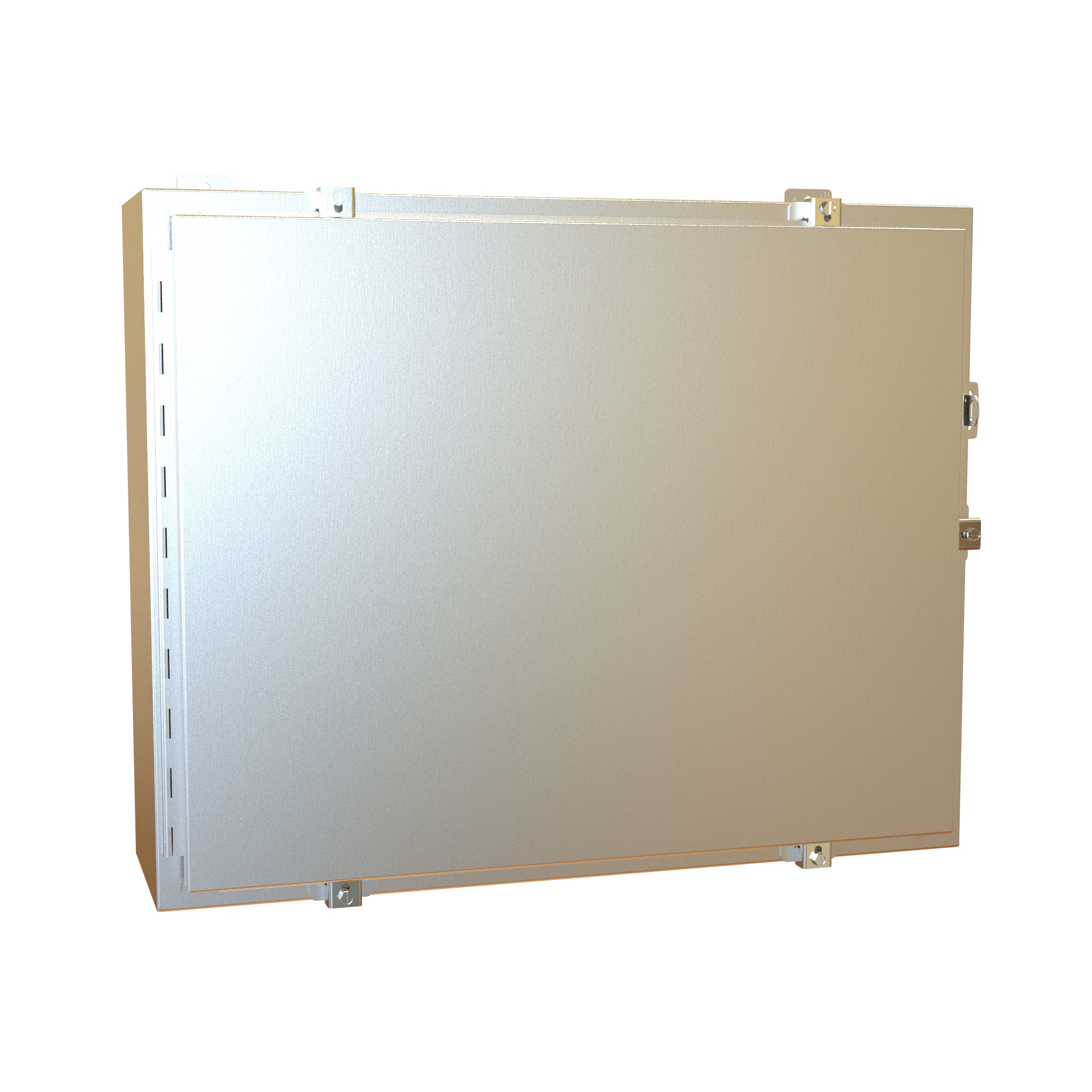

| 1418N4SSKR8 | 1418N4S16KR8 | 24.00 | 30.00 | 8.00 | 21.00 | 27.00 | $1,449.36In stock1418N4SSKR8 | Buy now |
| 1418N4SSF8 | 1418N4S16F8 | 30.00 | 20.00 | 8.00 | 27.00 | 17.00 | $1,310.12In stock1418N4SSF8 | Buy now |

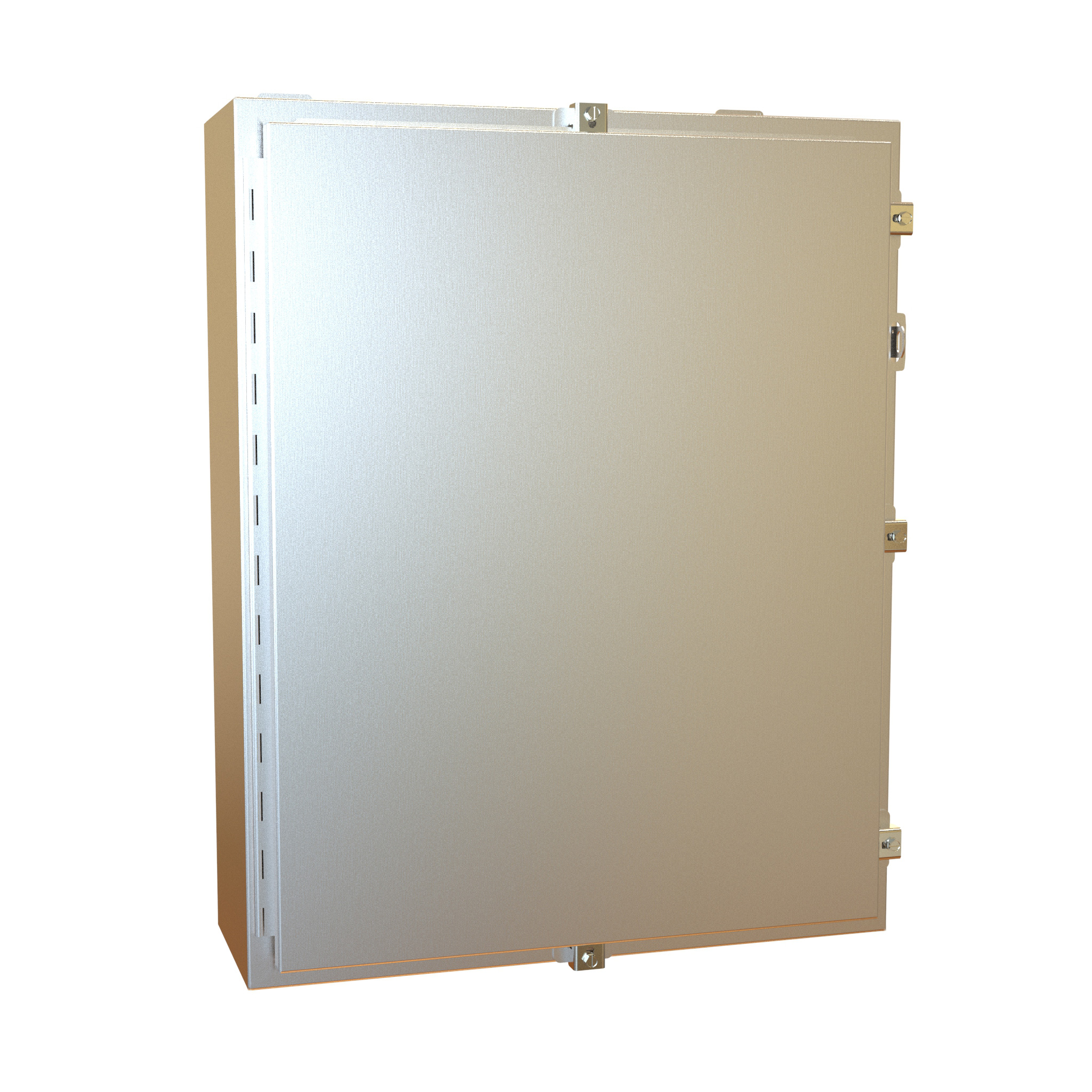

| 1418N4SSK8 | 1418N4S16K8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 | $1,449.36In stock1418N4SSK8 | Buy now |

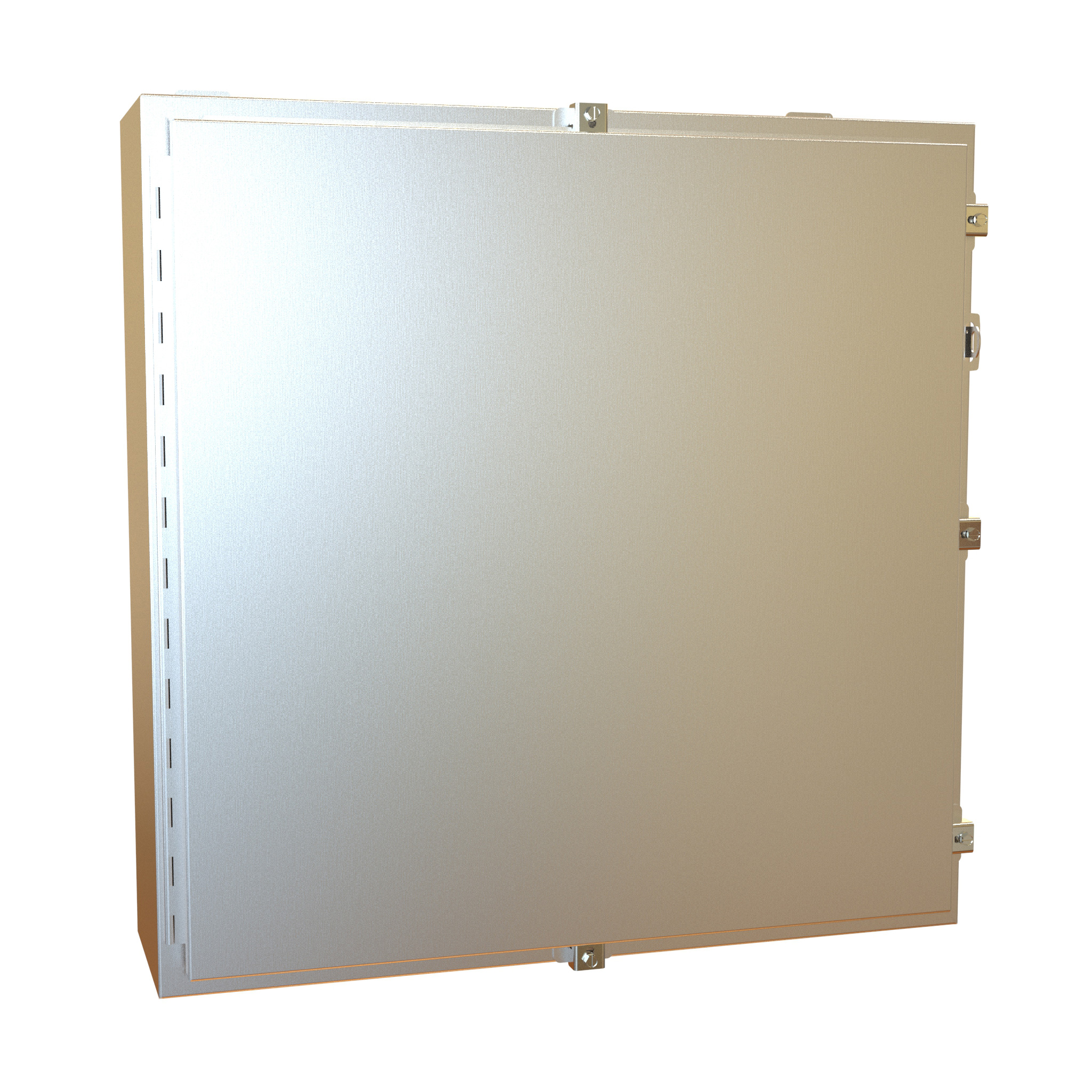

| 1418N4SSKK8 | 1418N4S16KK8 | 30.00 | 30.00 | 8.00 | 27.00 | 27.00 | $1,671.38In stock1418N4SSKK8 | Buy now |

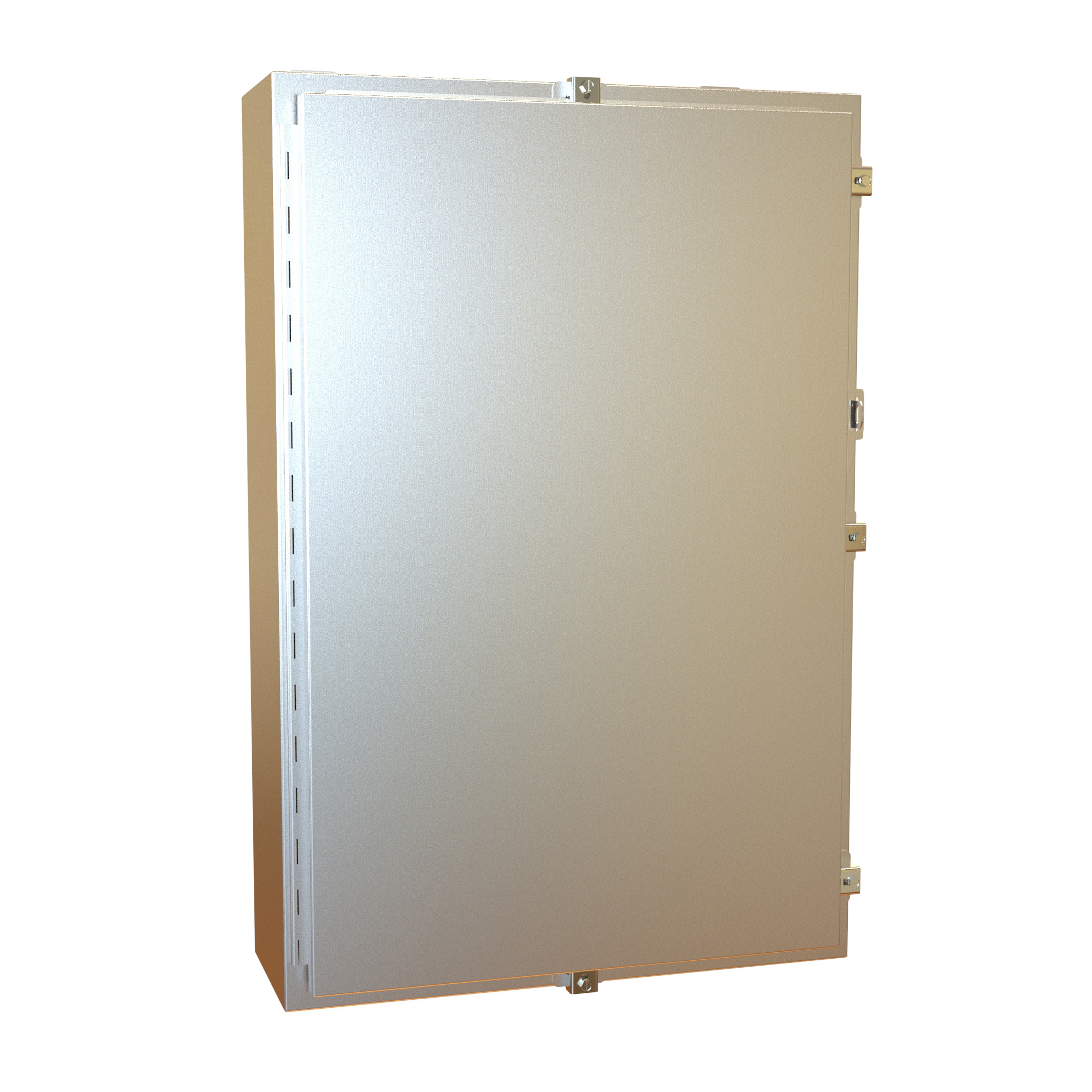

| 1418N4SSL8 | 1418N4S16L8 | 36.00 | 24.00 | 8.00 | 33.00 | 21.00 | $1,625.69In stock1418N4SSL8 | Buy now |

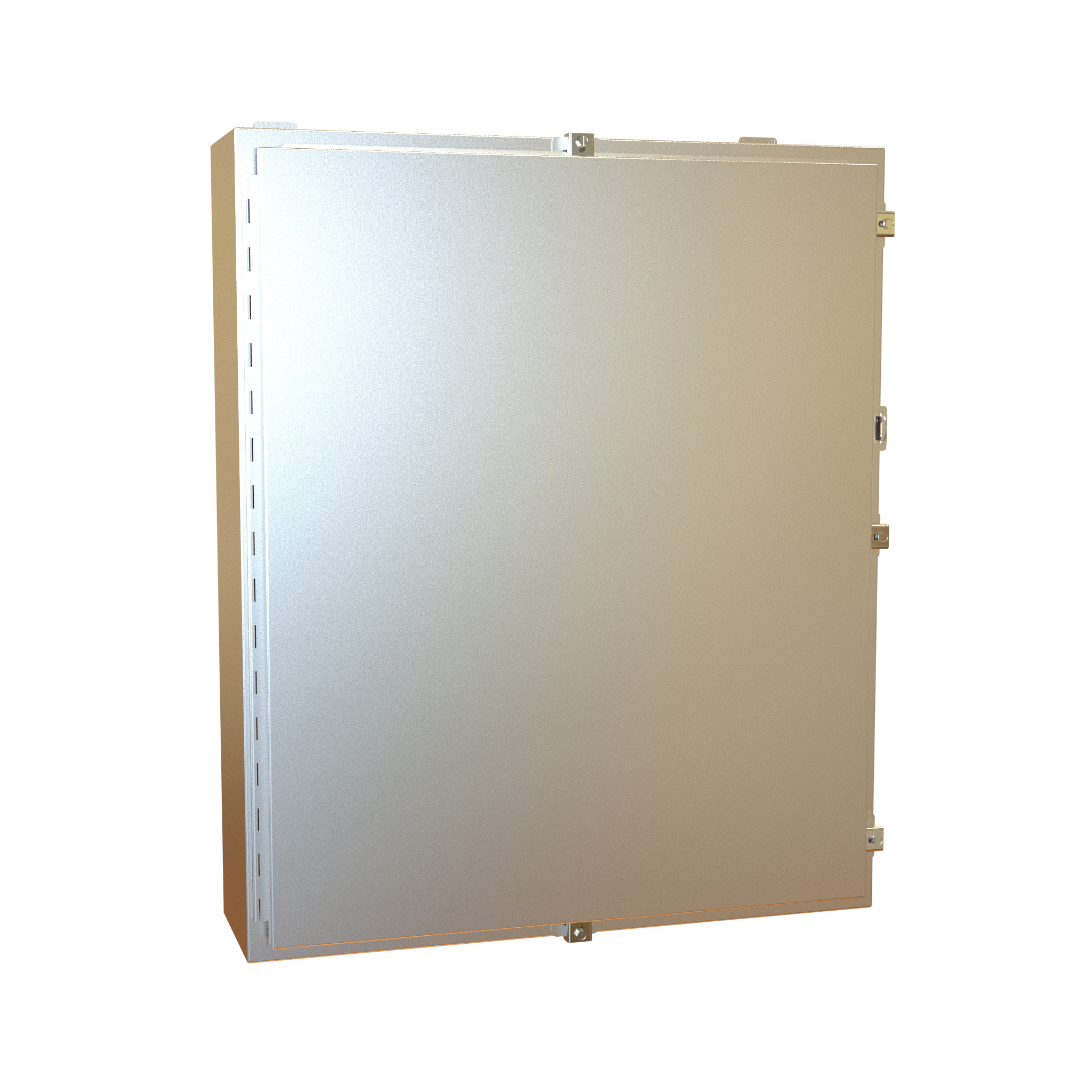

| 1418N4SSM8 | 1418N4S16M8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 | $1,881.04In stock1418N4SSM8 | Buy now |

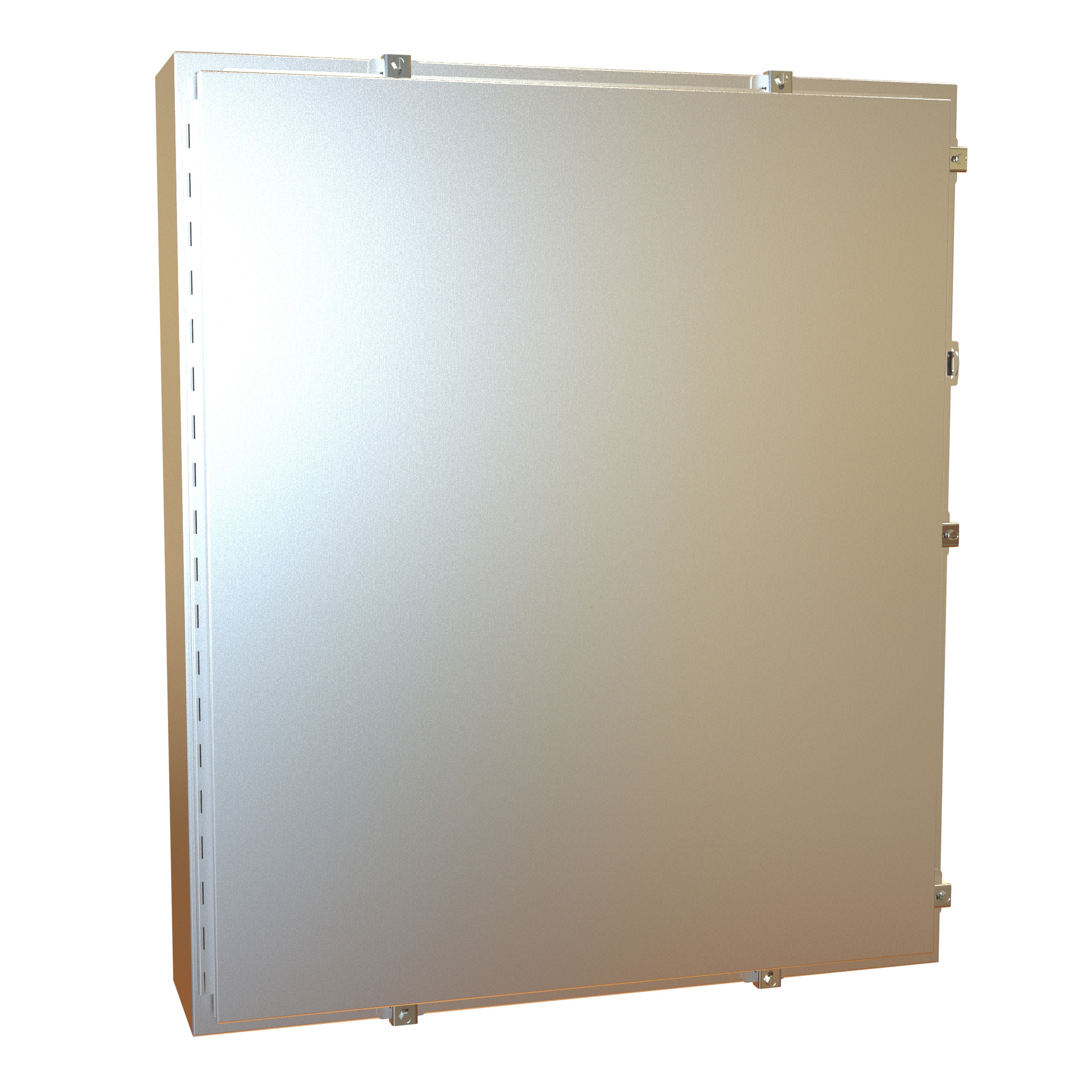

| 1418N4SSP8 | 1418N4S16P8 | 42.00 | 36.00 | 8.00 | 39.00 | 33.00 | $2,365.42In stock1418N4SSP8 | Buy now |
| 1418N4SSS8 | 1418N4S16S8 | 48.00 | 36.00 | 8.00 | 45.00 | 33.00 | $2,610.03In stock1418N4SSS8 | Buy now |

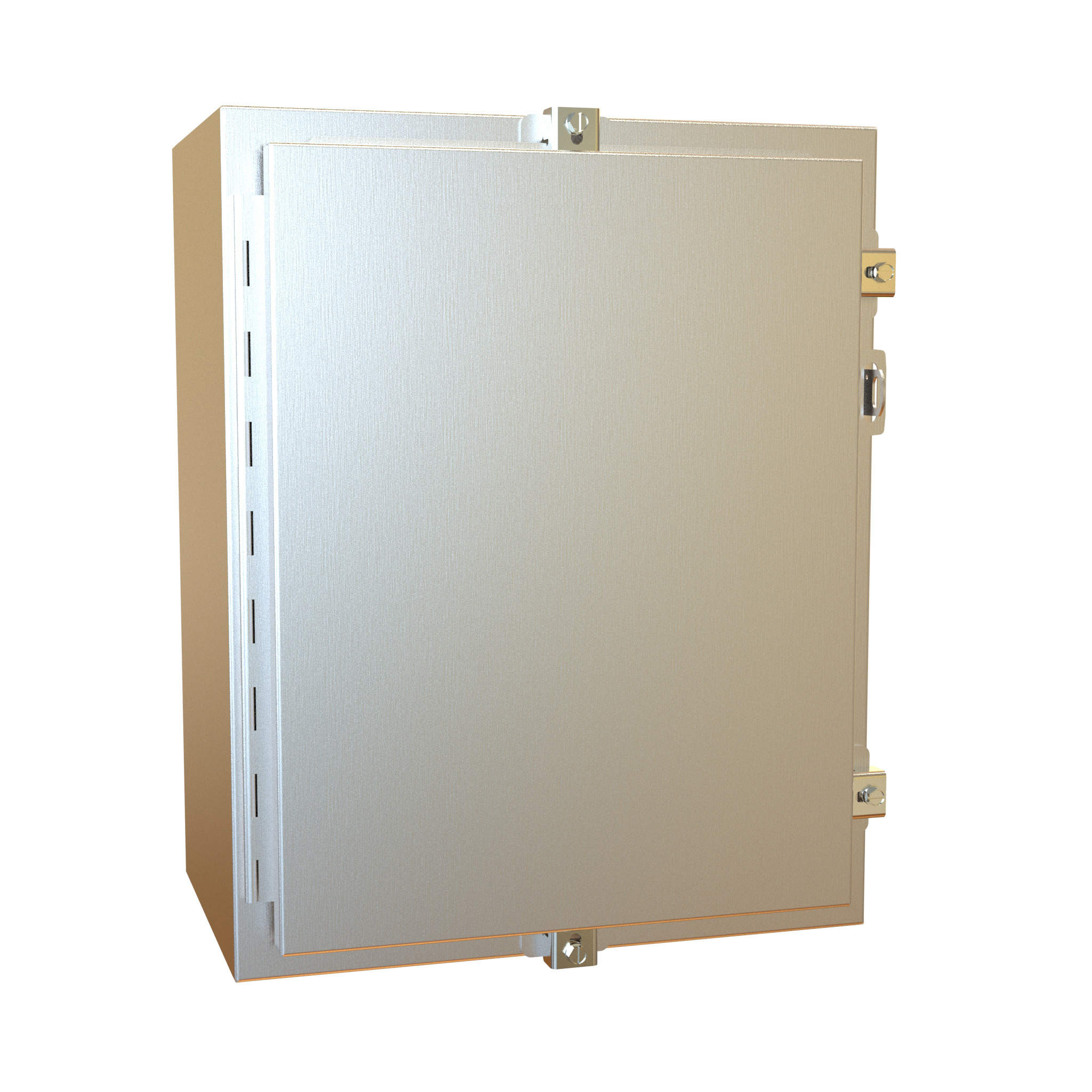

| 1418N4SSC10 | 1418N4S16C10 | 20.00 | 16.00 | 10.00 | 17.00 | 13.00 | $1,004.55In stock1418N4SSC10 | Buy now |

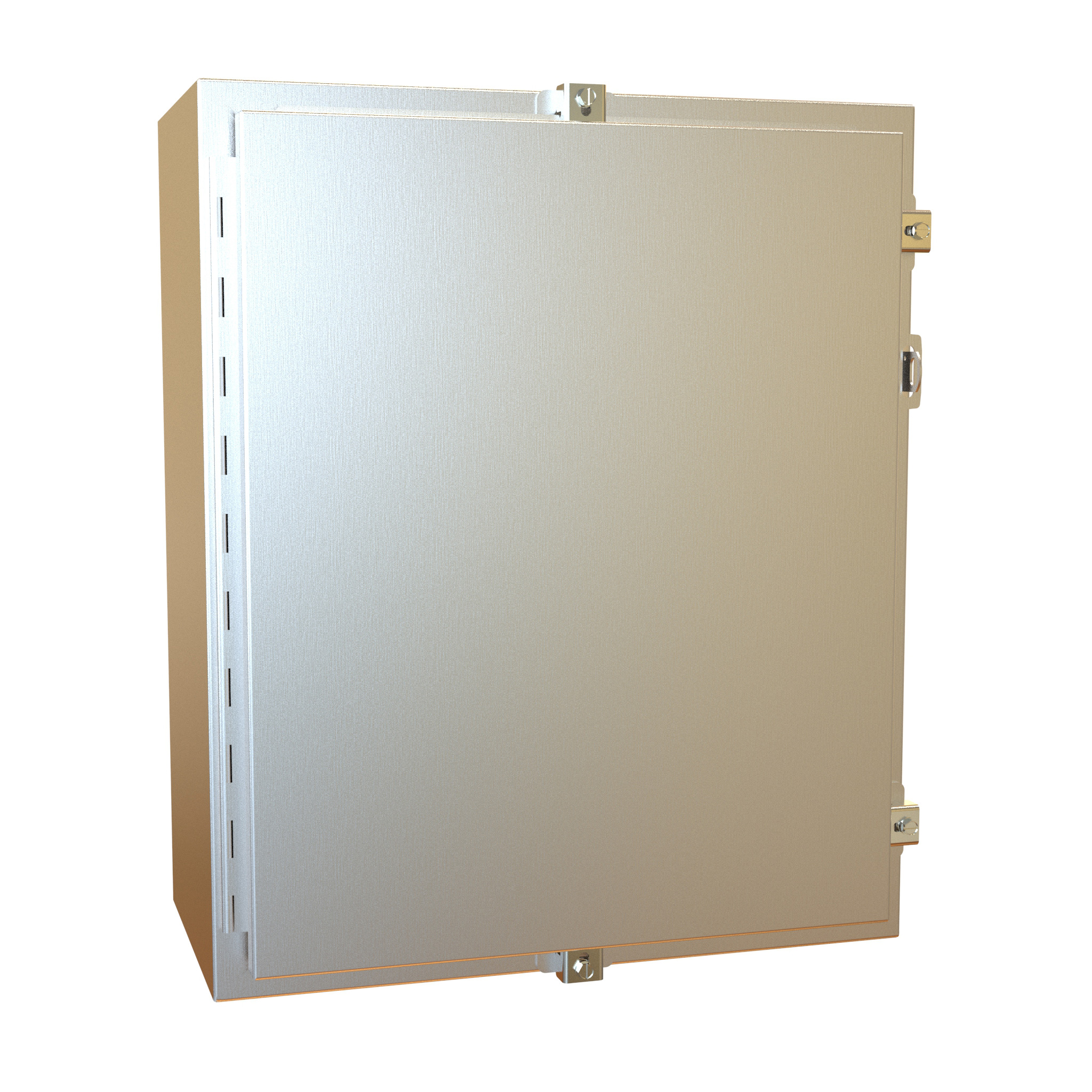

| 1418N4SSE10 | 1418N4S16E10 | 24.00 | 20.00 | 10.00 | 21.00 | 17.00 | $1,230.08In stock1418N4SSE10 | Buy now |

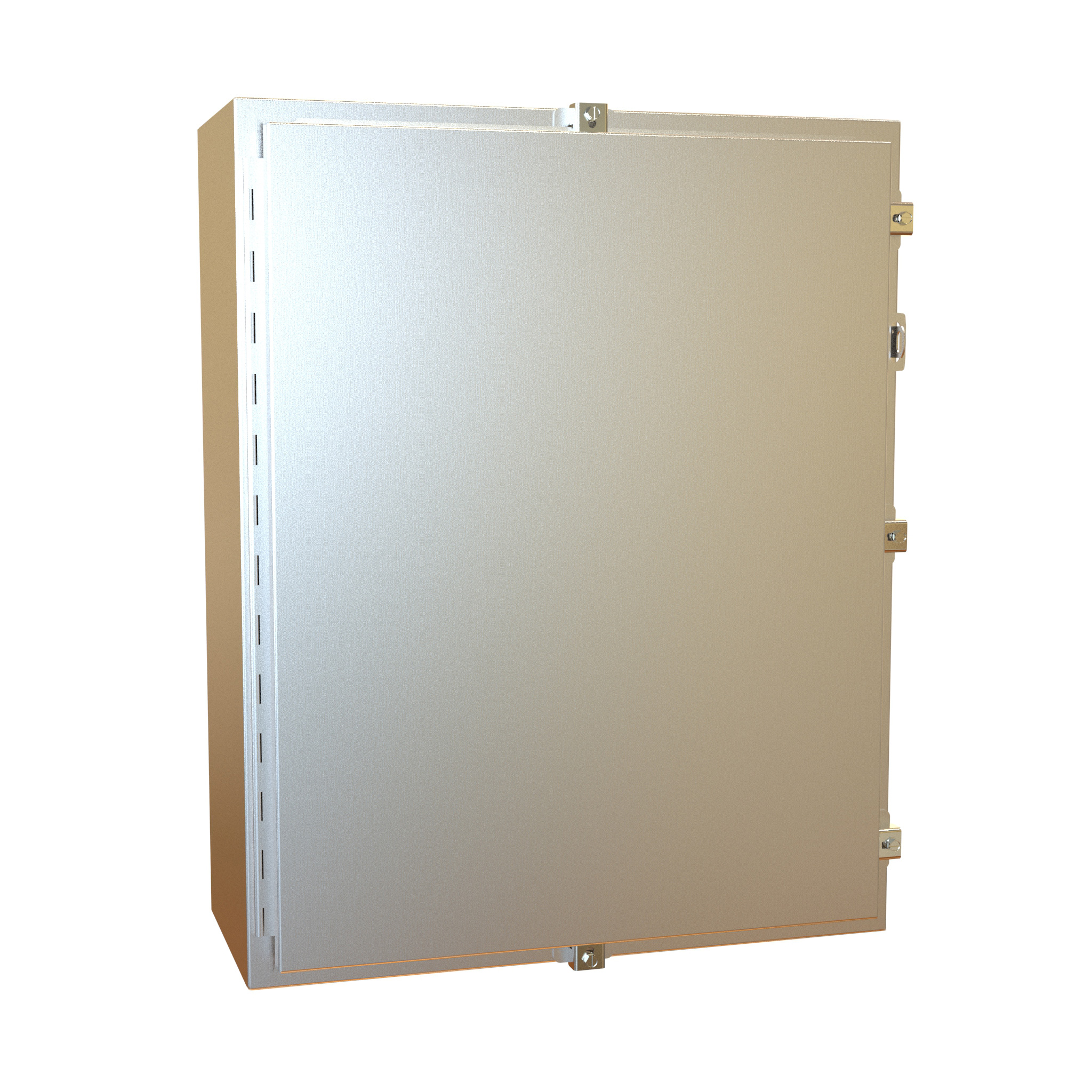

| 1418N4SSK10 | 1418N4S16K10 | 30.00 | 24.00 | 10.00 | 27.00 | 21.00 | $1,585.91Backorder1418N4SSK10 | Buy now |

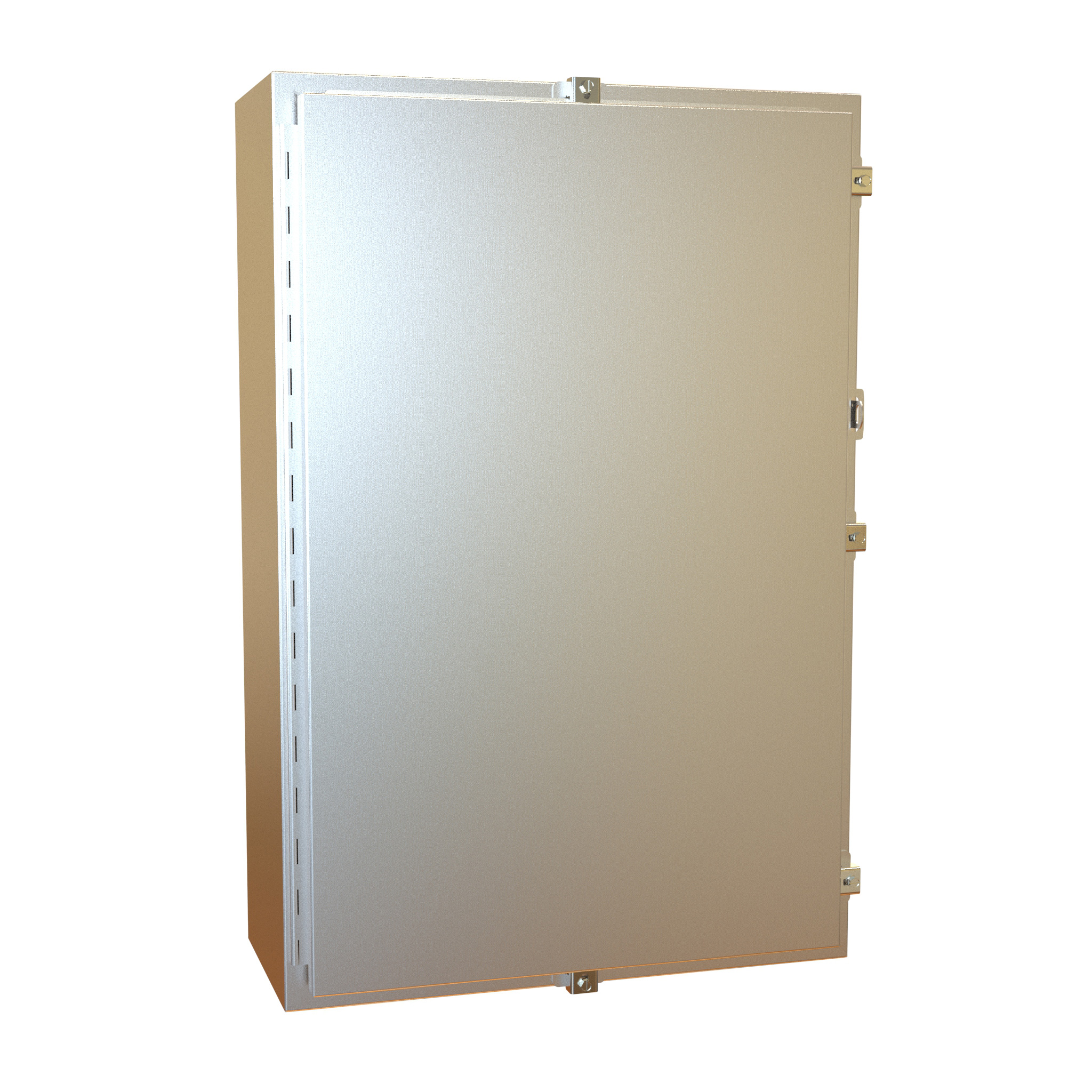

| 1418N4SSL10 | 1418N4S16L10 | 36.00 | 24.00 | 10.00 | 33.00 | 21.00 | $1,728.38In stock1418N4SSL10 | Buy now |
| 1418N4SSM10 | 1418N4S16M10 | 36.00 | 30.00 | 10.00 | 33.00 | 27.00 | $1,990.19Backorder1418N4SSM10 | Buy now |

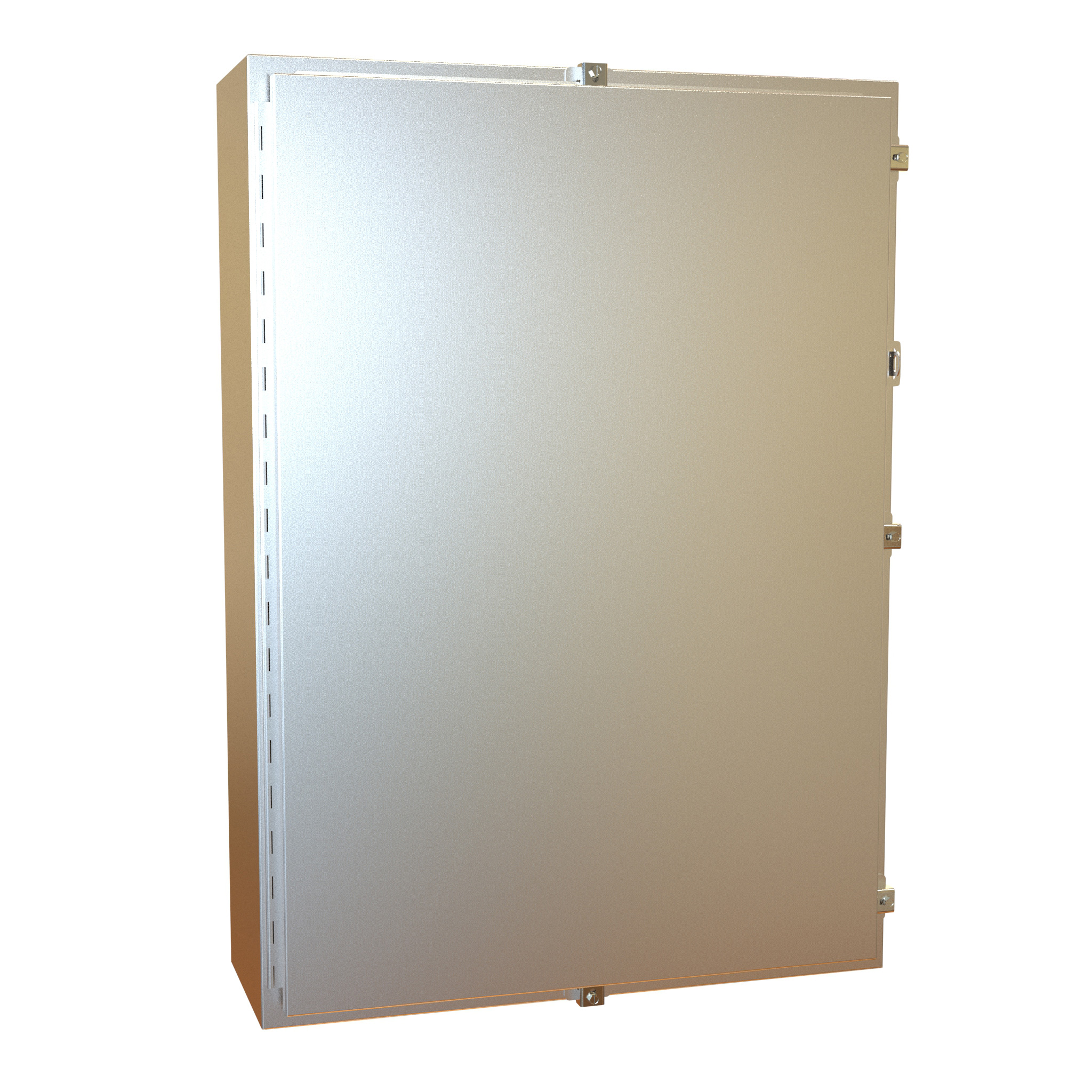

| 1418N4SSO10 | 1418N4S16O10 | 42.00 | 30.00 | 10.00 | 39.00 | 27.00 | $2,211.67Backorder1418N4SSO10 | Buy now |
| 1418N4SSS10 | 1418N4S16S10 | 48.00 | 36.00 | 10.00 | 45.00 | 33.00 | $2,885.28In stock1418N4SSS10 | Buy now |
| 1418N4SSJ12 | 1418N4S16J12 | 24.00 | 24.00 | 12.00 | 21.00 | 21.00 | $1,435.92In stock1418N4SSJ12 | Buy now |

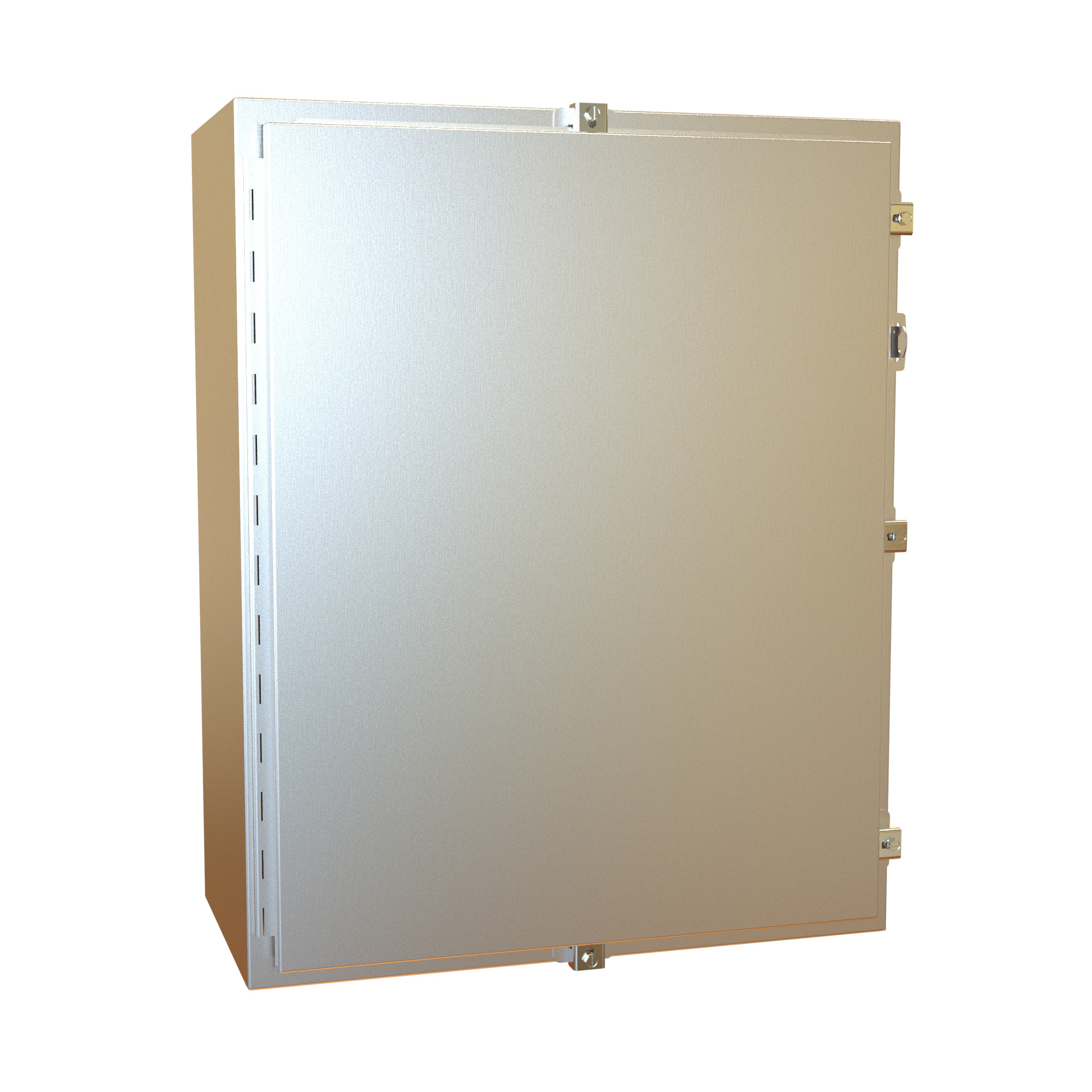

| 1418N4SSK12 | 1418N4S16K12 | 30.00 | 24.00 | 12.00 | 27.00 | 21.00 | $1,629.99Backorder1418N4SSK12 | Buy now |

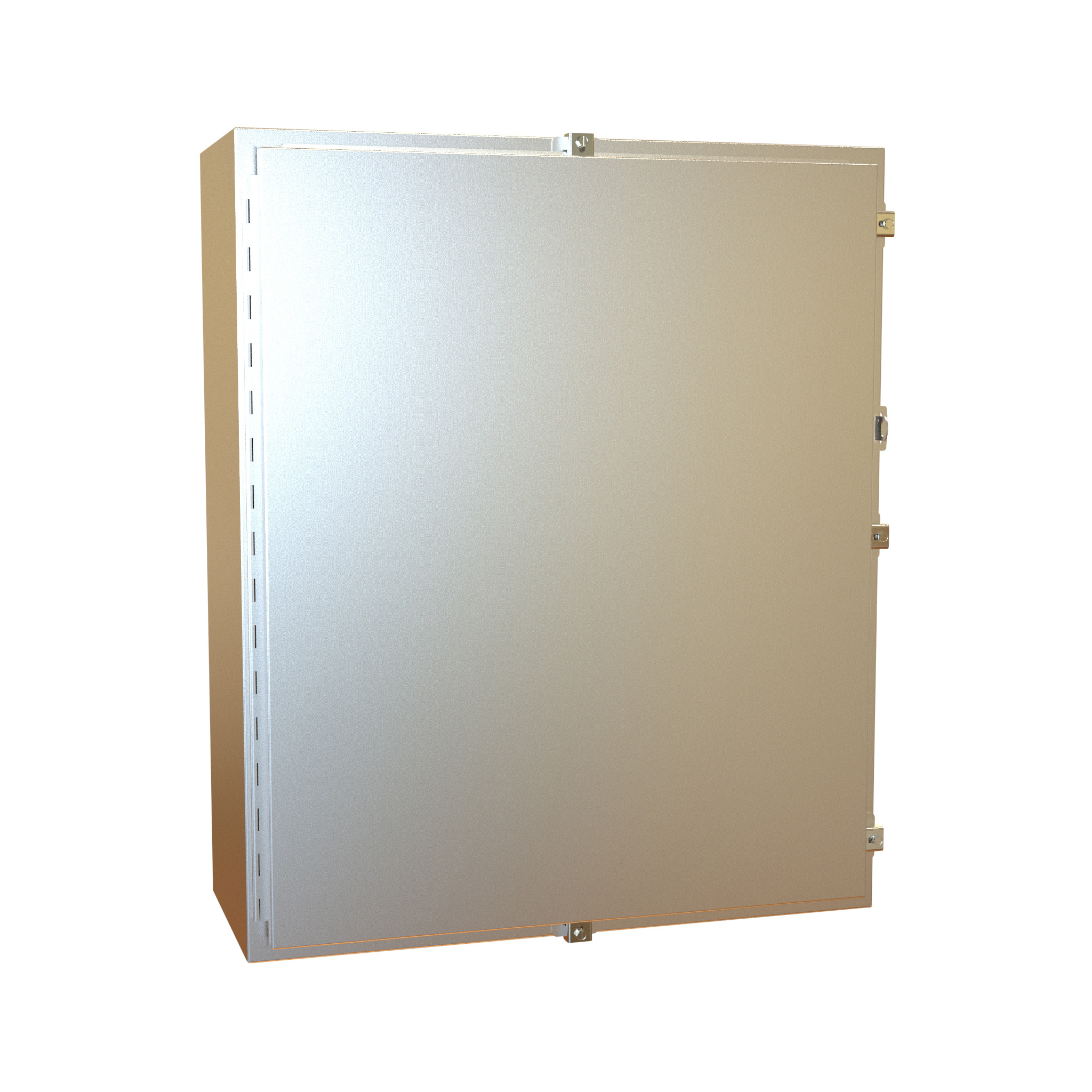

| 1418N4SSM12 | 1418N4S16M12 | 36.00 | 30.00 | 12.00 | 33.00 | 27.00 | $2,104.70In stock1418N4SSM12 | Buy now |

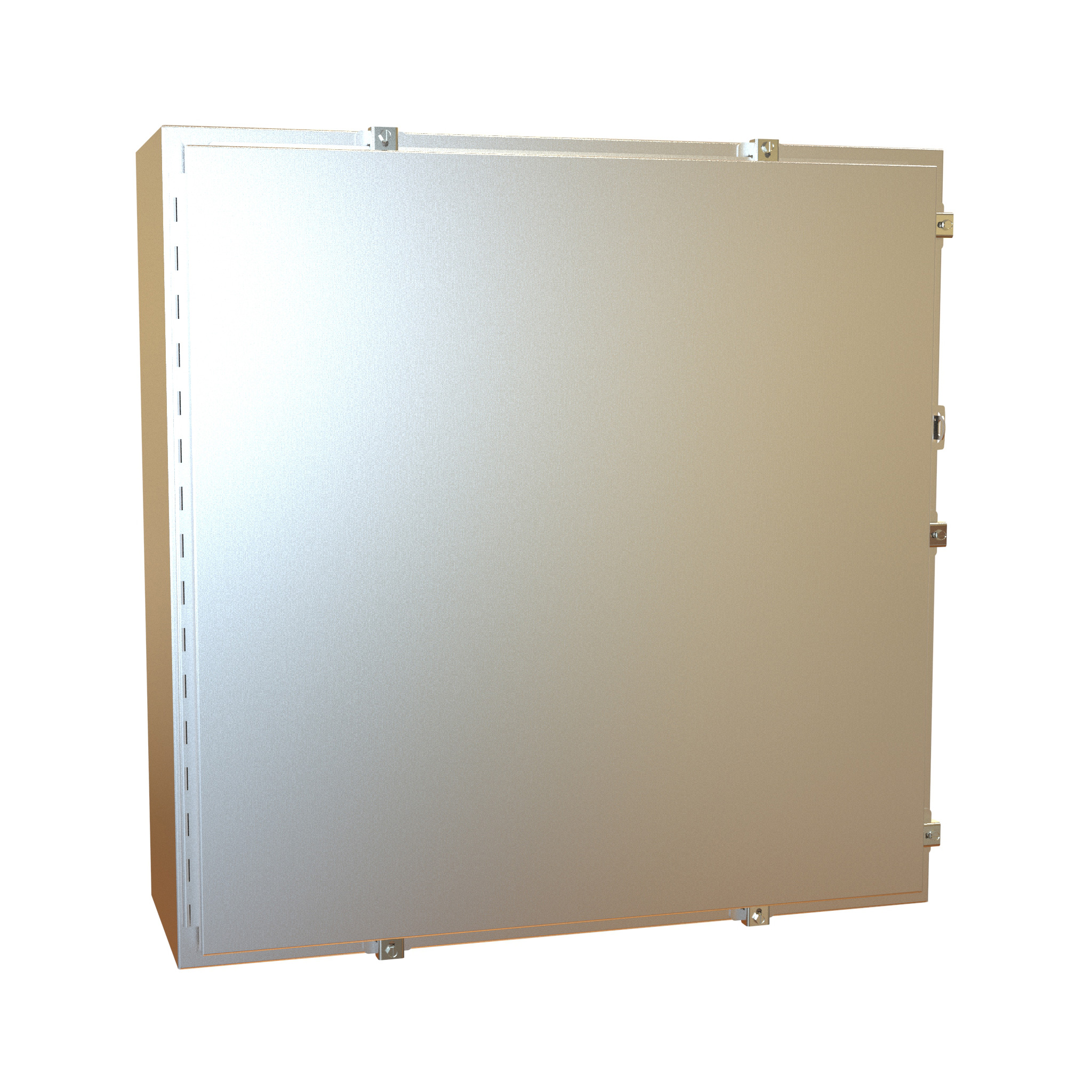

| 1418N4SSLL12 | 1418N4S16LL12 | 36.00 | 36.00 | 12.00 | 33.00 | 33.00 | $2,368.11In stock1418N4SSLL12 | Buy now |

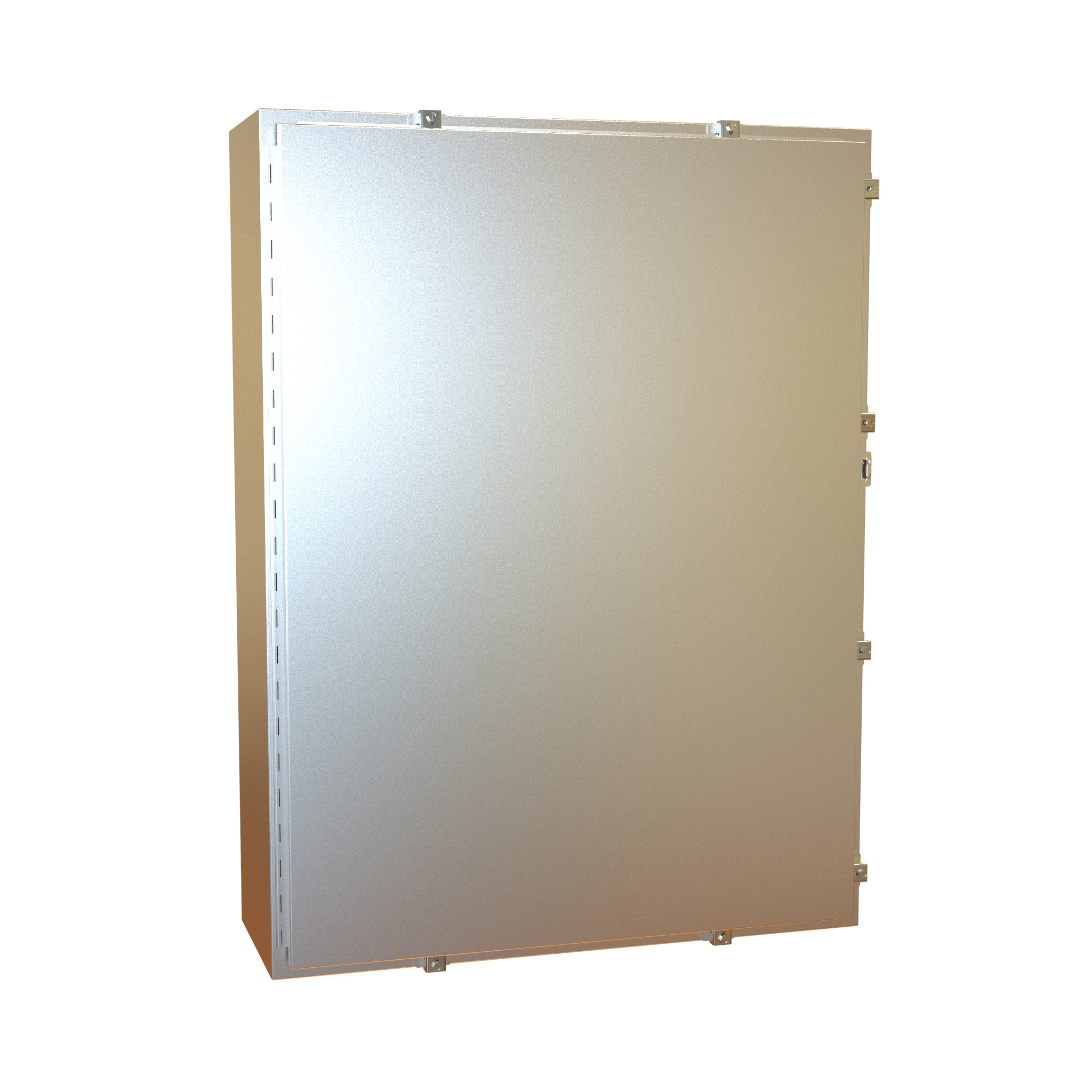

| 1418N4SSS12 | 1418N4S16S12 | 48.00 | 36.00 | 12.00 | 45.00 | 33.00 | $2,895.50In stock1418N4SSS12 | Buy now |

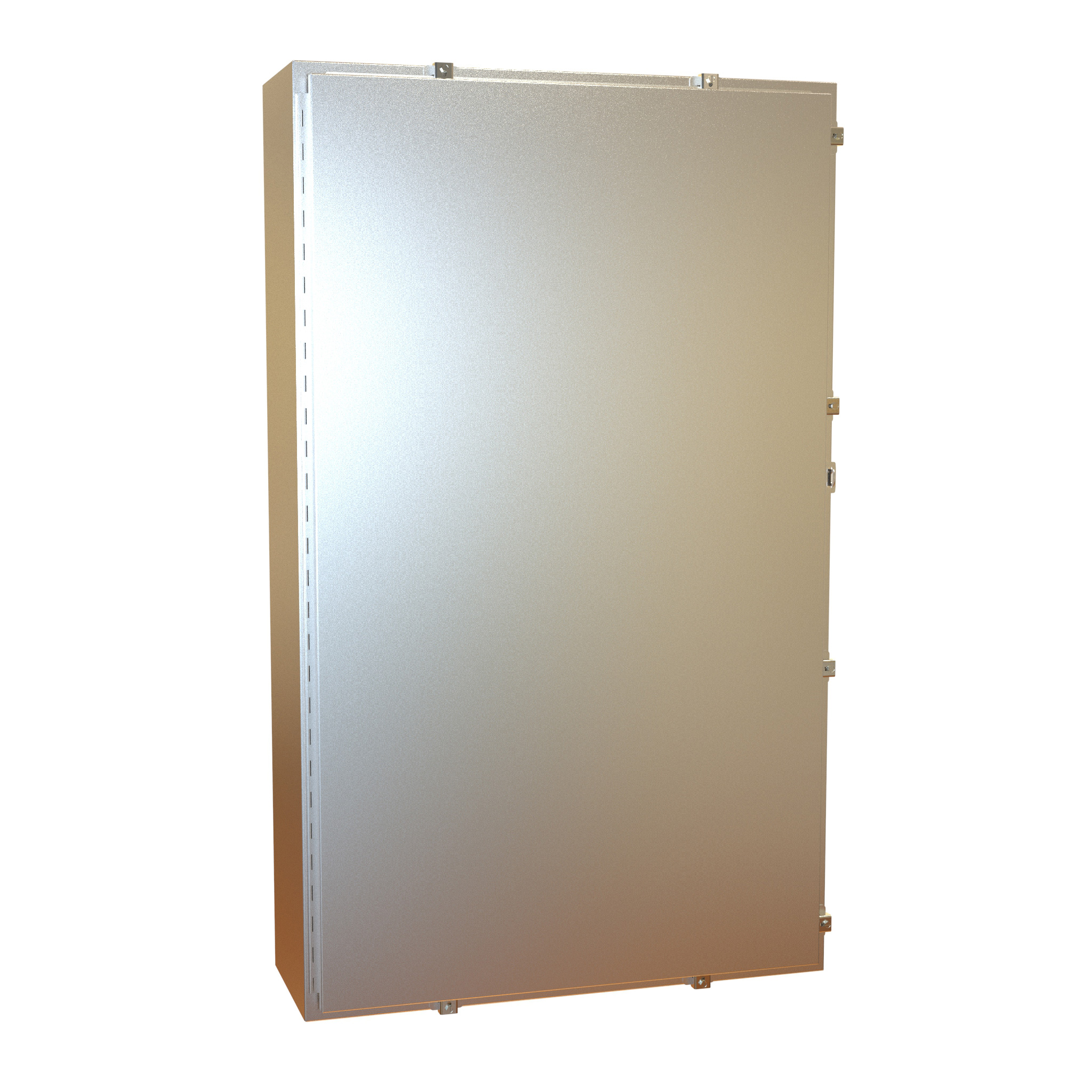

| 1418N4SST12 | 1418N4S16T12 | 60.00 | 36.00 | 12.00 | 57.00 | 33.00 | $3,425.03In stock1418N4SST12 | Buy now |

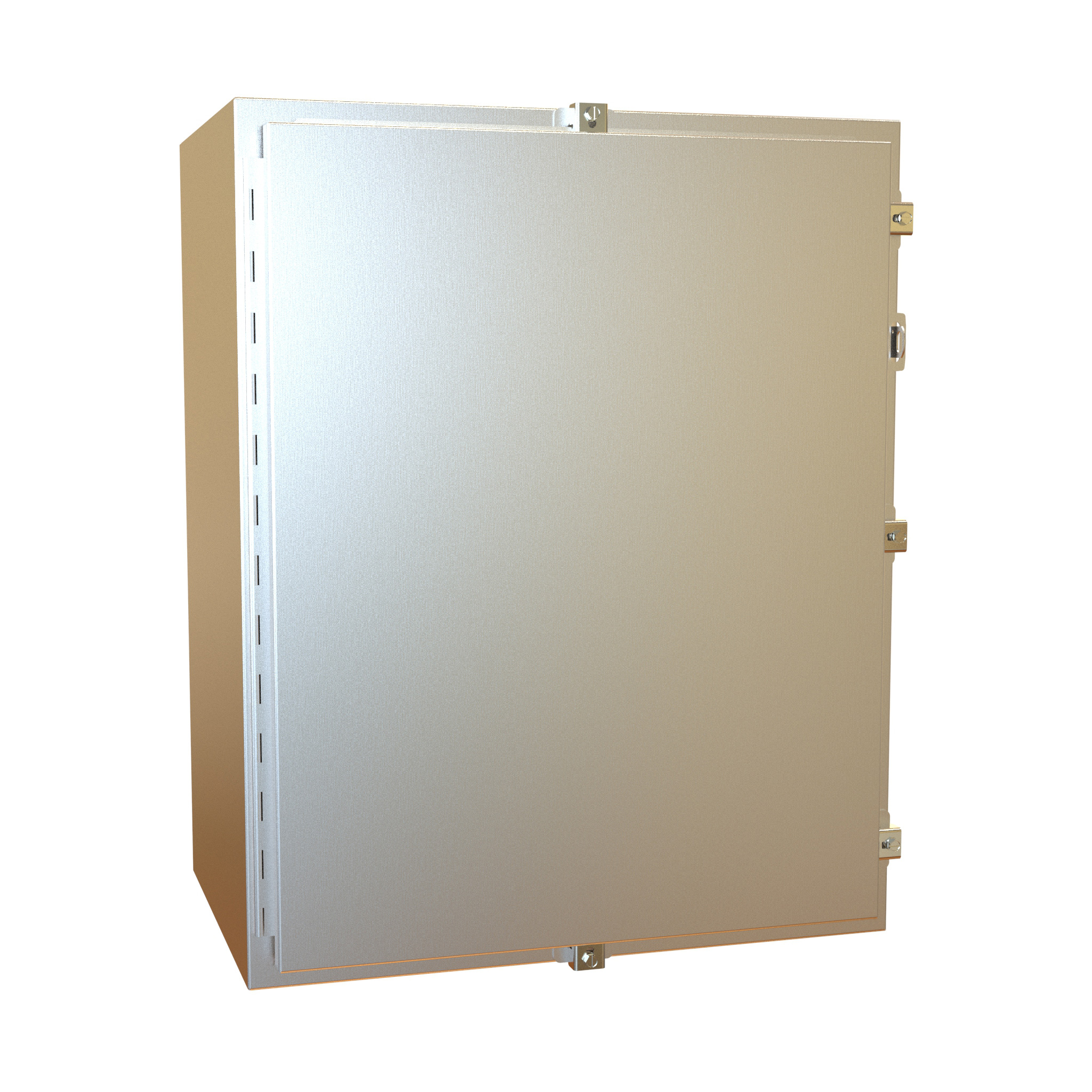

| 1418N4SSK16 | 1418N4S16K16 | 30.00 | 24.00 | 16.00 | 27.00 | 21.00 | $1,813.85In stock1418N4SSK16 | Buy now |
| 1418N4SSM16 | 1418N4S16M16 | 36.00 | 30.00 | 16.00 | 33.00 | 27.00 | $2,326.18Backorder1418N4SSM16 | Buy now |

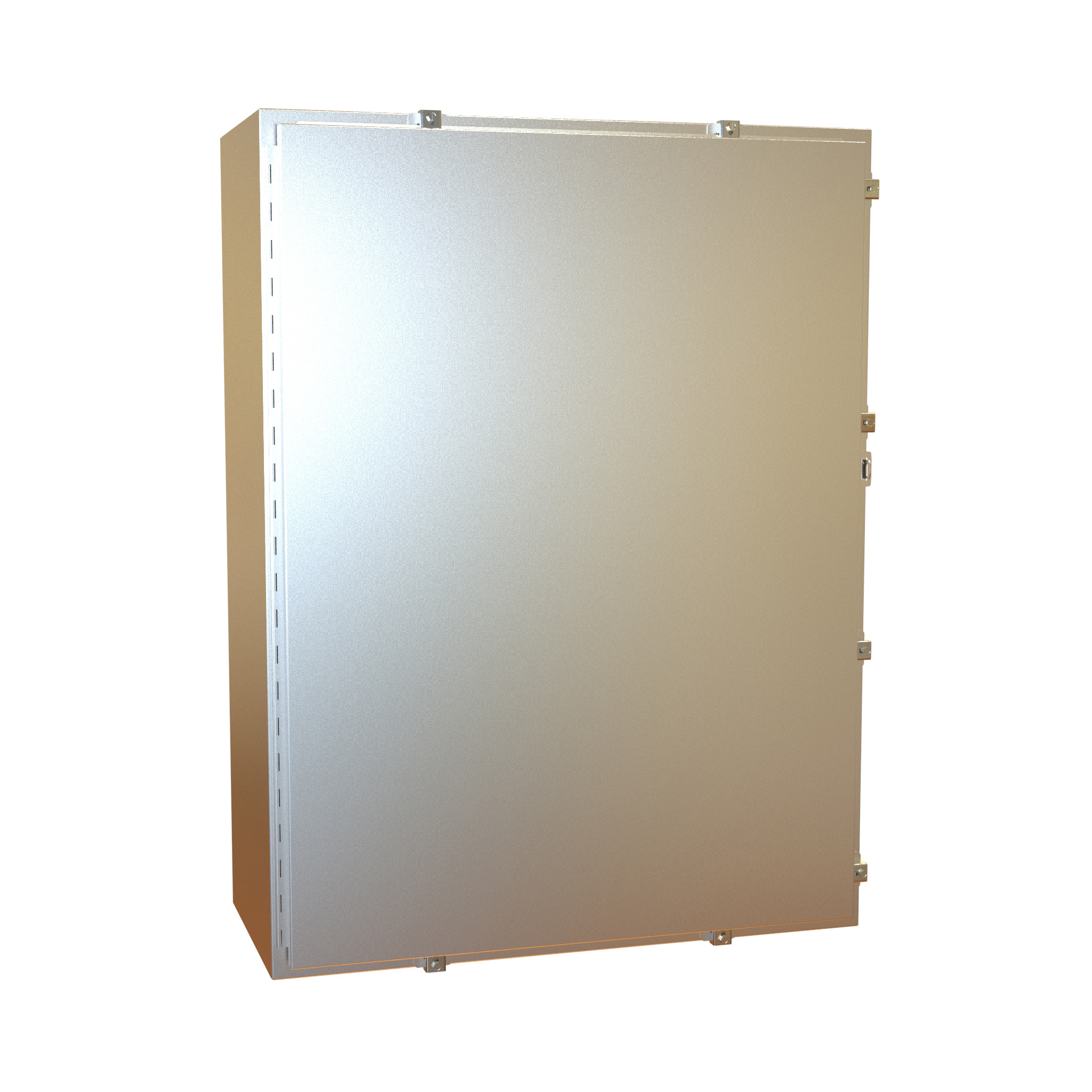

| 1418N4SSS16 | 1418N4S16S16 | 48.00 | 36.00 | 16.00 | 45.00 | 33.00 | $3,178.80Backorder1418N4SSS16 | Buy now |
| 1418N4SST16 | 1418N4S16T16 | 60.00 | 36.00 | 16.00 | 57.00 | 33.00 | $3,917.46Backorder1418N4SST16 | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
Standards
- ■UL 508A Type 3R, 4, 4X, and 12
- ■CSA Type 3R, 4, 4X, and 12
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed 14 gauge 304 or 316 stainless steel.
- ■Smooth, continuously welded seams without knockouts, cutouts or holes.
- ■Door stiffeners are provided in the larger enclosures for extra rigidity.
- ■Welded brackets provide for enclosure mounting.
- ■Formed lip on door and enclosure excludes flowing liquids and contaminants.
- ■Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- ■Door is secured with easily operated stainless steel clamps.
- ■Provision for padlocking.
- ■Seamless poured-in place gasket.
- ■A removable 12 gauge inner panel is included.
- ■Collar studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|---|
| 1418N4SSB6 | 1418N4S16B6 | 16.00 | 12.00 | 6.00 | 13.00 | 9.00 |
| 1418N4SSG6 | 1418N4S16G6 | 16.00 | 16.00 | 6.00 | 13.00 | 13.00 |
| 1418N4SSCR6 | 1418N4S16CR6 | 16.00 | 20.00 | 6.00 | 13.00 | 17.00 |
| 1418N4SSC6 | 1418N4S16C6 | 20.00 | 16.00 | 6.00 | 17.00 | 13.00 |
| 1418N4SSD6 | 1418N4S16D6 | 20.00 | 20.00 | 6.00 | 17.00 | 17.00 |
| 1418N4SSE6 | 1418N4S16E6 | 24.00 | 20.00 | 6.00 | 21.00 | 17.00 |
| 1418N4SSJ6 | 1418N4S16J6 | 24.00 | 24.00 | 6.00 | 21.00 | 21.00 |
| 1418N4SSB8 | 1418N4S16B8 | 16.00 | 12.00 | 8.00 | 13.00 | 9.00 |
| 1418N4SSC8 | 1418N4S16C8 | 20.00 | 16.00 | 8.00 | 17.00 | 13.00 |
| 1418N4SSD8 | 1418N4S16D8 | 20.00 | 20.00 | 8.00 | 17.00 | 17.00 |
| 1418N4SSER8 | 1418N4S16ER8 | 20.00 | 24.00 | 8.00 | 17.00 | 21.00 |
| 1418N4SSH8 | 1418N4S16H8 | 24.00 | 16.00 | 8.00 | 21.00 | 13.00 |
| 1418N4SSE8 | 1418N4S16E8 | 24.00 | 20.00 | 8.00 | 21.00 | 17.00 |
| 1418N4SSJ8 | 1418N4S16J8 | 24.00 | 24.00 | 8.00 | 21.00 | 21.00 |
| 1418N4SSKR8 | 1418N4S16KR8 | 24.00 | 30.00 | 8.00 | 21.00 | 27.00 |
| 1418N4SSF8 | 1418N4S16F8 | 30.00 | 20.00 | 8.00 | 27.00 | 17.00 |
| 1418N4SSK8 | 1418N4S16K8 | 30.00 | 24.00 | 8.00 | 27.00 | 21.00 |
| 1418N4SSKK8 | 1418N4S16KK8 | 30.00 | 30.00 | 8.00 | 27.00 | 27.00 |
| 1418N4SSL8 | 1418N4S16L8 | 36.00 | 24.00 | 8.00 | 33.00 | 21.00 |
| 1418N4SSM8 | 1418N4S16M8 | 36.00 | 30.00 | 8.00 | 33.00 | 27.00 |
| 1418N4SSP8 | 1418N4S16P8 | 42.00 | 36.00 | 8.00 | 39.00 | 33.00 |
| 1418N4SSS8 | 1418N4S16S8 | 48.00 | 36.00 | 8.00 | 45.00 | 33.00 |
| 1418N4SSC10 | 1418N4S16C10 | 20.00 | 16.00 | 10.00 | 17.00 | 13.00 |
| 1418N4SSE10 | 1418N4S16E10 | 24.00 | 20.00 | 10.00 | 21.00 | 17.00 |
| 1418N4SSK10 | 1418N4S16K10 | 30.00 | 24.00 | 10.00 | 27.00 | 21.00 |
| 1418N4SSL10 | 1418N4S16L10 | 36.00 | 24.00 | 10.00 | 33.00 | 21.00 |
| 1418N4SSM10 | 1418N4S16M10 | 36.00 | 30.00 | 10.00 | 33.00 | 27.00 |
| 1418N4SSO10 | 1418N4S16O10 | 42.00 | 30.00 | 10.00 | 39.00 | 27.00 |
| 1418N4SSS10 | 1418N4S16S10 | 48.00 | 36.00 | 10.00 | 45.00 | 33.00 |
| 1418N4SSJ12 | 1418N4S16J12 | 24.00 | 24.00 | 12.00 | 21.00 | 21.00 |
| 1418N4SSK12 | 1418N4S16K12 | 30.00 | 24.00 | 12.00 | 27.00 | 21.00 |
| 1418N4SSM12 | 1418N4S16M12 | 36.00 | 30.00 | 12.00 | 33.00 | 27.00 |
| 1418N4SSLL12 | 1418N4S16LL12 | 36.00 | 36.00 | 12.00 | 33.00 | 33.00 |
| 1418N4SSS12 | 1418N4S16S12 | 48.00 | 36.00 | 12.00 | 45.00 | 33.00 |
| 1418N4SST12 | 1418N4S16T12 | 60.00 | 36.00 | 12.00 | 57.00 | 33.00 |
| 1418N4SSK16 | 1418N4S16K16 | 30.00 | 24.00 | 16.00 | 27.00 | 21.00 |
| 1418N4SSM16 | 1418N4S16M16 | 36.00 | 30.00 | 16.00 | 33.00 | 27.00 |
| 1418N4SSS16 | 1418N4S16S16 | 48.00 | 36.00 | 16.00 | 45.00 | 33.00 |
| 1418N4SST16 | 1418N4S16T16 | 60.00 | 36.00 | 16.00 | 57.00 | 33.00 |
Any questions? Talk with an expert
Call us (224) 955-1644Accessories for this series
Inner Panels · 18P Series
from $12.71
Shop parts
Perforated Inner Panels · 18PP Series
from $26.69
Shop parts
Swing Panel Kit · SPB Series
from $57.18
Shop parts
Door Stop Kit
from $107.66
Shop parts
Door Clamping Hardware - Heavy Duty
from $38.52
Shop parts
Wallmount Quick Release Clamp
from $27.02
Shop parts
Drip Shield Kit · DK Series
from $53.77
Shop parts
Floor Stand Kit · 1481F Series
from $167.85
Shop partsRelated products
Type 4X Stainless Steel Junction Box · C4XSC Series
from $115.79
Shop parts
Type 4X Stainless Steel Junction Box · Eclipse Junior Series
from $195.73
Shop parts
Type 4X Stainless Steel Junction Box · 1414 N4 PH SS Series
from $202.95
Shop parts
Type 4X Stainless Steel Junction Box · 1414 N4 SS Series
from $136.02
Shop parts
Hygienic Type 4X Stainless Steel Junction Box · HYJ Series
from $4.35
Shop parts
Type 4X Stainless Steel Wallmount Enclosure · Eclipse Series
from $559.64
Shop parts
Type 4X Stainless Steel Wallmount Enclosure w/ Window · Eclipse Series
from $14.98
Shop parts
Type 4X Stainless Steel Wallmount Enclosure · HWSSHK Series
from $47.82
Shop parts
