4X4X3 Clamp Cover 304SS Jic
$136.02In stock
Buy now
Type 4X Stainless Steel Junction Box · 1414 N4 SS Series
Brand: Hammond Manufacturing · 8 part numbers
Lift-Off Cover with Clamps
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
- ■UL 508A Type 3R, 4, 4X, 12 and 13.
- ■CSA Type 3R, 4, 4X, 12 and 13.
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
from $136.02
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1414 N4 SS Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
6X4X4 Clamp Cover 304SS Jic
$176.59Backorder
Buy now
6X6X4 Clamp Cover 304SS Jic
$201.60In stock
Buy now
8X6X3.5 Clamp Cover 304SS Jic
$232.24In stock
Buy now
10X8X4 Clamp Cover 304SS Jic
$283.91In stock
Buy now
12X10X5 Clamp Cover 304SS Jic
$403.36In stock
Buy now
14X12X6 Clamp Cover 304SS Jic
$505.99In stock
Buy now
16X14X6 Clamp Cover SS
$606.41In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

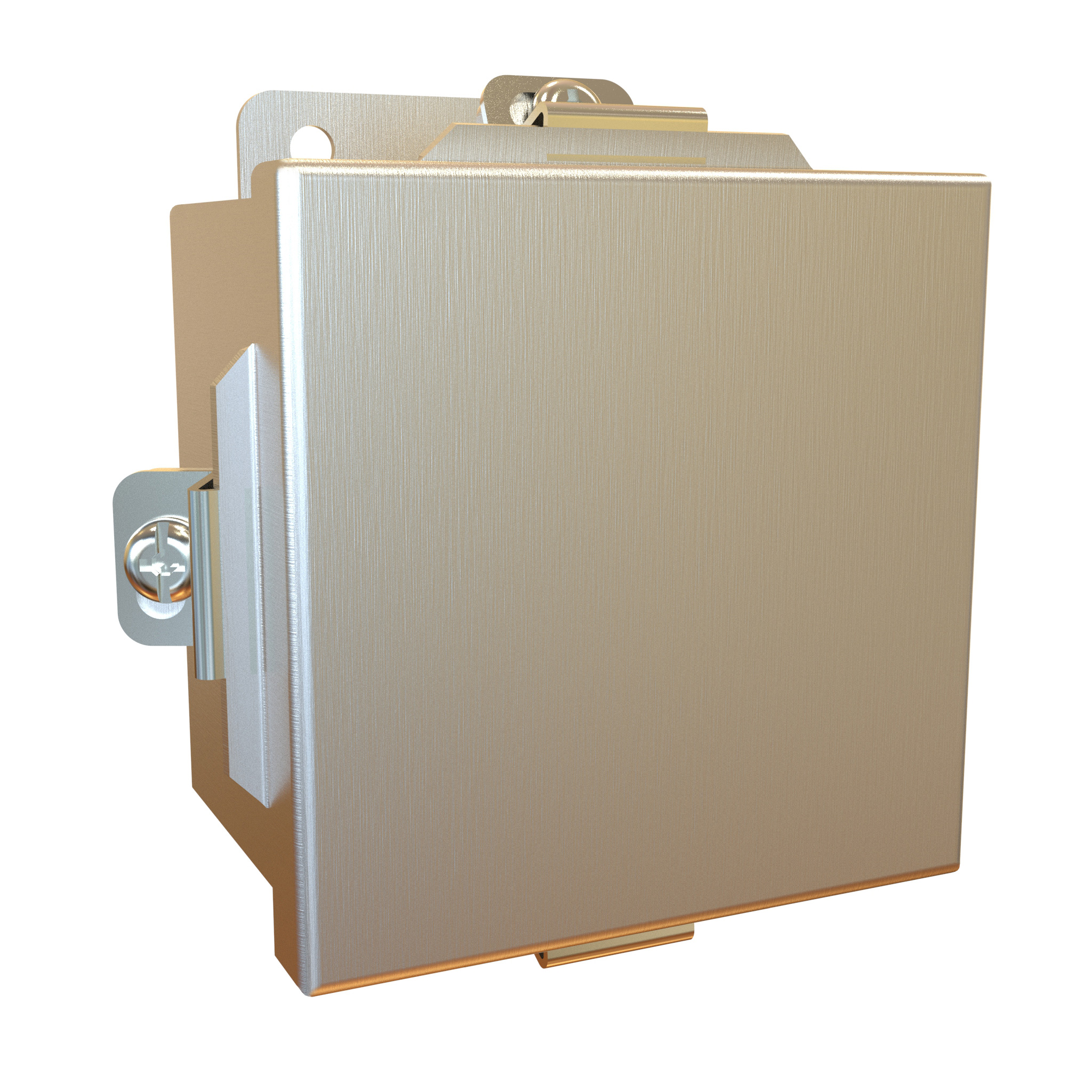

| 1414N4SSA | 4.00 | 4.00 | 3.00 | - | - | $136.02In stock | Buy now |

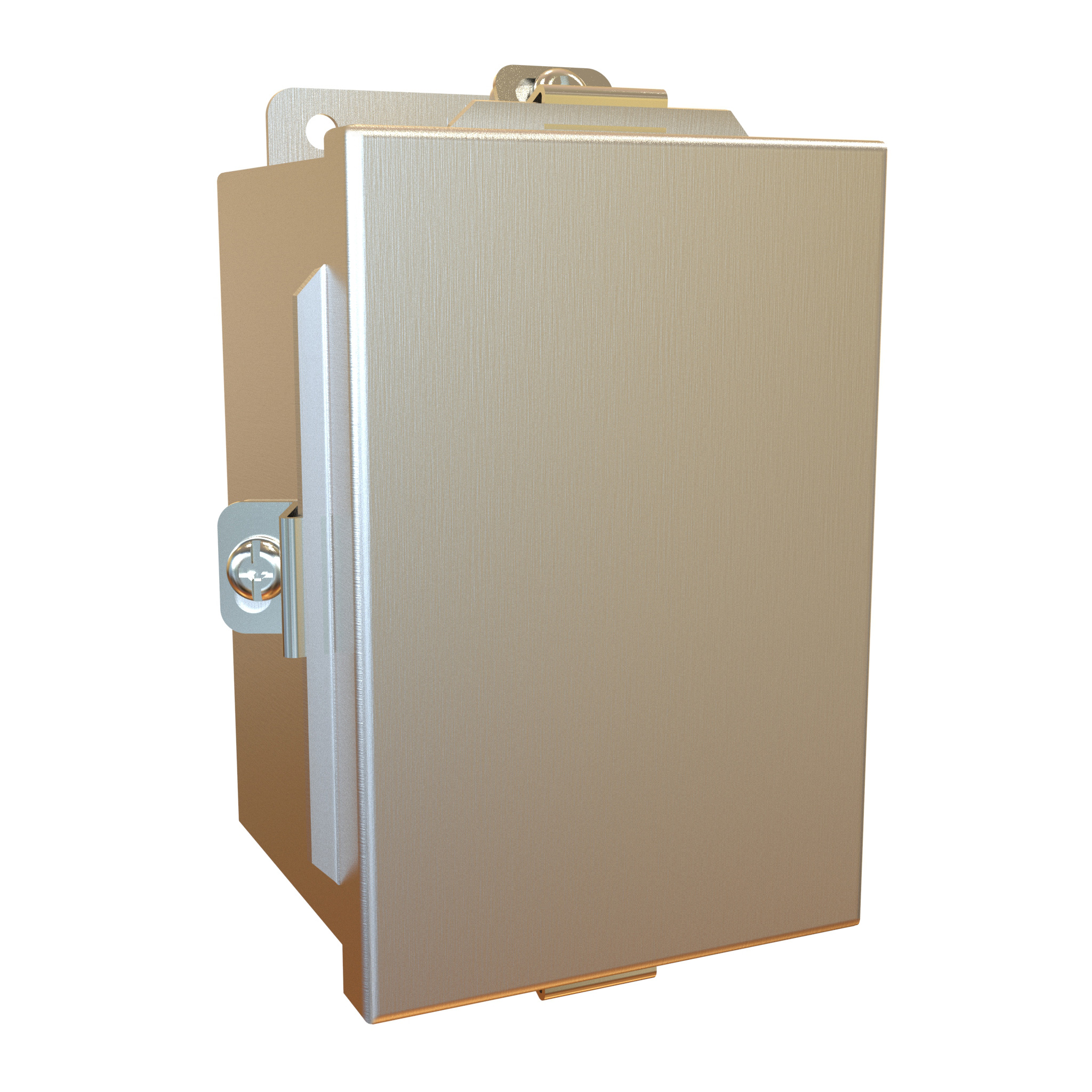

| 1414N4SSC4 | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 | $176.59Backorder | Buy now |

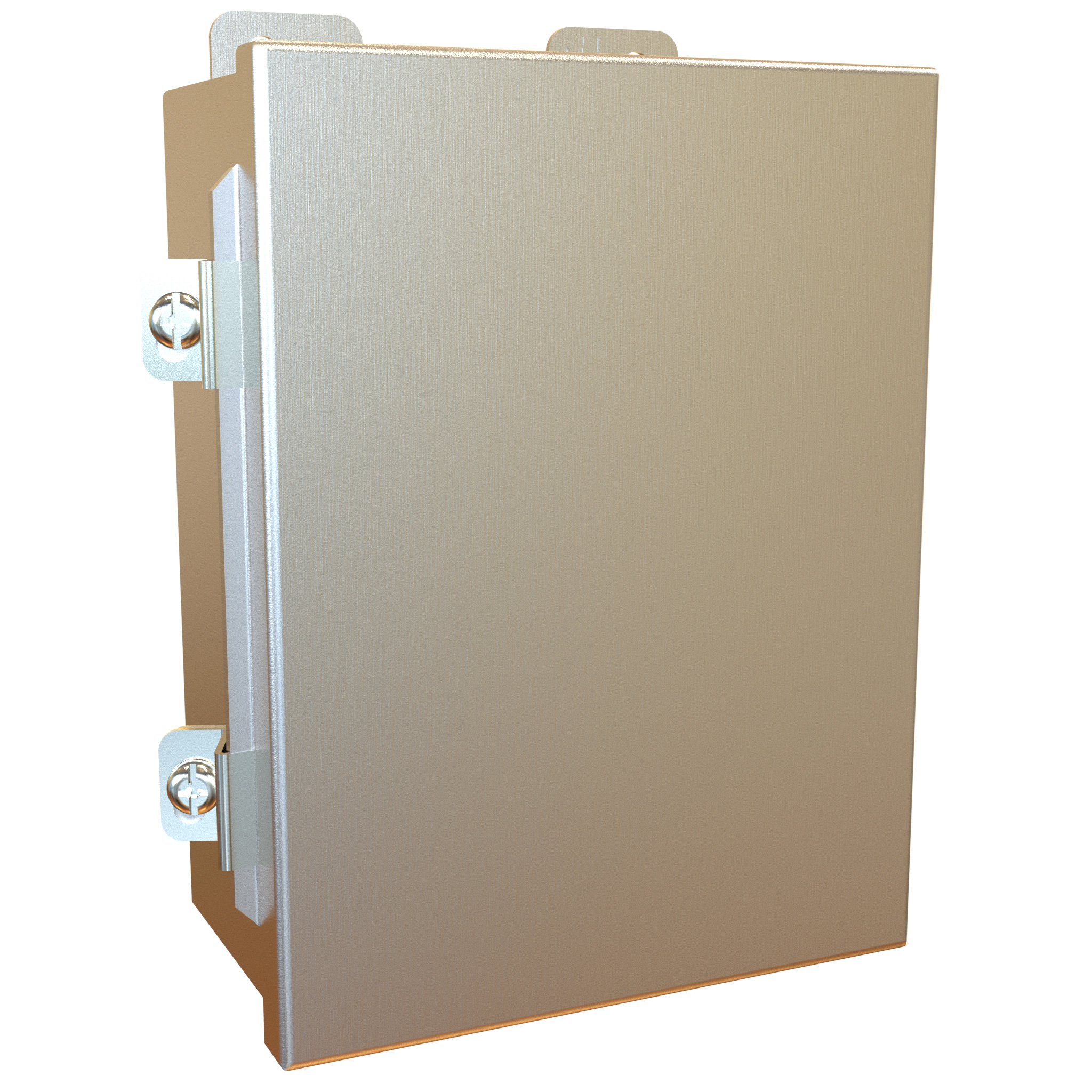

| 1414N4SSG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 | $232.24In stock | Buy now |

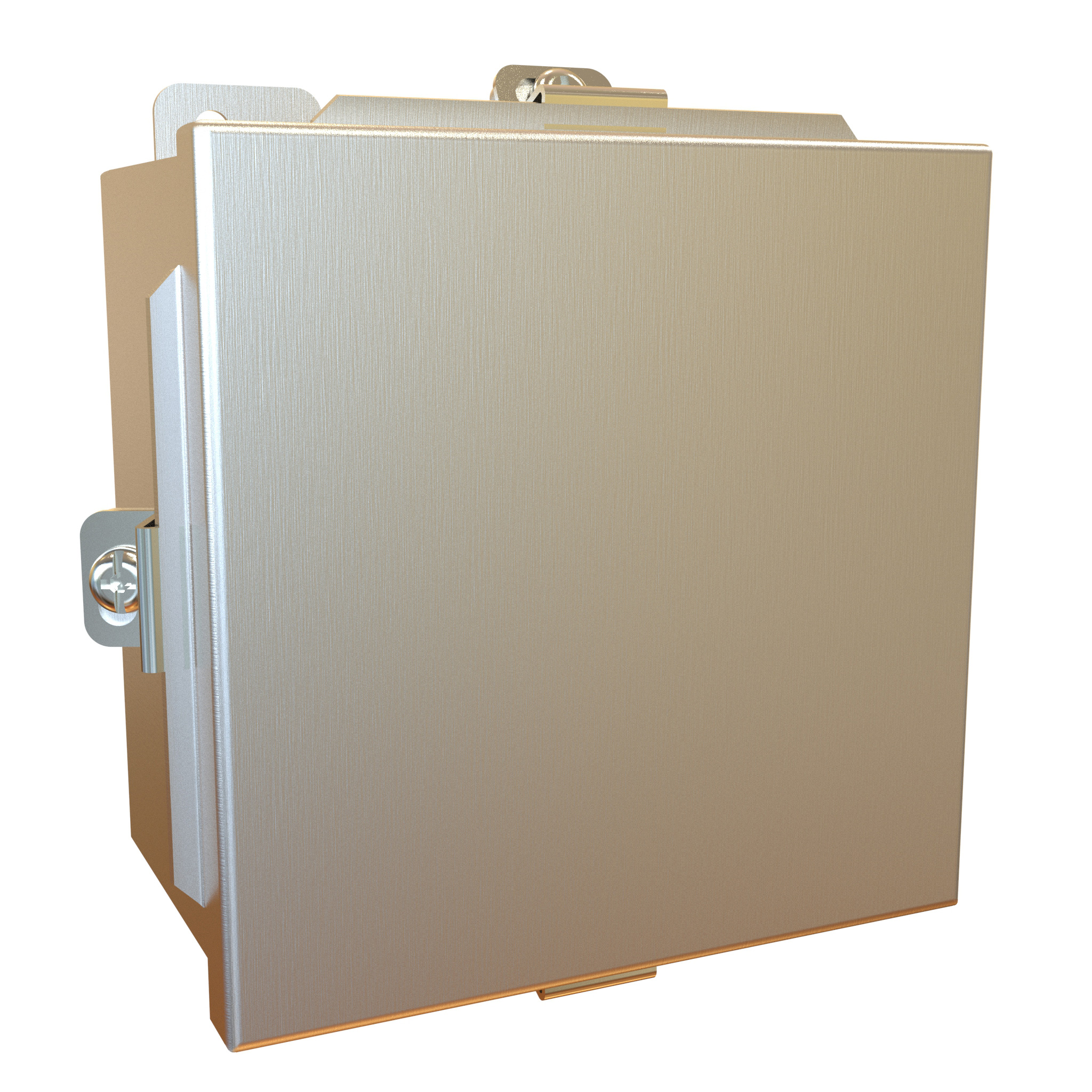

| 1414N4SSE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 | $201.60In stock | Buy now |

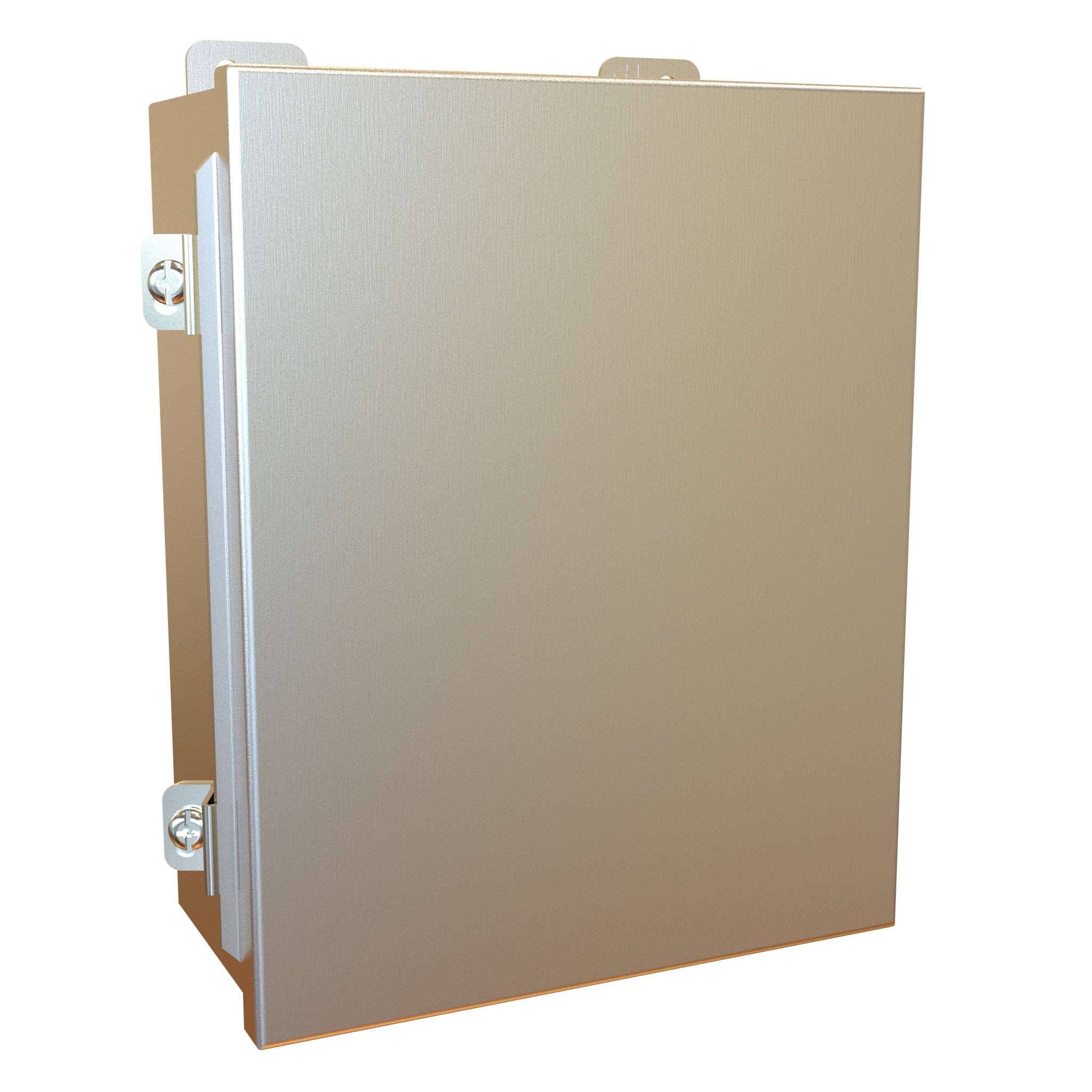

| 1414N4SSI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 | $283.91In stock | Buy now |

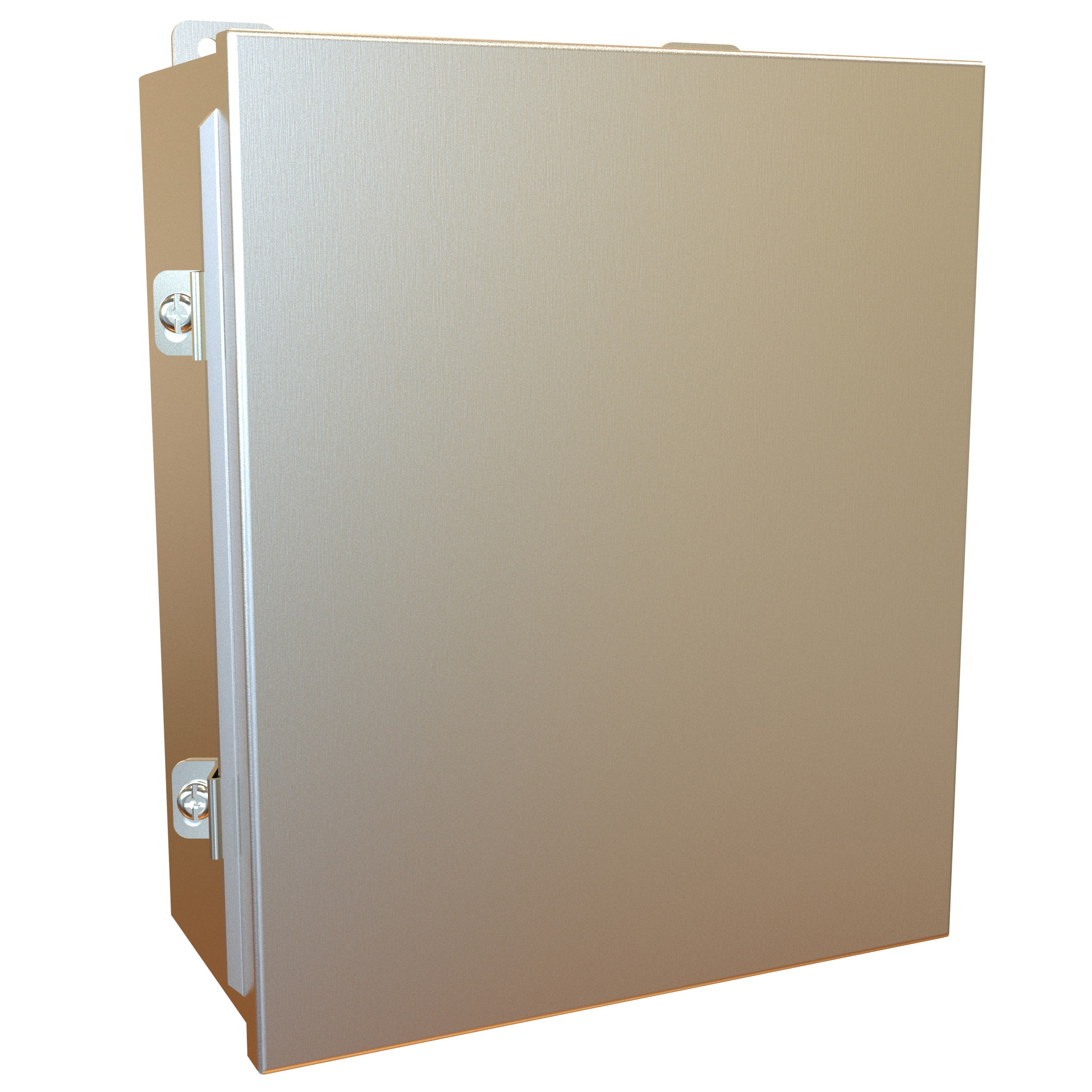

| 1414N4SSK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 | $403.36In stock | Buy now |

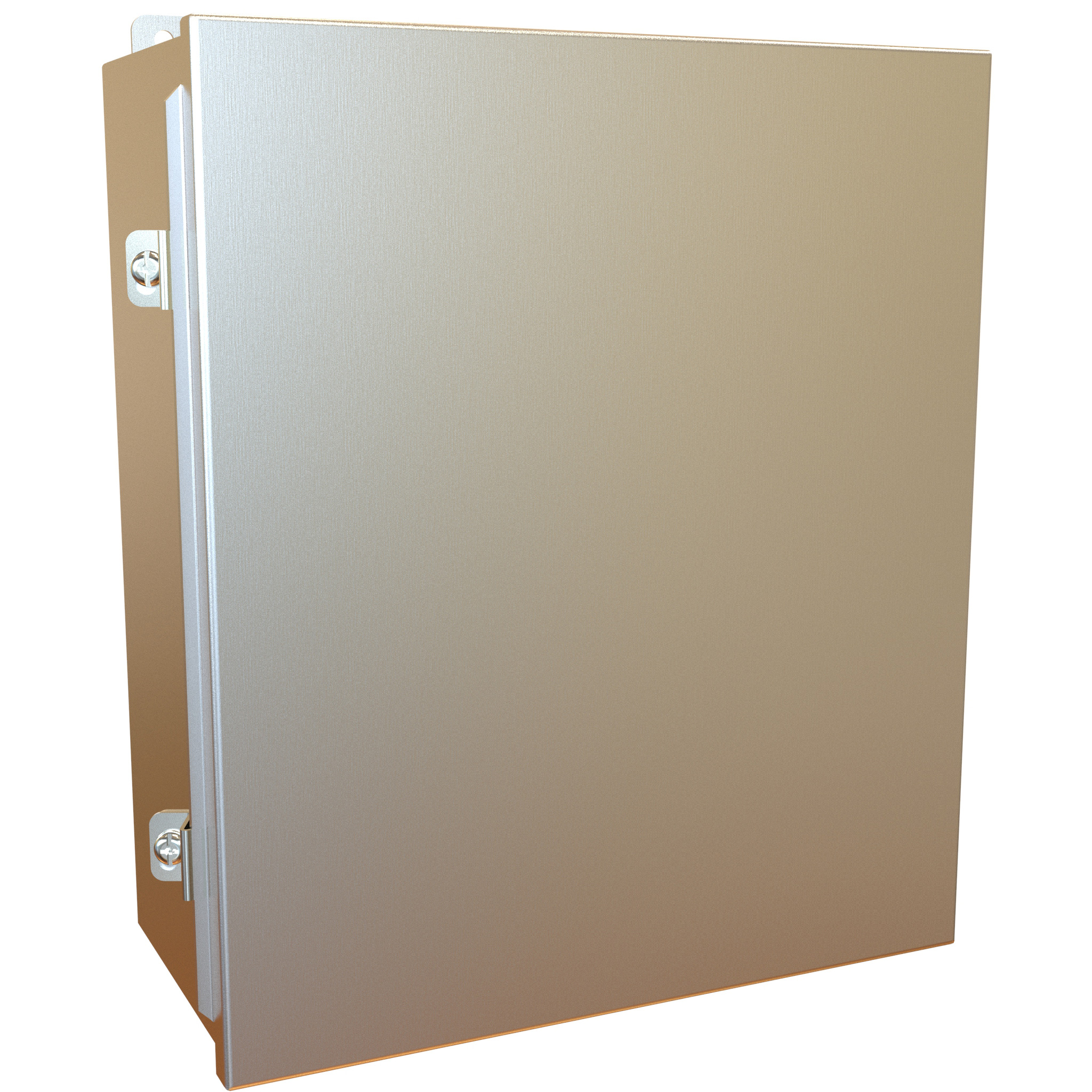

| 1414N4SSM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 | $505.99In stock | Buy now |

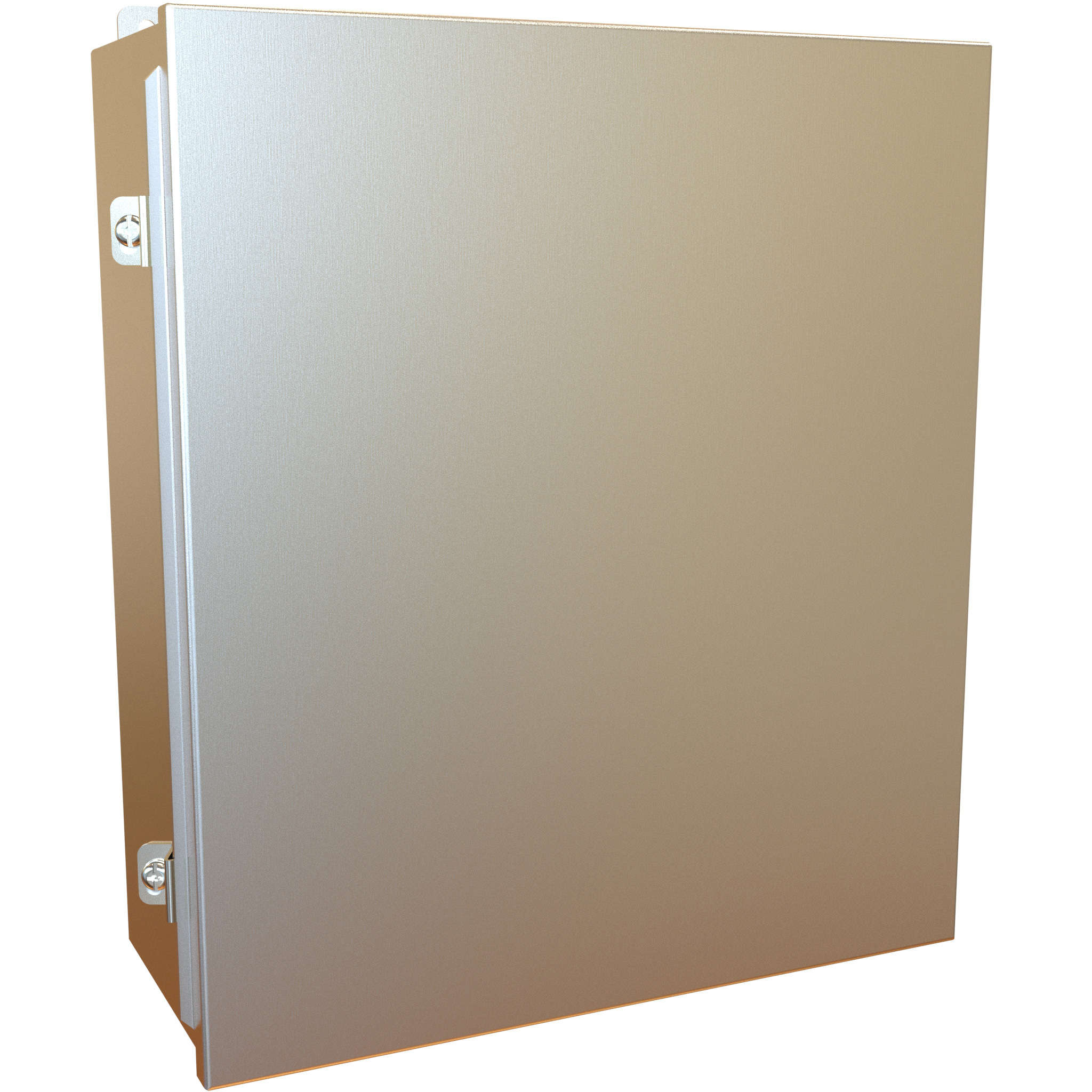

| 1414N4SSO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 | $606.41In stock | Buy now |
Application
- ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
- ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
Standards
- ■UL 508A Type 3R, 4, 4X, 12 and 13.
- ■CSA Type 3R, 4, 4X, 12 and 13.
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed from 14 gauge 304 stainless steel.
- ■Smooth, continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Lift-Off cover is secured with stainless steel clamps and screws.
- ■Seamless poured-in place gasket.
- ■All models larger than 4" x 4" include a removable 14 gauge inner panel.
- ■Tapped studs are provided for mounting inner panels.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
- ■Removable inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Panel · H | Panel · W |
|---|---|---|---|---|---|
| 1414N4SSA | 4.00 | 4.00 | 3.00 | - | - |
| 1414N4SSC4 | 6.00 | 4.00 | 4.00 | 4.88 | 2.88 |
| 1414N4SSG | 8.00 | 6.00 | 3.50 | 6.75 | 4.88 |
| 1414N4SSE | 6.00 | 6.00 | 4.00 | 4.88 | 4.88 |
| 1414N4SSI | 10.00 | 8.00 | 4.00 | 8.75 | 6.88 |
| 1414N4SSK | 12.00 | 10.00 | 5.00 | 10.75 | 8.88 |
| 1414N4SSM6 | 14.00 | 12.00 | 6.00 | 12.75 | 10.88 |
| 1414N4SSO6 | 16.00 | 14.00 | 6.00 | 14.75 | 12.88 |
