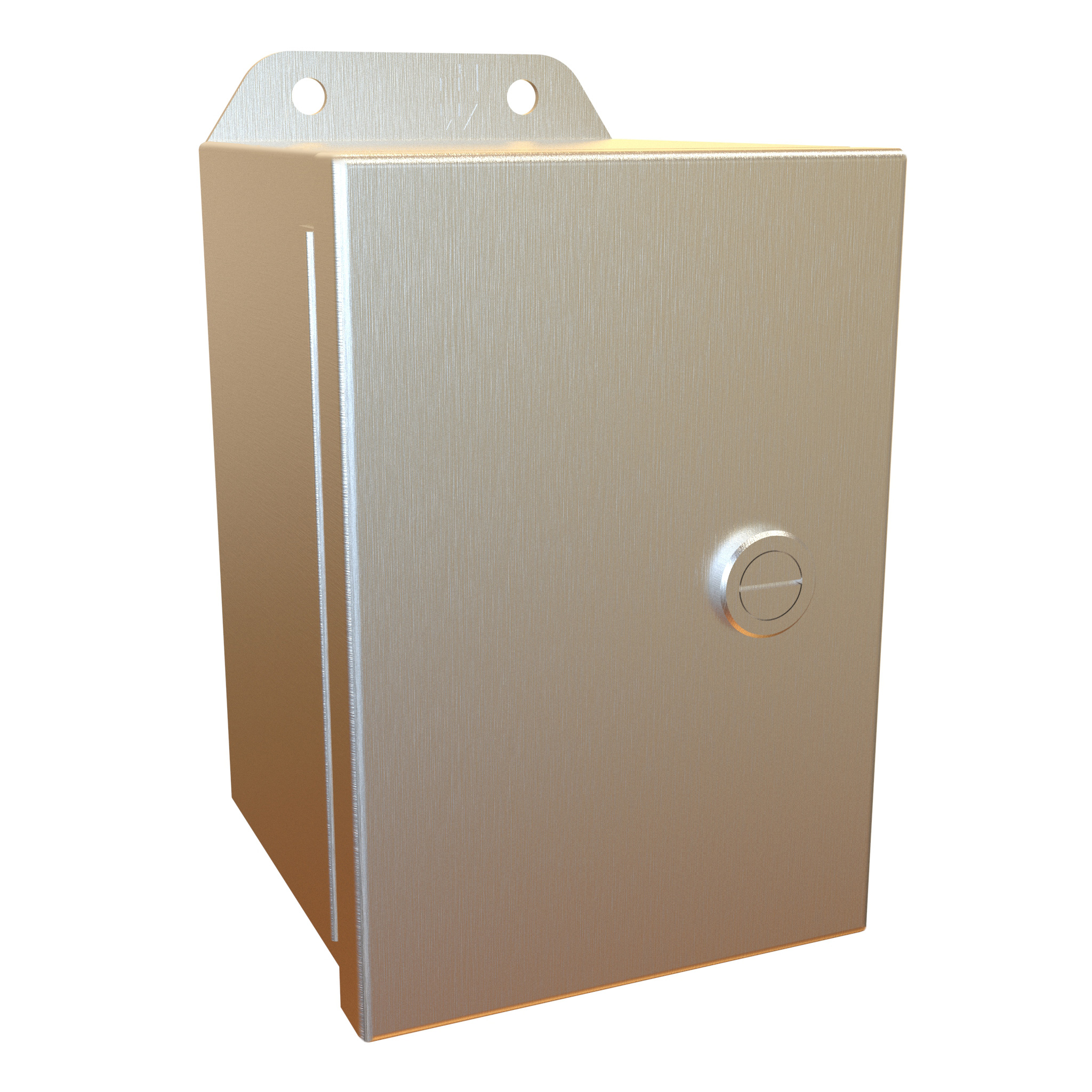

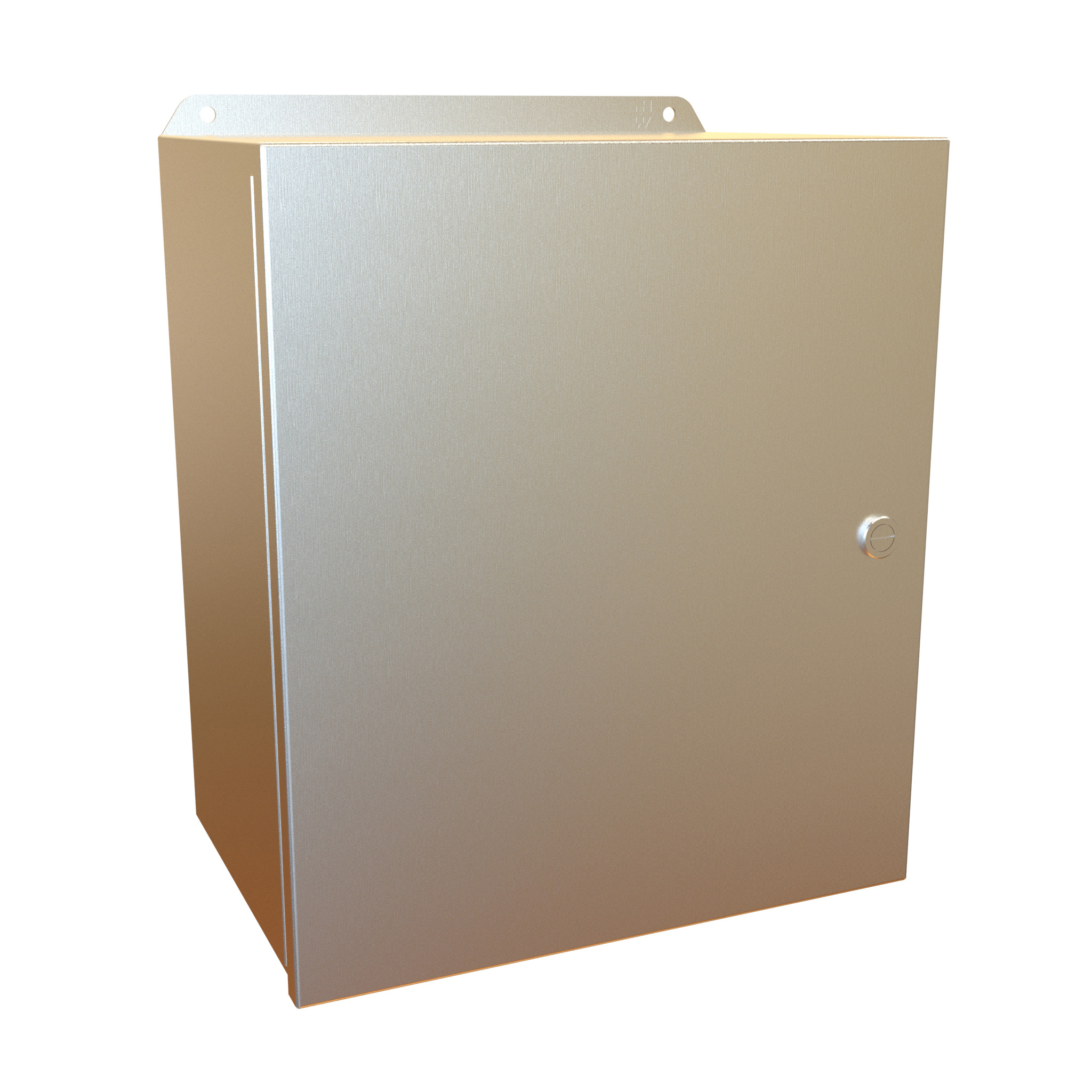

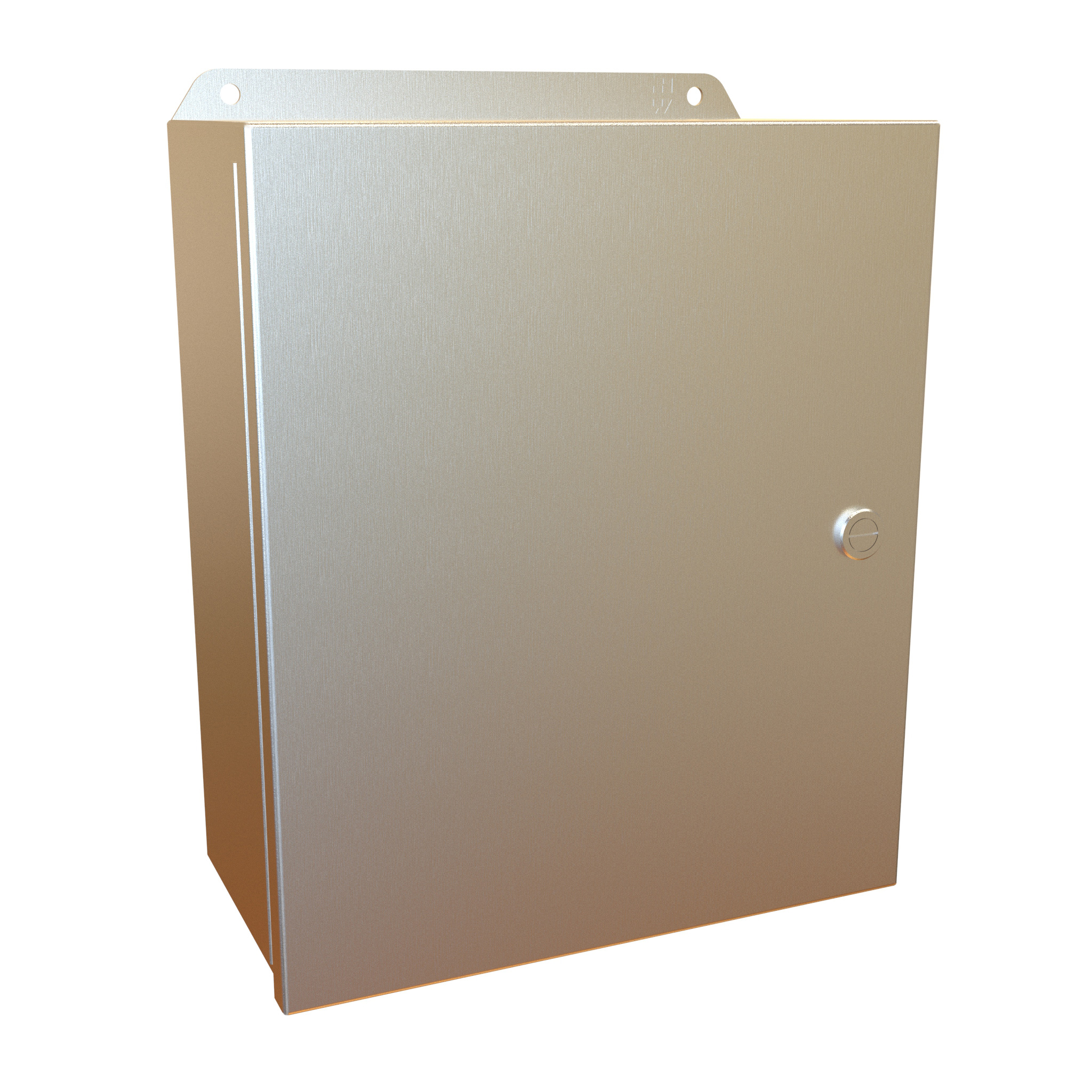

Type 4X Stainless Steel Junction Box Eclipse Junior Series

Type 4X Stainless Steel Junction Box · Eclipse Junior Series

Brand: Hammond Manufacturing · 44 part numbers

Continuous Hinge Door with Quarter Turn

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
  • ■For high temperature applications, a gasket retainer may be required, please refer to factory.
  • ■UL 508A Type 3R, 4, 4X, 12, and 13
  • ■CSA Type 3R, 4, 4X, 12, and 13
  • ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66

from $195.73

44 of 44 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your Eclipse Junior Series part number

Filter 44 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

44 of 44 part numbers · 44 priced online

EJ10106SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$400.97In stock
Buy now
EJ1084S16

Eclipse Jr. 316SS - 1 Dr. Wall

$377.31In stock
Buy now
EJ1084SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$299.46In stock
Buy now
EJ1086S16

Eclipse Jr. 316SS - 1 Dr. Wall

$445.35In stock
Buy now
EJ1086SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$343.04In stock
Buy now
EJ12105SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$393.15In stock
Buy now
EJ12106SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$408.57Backorder
Buy now
EJ12108SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$449.81In stock
Buy now
EJ12124SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$414.08In stock
Buy now
EJ12126SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$445.85In stock
Buy now
EJ1264S16

Eclipse Jr. 316SS - 1 Dr. Wall

$410.27In stock
Buy now
EJ1264SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$325.57In stock
Buy now
EJ14126SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$487.69In stock
Buy now
EJ14128SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$528.30In stock
Buy now
EJ16146SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$580.71Backorder
Buy now
EJ16148SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$631.38Backorder
Buy now
EJ443S16

Eclipse Jr. 316SS - 1 Dr. Wall

$246.62In stock
Buy now
EJ443SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$195.73In stock
Buy now
EJ444S16

Eclipse Jr. 316SS - 1 Dr. Wall

$247.59In stock
Buy now
EJ444SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$196.55In stock
Buy now
EJ643S16

Eclipse Jr. 316SS - 1 Dr. Wall

$248.50In stock
Buy now
EJ643SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$197.22In stock
Buy now
EJ644S16

Eclipse Jr. 316SS - 1 Dr. Wall

$249.48In stock
Buy now
EJ644SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$198.02In stock
Buy now
EJ664S16

Eclipse Jr. 316SS - 1 Dr. Wall

$278.37In stock
Buy now
EJ664SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$220.98In stock
Buy now
EJ863S16

Eclipse Jr. 316SS - 1 Dr. Wall

$302.74Backorder
Buy now
EJ863SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$240.28In stock
Buy now
EJ866S16

Eclipse Jr. 316SS - 1 Dr. Wall

$366.80Backorder
Buy now
EJ866SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$291.12In stock
Buy now
EJ884S16

Eclipse Jr. 316SS - 1 Dr. Wall

$350.54In stock
Buy now
EJ884SS

Eclipse Jr. SS - 1 Dr. Wallmnt

$278.16In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

304 S.S. · Part No.316 S.S. · Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · WPriceOrder
EJ443SSEJ443S164.004.003.00N/AN/A$195.73In stockEJ443SSBuy now
EJ444SSEJ444S164.004.004.00N/AN/A$196.55In stockEJ444SSBuy now
EJ643SSEJ643S166.004.003.004.882.88$197.22In stockEJ643SSBuy now
EJ863SSEJ863S168.006.003.506.754.88$240.28In stockEJ863SSBuy now
EJ644SSEJ644S166.004.004.004.882.88$198.02In stockEJ644SSBuy now
EJ664SSEJ664S166.006.004.004.884.88$220.98In stockEJ664SSBuy now
EJ884SSEJ884S168.008.004.006.756.88$278.16In stockEJ884SSBuy now
EJ1084SSEJ1084S1610.008.004.008.756.88$299.46In stockEJ1084SSBuy now
EJ1264SSEJ1264S1612.006.004.0010.754.88$325.57In stockEJ1264SSBuy now
EJ12124SSEJ12124S1612.0012.004.0010.7510.88$414.08In stockEJ12124SSBuy now
EJ12105SSEJ12105S1612.0010.005.0010.758.88$393.15In stockEJ12105SSBuy now
EJ866SSEJ866S168.006.006.006.754.88$291.12In stockEJ866SSBuy now
EJ1086SSEJ1086S1610.008.006.008.756.88$343.04In stockEJ1086SSBuy now
EJ10106SSEJ10106S1610.0010.006.008.758.88$400.97In stockEJ10106SSBuy now
EJ12106SSEJ12106S1612.0010.006.0010.758.88$408.57BackorderEJ12106SSBuy now
EJ12126SSEJ12126S1612.0012.006.0010.7510.88$445.85In stockEJ12126SSBuy now
EJ14126SSEJ14126S1614.0012.006.0012.7510.88$487.69In stockEJ14126SSBuy now
EJ16146SSEJ16146S1616.0014.006.0014.7512.88$580.71BackorderEJ16146SSBuy now
EJ12108SSEJ12108S1612.0010.008.0010.758.88$449.81In stockEJ12108SSBuy now
EJ14128SSEJ14128S1614.0012.008.0012.7510.88$528.30In stockEJ14128SSBuy now
EJ16148SSEJ16148S1616.0014.008.0014.7512.88$631.38BackorderEJ16148SSBuy now
EJ161410SSEJ161410S1616.0014.0010.0014.7512.88$655.97BackorderEJ161410SSBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
  • ■For high temperature applications, a gasket retainer may be required, please refer to factory.

Standards

  • ■UL 508A Type 3R, 4, 4X, 12, and 13
  • ■CSA Type 3R, 4, 4X, 12, and 13
  • ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Body and cover are formed from 16 guage 304 or 316 stainless steel.
  • ■Smooth, continuously welded seams without knockouts, cutouts, or holes.
  • ■Formed lip on enclosure to exclude flowing liquids and contaminants.
  • ■14 gauge welded brackets provide for enclosure mounting.
  • ■Continuously hinged cover has stainless steel hinges and provides 180° opening.
  • ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
  • ■Quarter turn latches formed from 316 stainless steel.
  • ■Seamless poured-in place gasket.
  • ■Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
  • ■Tapped studs are provided for mounting inner panels.
  • ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
  • ■Grounding and panel mounting hardware provided.

Finish

  • ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • ■Removable inner panel is unpainted galvanized steel.

Documents

Specification SheetCE Declaration

Additional information

Part Details

304 S.S. · Part No.316 S.S. · Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · W
EJ443SSEJ443S164.004.003.00N/AN/A
EJ444SSEJ444S164.004.004.00N/AN/A
EJ643SSEJ643S166.004.003.004.882.88
EJ863SSEJ863S168.006.003.506.754.88
EJ644SSEJ644S166.004.004.004.882.88
EJ664SSEJ664S166.006.004.004.884.88
EJ884SSEJ884S168.008.004.006.756.88
EJ1084SSEJ1084S1610.008.004.008.756.88
EJ1264SSEJ1264S1612.006.004.0010.754.88
EJ12124SSEJ12124S1612.0012.004.0010.7510.88
EJ12105SSEJ12105S1612.0010.005.0010.758.88
EJ866SSEJ866S168.006.006.006.754.88
EJ1086SSEJ1086S1610.008.006.008.756.88
EJ10106SSEJ10106S1610.0010.006.008.758.88
EJ12106SSEJ12106S1612.0010.006.0010.758.88
EJ12126SSEJ12126S1612.0012.006.0010.7510.88
EJ14126SSEJ14126S1614.0012.006.0012.7510.88
EJ16146SSEJ16146S1616.0014.006.0014.7512.88
EJ12108SSEJ12108S1612.0010.008.0010.758.88
EJ14128SSEJ14128S1614.0012.008.0012.7510.88
EJ16148SSEJ16148S1616.0014.008.0014.7512.88
EJ161410SSEJ161410S1616.0014.0010.0014.7512.88
