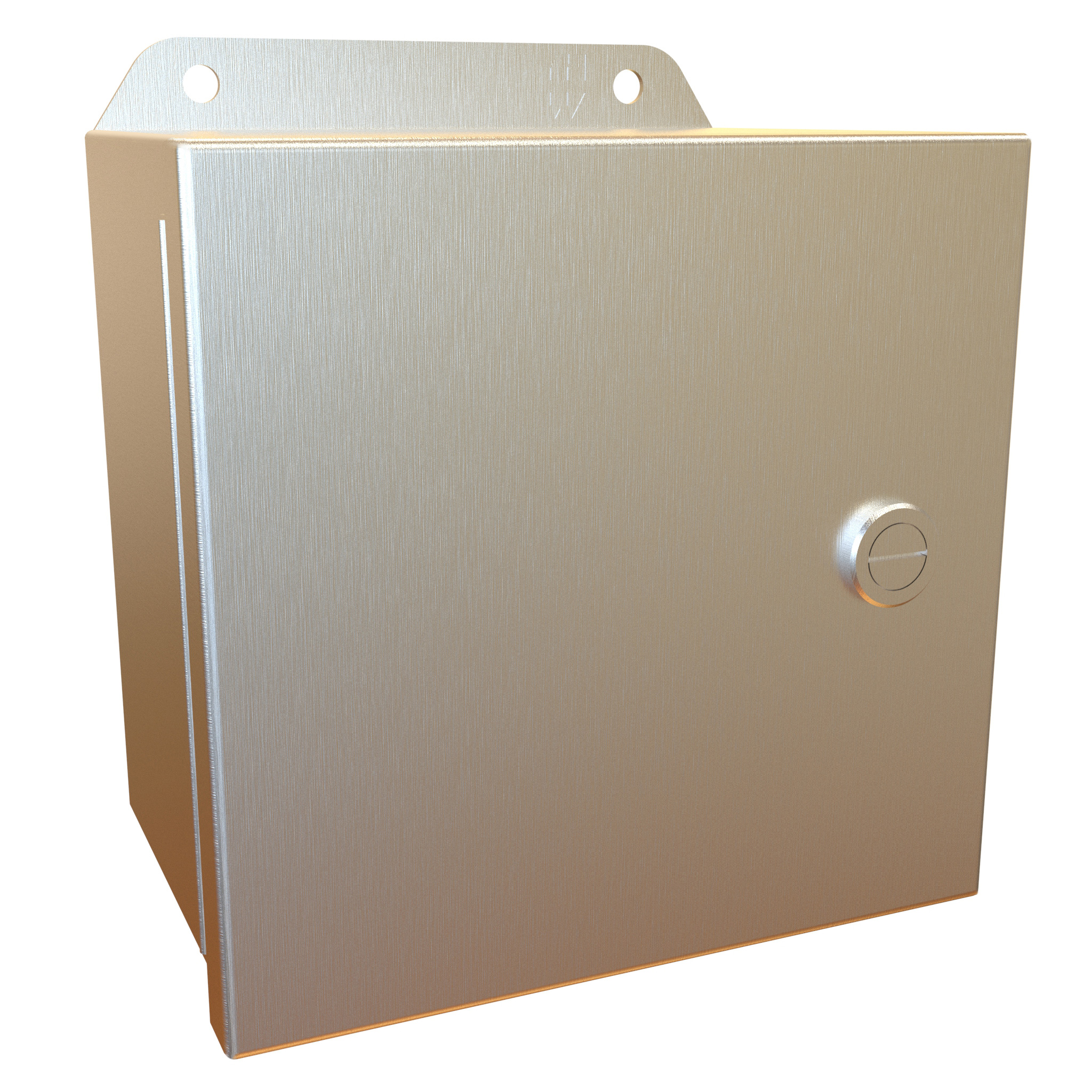

Hammond EJ664SS 6x6x4 304 Stainless Type 4X Junction Box with Panel

The EJ664SS is the 304 stainless steel version of the square 6 x 6 x 4 in Eclipse Junior junction box. Electricians, instrument technicians and OEM builders use it as an electrical junction box, terminal wiring enclosure, instrument enclosure or electric, hydraulic or pneumatic control housing wherever equipment may be hosed down, stay very wet, or where corrosion may be a problem.

It measures 6 in H x 6 in W x 4 in D (152 x 152 x 102 mm). A removable 14 gauge galvanized inner panel, 4.88 x 4.88 in (124 x 124 mm) and unpainted, is included and fastens to tapped studs (10-32 thread per the drawing) with the supplied panel mounting hardware. From the drawing: 4.02 in of usable depth, a 5.25 in door opening width and a 6.16 in door width. The box mounts on 14 gauge welded brackets.

• Body and cover formed from 16 gauge 304 stainless steel
• Smooth, continuously welded seams without knockouts, cutouts, or holes
• Formed lip on the enclosure and seamless poured-in place gasket
• Continuously hinged cover with stainless steel hinges, 180° opening
• Quarter turn latches formed from 316 stainless steel; slot requires a tool
• Bonding stud on the door, grounding stud on the enclosure, grounding hardware provided

The EJ664SS is UL 508A and CSA Type 3R, 4, 4X, 12 and 13 rated (UL File E65324, CSA LR21001), complies with NEMA Type 3R, 4, 4X, 12 and 13 and IEC 60529 IP66, and RoHS and REACH compliant. It has a natural smooth brushed stainless finish and ships boxed at 5 lbs (2.27 kg). For high temperature applications a gasket retainer may be required; refer to the factory.
