Eclipse SS Plexi Dr Wallmt
$795.10In stock
Buy now

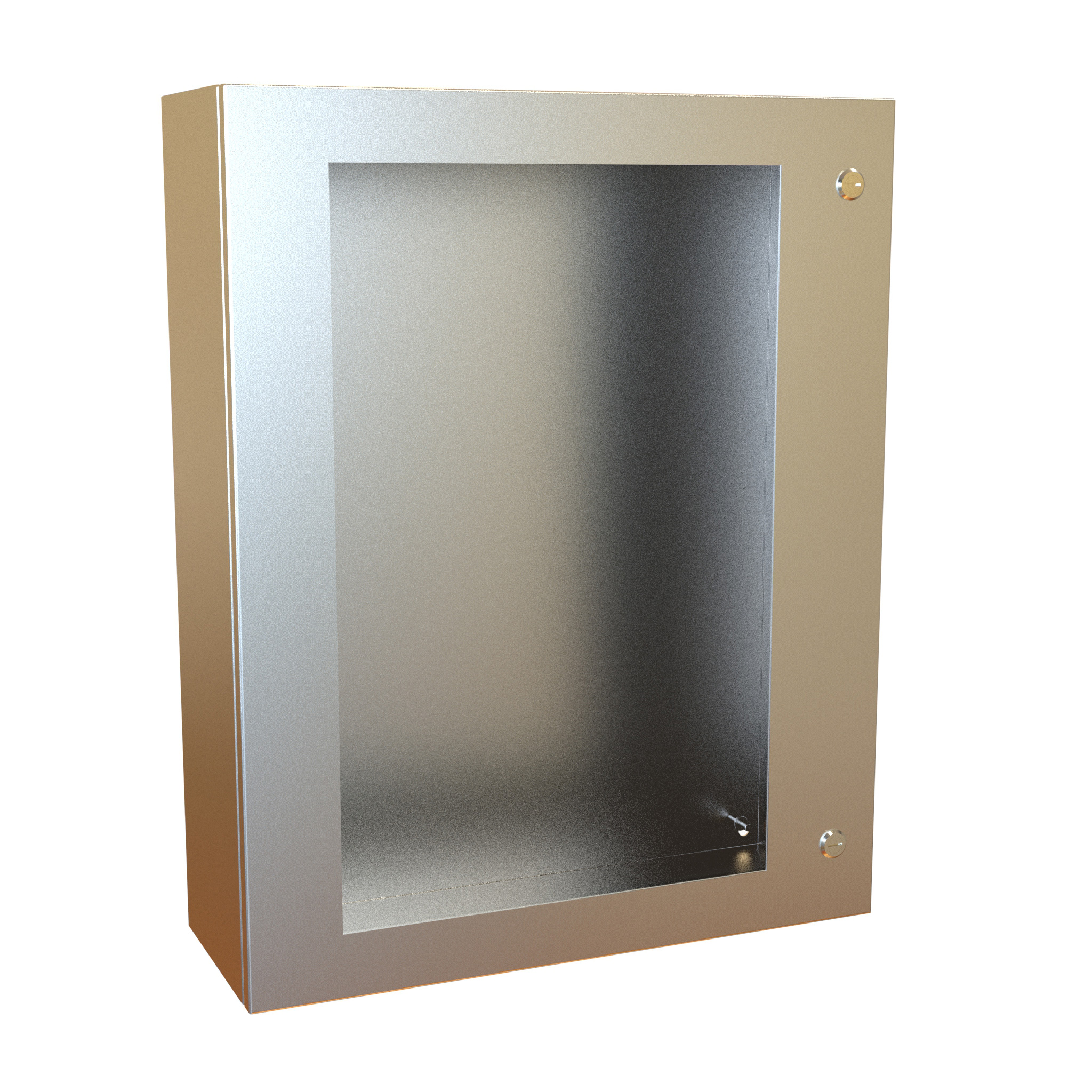

Type 4X Stainless Steel Wallmount Enclosure w/ Window · Eclipse Series
Brand: Hammond Manufacturing · 20 part numbers
Hinge Door with Quarter Turn
- ■Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
from $14.98
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Eclipse Series part number
Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
17 of 17 part numbers · 17 priced online
Eclipse SS Plexi Dr Wallmt
$1,067.67In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$880.58Backorder
Buy now
Eclipse SS Plexi Dr Wallmt
$1,241.31In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,070.36In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,140.78In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,343.45In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,482.69In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,169.81Backorder
Buy now
Eclipse SS Plexi Dr Wallmt
$1,259.05In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,443.44In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,385.92In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,557.41In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,514.94Backorder
Buy now
Eclipse SS Plexi Dr Wallmt
$1,731.60In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,914.92In stock
Buy now
Eclipse SS Plexi Dr Wallmt
$1,729.98In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|

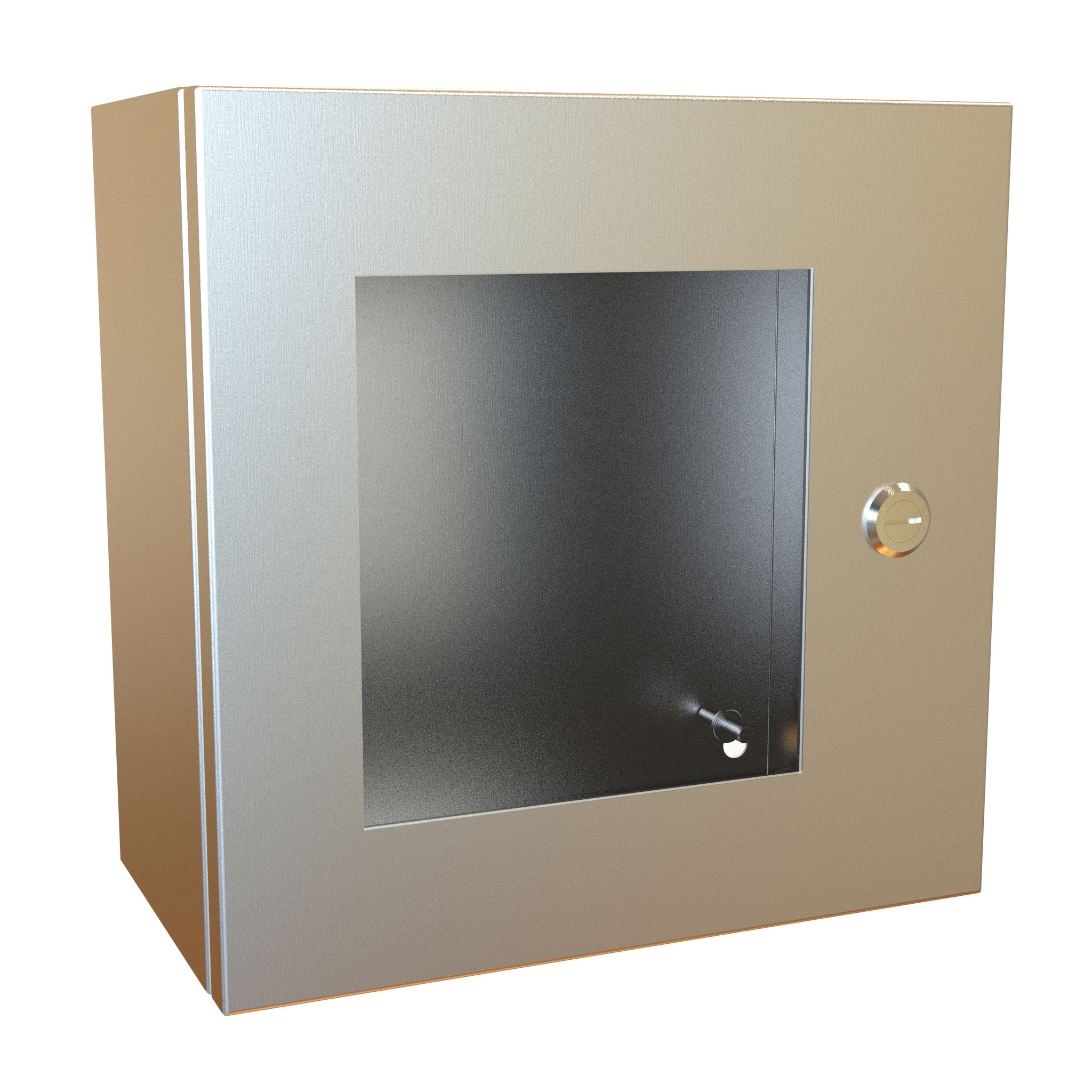

| EN4SD12126WSS | 12.00 | 12.00 | 6.00 | EP1212 | 10.20 | 10.20 | $795.10In stockEN4SD12126WSS | Buy now |

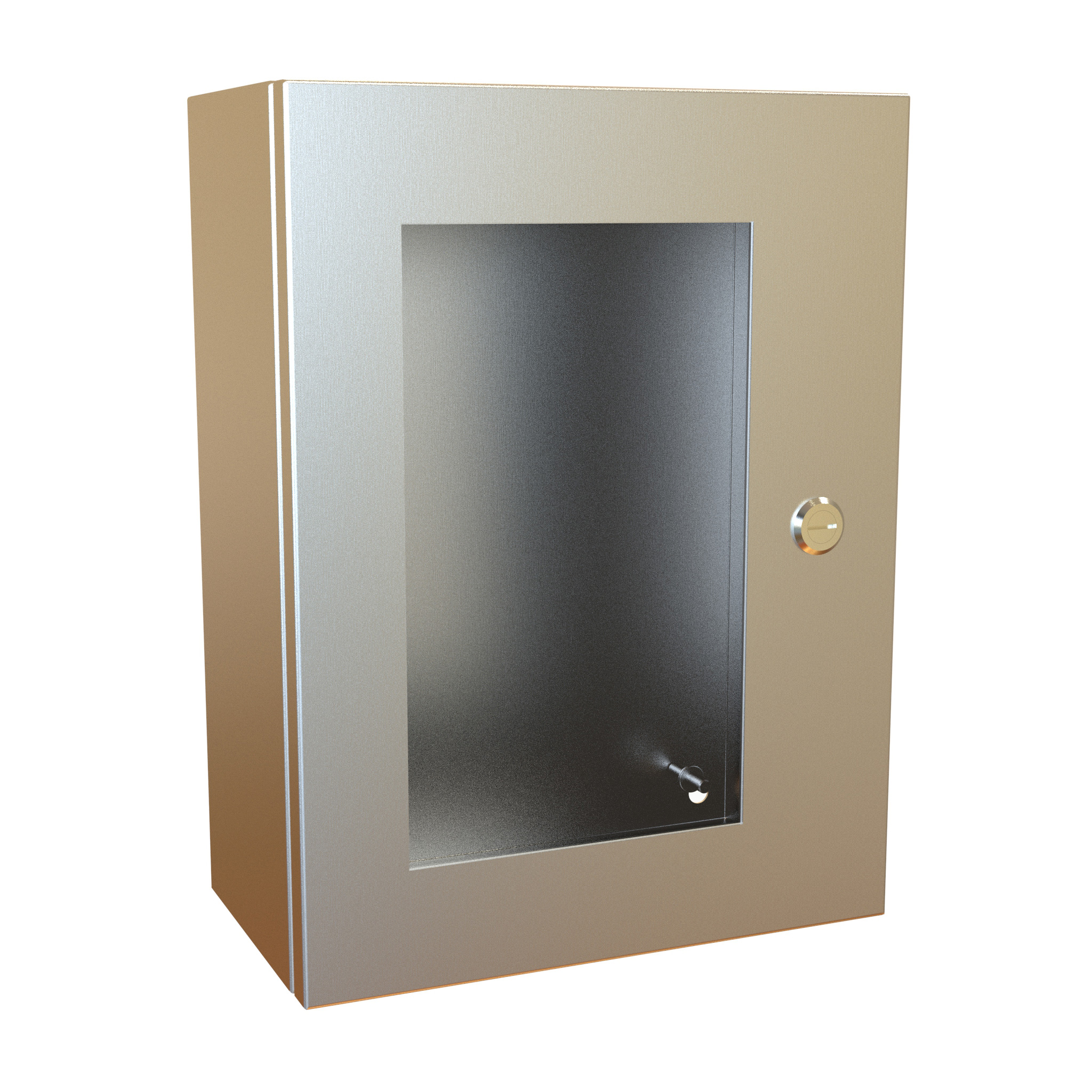

| EN4SD16126WSS | 16.00 | 12.00 | 6.00 | EP1612 | 14.20 | 10.20 | $880.58BackorderEN4SD16126WSS | Buy now |

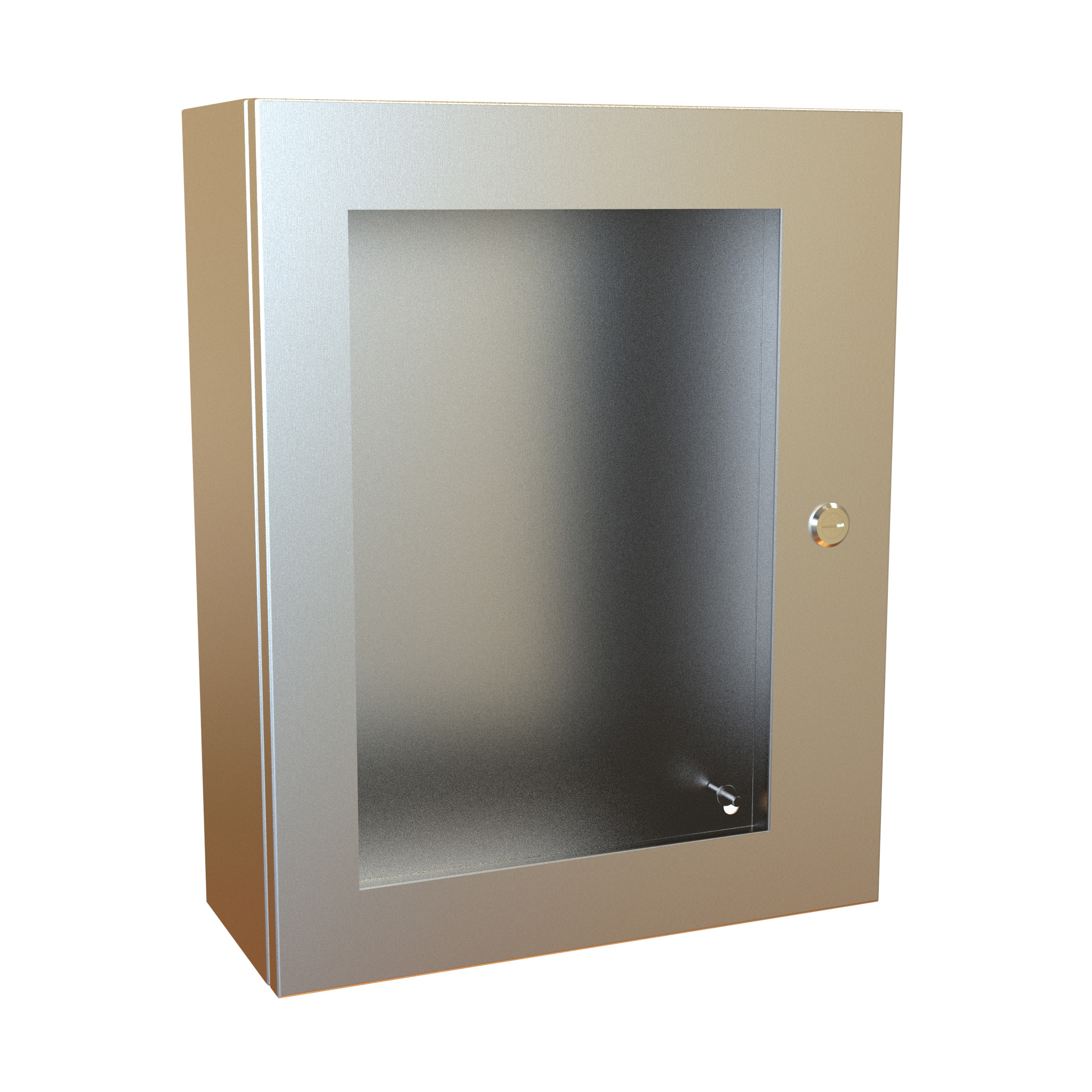

| EN4SD20166WSS | 20.00 | 16.00 | 6.00 | EP2016 | 18.20 | 14.20 | $1,070.36In stockEN4SD20166WSS | Buy now |

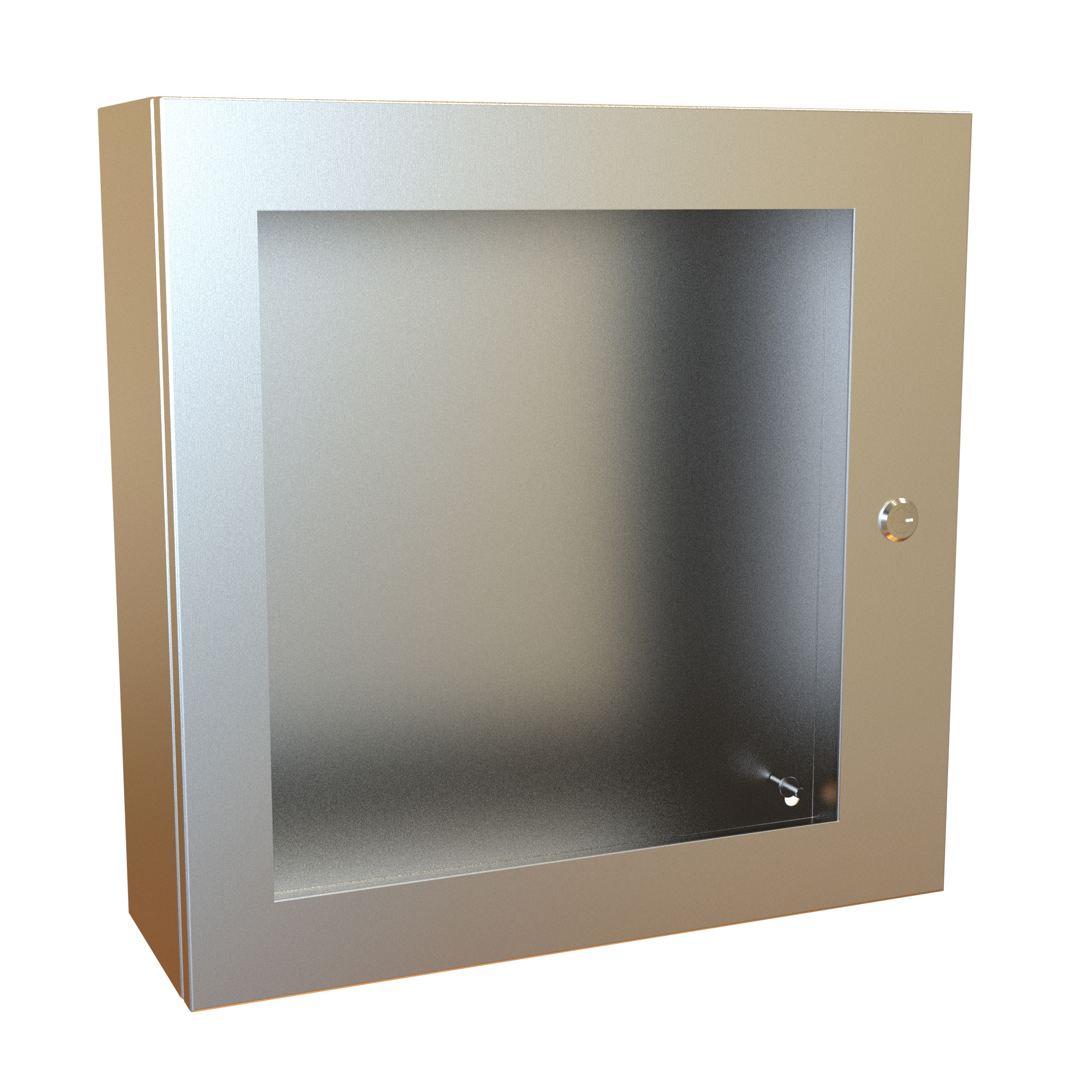

| EN4SD20206WSS | 20.00 | 20.00 | 6.00 | EP2020 | 18.20 | 18.20 | $1,169.81Backorder | Buy now |

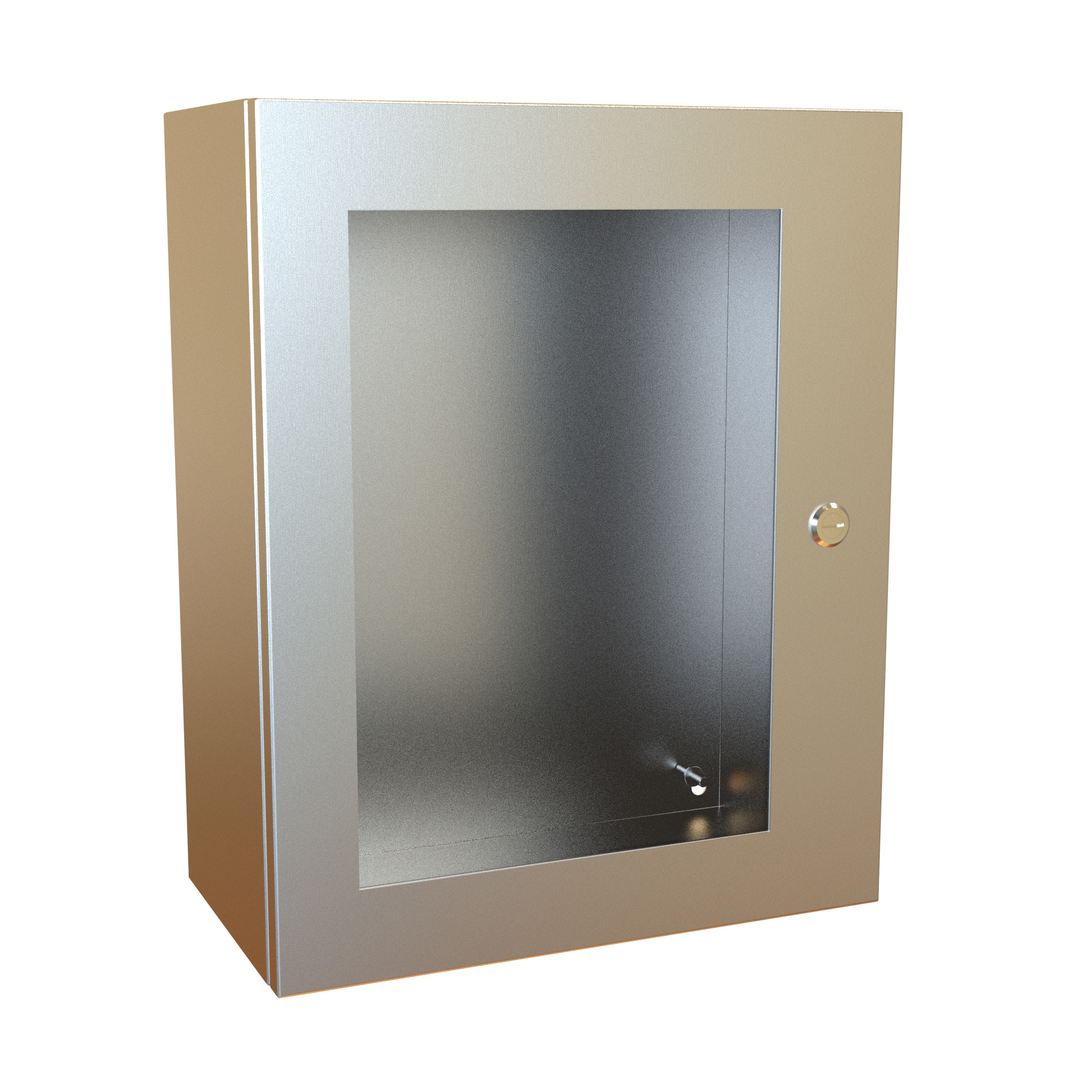

| EN4SD20168WSS | 20.00 | 16.00 | 8.00 | EP2016 | 18.20 | 14.20 | $1,140.78In stockEN4SD20168WSS | Buy now |

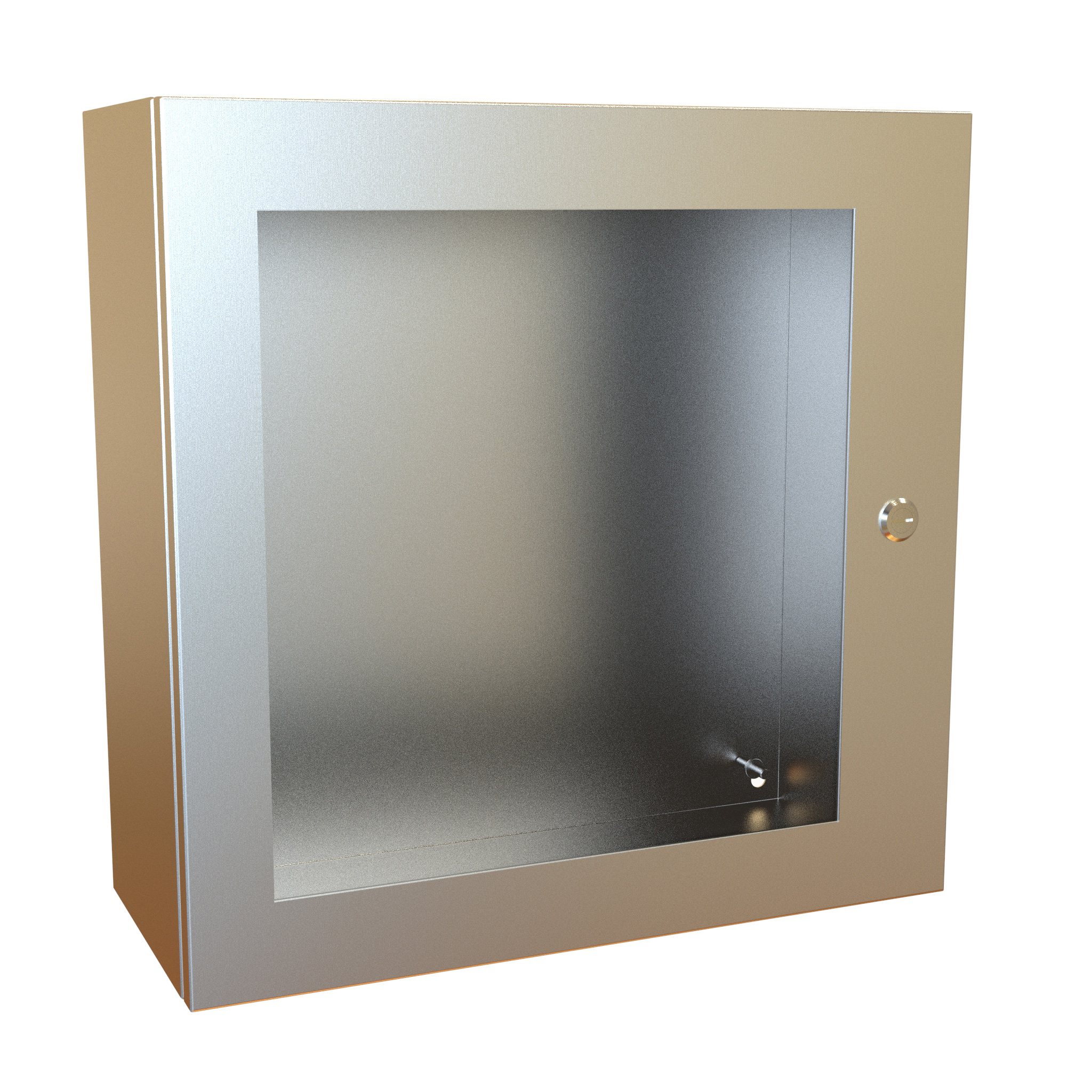

| EN4SD20208WSS | 20.00 | 20.00 | 8.00 | EP2020 | 18.20 | 18.20 | $1,259.05In stock | Buy now |

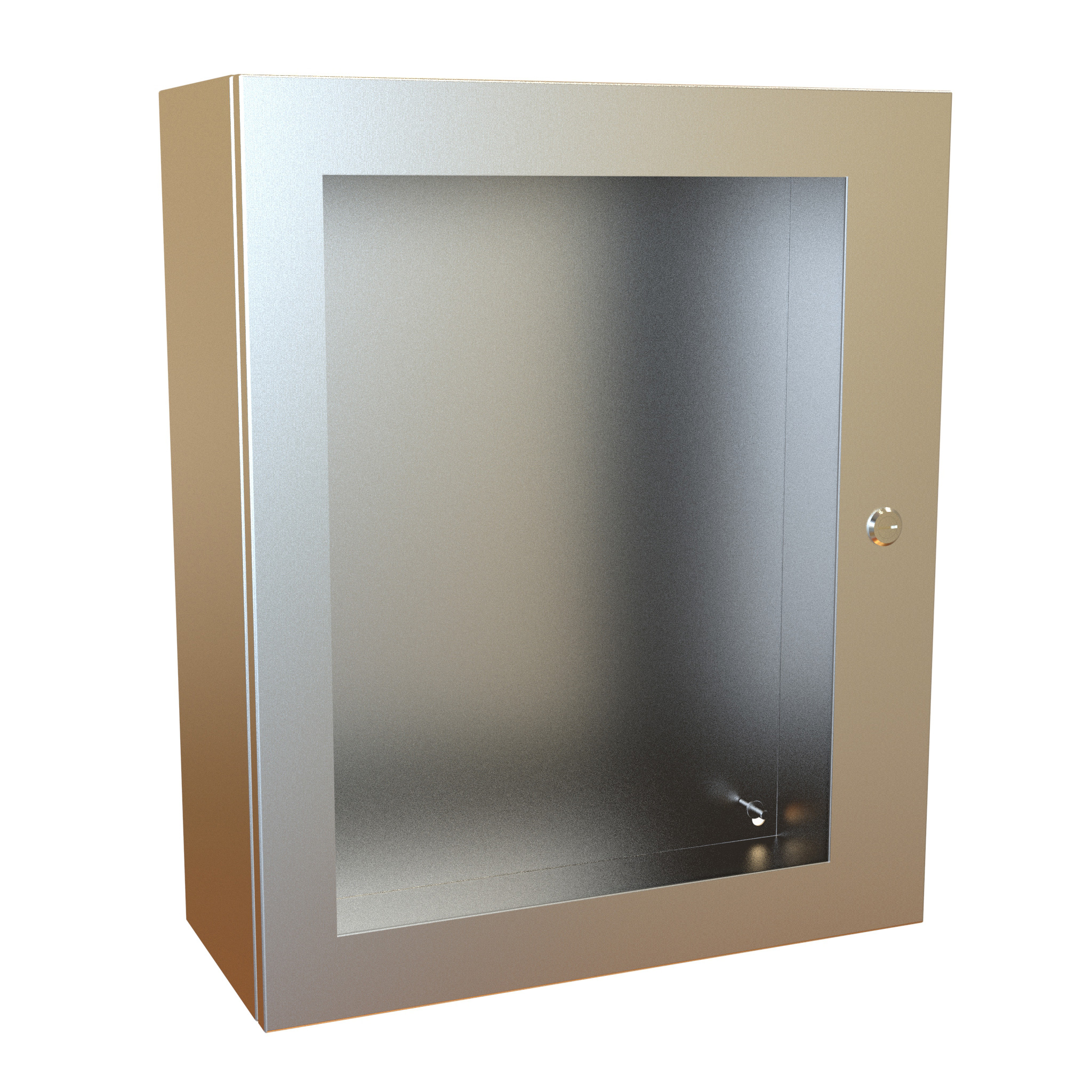

| EN4SD24208WSS | 24.00 | 20.00 | 8.00 | EP2420 | 22.20 | 18.20 | $1,385.92In stock | Buy now |

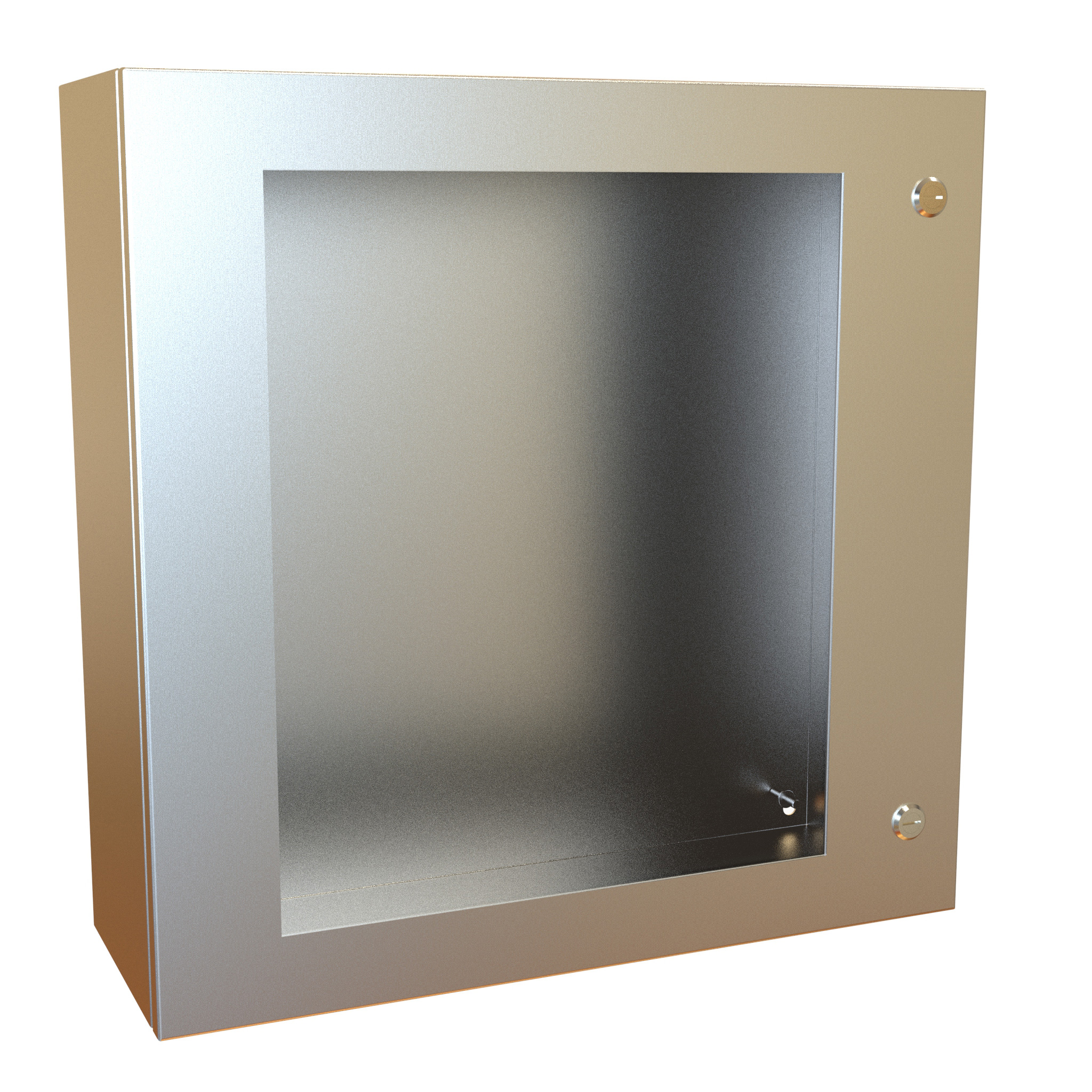

| EN4SD24248WSS | 24.00 | 24.00 | 8.00 | EP2424 | 22.20 | 22.20 | $1,514.94Backorder | Buy now |
| EN4SD30248WSS | 30.00 | 24.00 | 8.00 | EP3024 | 28.20 | 22.20 | $1,729.98In stock | Buy now |

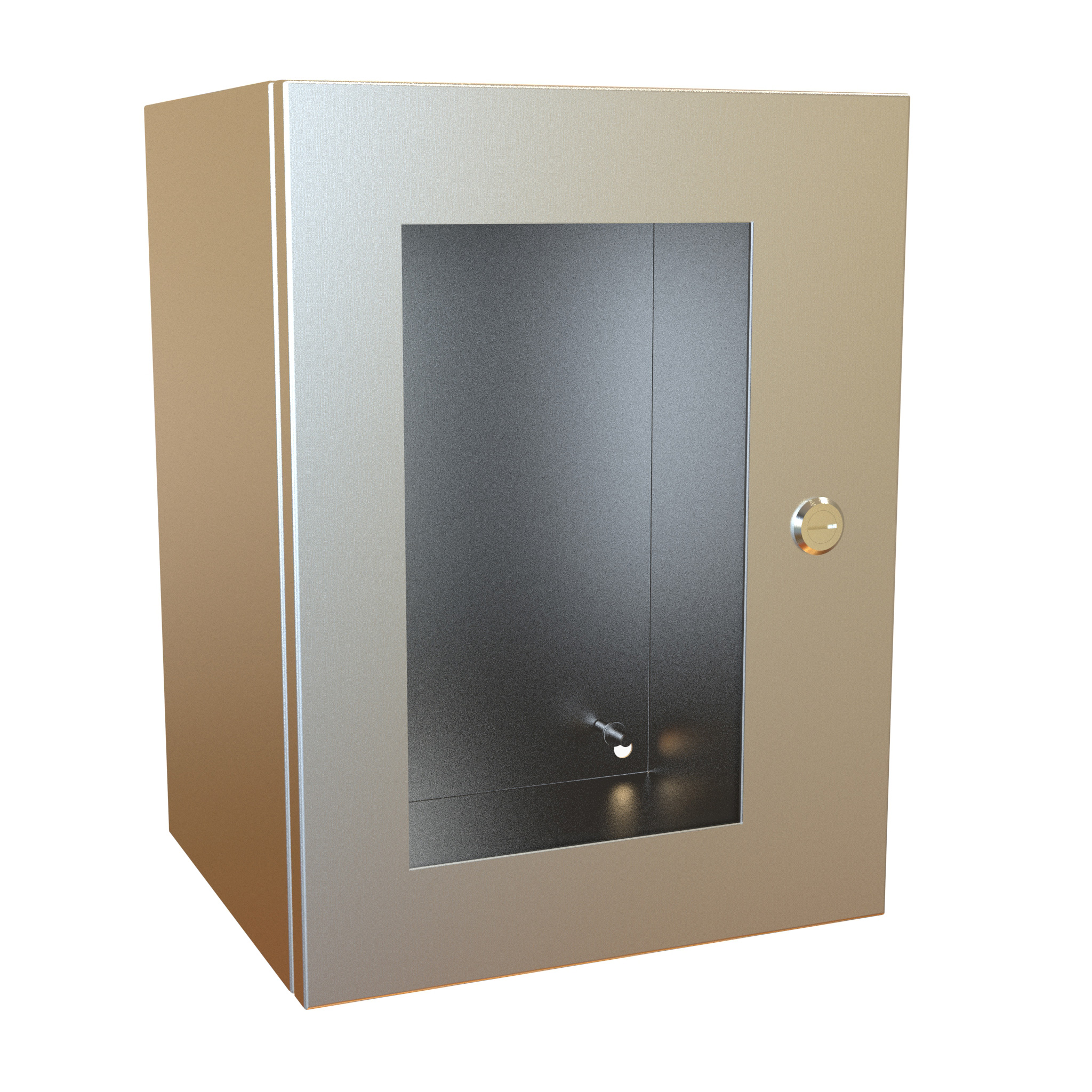

| EN4SD161210WSS | 16.00 | 12.00 | 10.00 | EP1612 | 14.20 | 10.20 | $1,067.67In stockEN4SD161210WSS | Buy now |

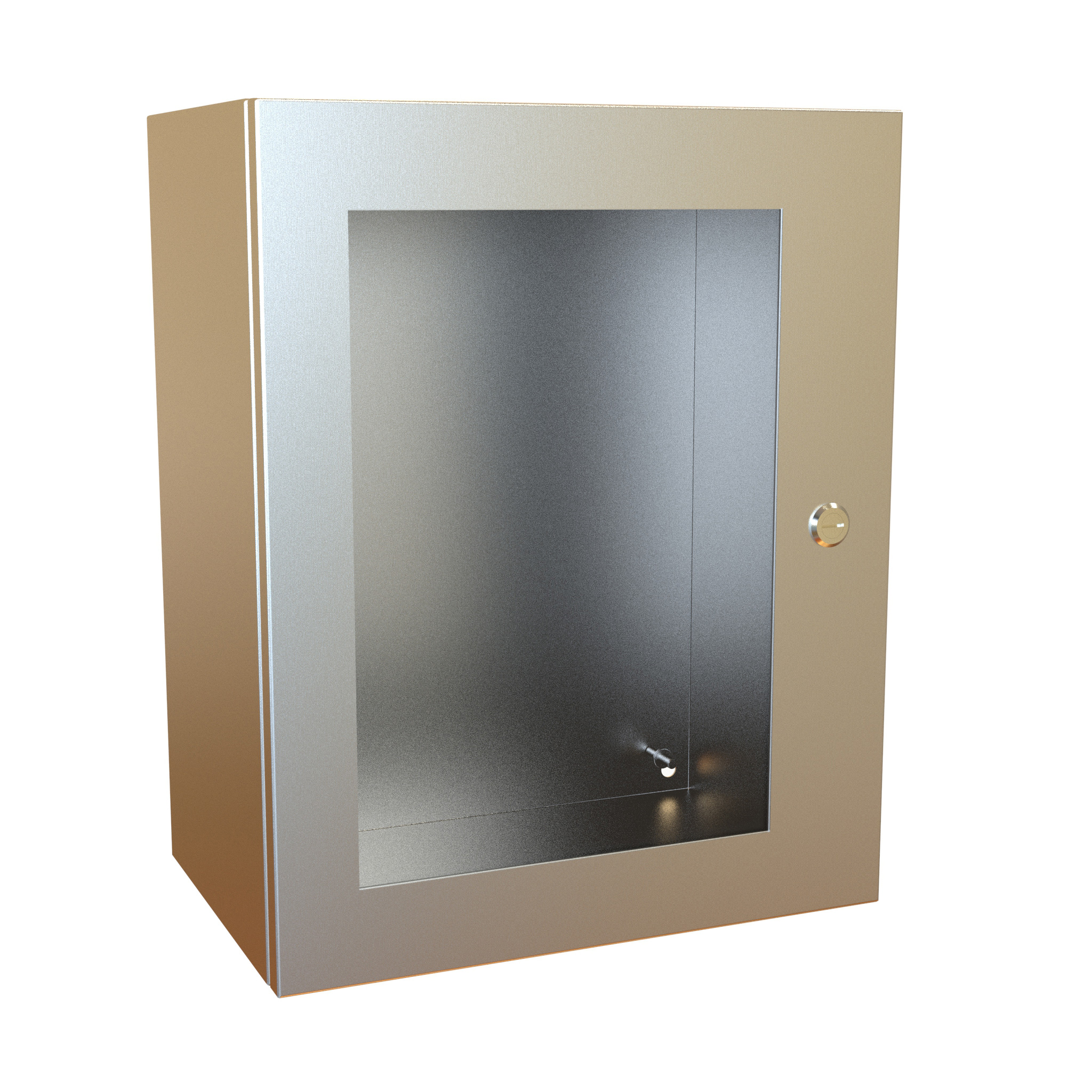

| EN4SD201610WSS | 20.00 | 16.00 | 10.00 | EP2016 | 18.20 | 14.20 | $1,241.31In stockEN4SD201610WSS | Buy now |

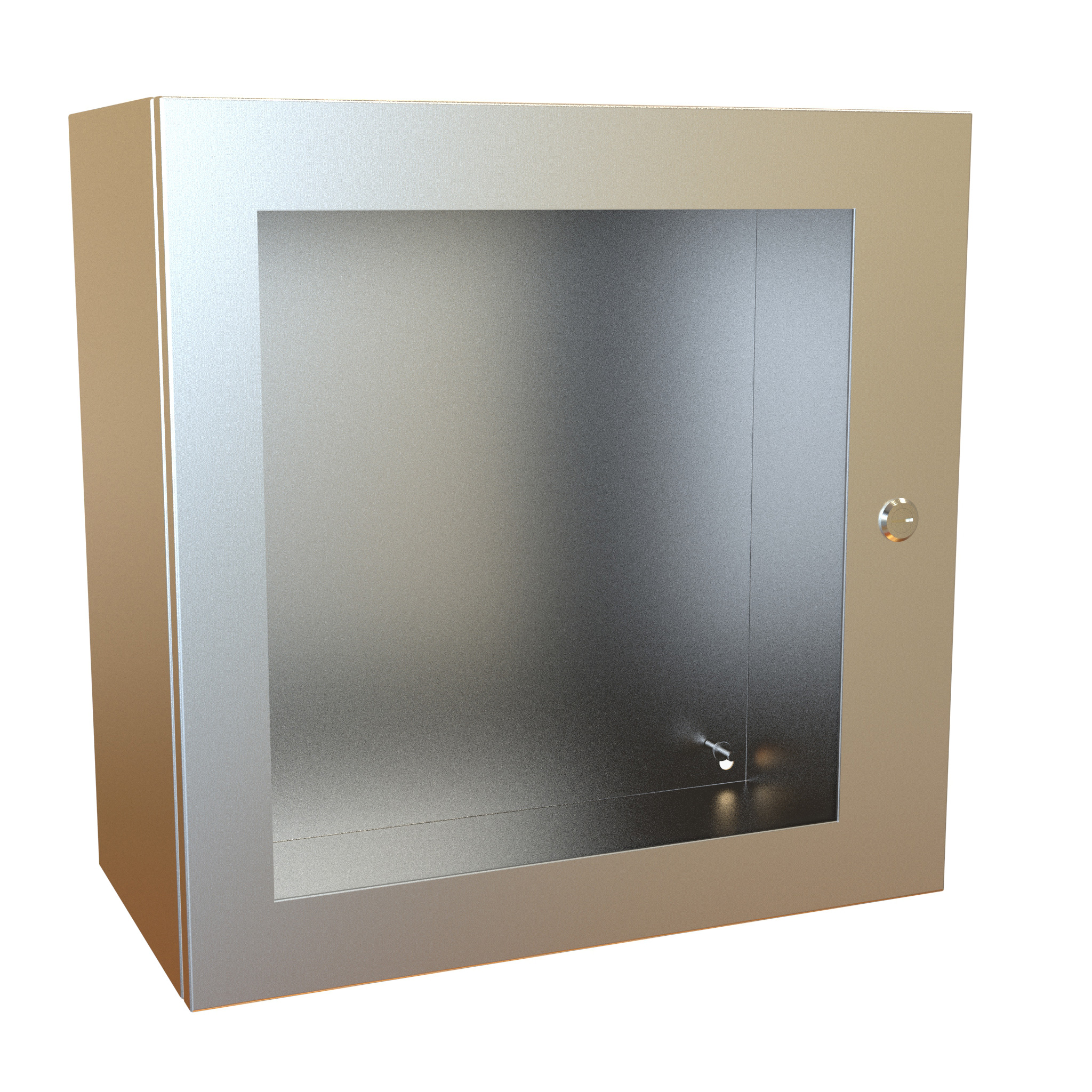

| EN4SD202010WSS | 20.00 | 20.00 | 10.00 | EP2020 | 18.20 | 18.20 | $1,343.45In stock | Buy now |

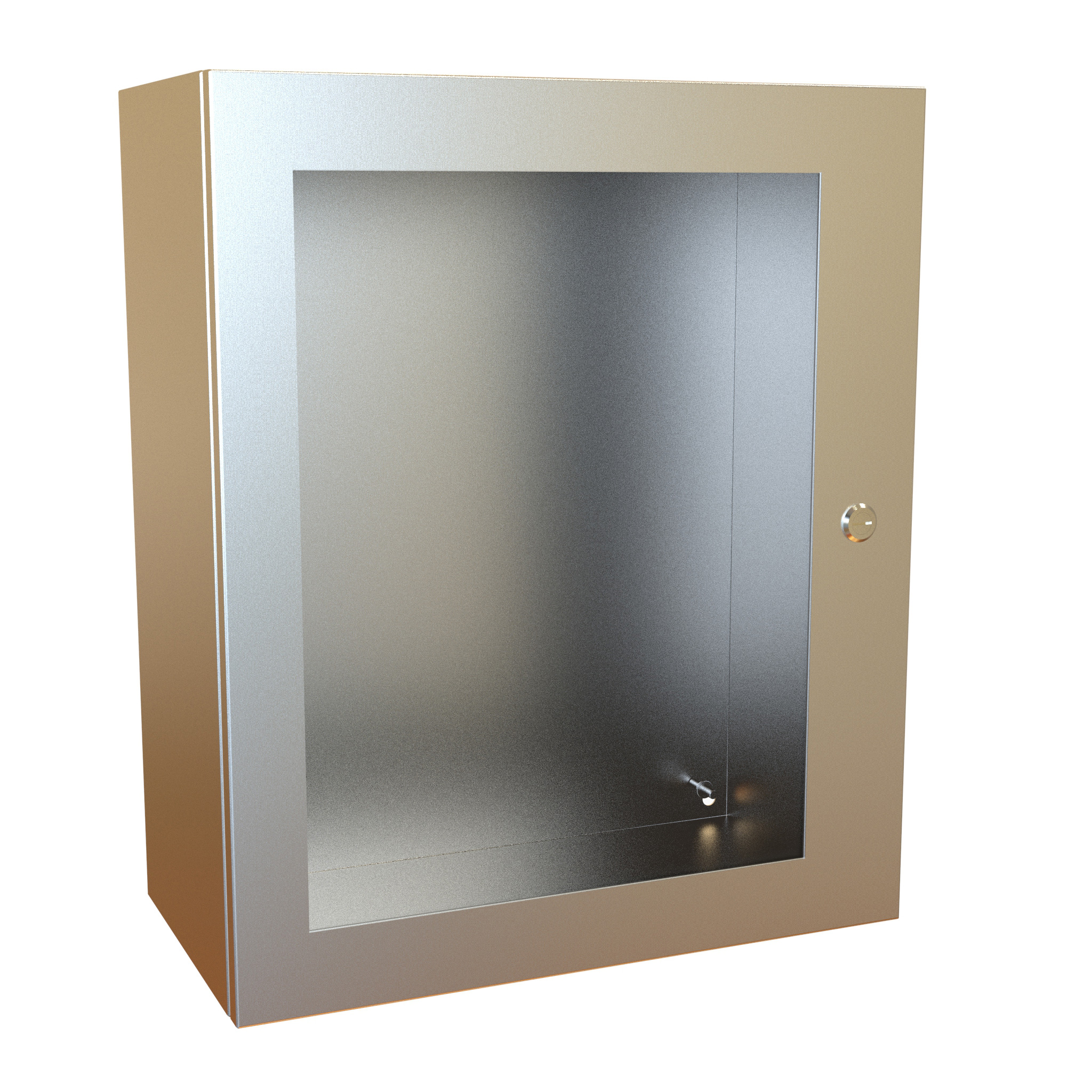

| EN4SD242010WSS | 24.00 | 20.00 | 10.00 | EP2420 | 22.20 | 18.20 | $1,443.44In stock | Buy now |

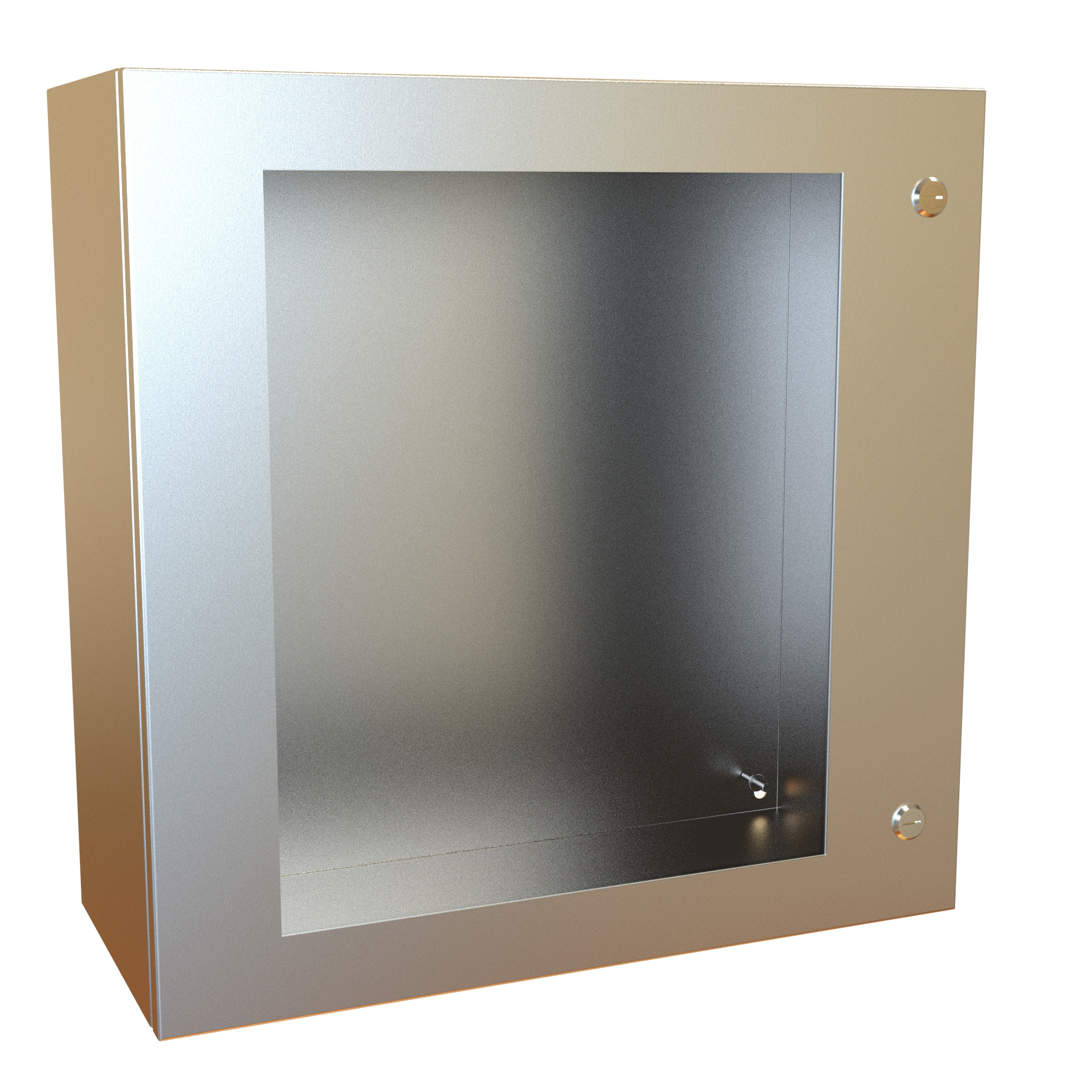

| EN4SD242410WSS | 24.00 | 24.00 | 10.00 | EP2424 | 22.20 | 22.20 | $1,557.41In stock | Buy now |

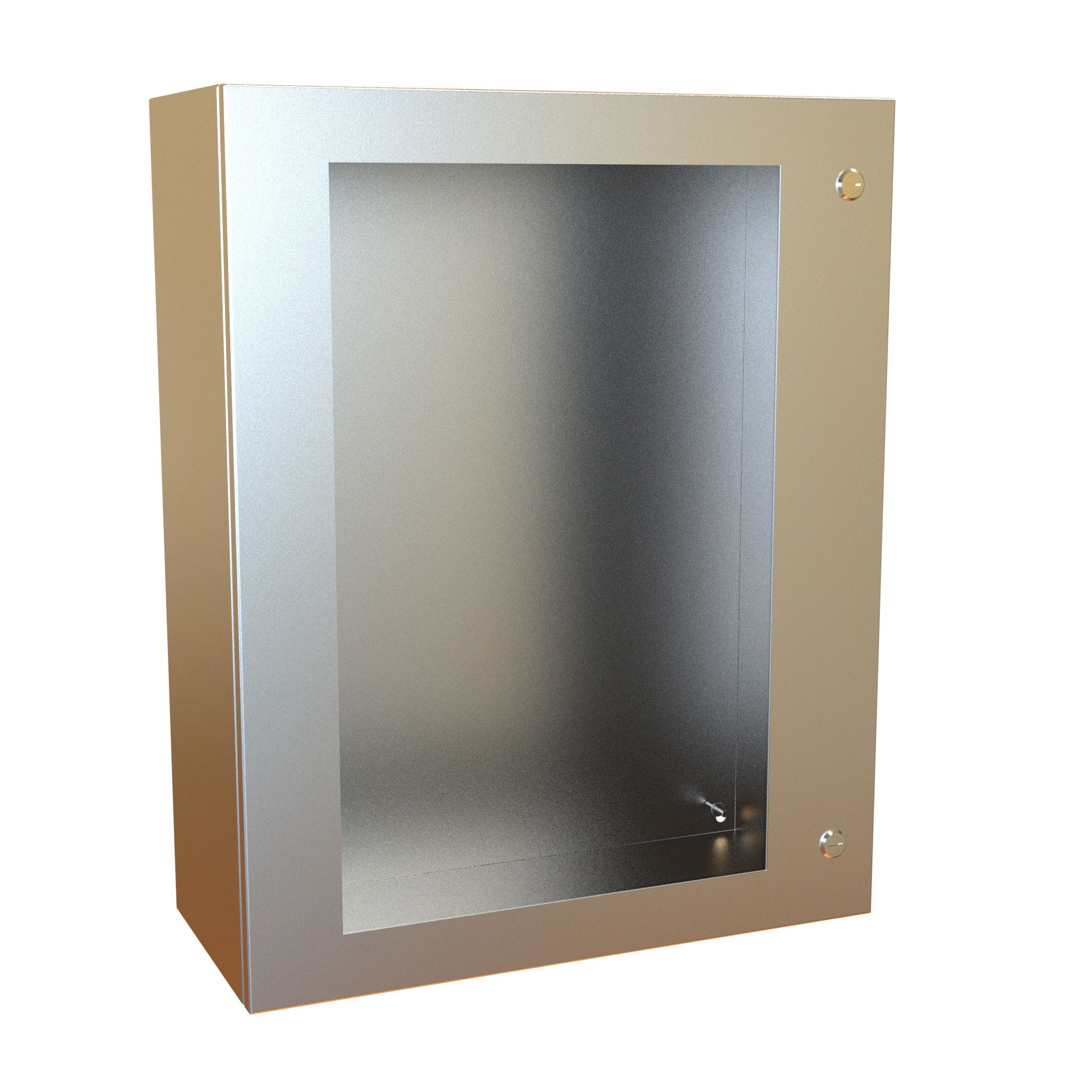

| EN4SD302410WSS | 30.00 | 24.00 | 10.00 | EP3024 | 28.20 | 22.20 | $1,731.60In stock | Buy now |

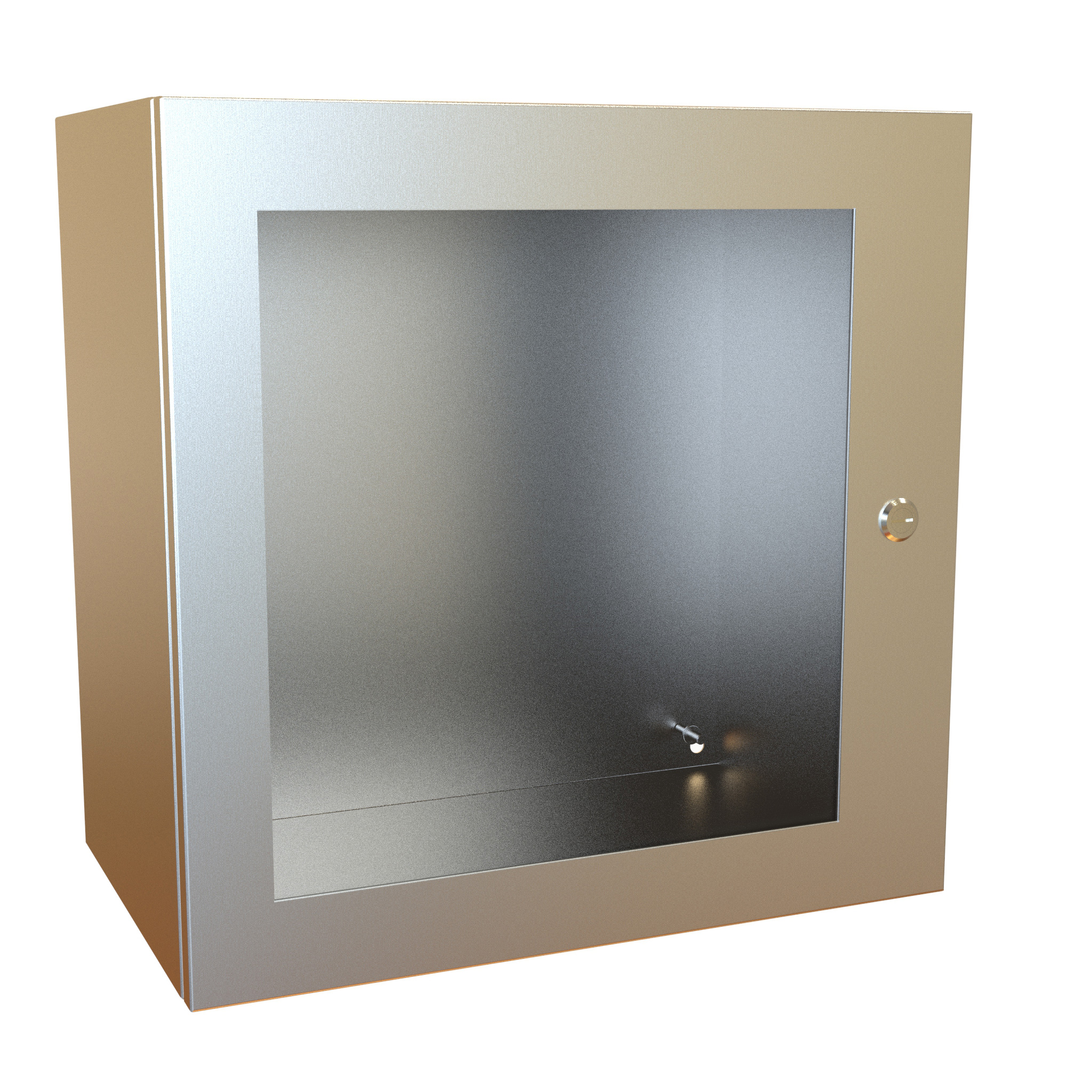

| EN4SD202012WSS | 20.00 | 20.00 | 12.00 | EP2020 | 18.20 | 18.20 | $1,482.69In stock | Buy now |

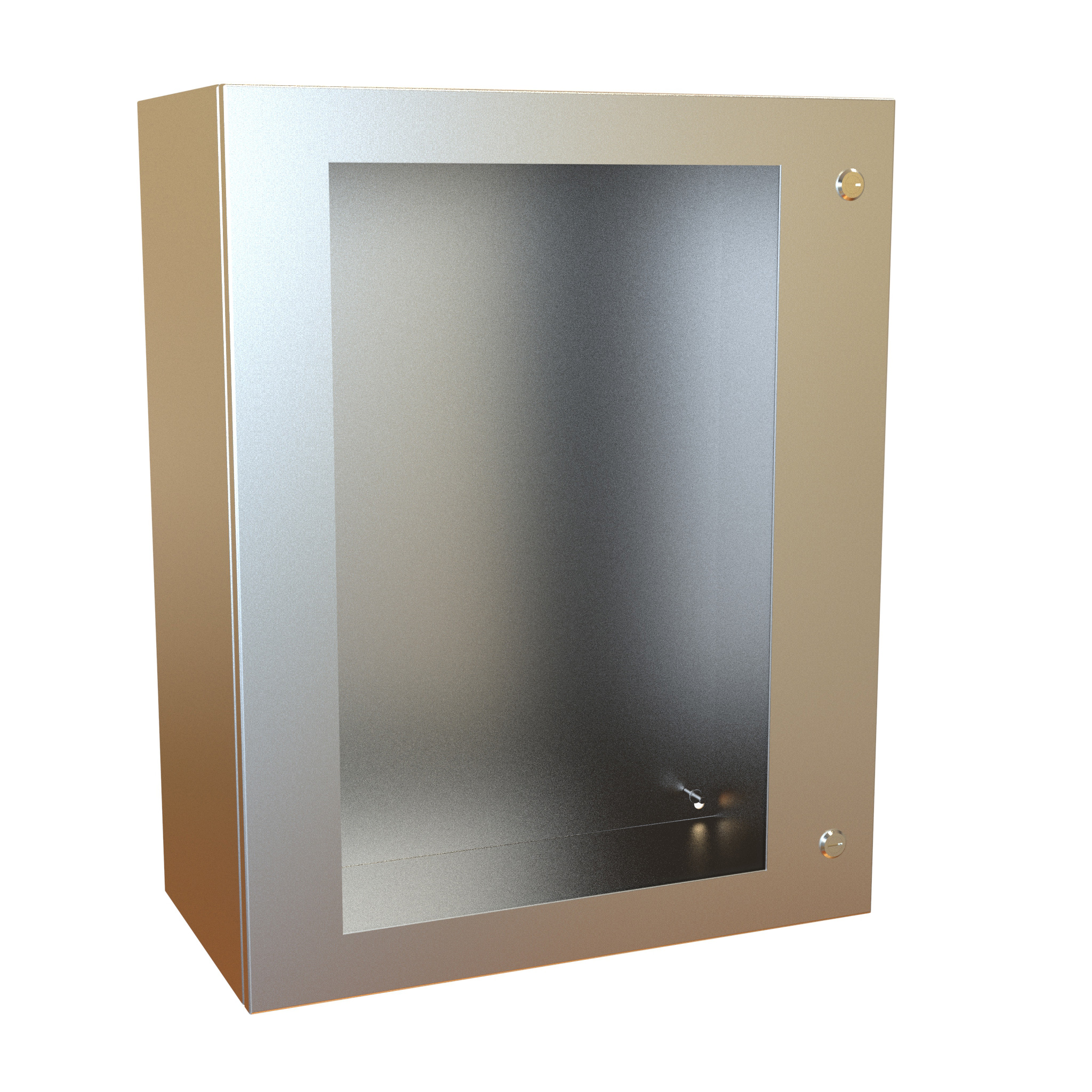

| EN4SD302412WSS | 30.00 | 24.00 | 12.00 | EP3024 | 28.20 | 22.20 | $1,914.92In stock | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment in wallmount applications where viewing of component operation is necessary while maintaining protection ratings.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
Construction
- ■Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge stainless steel.
- ■Full view UV resistant polycarbonate window allows maximum viewing area of inner panel.
- ■Continuously welded seams ground smooth.
- ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- ■Doors may be easily removed for modifications and are interchangeable.
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
- ■Hinges are constructed from stainless steel.
- ■Stainless steel hinge pins and quarter turns.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| EN4SD12126WSS | 12.00 | 12.00 | 6.00 | EP1212 | 10.20 | 10.20 |
| EN4SD16126WSS | 16.00 | 12.00 | 6.00 | EP1612 | 14.20 | 10.20 |
| EN4SD20166WSS | 20.00 | 16.00 | 6.00 | EP2016 | 18.20 | 14.20 |
| EN4SD20206WSS | 20.00 | 20.00 | 6.00 | EP2020 | 18.20 | 18.20 |
| EN4SD20168WSS | 20.00 | 16.00 | 8.00 | EP2016 | 18.20 | 14.20 |
| EN4SD20208WSS | 20.00 | 20.00 | 8.00 | EP2020 | 18.20 | 18.20 |
| EN4SD24208WSS | 24.00 | 20.00 | 8.00 | EP2420 | 22.20 | 18.20 |
| EN4SD24248WSS | 24.00 | 24.00 | 8.00 | EP2424 | 22.20 | 22.20 |
| EN4SD30248WSS | 30.00 | 24.00 | 8.00 | EP3024 | 28.20 | 22.20 |
| EN4SD161210WSS | 16.00 | 12.00 | 10.00 | EP1612 | 14.20 | 10.20 |
| EN4SD201610WSS | 20.00 | 16.00 | 10.00 | EP2016 | 18.20 | 14.20 |
| EN4SD202010WSS | 20.00 | 20.00 | 10.00 | EP2020 | 18.20 | 18.20 |
| EN4SD242010WSS | 24.00 | 20.00 | 10.00 | EP2420 | 22.20 | 18.20 |
| EN4SD242410WSS | 24.00 | 24.00 | 10.00 | EP2424 | 22.20 | 22.20 |
| EN4SD302410WSS | 30.00 | 24.00 | 10.00 | EP3024 | 28.20 | 22.20 |
| EN4SD202012WSS | 20.00 | 20.00 | 12.00 | EP2020 | 18.20 | 18.20 |
| EN4SD302412WSS | 30.00 | 24.00 | 12.00 | EP3024 | 28.20 | 22.20 |
