Type 4X Stainless Steel Junction Box 1414 N4 PH SS Series

Type 4X Stainless Steel Junction Box · 1414 N4 PH SS Series

Brand: Hammond Manufacturing · 24 part numbers

Continuous Hinge Door with Clamps

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.
  • ■UL 508A Type 3R, 4, 4X, 12 and 13
  • ■CSA Type 3R, 4, 4X, 12 and 13
  • ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 4X, 12 and 13

from $202.95

24 of 24 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your 1414 N4 PH SS Series part number

Filter 24 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

24 of 24 part numbers · 24 priced online

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

304 S.S. · Part No.316 S.S. · Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · WPriceOrder

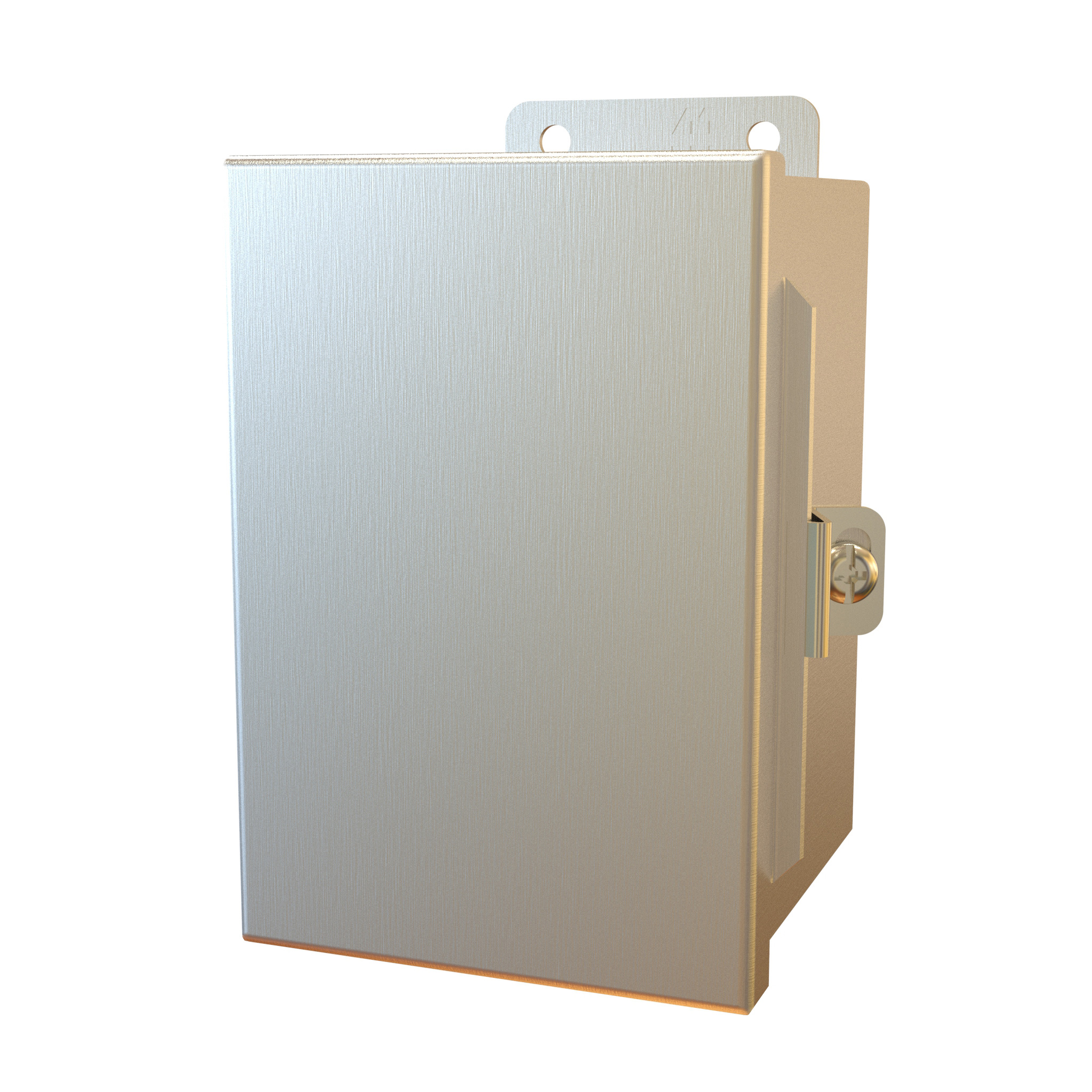

1414N4PHSSC41414N4PHS16C46.004.004.004.882.88$202.95In stock1414N4PHSSC4Buy now

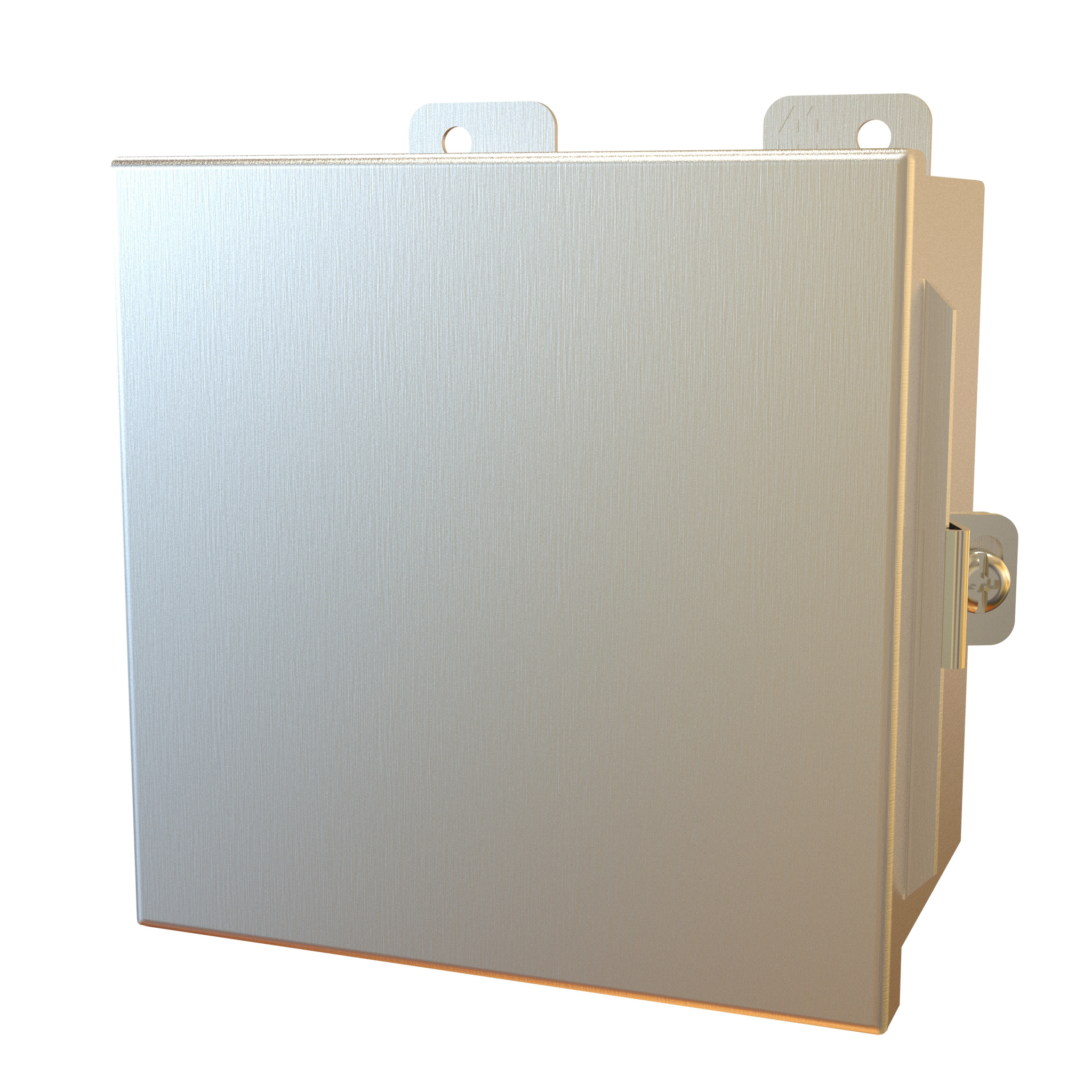

1414N4PHSSE1414N4PHS16E6.006.004.004.884.88$222.02Backorder1414N4PHSSEBuy now

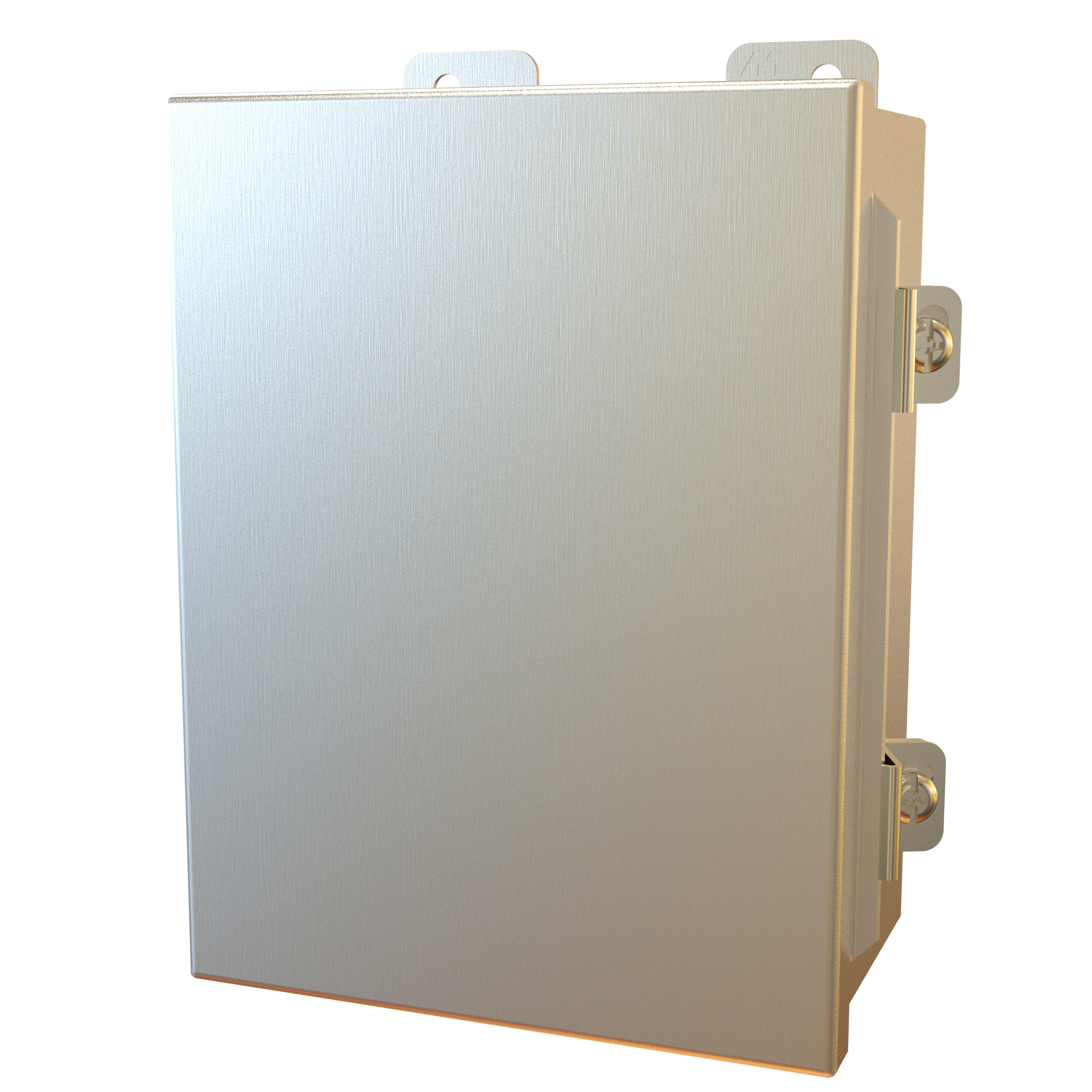

1414N4PHSSG1414N4PHS16G8.006.003.506.754.88$248.42In stock1414N4PHSSGBuy now

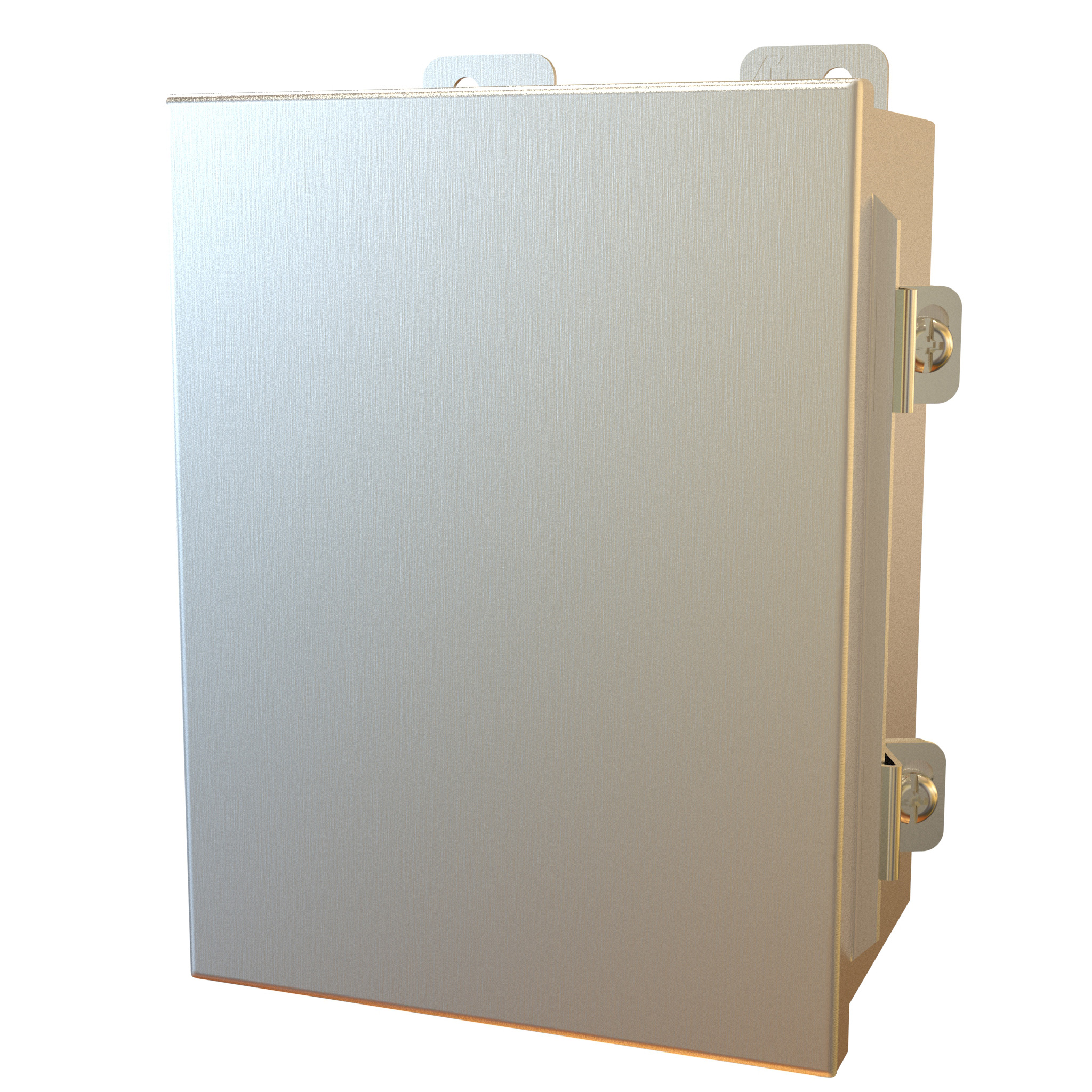

1414N4PHSSG41414N4PHS16G48.006.004.006.754.88$252.67In stock1414N4PHSSG4Buy now

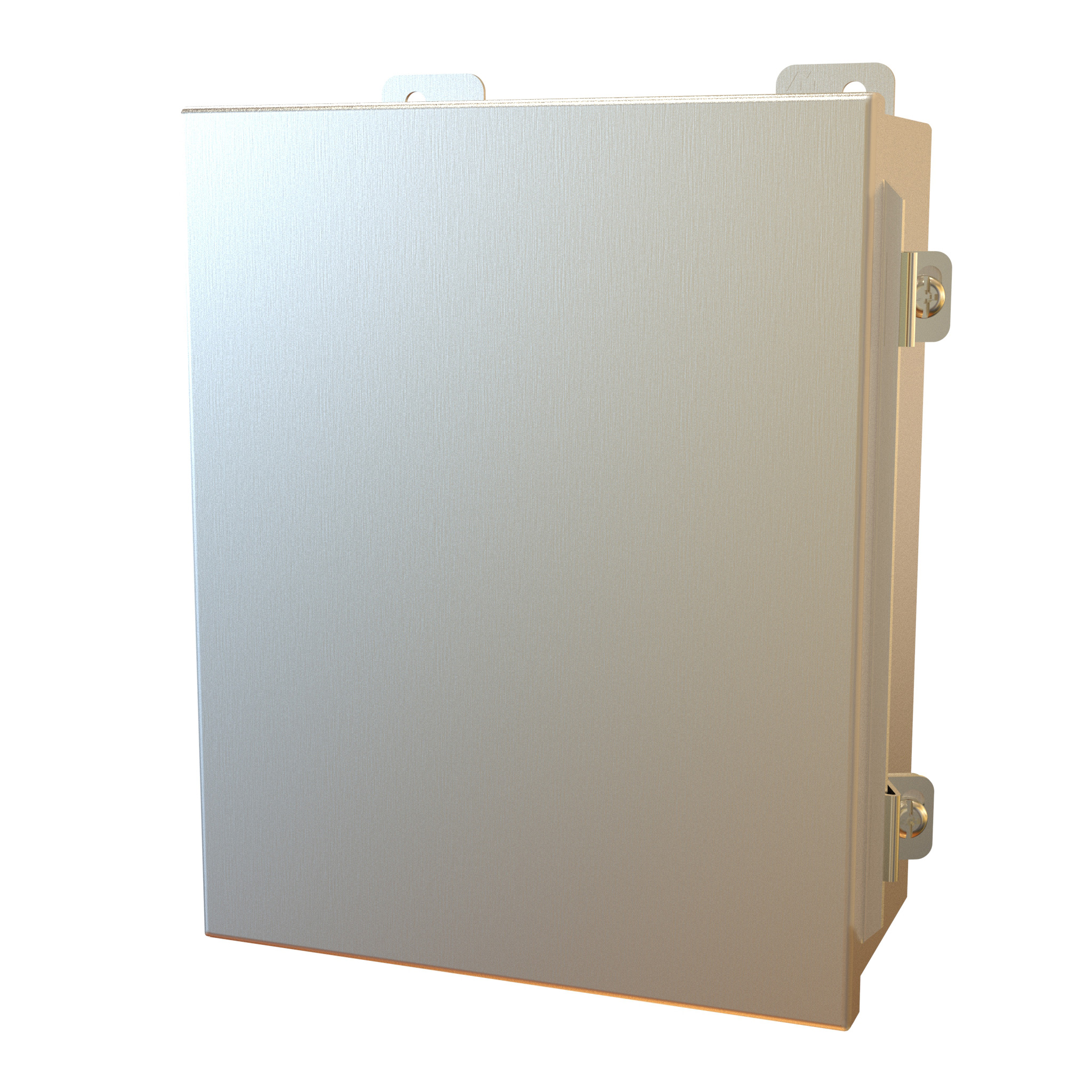

1414N4PHSSI1414N4PHS16I10.008.004.008.756.88$304.34Backorder1414N4PHSSIBuy now

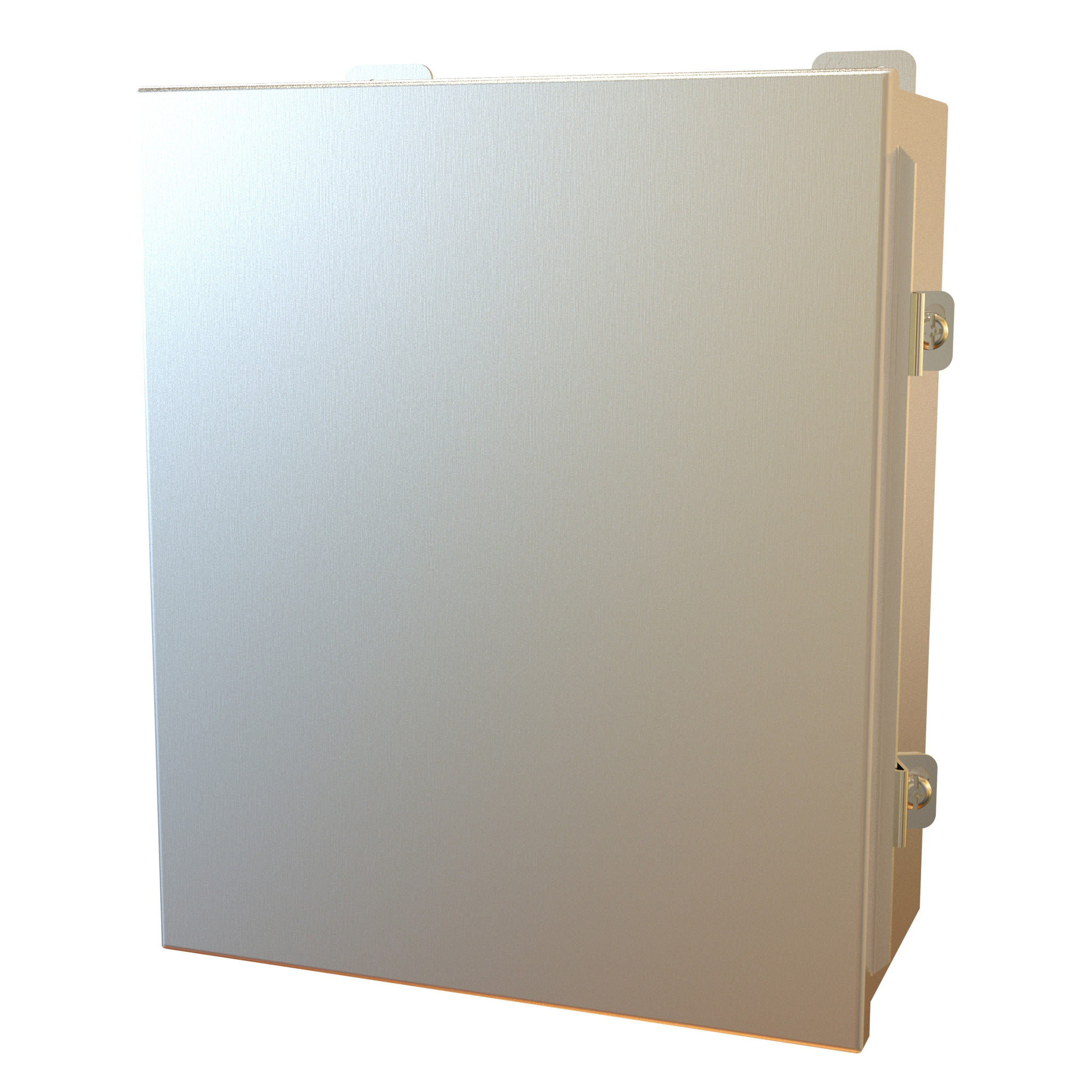

1414N4PHSSK1414N4PHS16K12.0010.005.0010.758.88$423.28In stock1414N4PHSSKBuy now

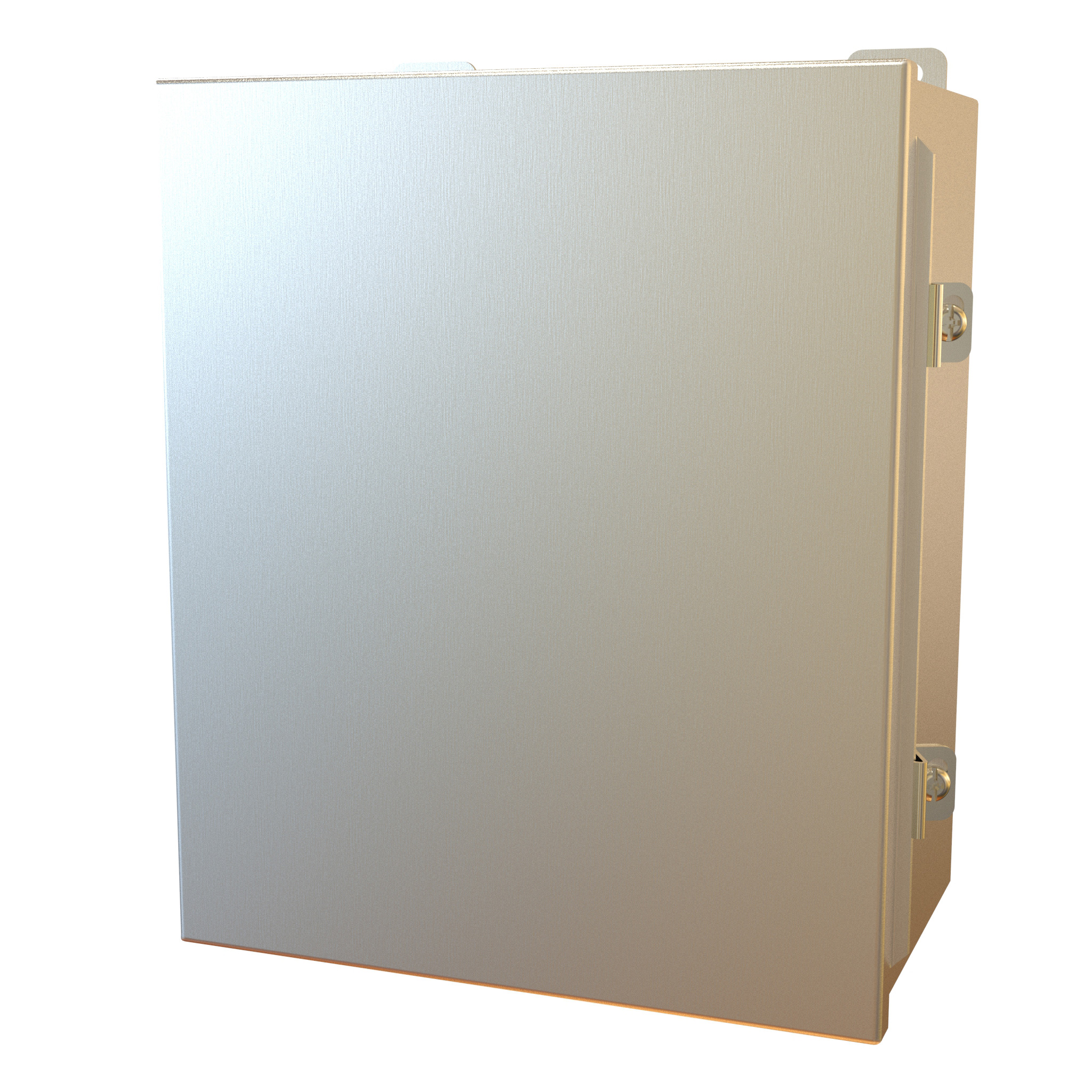

1414N4PHSSK61414N4PHS16K612.0010.006.0010.758.88$424.33In stock1414N4PHSSK6Buy now

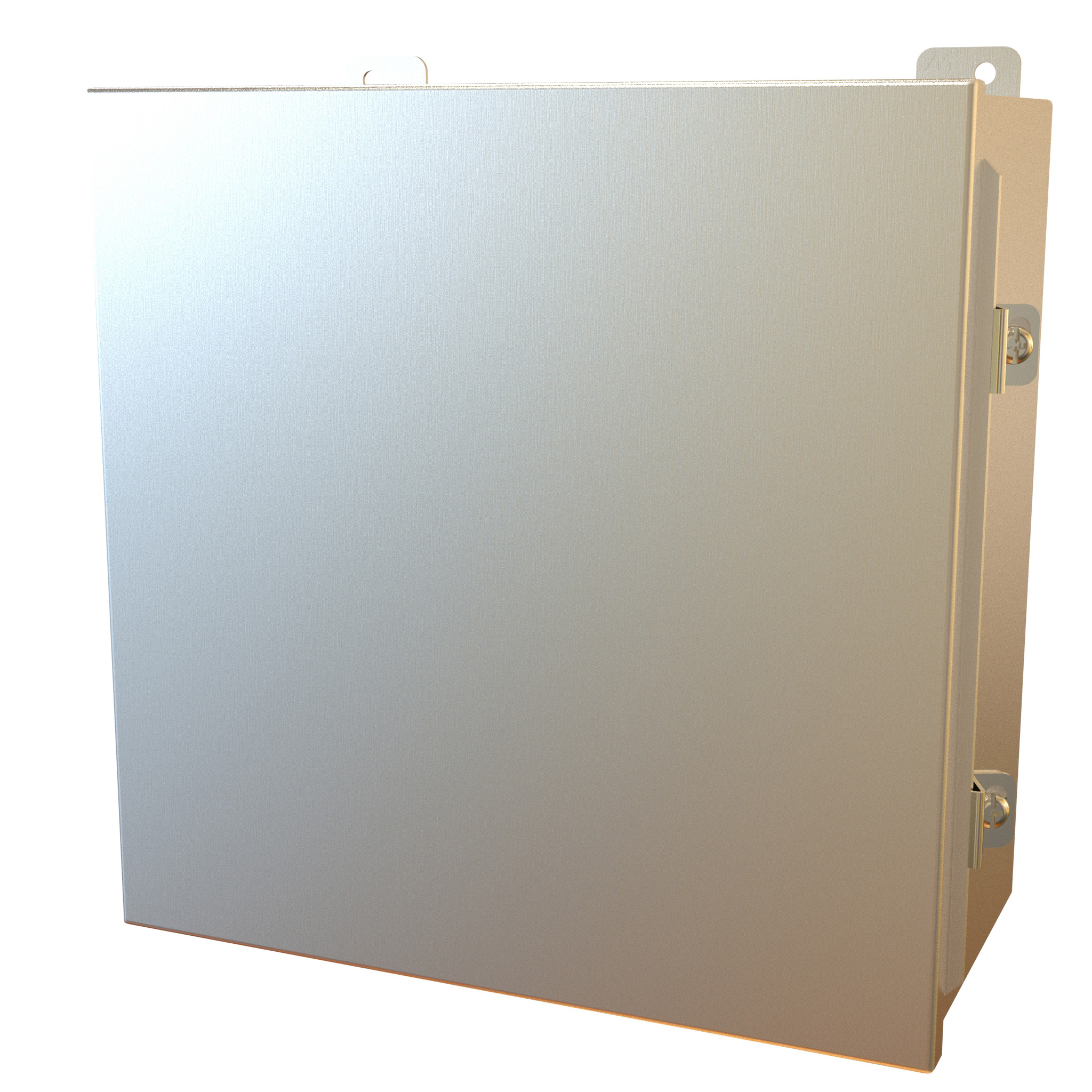

1414N4PHSSL61414N4PHS16L612.0012.006.0010.7510.88$467.71In stock1414N4PHSSL6Buy now

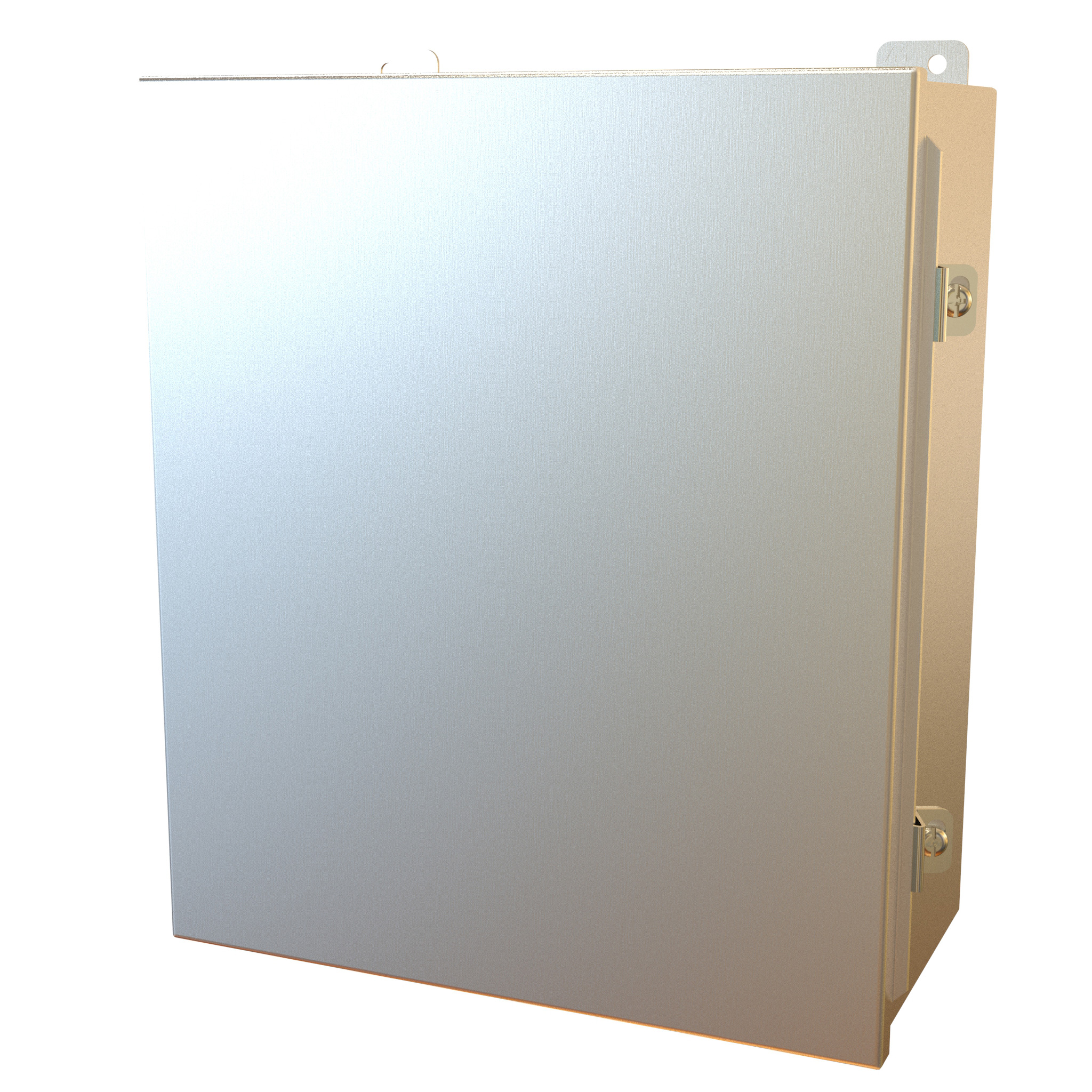

1414N4PHSSM61414N4PHS16M614.0012.006.0012.7510.88$527.49In stock1414N4PHSSM6Buy now

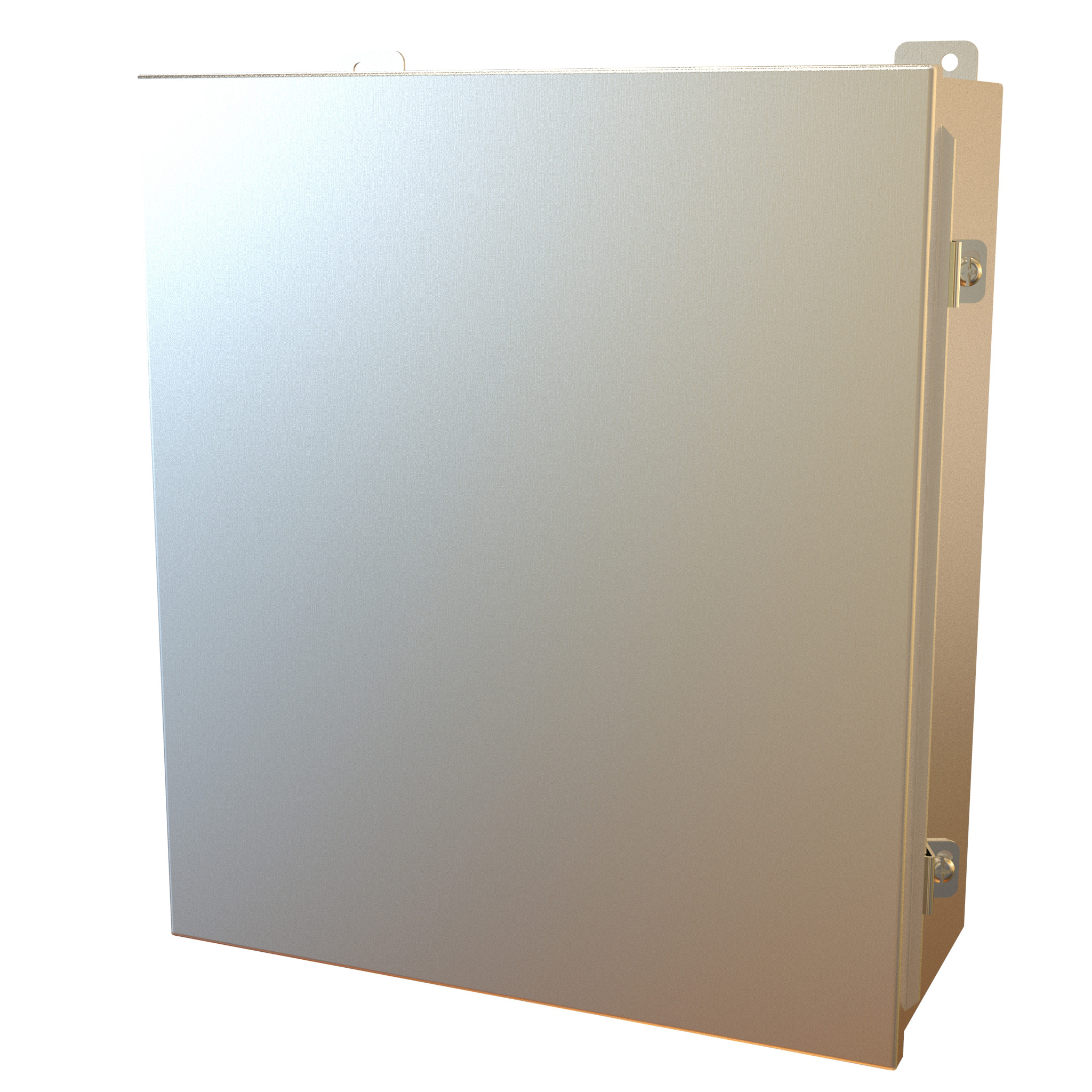

1414N4PHSSO61414N4PHS16O616.0014.006.0014.7512.88$611.25In stock1414N4PHSSO6Buy now

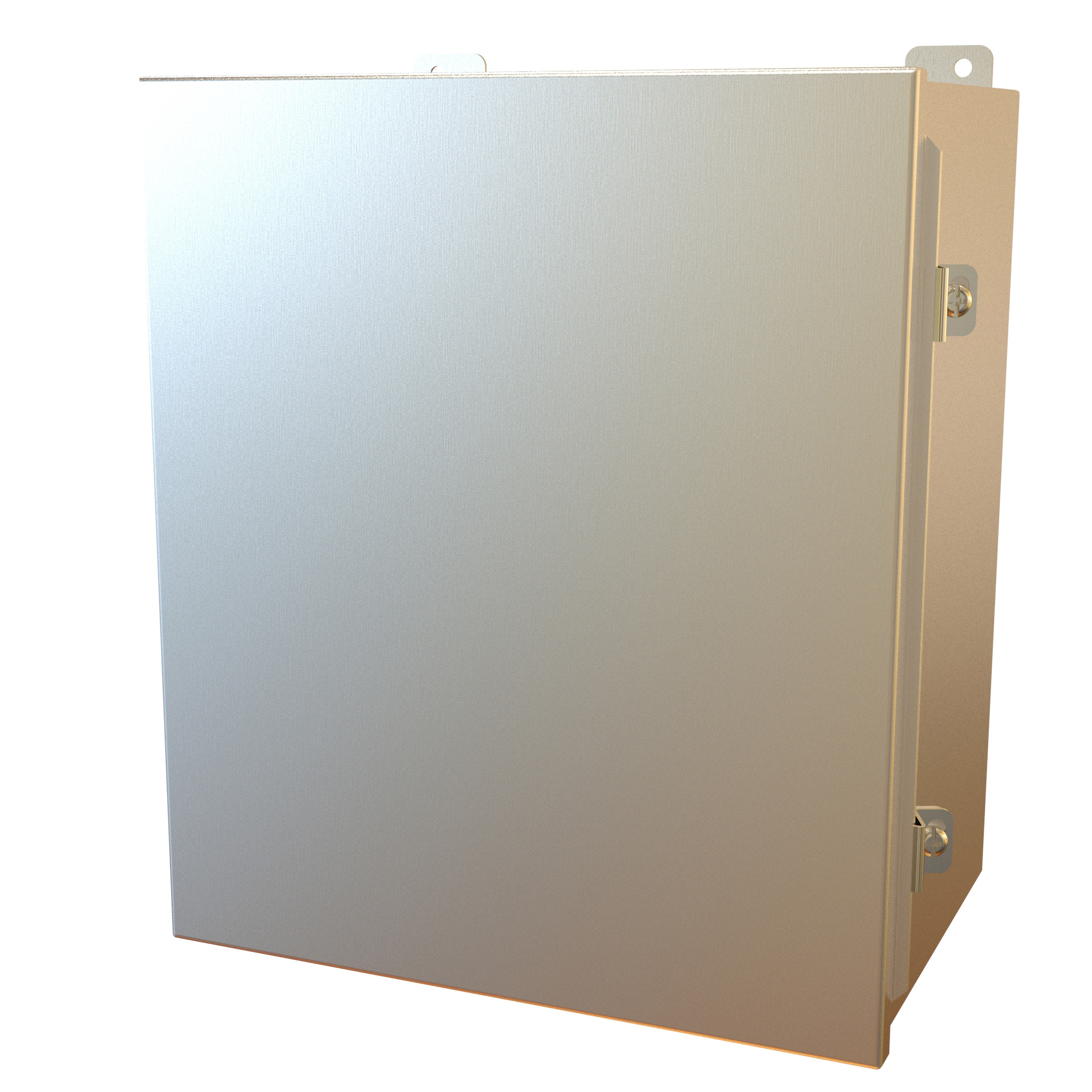

1414N4PHSSM81414N4PHS16M814.0012.008.0012.7510.88$551.78In stock1414N4PHSSM8Buy now

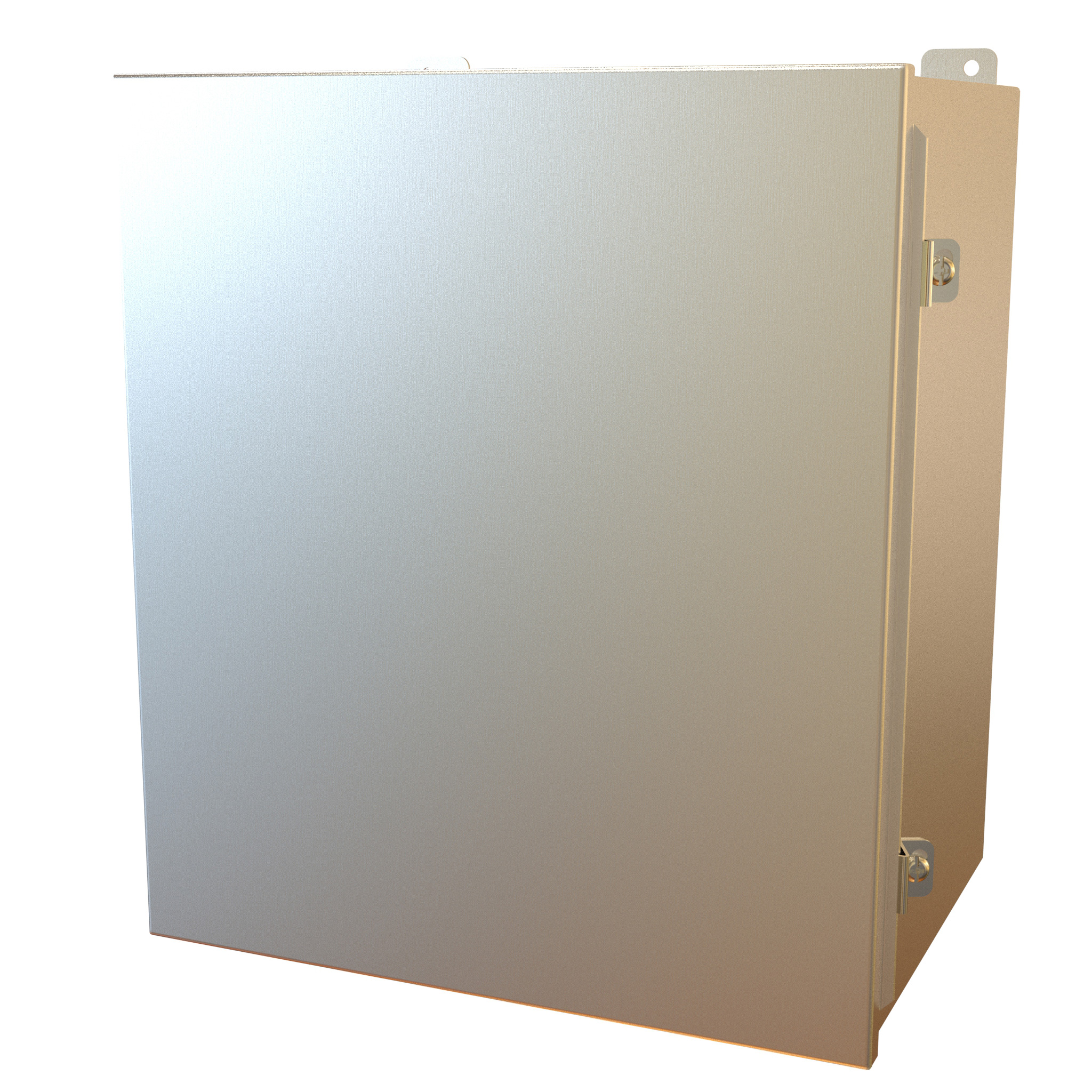

1414N4PHSSO101414N4PHS16O1016.0014.0010.0014.7512.88$688.63In stock1414N4PHSSO10Buy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion may be a problem.

Standards

  • ■UL 508A Type 3R, 4, 4X, 12 and 13
  • ■CSA Type 3R, 4, 4X, 12 and 13
  • ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
  • ■NEMA Type 3R, 4, 4X, 12 and 13
  • ■IEC 60529, IP66

Construction

  • ■Formed from 16 gauge 304 or 316 stainless steel.
  • ■Smooth, continuously welded seams.
  • ■Welded brackets provide for enclosure mounting.
  • ■Continuous stainless steel hinged cover is secured with stainless steel clamps and screws.
  • ■Seamless poured-in place gasket.
  • ■All models include a removable 14 gauge inner panel.
  • ■Tapped studs are provided for mounting inner panels.
  • ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.

Finish

  • ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
  • ■Removable inner panel is finished in white powder coating.

Documents

Specification SheetCE Declaration

Additional information

Part Details

304 S.S. · Part No.316 S.S. · Part No.Enclosure · HEnclosure · WEnclosure · DPanel · HPanel · W
1414N4PHSSC41414N4PHS16C46.004.004.004.882.88
1414N4PHSSE1414N4PHS16E6.006.004.004.884.88
1414N4PHSSG1414N4PHS16G8.006.003.506.754.88
1414N4PHSSG41414N4PHS16G48.006.004.006.754.88
1414N4PHSSI1414N4PHS16I10.008.004.008.756.88
1414N4PHSSK1414N4PHS16K12.0010.005.0010.758.88
1414N4PHSSK61414N4PHS16K612.0010.006.0010.758.88
1414N4PHSSL61414N4PHS16L612.0012.006.0010.7510.88
1414N4PHSSM61414N4PHS16M614.0012.006.0012.7510.88
1414N4PHSSO61414N4PHS16O616.0014.006.0014.7512.88
1414N4PHSSM81414N4PHS16M814.0012.008.0012.7510.88
1414N4PHSSO101414N4PHS16O1016.0014.0010.0014.7512.88
