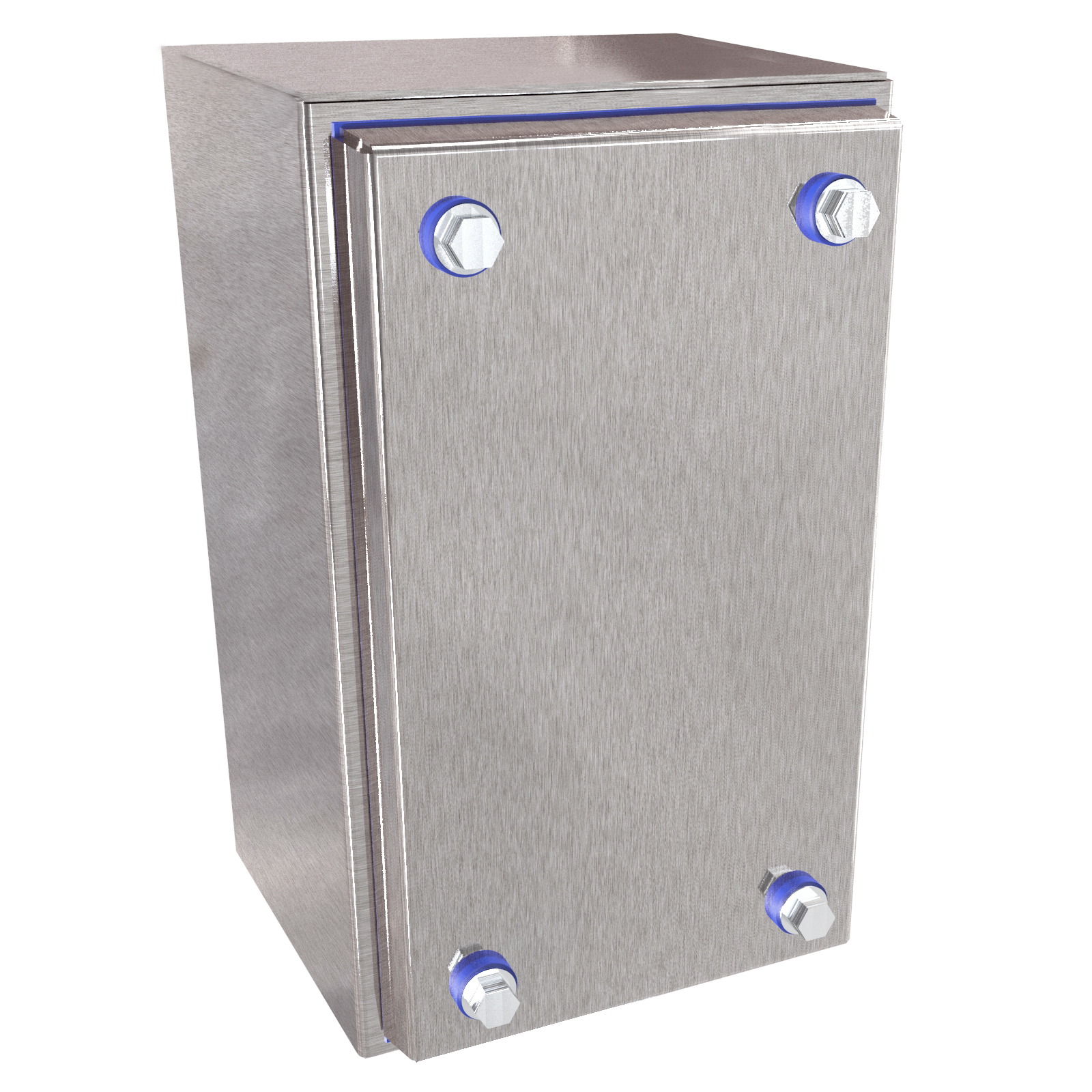

Hygienic Type 4X Stainless Steel Junction Box · HYJ Series
Brand: Hammond Manufacturing · 15 part numbers
Sloped Sides with Silicone Gasket
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for junction box and wallmount applications.
- ■Sloped on 4 sides prevent water from resting on top regardless of enclosure orientation.

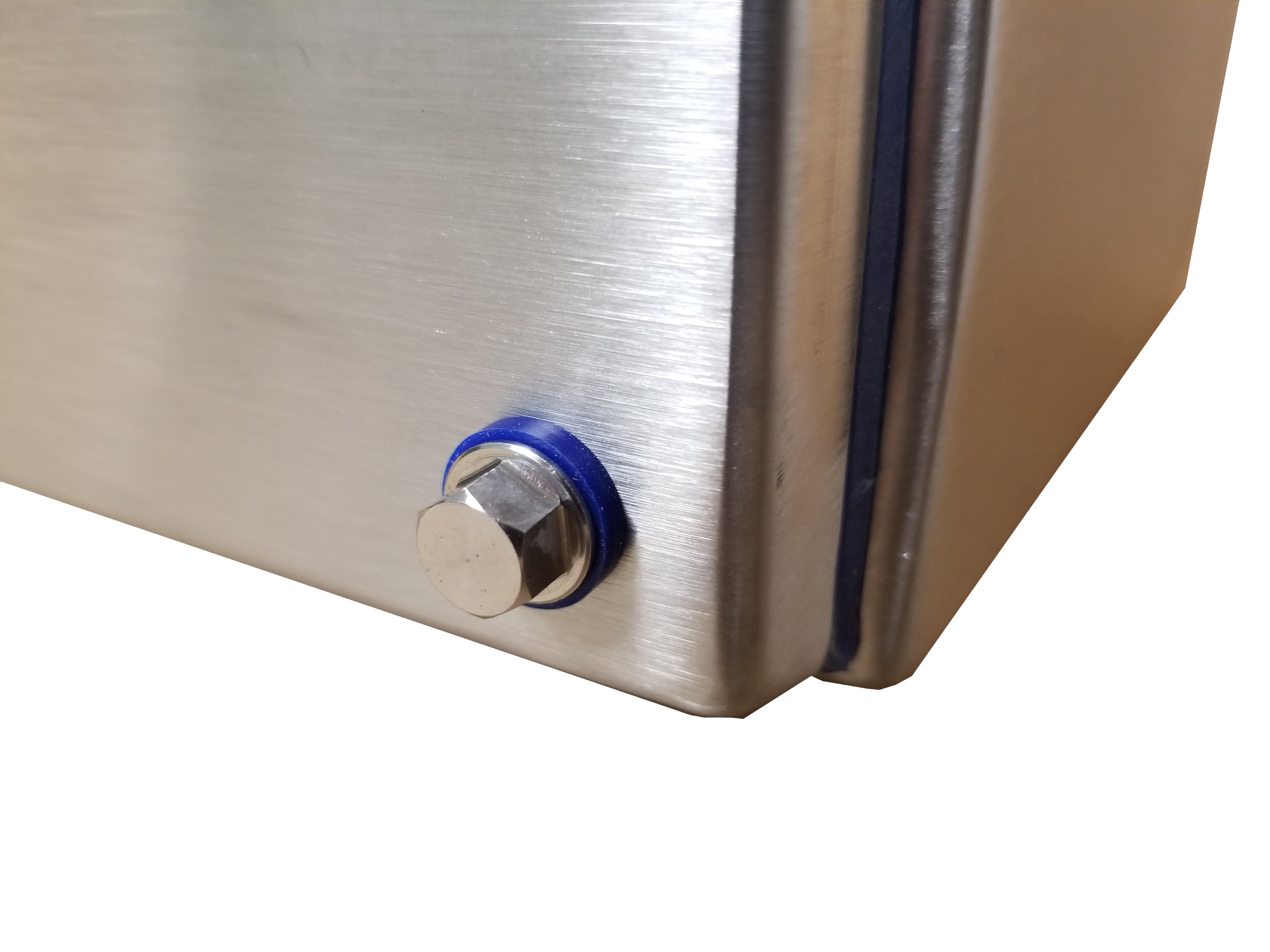

- ■Hex head design screws and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 12, 4, 4X
- ■cUL Type 3R, 12, 4, 4X
from $4.35
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your HYJ Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
Hygienic N4X Gasket
$127.51In stock
Buy nowHygienic N4X Gasket
$129.05In stock
Buy nowHygienic N4X Gasket
$167.70In stock
Buy nowHygienic N4X Gasket
$102.78In stock
Buy now
Hygienic N4X 304SS10X74
$651.17In stock
Buy now
Hygienic N4X 304SS 12X9X4
$714.79In stock
Buy now
Hygienic N4X 304SS 14X11X6
$854.76In stock
Buy now
Hygienic N4X 304SS 16X13X8
$999.68In stock
Buy now
Hygienic N4X 304SS 8X5X4
$588.45In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Replacement · Gasket (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|
| HYJ854SS | 7.94 | 4.88 | 4.00 | 14R0503 | 4.88 | 2.88 | HYG85 | $588.45In stockHYJ854SS | Buy now |

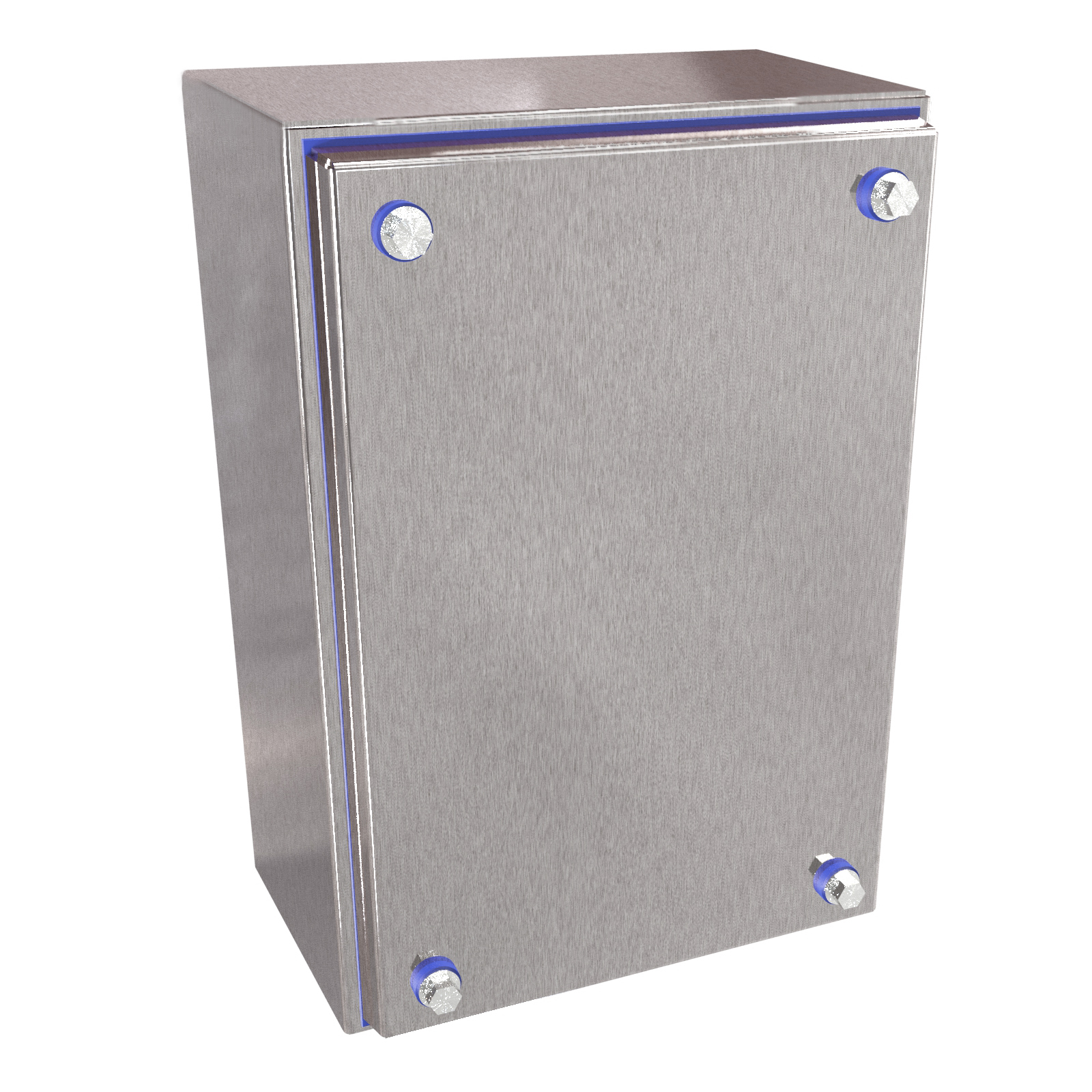

| HYJ1074SS | 9.94 | 6.88 | 4.00 | 14R0705 | 6.75 | 4.88 | HYG107 | $651.17In stockHYJ1074SS | Buy now |

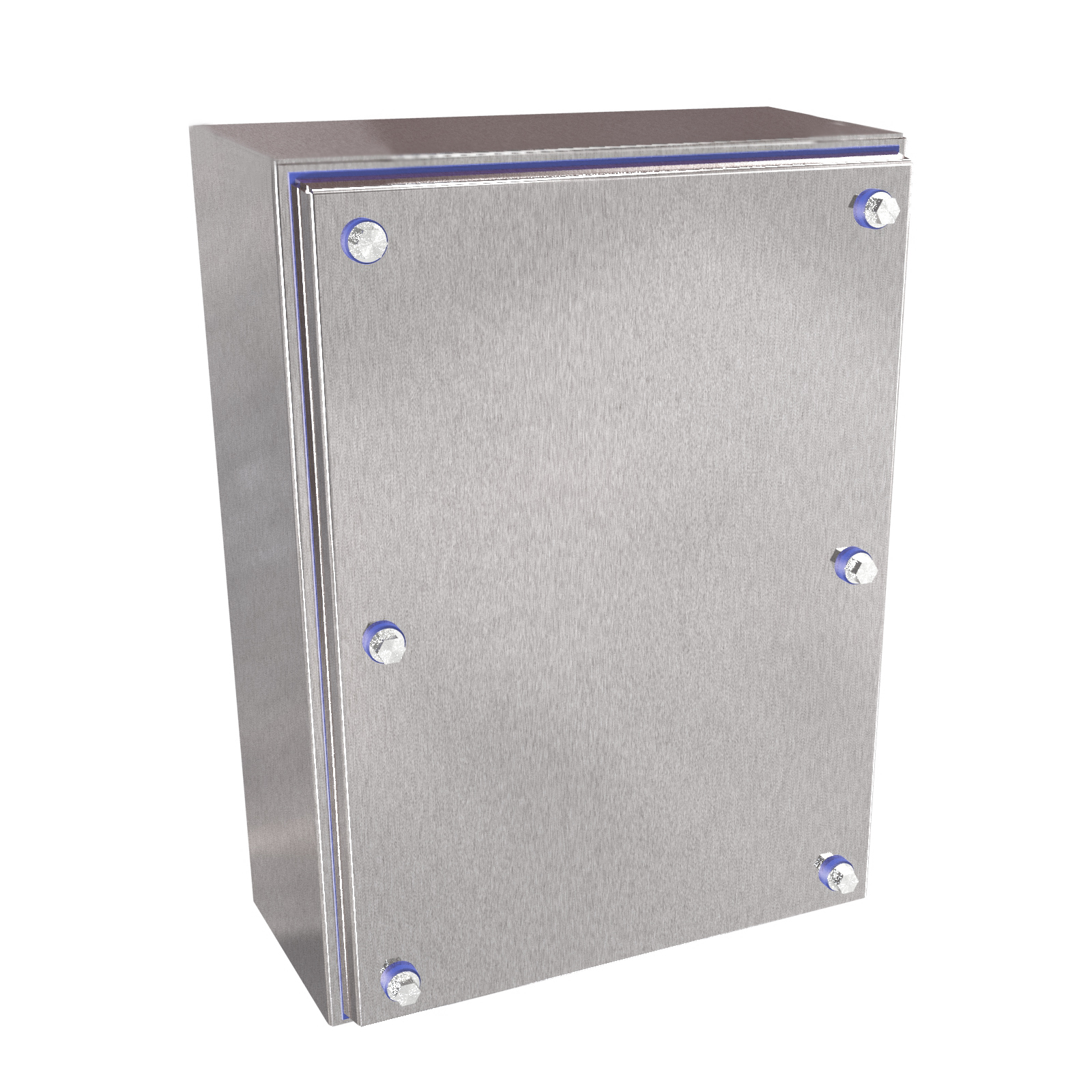

| HYJ1294SS | 11.94 | 8.88 | 4.00 | 14R0907 | 8.75 | 6.88 | HYG129 | $714.79In stockHYJ1294SS | Buy now |

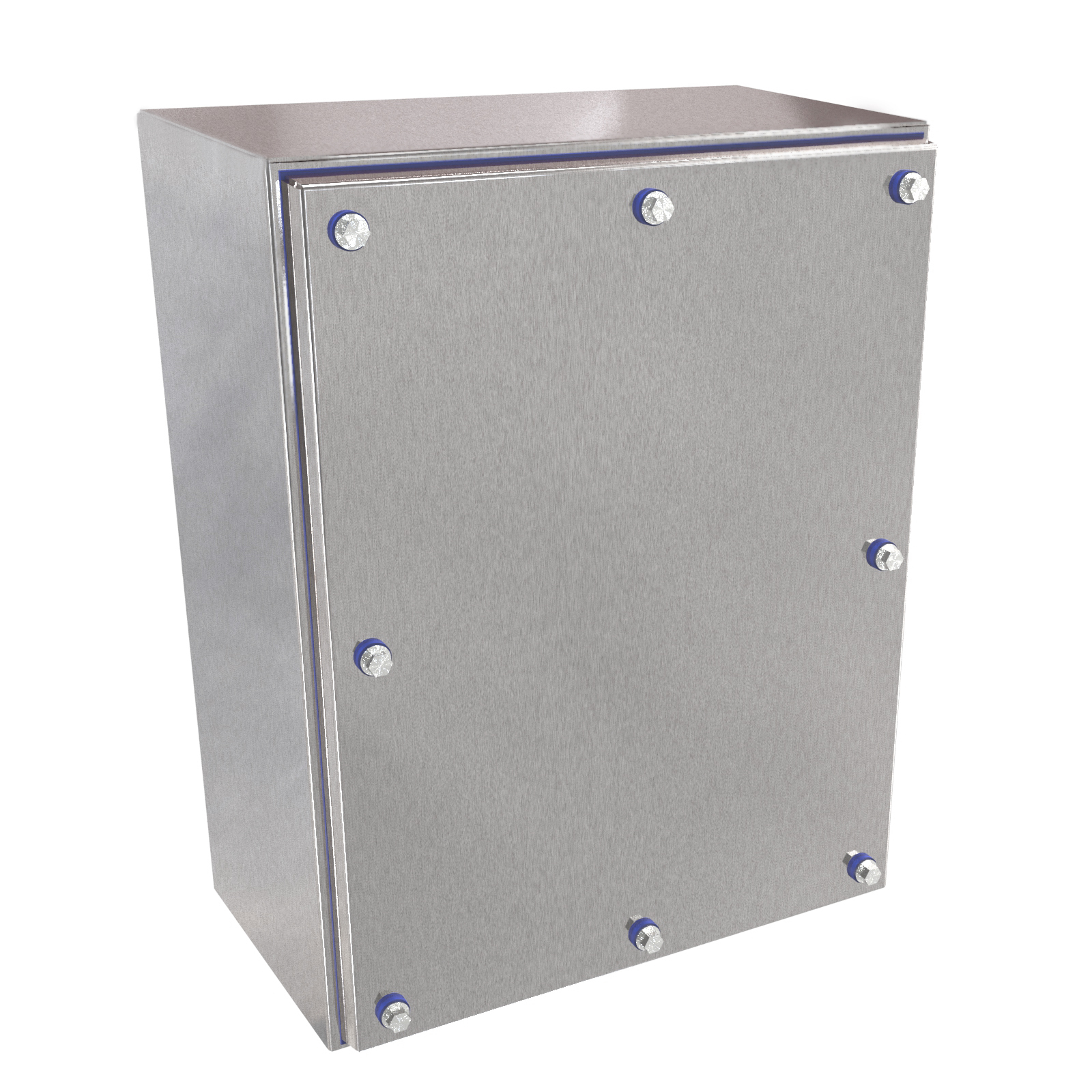

| HYJ14116SS | 14.15 | 11.09 | 6.00 | 14R1109 | 10.75 | 8.88 | HYG1411 | $854.76In stockHYJ14116SS | Buy now |

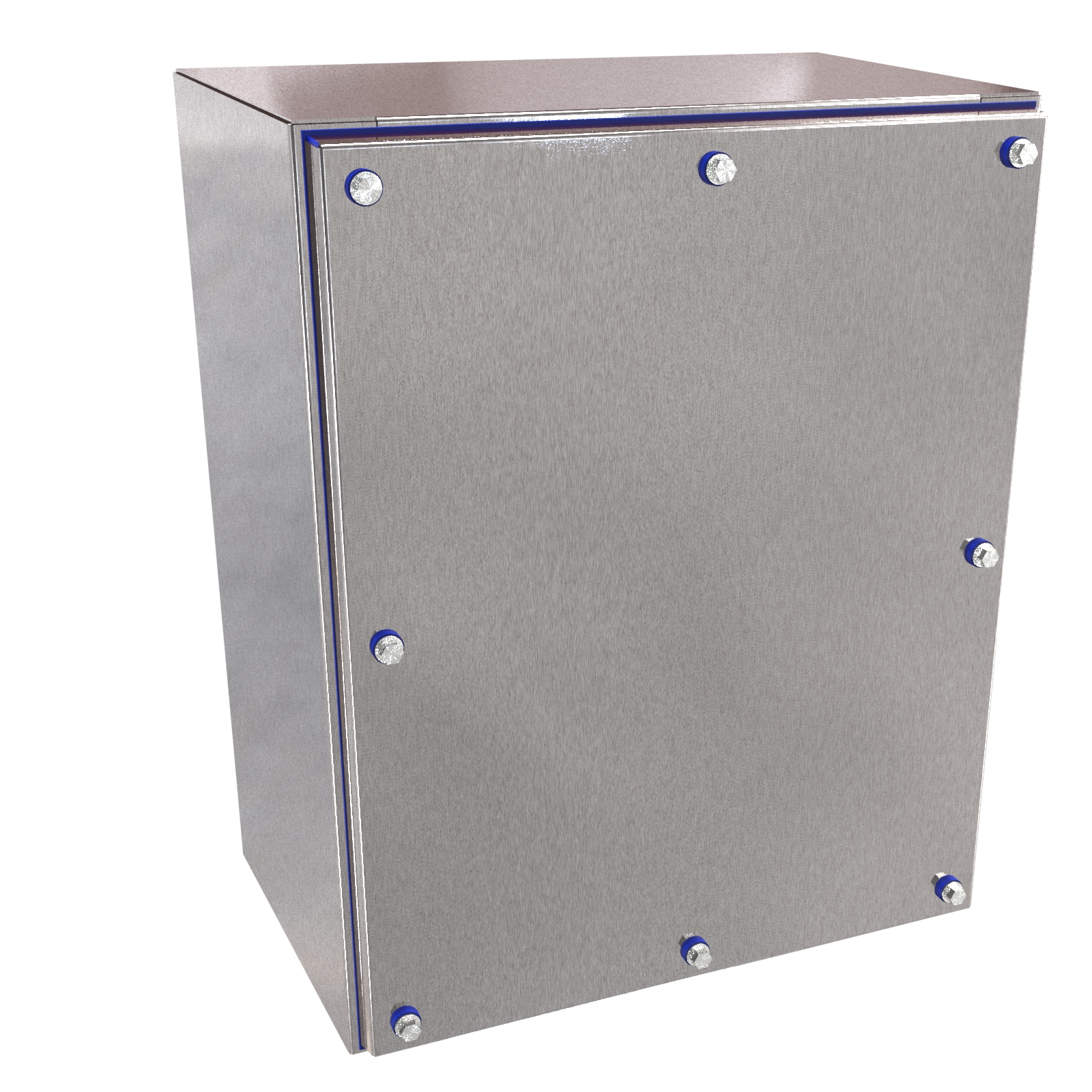

| HYJ16138SS | 16.36 | 13.30 | 8.00 | 14R1311 | 12.75 | 10.88 | HYG1613 | $999.68In stockHYJ16138SS | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, hygienic environments for junction box and wallmount applications.
- ■Sloped on 4 sides prevent water from resting on top regardless of enclosure orientation.
- ■Hex head design screws and door-edge mounted silicone gasket allow for easy cleaning in hose-down environments.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 12, 4, 4X
- ■cUL Type 3R, 12, 4, 4X
- ■NSF – ANSI 169 Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Not all accessories shown maintain NSF standard. Some are internal and NSF is not applicable. Refer to each accessory individually or call factory for specifics.
- ■Complies with NEMA 3R, 12, 4, 4X IEC 60529, IP69, IP69K
- ■NEMA 3R, 12, 4, 4X
- ■IEC 60529, IP69, IP69K
Construction
- ■Formed 304 stainless steel.
- ■Sloped 3° on all 4 sides
- ■Continuously welded seams ground smooth.

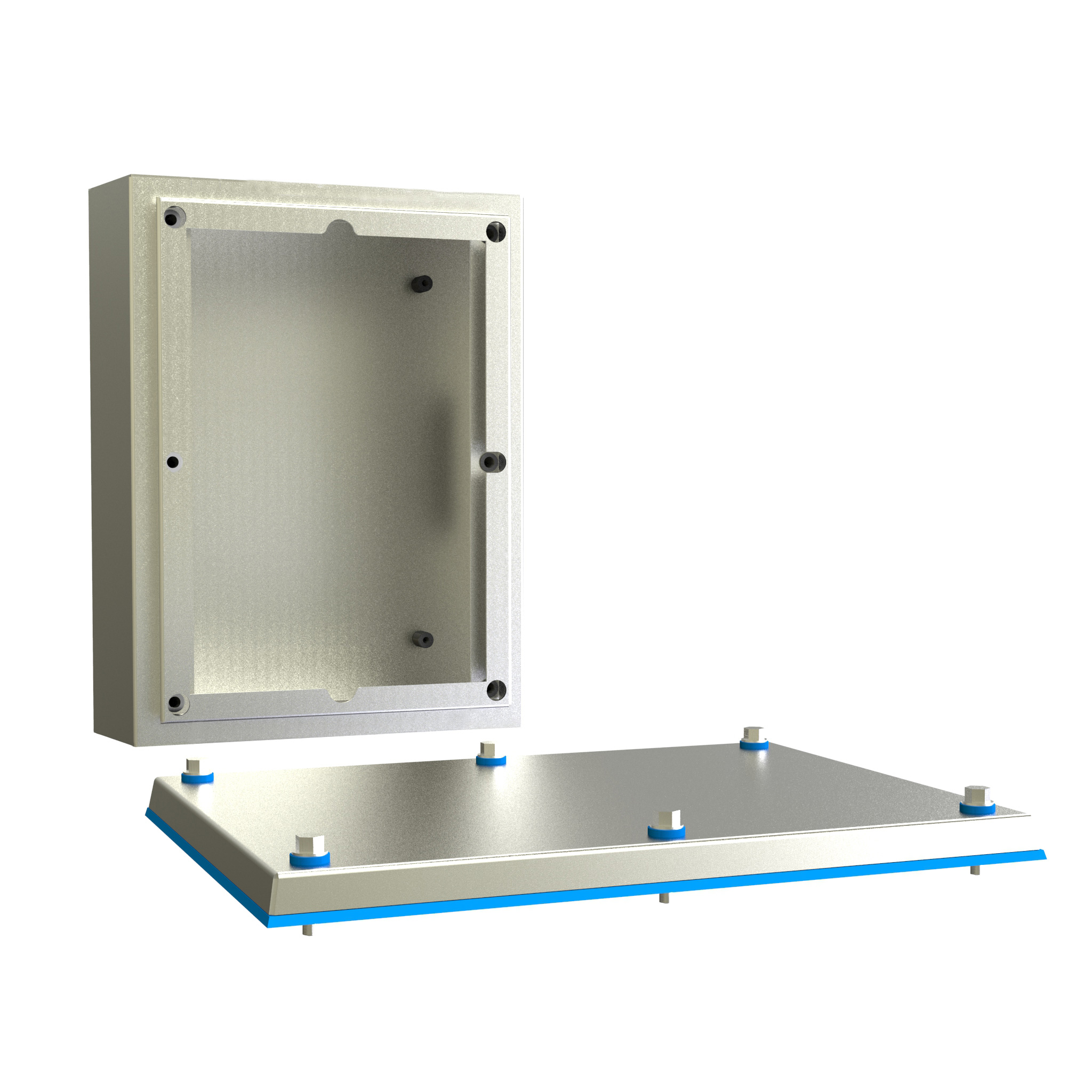

- ■Hex head screw cover can be completely removed for modifications.

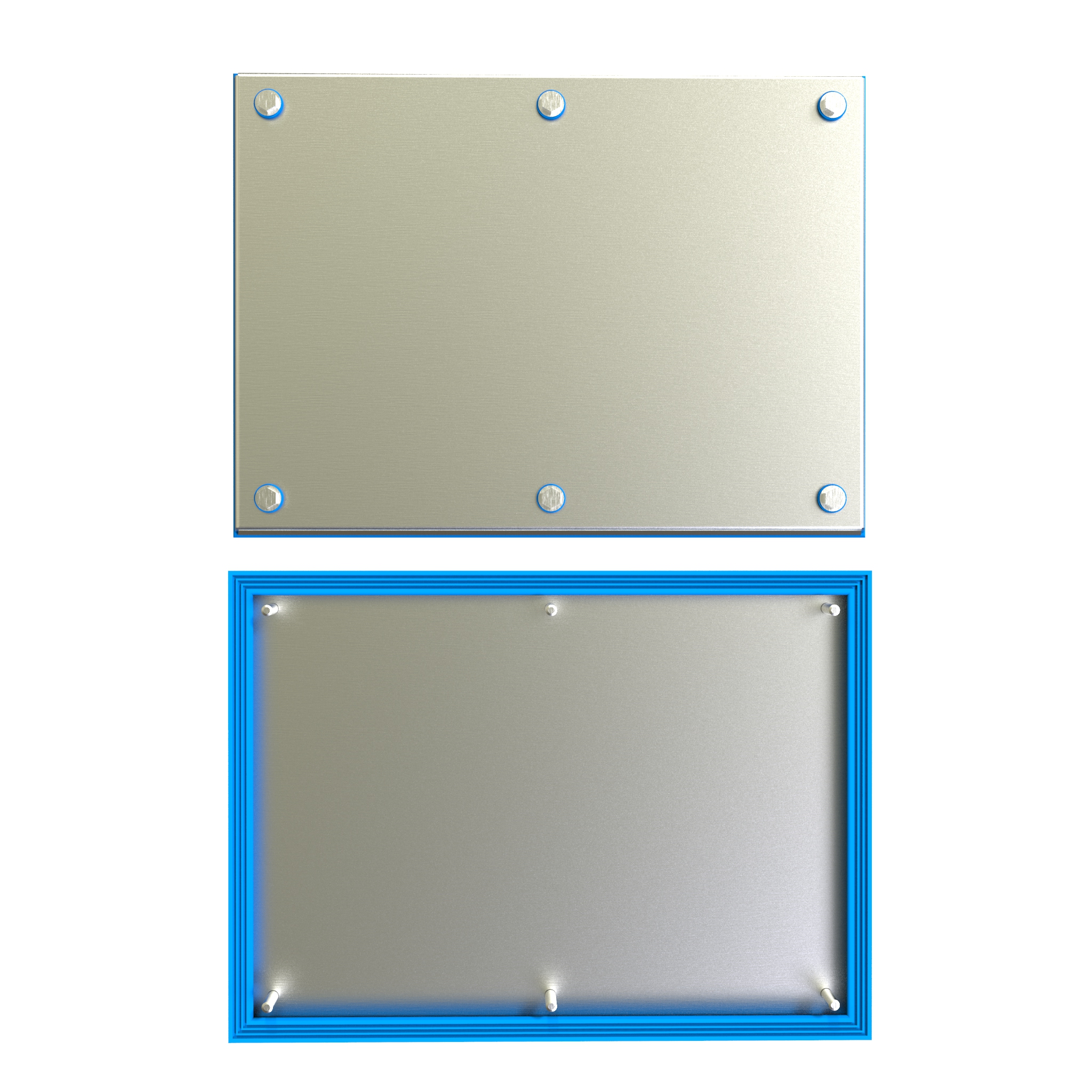

- ■Silicone gasket mounts around entire door edge allowing for efficient cleaning in hygienic environments.

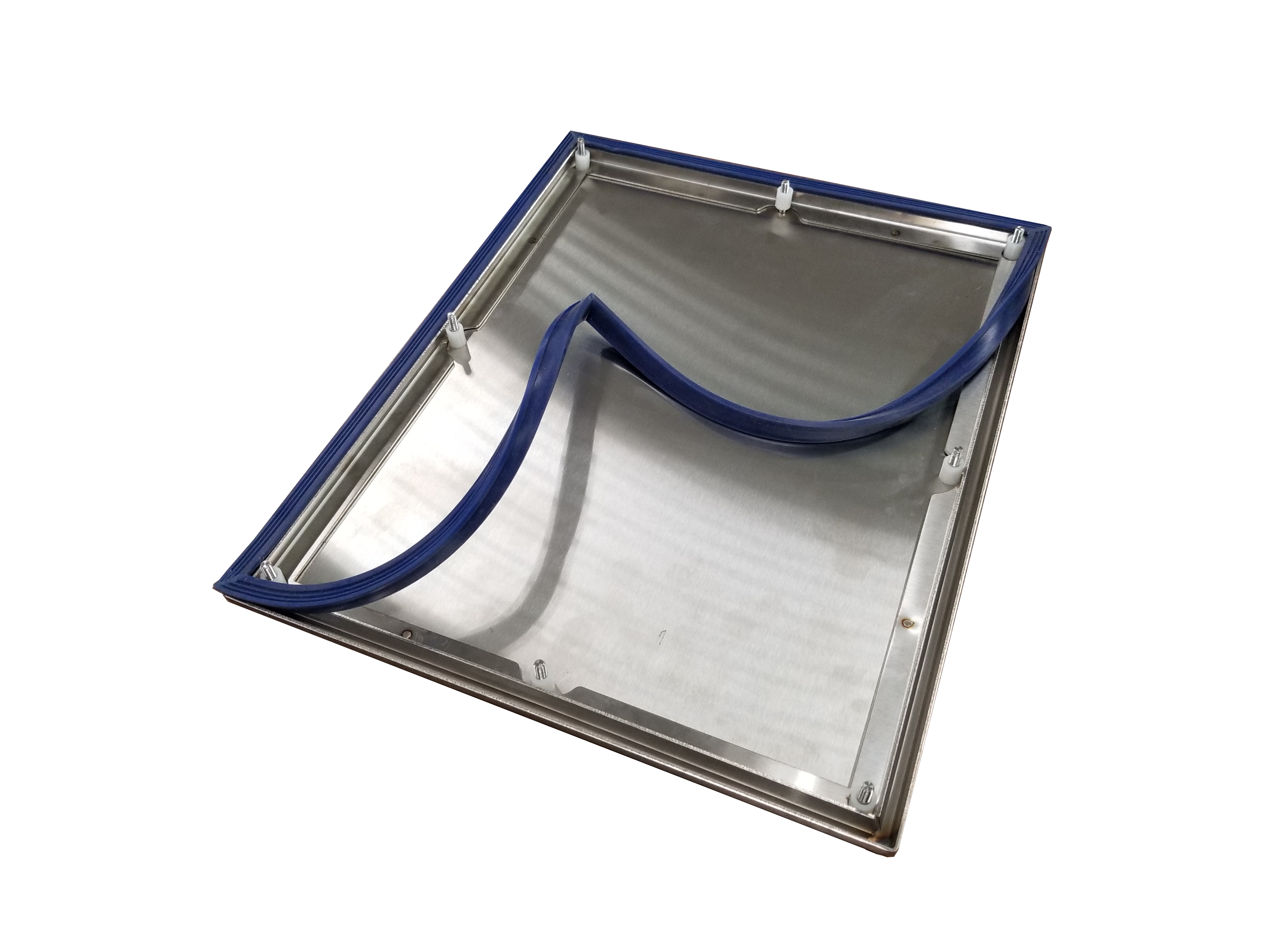

- ■Gasket can be easily removed and re-installed for cleaning or replacement. Additional silicone gaskets can be ordered separately.
- ■Studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts.
- ■No pre-drilled wall mounting holes allow for flexible mounting alternatives - weld-in-place, stand-offs
- ■Bonding stud provided on door and grounding stud installed in enclosure.
Finish
- ■Cover and enclosure are natural stainless steel with a smooth #4 dairy finish.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Replacement · Gasket |
|---|---|---|---|---|---|---|---|
| HYJ854SS | 7.94 | 4.88 | 4.00 | 14R0503 | 4.88 | 2.88 | HYG85 |
| HYJ1074SS | 9.94 | 6.88 | 4.00 | 14R0705 | 6.75 | 4.88 | HYG107 |
| HYJ1294SS | 11.94 | 8.88 | 4.00 | 14R0907 | 8.75 | 6.88 | HYG129 |
| HYJ14116SS | 14.15 | 11.09 | 6.00 | 14R1109 | 10.75 | 8.88 | HYG1411 |
| HYJ16138SS | 16.36 | 13.30 | 8.00 | 14R1311 | 12.75 | 10.88 | HYG1613 |
