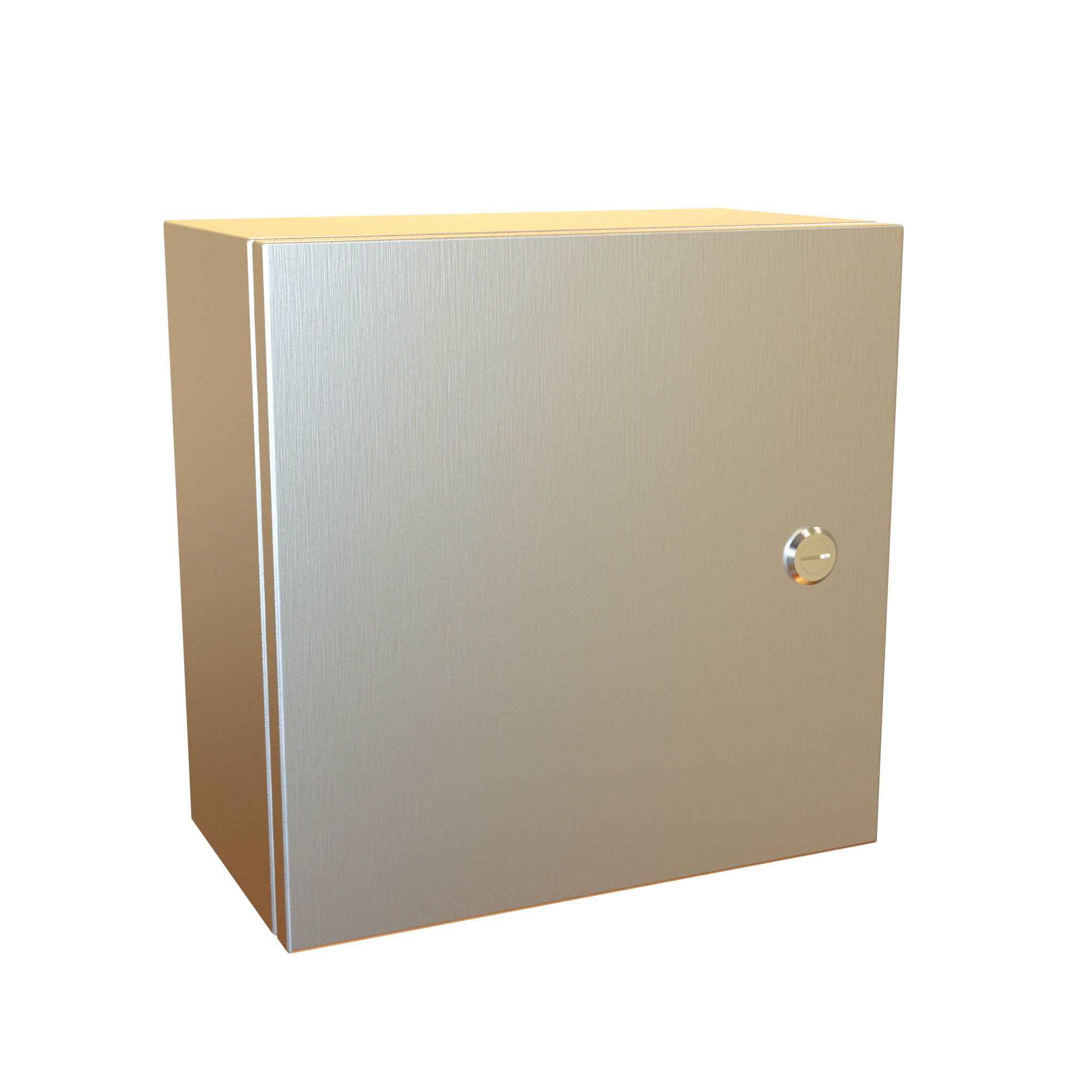

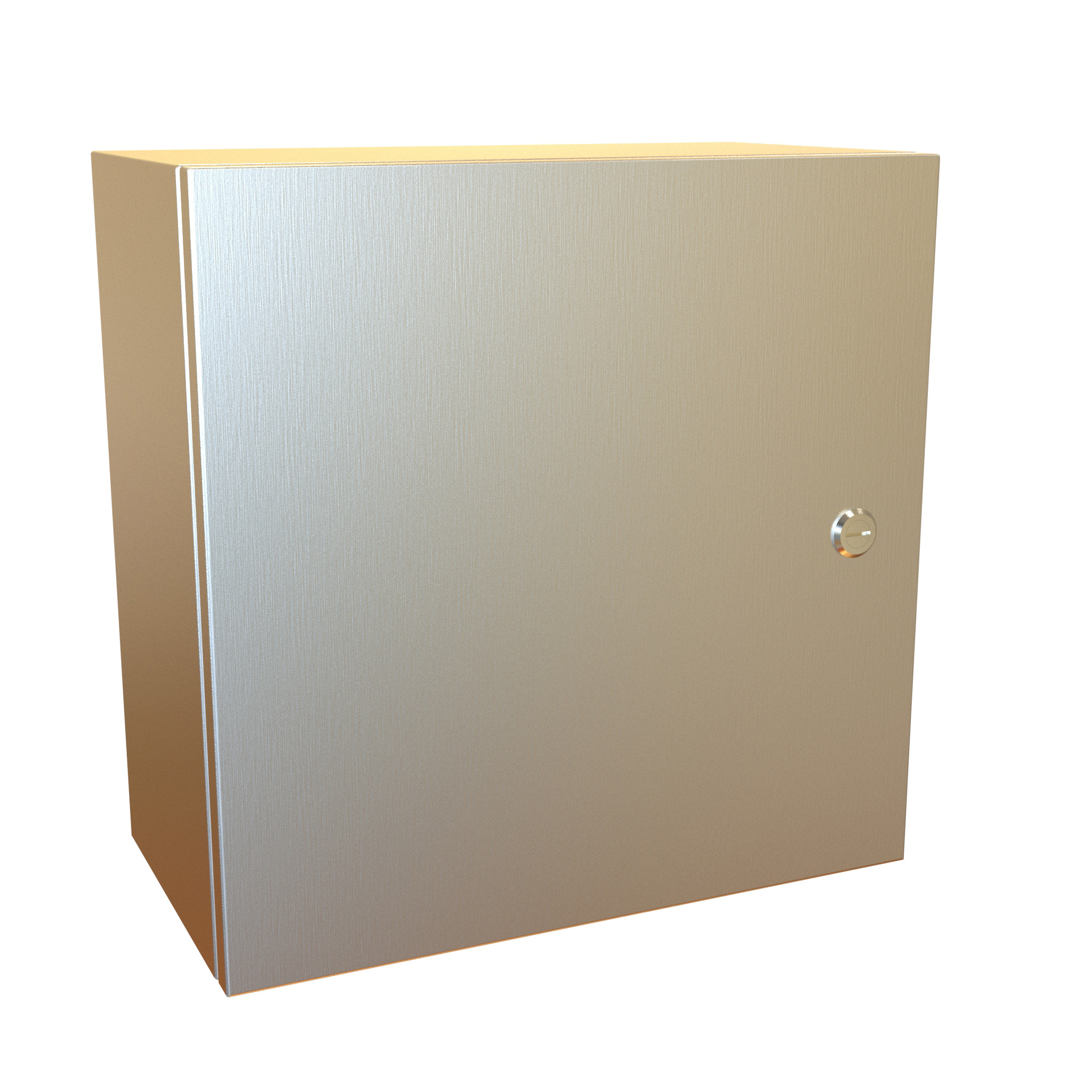

12X12X6 316 SS Wallmount
- Latch Type A
$787.04Backorder
Buy now

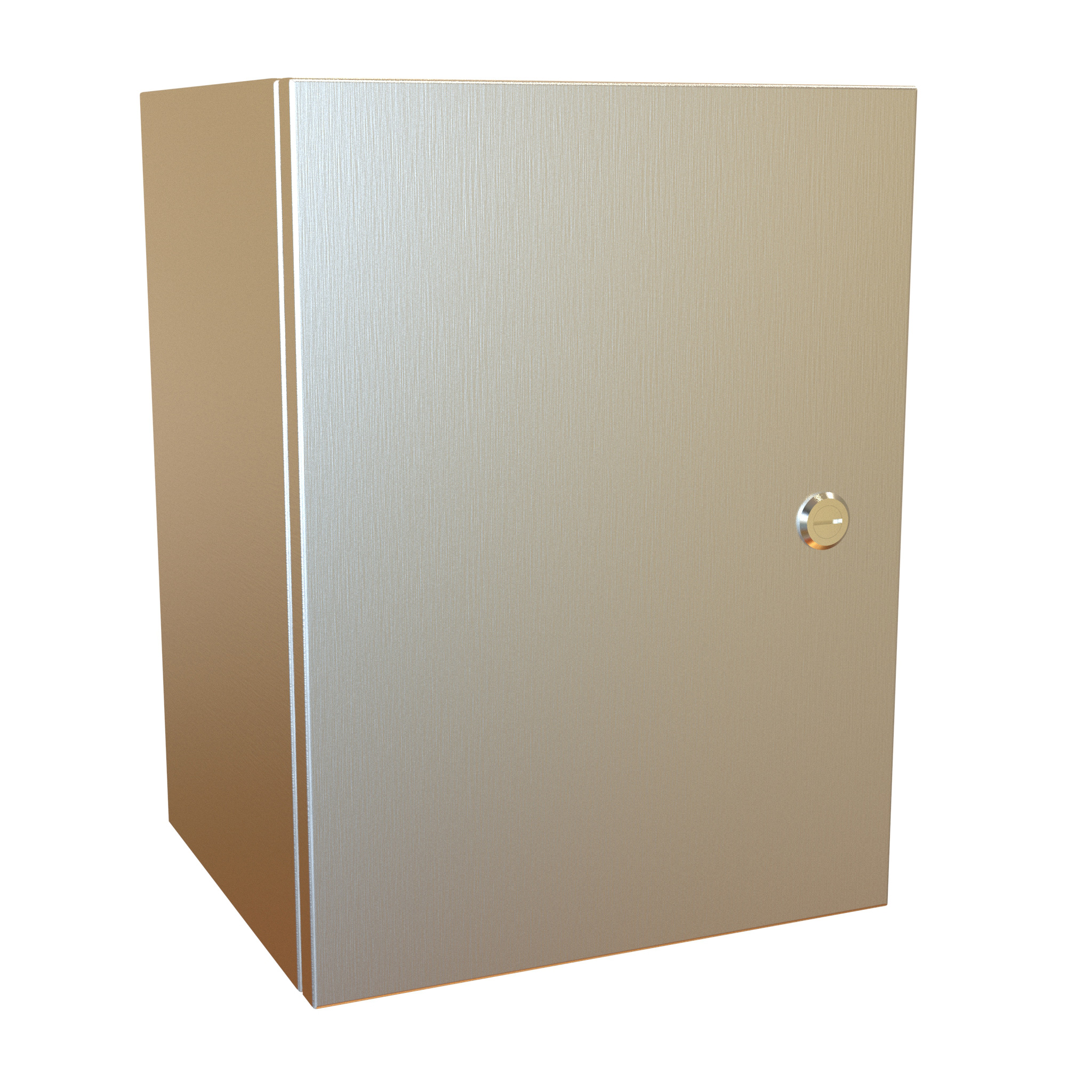

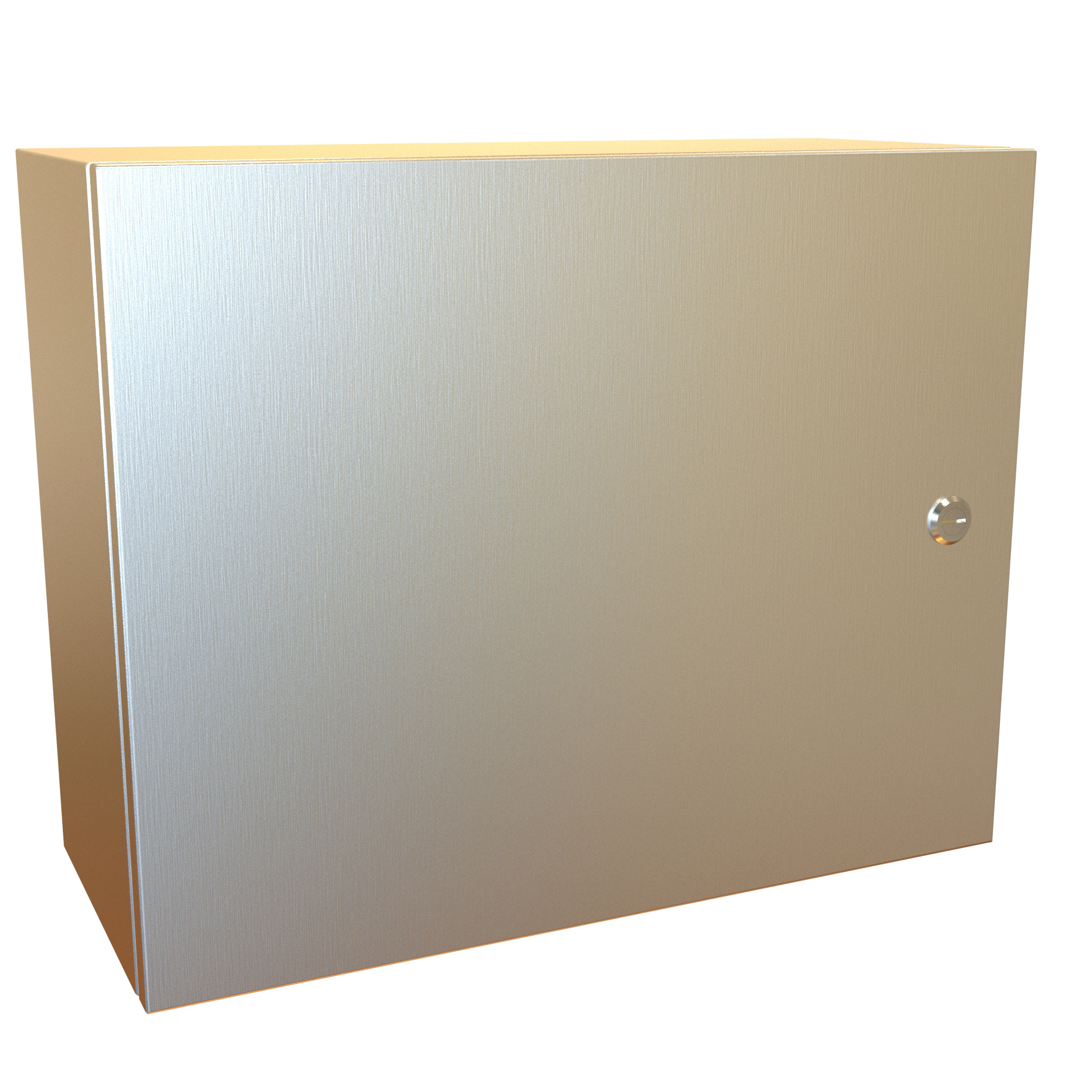

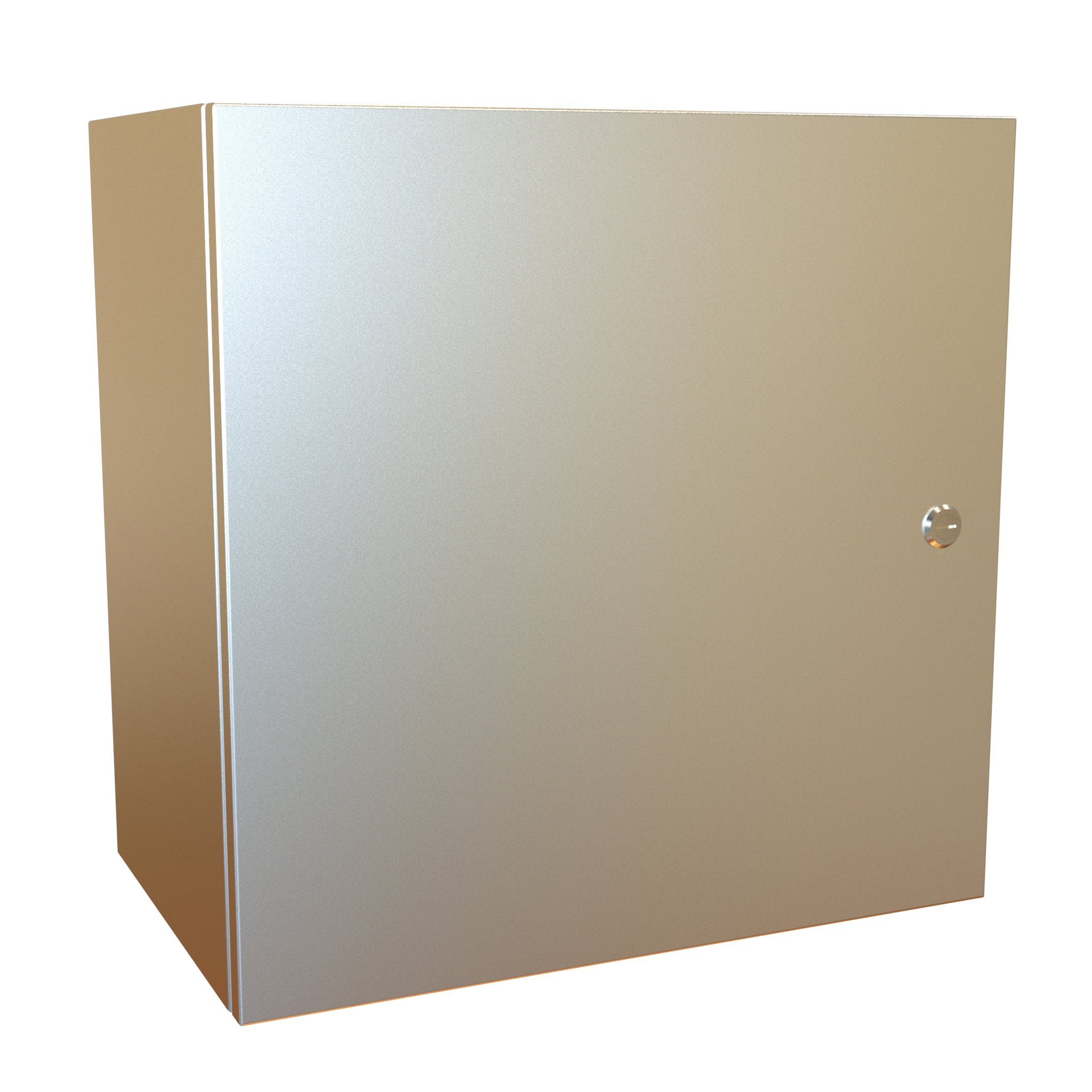

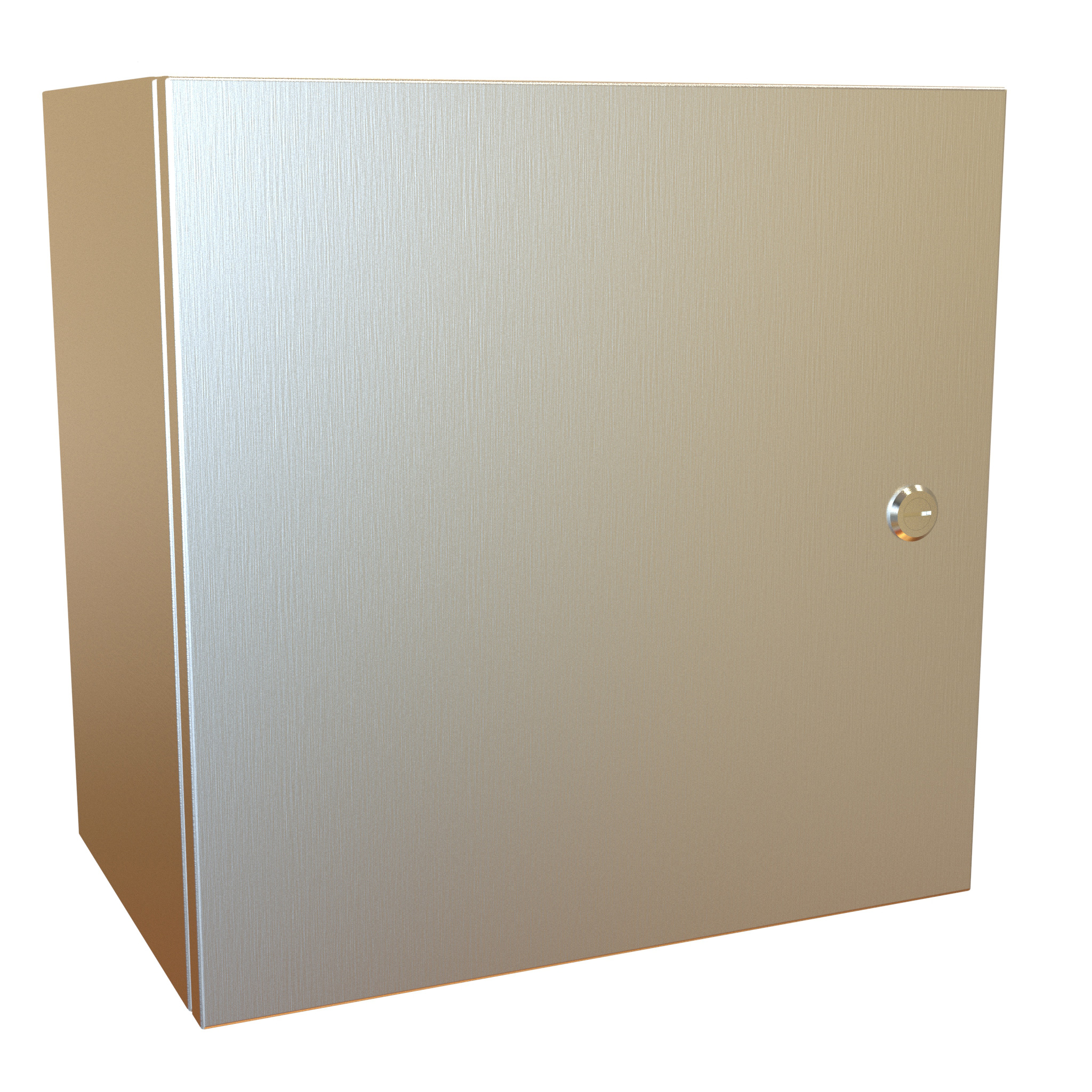

Type 4X Stainless Steel Wallmount Enclosure · Eclipse Series
Brand: Hammond Manufacturing · 122 part numbers
Hinge Door with Quarter Turn/Handle
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
- ■Mounting foot kit required to maintain UL/CSA external mounting requirements.
from $14.98
122 of 122 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Eclipse Series part number
Filter 111 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
111 of 111 part numbers · 109 priced online
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$559.64Backorder
Buy now
TYPE4X 316SS 16X12X10NO Panel
- Latch Type A
$1,086.48In stock
Buy now
Type 4X 304SS 16X12X10NO Panel
- Latch Type A
$768.76Backorder
Buy now

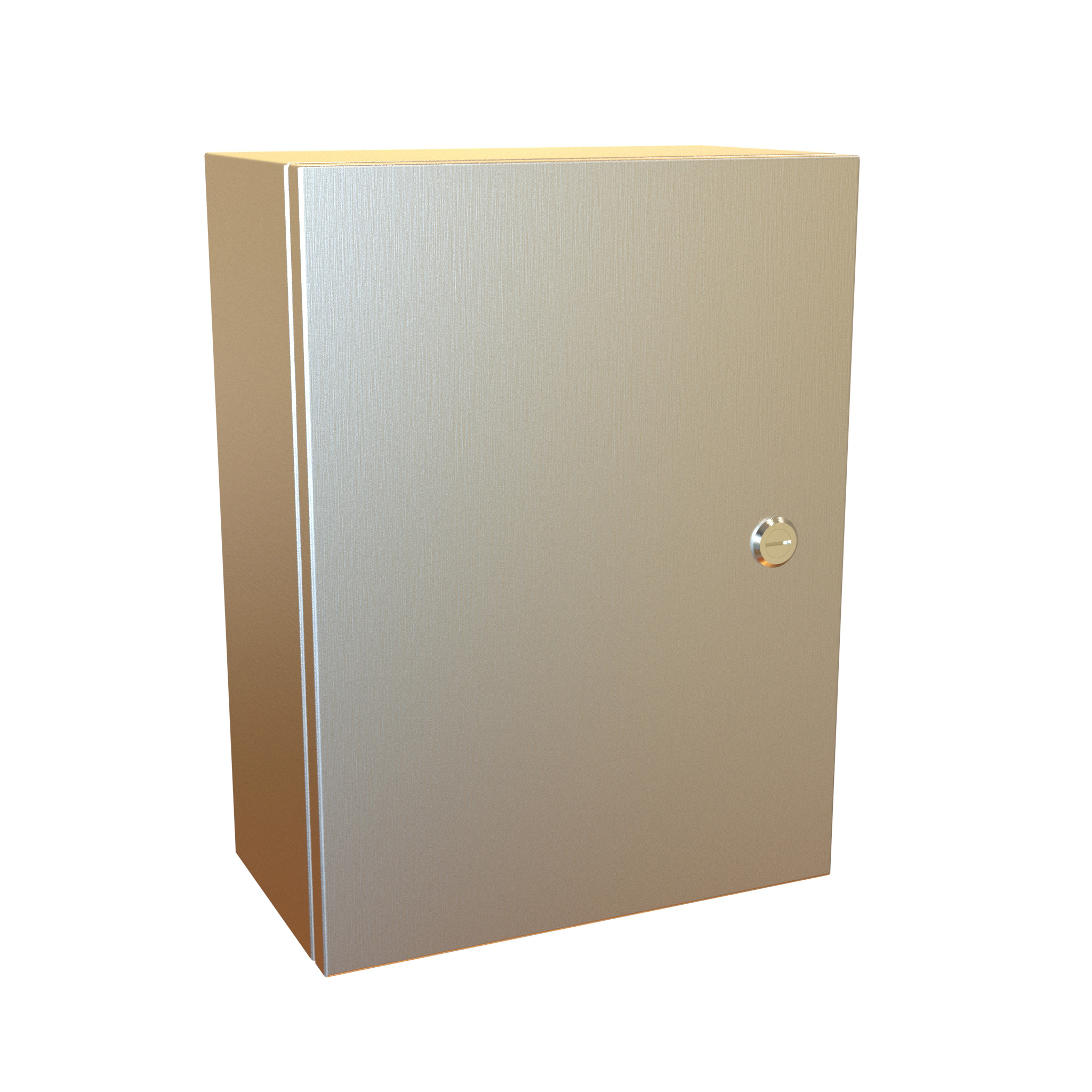

16X12X6 316 SS Wallmount
- Latch Type A
$831.67Backorder
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$614.47In stock
Buy now

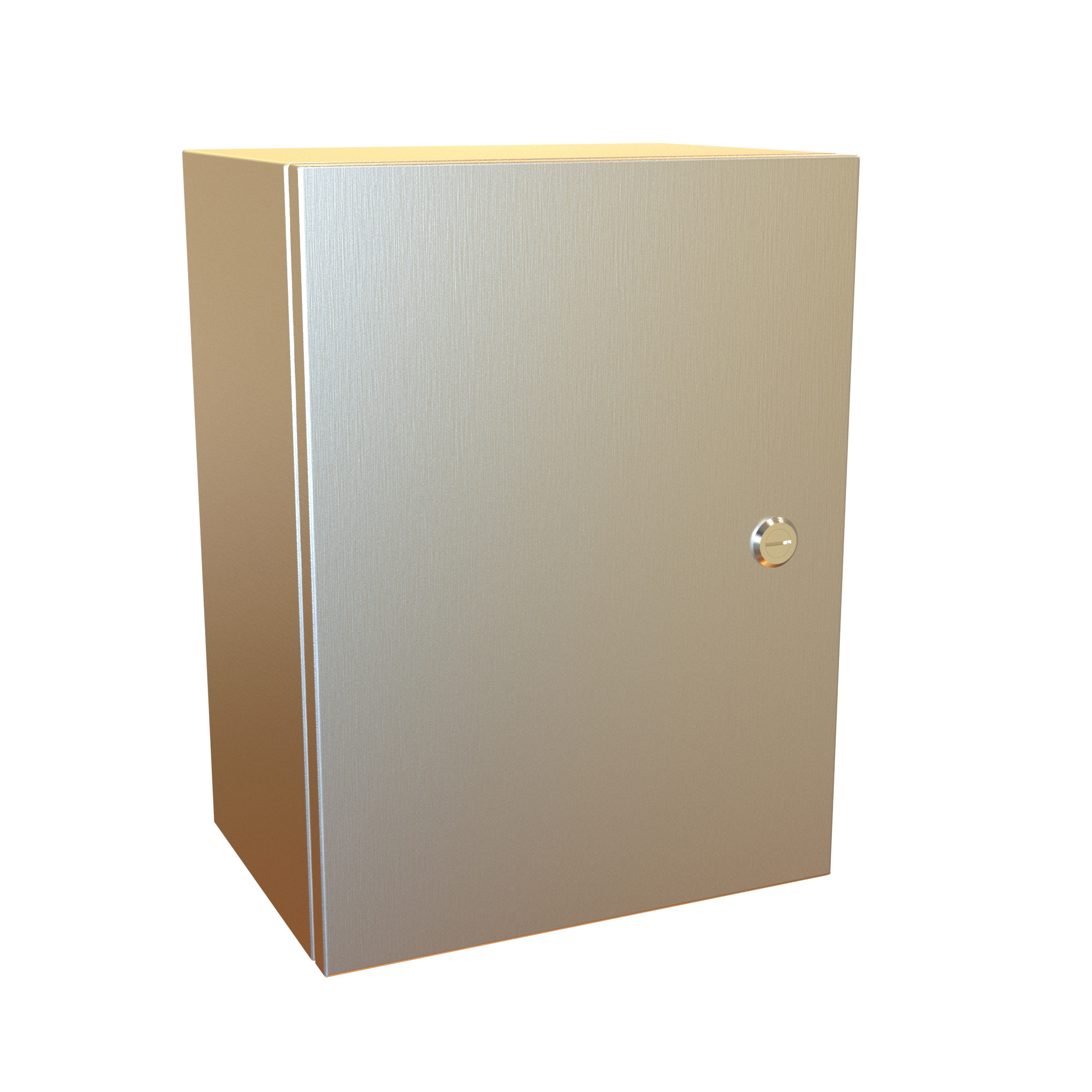

TYPE4X 316SS 16X12X8NO Panel
- Latch Type A
$980.03In stock
Buy now
Type 4X 304SS 16X12X8 No Panel
- Latch Type A
$647.26Backorder
Buy now
TYPE4X 316SS 16X16X10NO Panel
- Latch Type A
$1,161.20Backorder
Buy now
Type 4X 304SS 16X16X10NO Panel
- Latch Type A
$824.67In stock
Buy now
16X16X6 316 SS Wallmount
- Latch Type A
$1,014.44In stock
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$682.21In stock
Buy now
TYPE4X 316SS 16X16X8NO Panel
- Latch Type A
$1,060.68In stock
Buy now
Type 4X 304SS 16X16X8 No Panel
- Latch Type A
$738.66In stock
Buy now
TYPE4X 316SS 16X20X10NO Panel
- Latch Type A
$1,248.84In stock
Buy now
Type 4X 304SS 16X20X10NO Panel
- Latch Type A
$886.49Backorder
Buy now
Type 4X 304SS 16X20X6 No Panel
- Latch Type A
$768.23In stock
Buy now
16X20X8 316 SS Wallmount
- Latch Type A
$1,086.48In stock
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$824.67Backorder
Buy now
TYPE4X 316SS 20X16X10NO Panel
- Latch Type A
$1,248.84In stock
Buy now
Type 4X 304SS 20X16X10 No Pane
- Latch Type A
$886.49In stock
Buy now

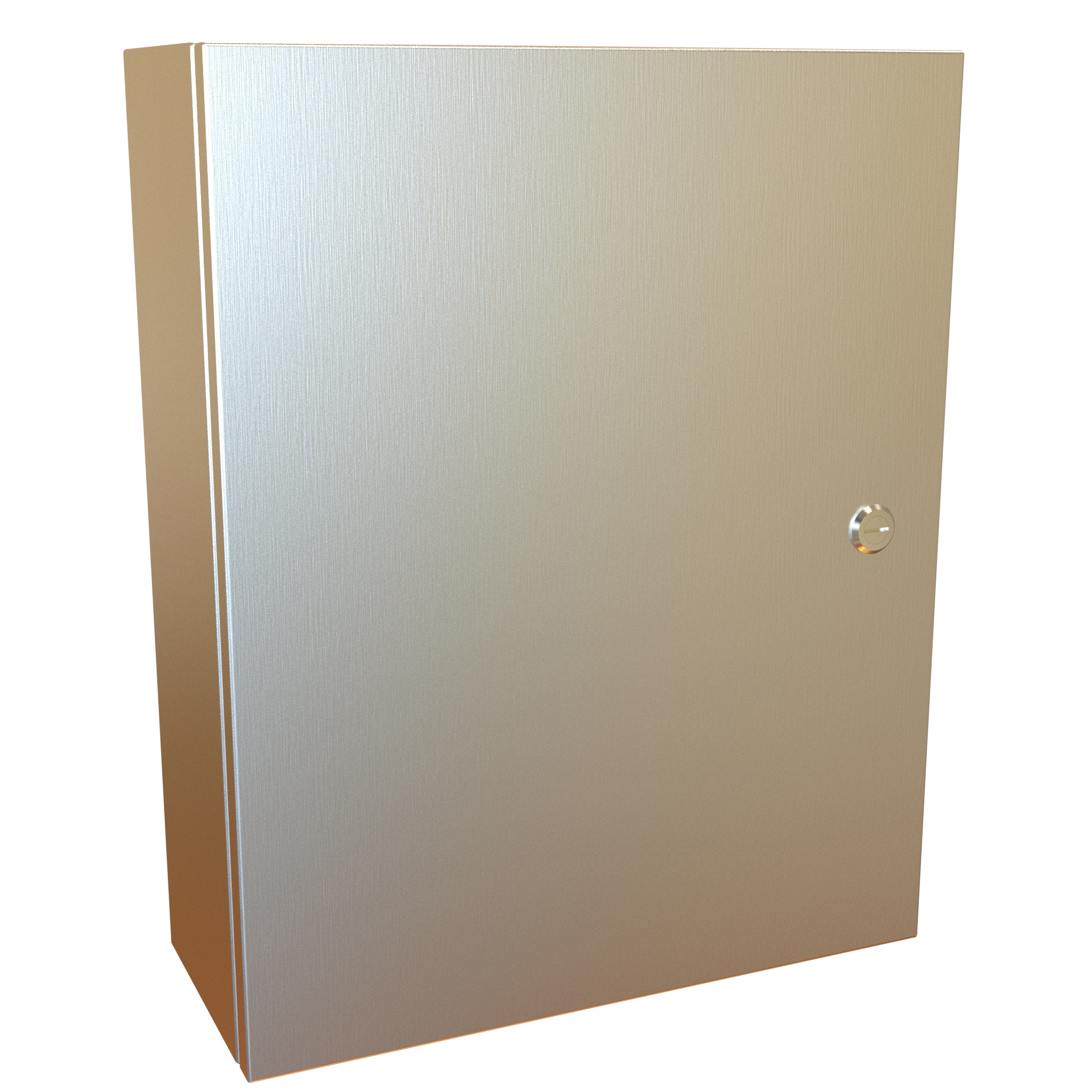

20X16X6 316 SS Wallmount
- Latch Type A
$1,037.03In stock
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$768.23Backorder
Buy now
20X16X8 316 SS Wallmount
- Latch Type A
$1,086.48In stock
Buy now

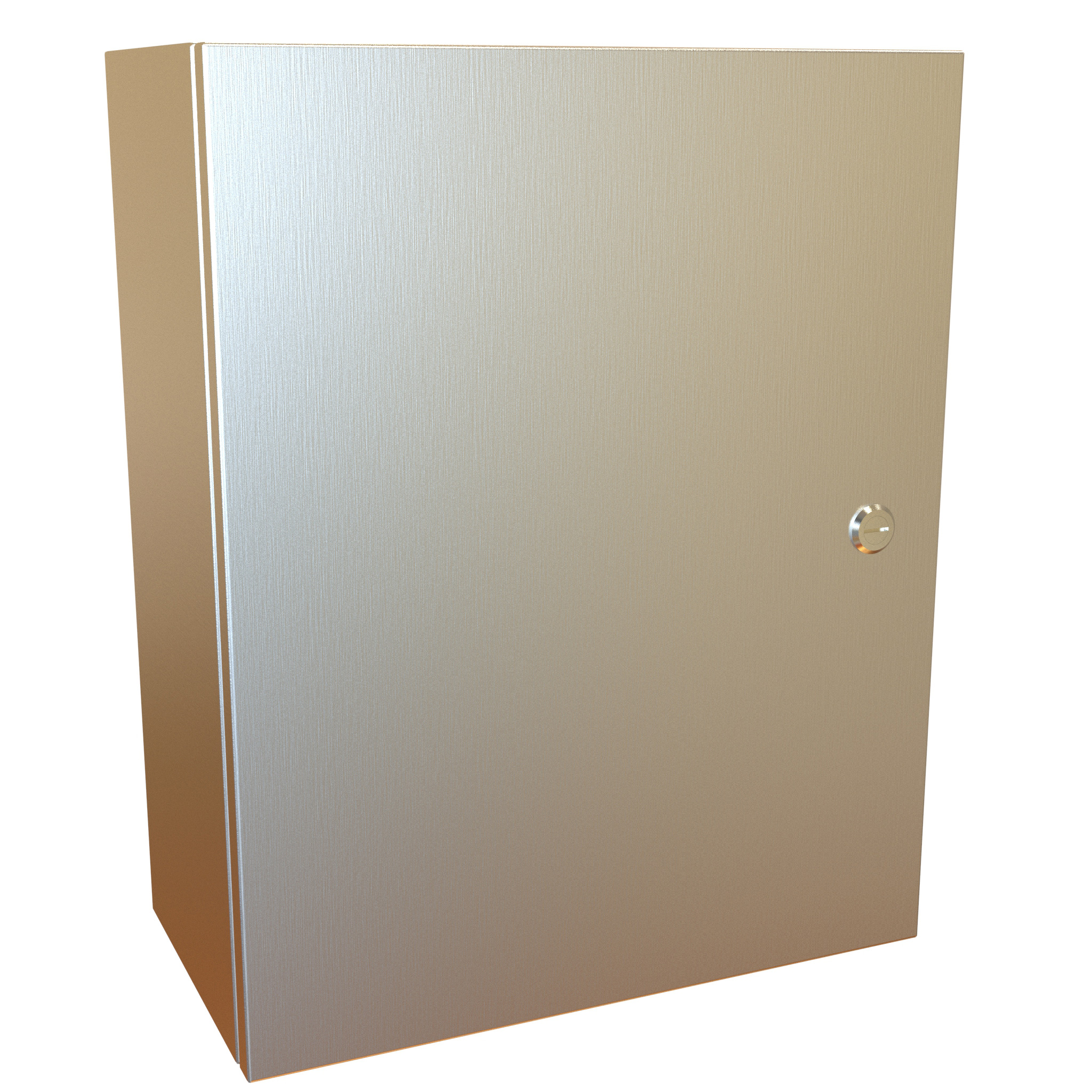

Eclipse SS 1 Dr. Wallmount
- Latch Type A
$803.17In stock
Buy now
TYPE4X 316SS 20X20X10NO Panel
- Latch Type A
$1,354.20In stock
Buy now
Type 4X 304SS 20X20X10NO Panel
- Latch Type A
$961.22In stock
Buy now
TYPE4X 316SS 20X20X12NO Panel
- Latch Type A
$1,495.59In stock
Buy now
Type 4X 304SS 20X20X12NO Panel
- Latch Type A
$1,011.22In stock
Buy now

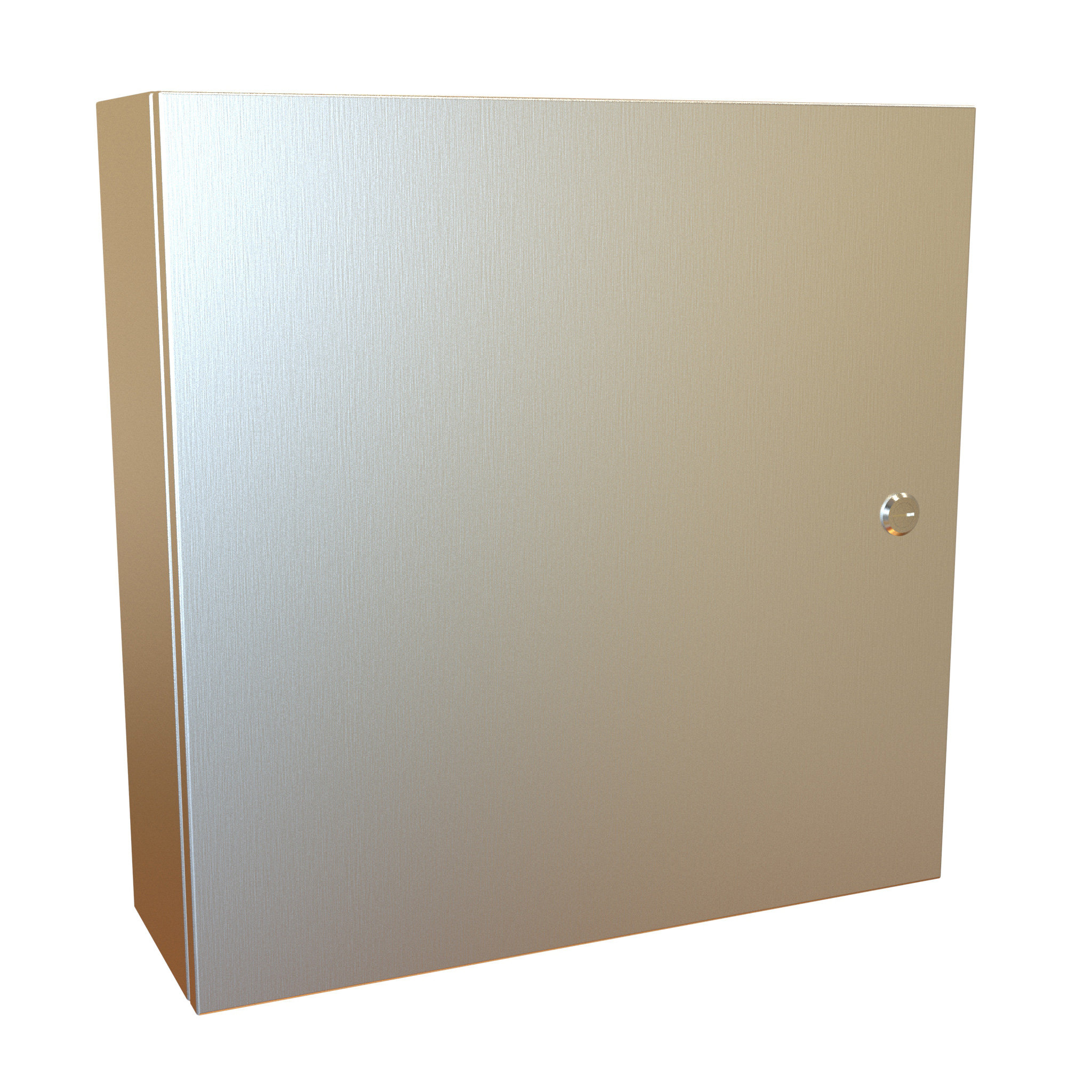

20X20X6 316 SS Wallmount
- Latch Type A
$1,011.22Backorder
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$851.02In stock
Buy now

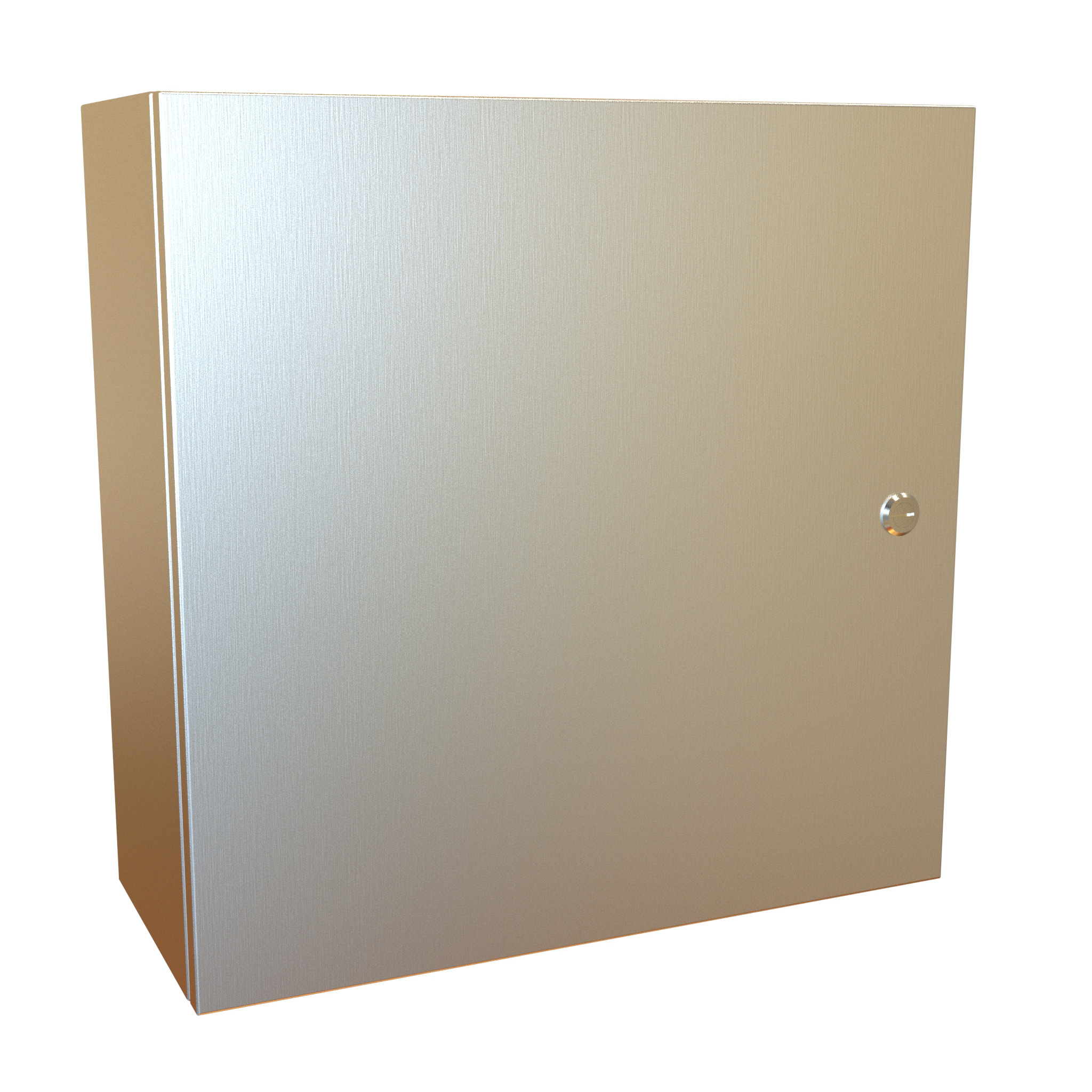

20X20X8 316 SS Wallmount
- Latch Type A
$1,264.97In stock
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$886.49In stock
Buy now
TYPE4X 316SS 20X24X10NO Panel
- Latch Type A
$1,447.74In stock
Buy now
Type 4X 304SS 20X24X10NO Panel
- Latch Type A
$1,032.19In stock
Buy now
Type 4X 304SS 20X24X8 No Panel
- Latch Type A
$970.37In stock
Buy now
TYPE4X 316SS 24X16X10NO Panel
- Latch Type A
$1,334.31In stock
Buy now
Type 4X 304SS 24X16X10NO Panel
- Latch Type A
$949.93In stock
Buy now

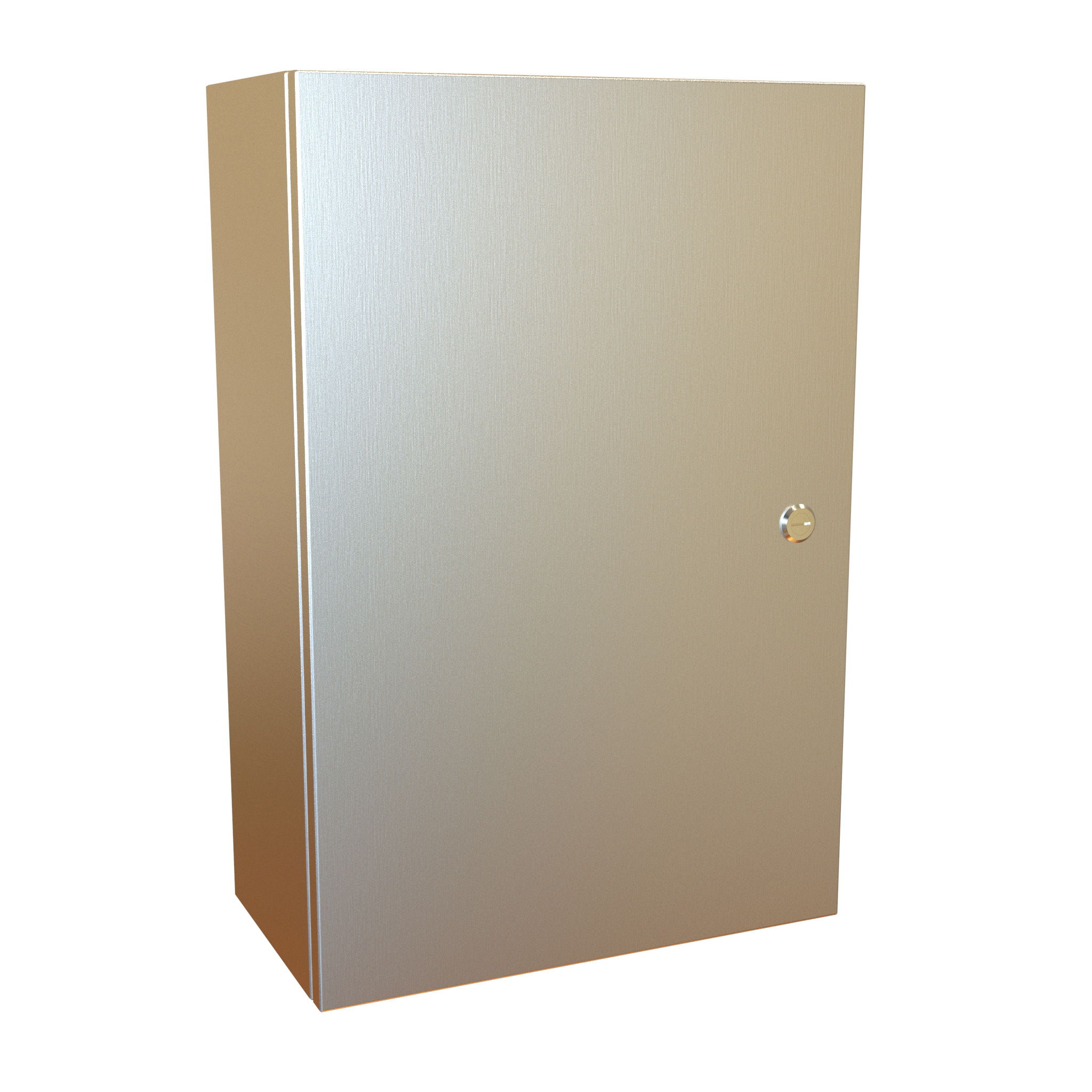

24X16X8 316 SS Wallmount
- Latch Type A
$1,226.26In stock
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$876.28In stock
Buy now
TYPE4X 316SS 24X20X10NO Panel
- Latch Type A
$1,454.74Backorder
Buy now
Type 4X 304SS 24X20X10 No Pane
- Latch Type A
$1,035.41In stock
Buy now
Type 4X 304SS 24X20X6 No Panel
- Latch Type A
$904.23In stock
Buy now
24X20X8 316 SS Wallmount
- Latch Type A
$1,313.88In stock
Buy now
Eclipse SS 1 Dr. Wallmount
- Latch Type A
$970.37Backorder
Buy now
TYPE4X 316SS 24X24X10NO Panel
- Latch Type A
$1,570.86In stock
Buy now
Type 4X 304SS 24X24X10NO Panel
- Latch Type A
$1,116.59In stock
Buy now
TYPE4X 316SS 24X24X12NO Panel
- Latch Type A
$1,741.28In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Latch Type | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| EN4SD12126SS | EN4SD12126S16 | 12.00 | 12.00 | 6.00 | A | EP1212 | 10.20 | 10.20 | $559.64BackorderEN4SD12126SS | Buy now |
| EN4SD16126SS | EN4SD16126S16 | 16.00 | 12.00 | 6.00 | A | EP1612 | 14.20 | 10.20 | $614.47In stockEN4SD16126SS | Buy now |

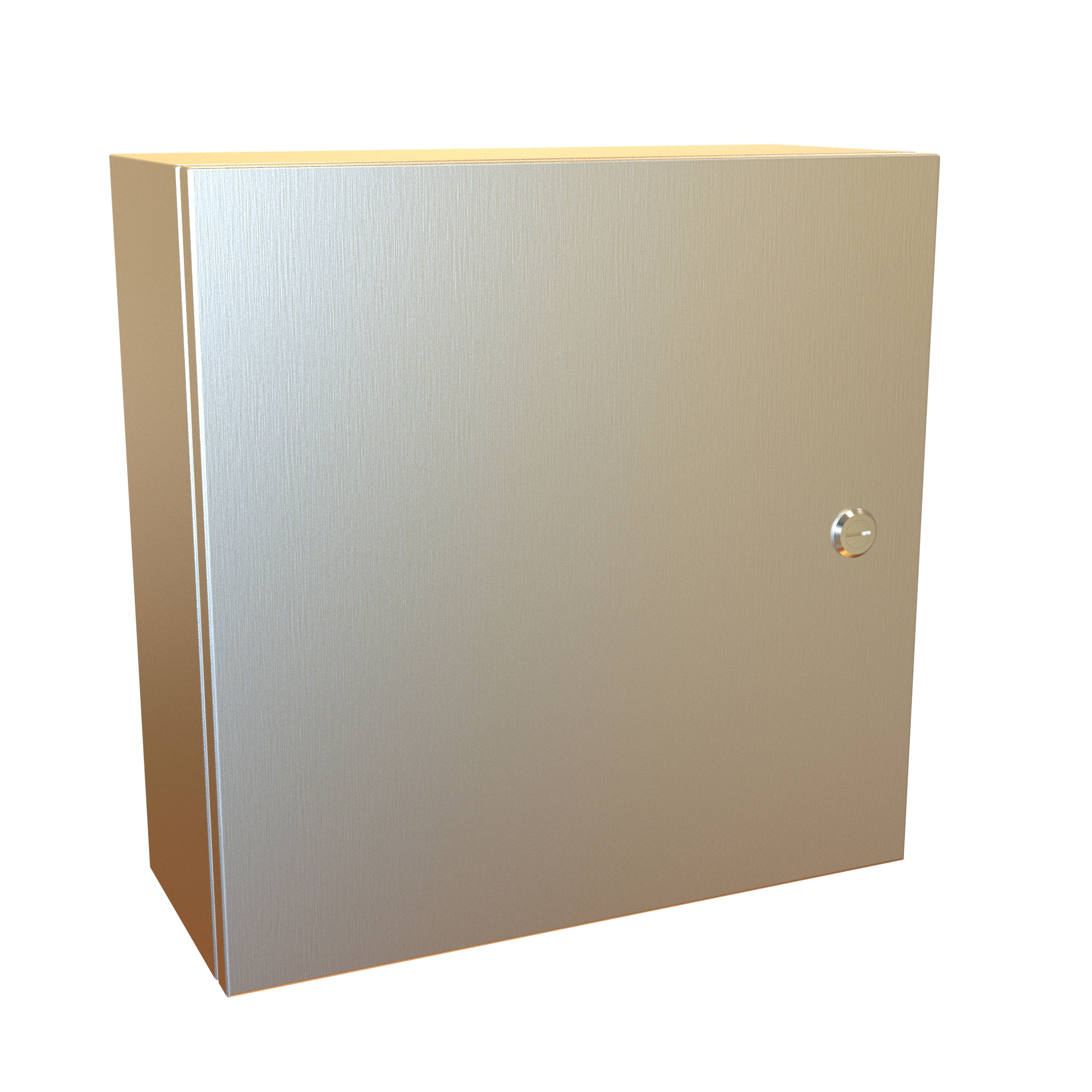

| EN4SD16166SS | EN4SD16166S16 | 16.00 | 16.00 | 6.00 | A | EP1616 | 14.20 | 14.20 | $682.21In stockEN4SD16166SS | Buy now |
| EN4SD16206SS | - | 16.00 | 20.00 | 6.00 | A | EP1620 | 14.20 | 18.20 | $768.23In stockEN4SD16206SS | Buy now |
| EN4SD20166SS | EN4SD20166S16 | 20.00 | 16.00 | 6.00 | A | EP2016 | 18.20 | 14.20 | $768.23BackorderEN4SD20166SS | Buy now |
| EN4SD20206SS | EN4SD20206S16 | 20.00 | 20.00 | 6.00 | A | EP2020 | 18.20 | 18.20 | $851.02In stockEN4SD20206SS | Buy now |
| EN4SD24206SS | - | 24.00 | 20.00 | 6.00 | A | EP2420 | 22.20 | 18.20 | $904.23In stock | Buy now |
| EN4SD16128SS | EN4SD16128S16 | 16.00 | 12.00 | 8.00 | A | EP1612 | 14.20 | 10.20 | $647.26BackorderEN4SD16128SS | Buy now |
| EN4SD16168SS | EN4SD16168S16 | 16.00 | 16.00 | 8.00 | A | EP1616 | 14.20 | 14.20 | $738.66In stockEN4SD16168SS | Buy now |
| EN4SD16208SS | EN4SD16208S16 | 16.00 | 20.00 | 8.00 | A | EP1620 | 14.20 | 18.20 | $824.67BackorderEN4SD16208SS | Buy now |
| EN4SD20168SS | EN4SD20168S16 | 20.00 | 16.00 | 8.00 | A | EP2016 | 18.20 | 14.20 | $803.17In stockEN4SD20168SS | Buy now |
| EN4SD20208SS | EN4SD20208S16 | 20.00 | 20.00 | 8.00 | A | EP2020 | 18.20 | 18.20 | $886.49In stockEN4SD20208SS | Buy now |
| EN4SD20248SS | - | 20.00 | 24.00 | 8.00 | A | EP2024 | 18.20 | 22.20 | $970.37In stockEN4SD20248SS | Buy now |
| EN4SD24168SS | EN4SD24168S16 | 24.00 | 16.00 | 8.00 | A | EP2416 | 22.20 | 14.20 | $876.28In stockEN4SD24168SS | Buy now |

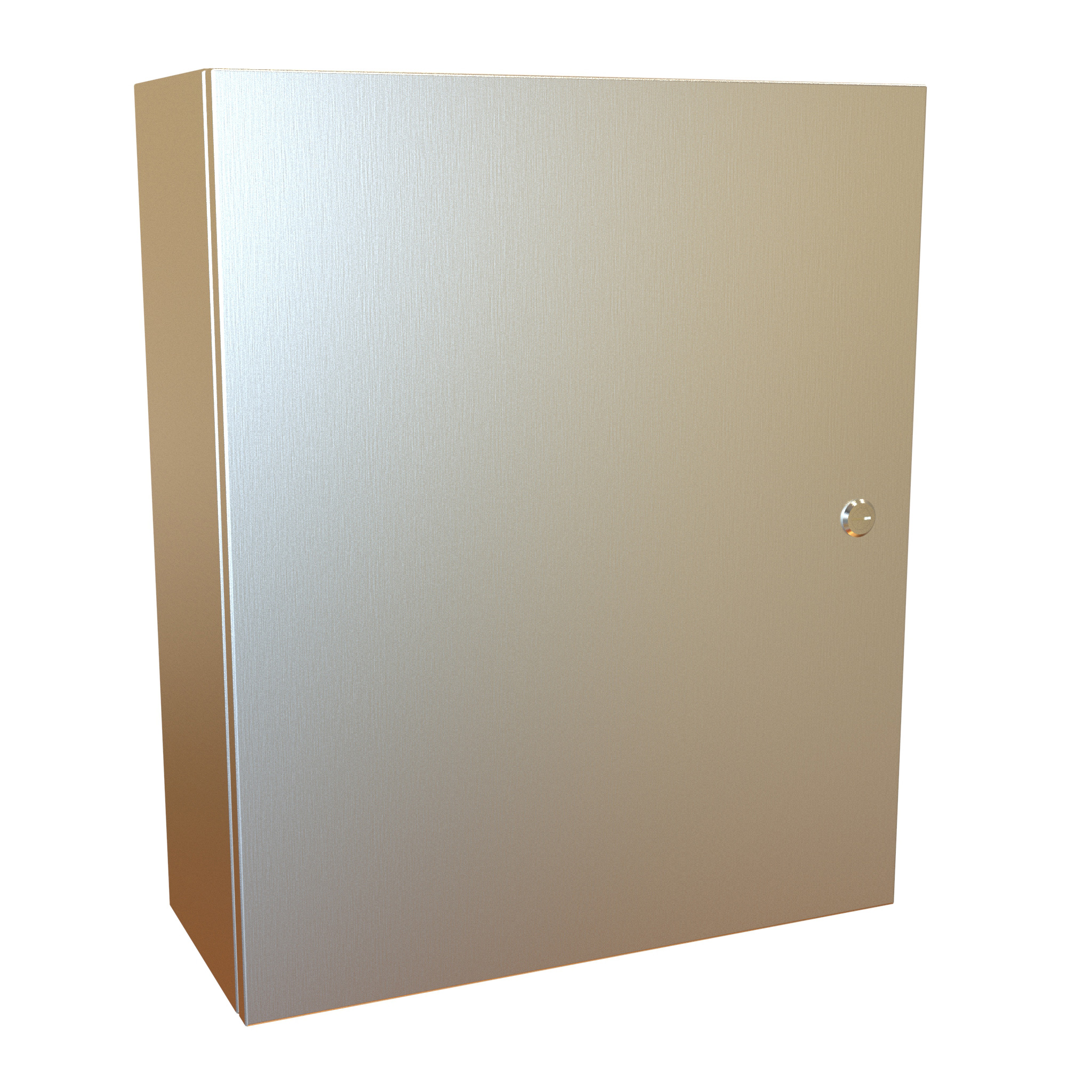

| EN4SD24208SS | EN4SD24208S16 | 24.00 | 20.00 | 8.00 | A | EP2420 | 22.20 | 18.20 | $970.37BackorderEN4SD24208SS | Buy now |
| EN4SD24248SS | EN4SD24248S16 | 24.00 | 24.00 | 8.00 | A | EP2424 | 22.20 | 22.20 | $1,067.67In stockEN4SD24248SS | Buy now |
| EN4SD24308SS | EN4SD24308S16 | 24.00 | 30.00 | 8.00 | A | EP2430 | 22.20 | 28.20 | $1,213.89In stockEN4SD24308SS | Buy now |
| EN4SD30208SS | - | 30.00 | 20.00 | 8.00 | A | EP3020 | 28.20 | 18.20 | $1,097.77In stockEN4SD30208SS | Buy now |
| EN4SD30248SS | EN4SD30248S16 | 30.00 | 24.00 | 8.00 | A | EP3024 | 28.20 | 22.20 | $1,214.43In stockEN4SD30248SS | Buy now |
| EN4SD30308SS | EN4SD30308S16 | 30.00 | 30.00 | 8.00 | A | EP3030 | 28.20 | 28.20 | $1,382.70In stockEN4SD30308SS | Buy now |
| EN4SD36248SS | EN4SD36248S16 | 36.00 | 24.00 | 8.00 | A | EP3624 | 34.20 | 22.20 | $1,396.67BackorderEN4SD36248SS | Buy now |
| EN4SD36308SS | EN4SD36308S16 | 36.00 | 30.00 | 8.00 | A | EP3630 | 34.20 | 28.20 | $1,600.42In stockEN4SD36308SS | Buy now |
| EN4SD42368SSR | - | 42.00 | 36.00 | 8.00 | A | EP4236 | 40.20 | 34.20 | $1,991.79In stock | Buy now |
| EN4SD48368SSR | - | 48.00 | 36.00 | 8.00 | A | EP4836 | 46.20 | 34.20 | $2,198.23In stock | Buy now |
| EN4SD161210SS | EN4SD161210S16 | 16.00 | 12.00 | 10.00 | A | EP1612 | 14.20 | 10.20 | $768.76BackorderEN4SD161210SS | Buy now |
Application
- ■Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
- ■Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
- ■A wide range of sizes and practical accessories make this product line a complete package.
Standards
- ■UL 508A Type 3R, 4, 4X and 12
- ■CSA Type 3R, 4, 4X and 12 Mounting foot kit required to maintain UL/CSA external mounting requirements. Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
- ■Mounting foot kit required to maintain UL/CSA external mounting requirements.
- ■Sizes >24" (600mm) wide require inner panel to maintain UL/CSA.
- ■Complies with NEMA 3R, 4, 4X, 12 and 13 IEC 60529, IP 66
- ■NEMA 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP 66
Construction
- ■Formed 14 (24x24" and larger) or 16 (24x20" and smaller) gauge stainless steel.
- ■Continuously welded seams ground smooth.
- ■Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space. Inventory will take some time to be converted to the new design. Note: If desired, the C channel door brackets can be added as a special order modification.
- ■Please note that several smaller sizes of this series will no longer feature C channel stiffener/door brackets – see drawing for details. Removing this feature allows for more usable door space.
- ■Inventory will take some time to be converted to the new design.
- ■Note: If desired, the C channel door brackets can be added as a special order modification.
- ■Formed lip on enclosure to exclude flowing liquids and contaminants.
- ■Door latching: Type A has stainless steel slotted quarter turns, Type B has stainless steel handle with 3 point latching.
- ■Doors may be easily removed for modifications and are interchangeable.
- ■Seamless poured-in place gasket.
- ■Collar studs provided for mounting inner panel.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- ■Bonding stud provided on door and grounding stud installed in enclosure.
- ■Stainless steel hinge pins and quarter turns.
- ■Door alignment guide provided on 36" wide enclosures.
- ■Door swing can be reversed - requires ordering adapter kit EHLLSAK
Finish
- ■Cover and enclosure are natural stainless steel with a smooth brushed finish.
Documents
Additional information
Part Details
| 304 S.S. · Part No. | 316 S.S. · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Latch Type | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|---|---|
| EN4SD12126SS | EN4SD12126S16 | 12.00 | 12.00 | 6.00 | A | EP1212 | 10.20 | 10.20 |
| EN4SD16126SS | EN4SD16126S16 | 16.00 | 12.00 | 6.00 | A | EP1612 | 14.20 | 10.20 |
| EN4SD16166SS | EN4SD16166S16 | 16.00 | 16.00 | 6.00 | A | EP1616 | 14.20 | 14.20 |
| EN4SD16206SS | - | 16.00 | 20.00 | 6.00 | A | EP1620 | 14.20 | 18.20 |
| EN4SD20166SS | EN4SD20166S16 | 20.00 | 16.00 | 6.00 | A | EP2016 | 18.20 | 14.20 |
| EN4SD20206SS | EN4SD20206S16 | 20.00 | 20.00 | 6.00 | A | EP2020 | 18.20 | 18.20 |
| EN4SD24206SS | - | 24.00 | 20.00 | 6.00 | A | EP2420 | 22.20 | 18.20 |
| EN4SD16128SS | EN4SD16128S16 | 16.00 | 12.00 | 8.00 | A | EP1612 | 14.20 | 10.20 |
| EN4SD16168SS | EN4SD16168S16 | 16.00 | 16.00 | 8.00 | A | EP1616 | 14.20 | 14.20 |
| EN4SD16208SS | EN4SD16208S16 | 16.00 | 20.00 | 8.00 | A | EP1620 | 14.20 | 18.20 |
| EN4SD20168SS | EN4SD20168S16 | 20.00 | 16.00 | 8.00 | A | EP2016 | 18.20 | 14.20 |
| EN4SD20208SS | EN4SD20208S16 | 20.00 | 20.00 | 8.00 | A | EP2020 | 18.20 | 18.20 |
| EN4SD20248SS | - | 20.00 | 24.00 | 8.00 | A | EP2024 | 18.20 | 22.20 |
| EN4SD24168SS | EN4SD24168S16 | 24.00 | 16.00 | 8.00 | A | EP2416 | 22.20 | 14.20 |
| EN4SD24208SS | EN4SD24208S16 | 24.00 | 20.00 | 8.00 | A | EP2420 | 22.20 | 18.20 |
| EN4SD24248SS | EN4SD24248S16 | 24.00 | 24.00 | 8.00 | A | EP2424 | 22.20 | 22.20 |
| EN4SD24308SS | EN4SD24308S16 | 24.00 | 30.00 | 8.00 | A | EP2430 | 22.20 | 28.20 |
| EN4SD30208SS | - | 30.00 | 20.00 | 8.00 | A | EP3020 | 28.20 | 18.20 |
| EN4SD30248SS | EN4SD30248S16 | 30.00 | 24.00 | 8.00 | A | EP3024 | 28.20 | 22.20 |
| EN4SD30308SS | EN4SD30308S16 | 30.00 | 30.00 | 8.00 | A | EP3030 | 28.20 | 28.20 |
| EN4SD36248SS | EN4SD36248S16 | 36.00 | 24.00 | 8.00 | A | EP3624 | 34.20 | 22.20 |
| EN4SD36308SS | EN4SD36308S16 | 36.00 | 30.00 | 8.00 | A | EP3630 | 34.20 | 28.20 |
| EN4SD42368SSR | - | 42.00 | 36.00 | 8.00 | A | EP4236 | 40.20 | 34.20 |
| EN4SD48368SSR | - | 48.00 | 36.00 | 8.00 | A | EP4836 | 46.20 | 34.20 |
| EN4SD161210SS | EN4SD161210S16 | 16.00 | 12.00 | 10.00 | A | EP1612 | 14.20 | 10.20 |
| EN4SD161610SS | EN4SD161610S16 | 16.00 | 16.00 | 10.00 | A | EP1616 | 14.20 | 14.20 |

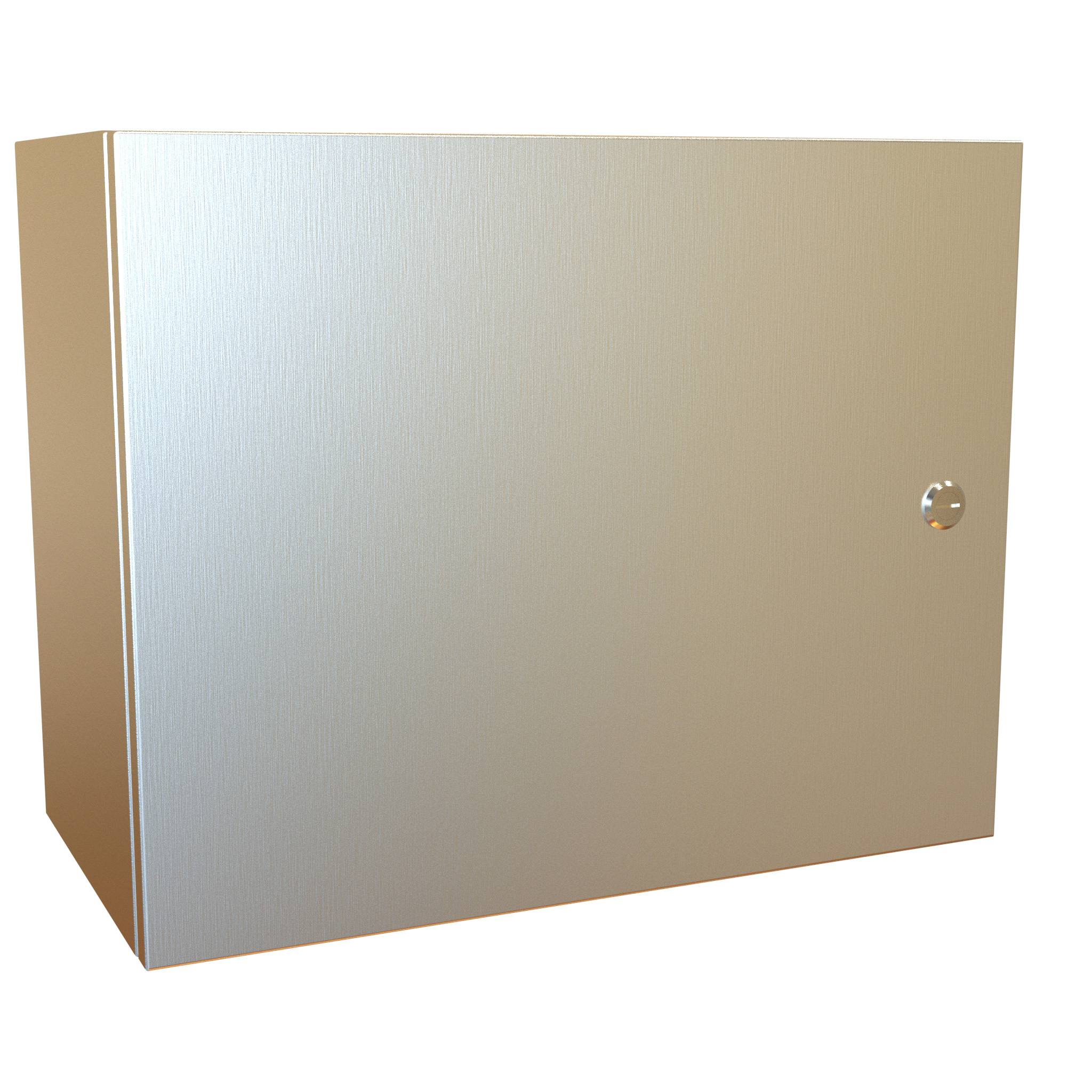

| EN4SD162010SS | EN4SD162010S16 | 16.00 | 20.00 | 10.00 | A | EP1620 | 14.20 | 18.20 |
| EN4SD201610SS | EN4SD201610S16 | 20.00 | 16.00 | 10.00 | A | EP2016 | 18.20 | 14.20 |

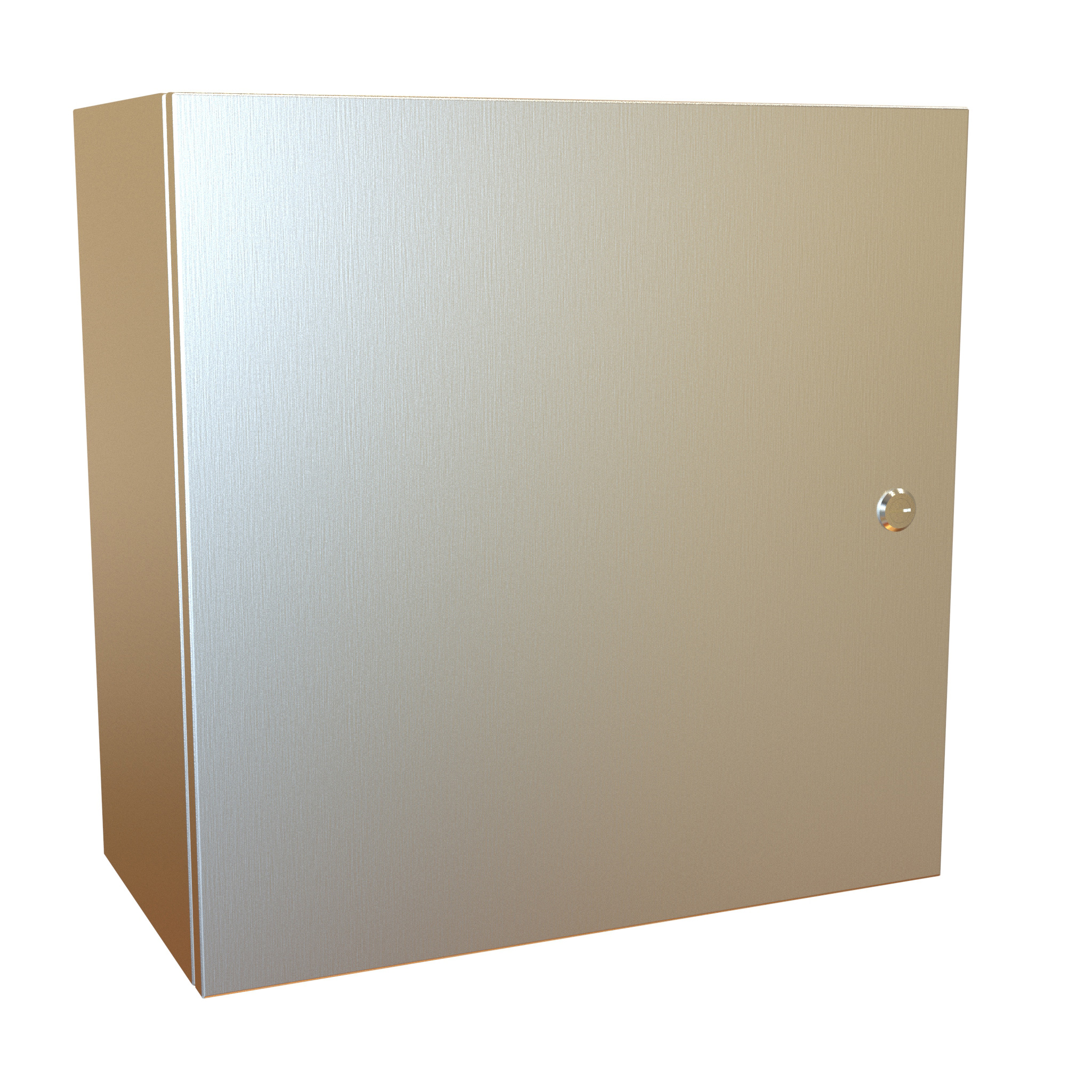

| EN4SD202010SS | EN4SD202010S16 | 20.00 | 20.00 | 10.00 | A | EP2020 | 18.20 | 18.20 |

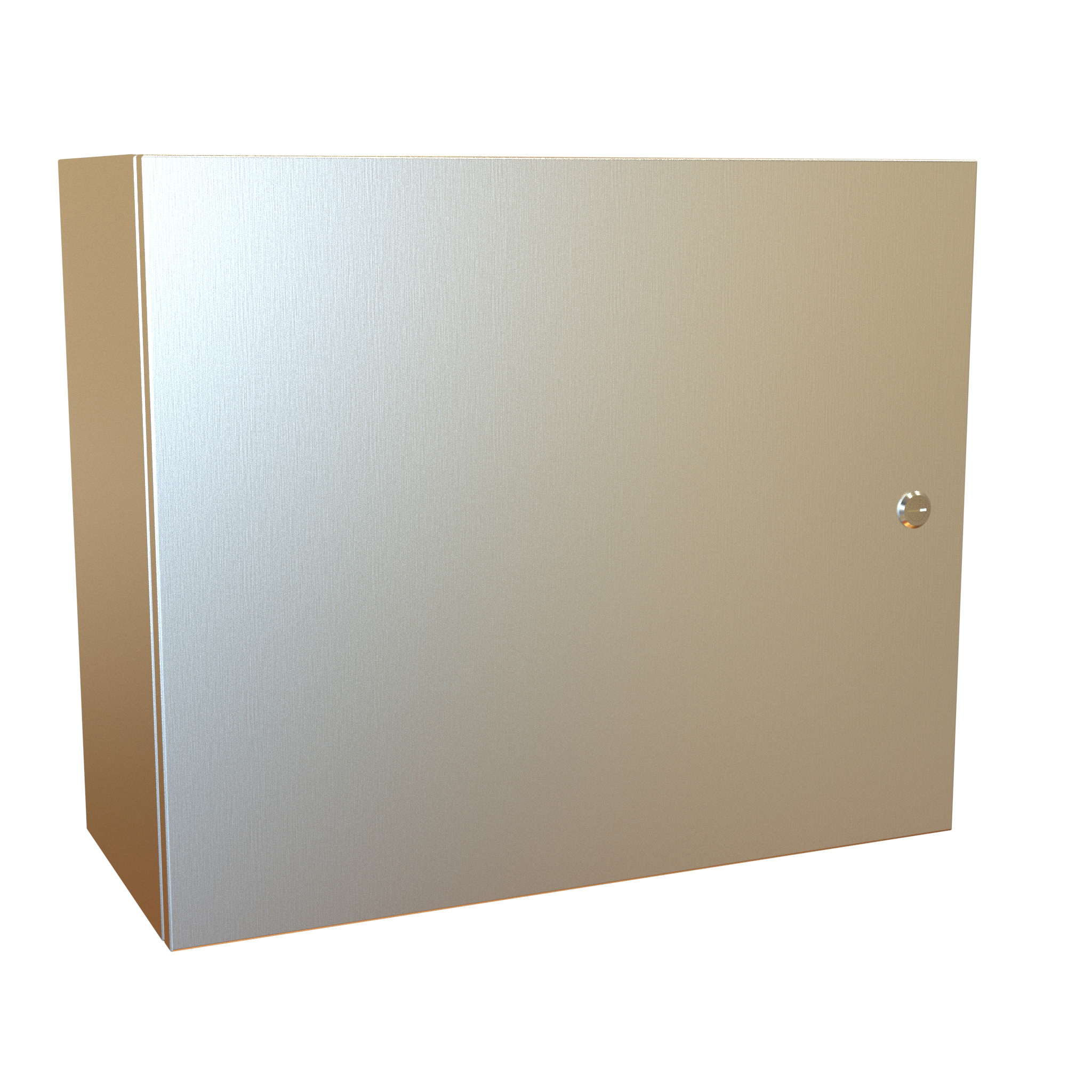

| EN4SD202410SS | EN4SD202410S16 | 20.00 | 24.00 | 10.00 | A | EP2024 | 18.20 | 22.20 |

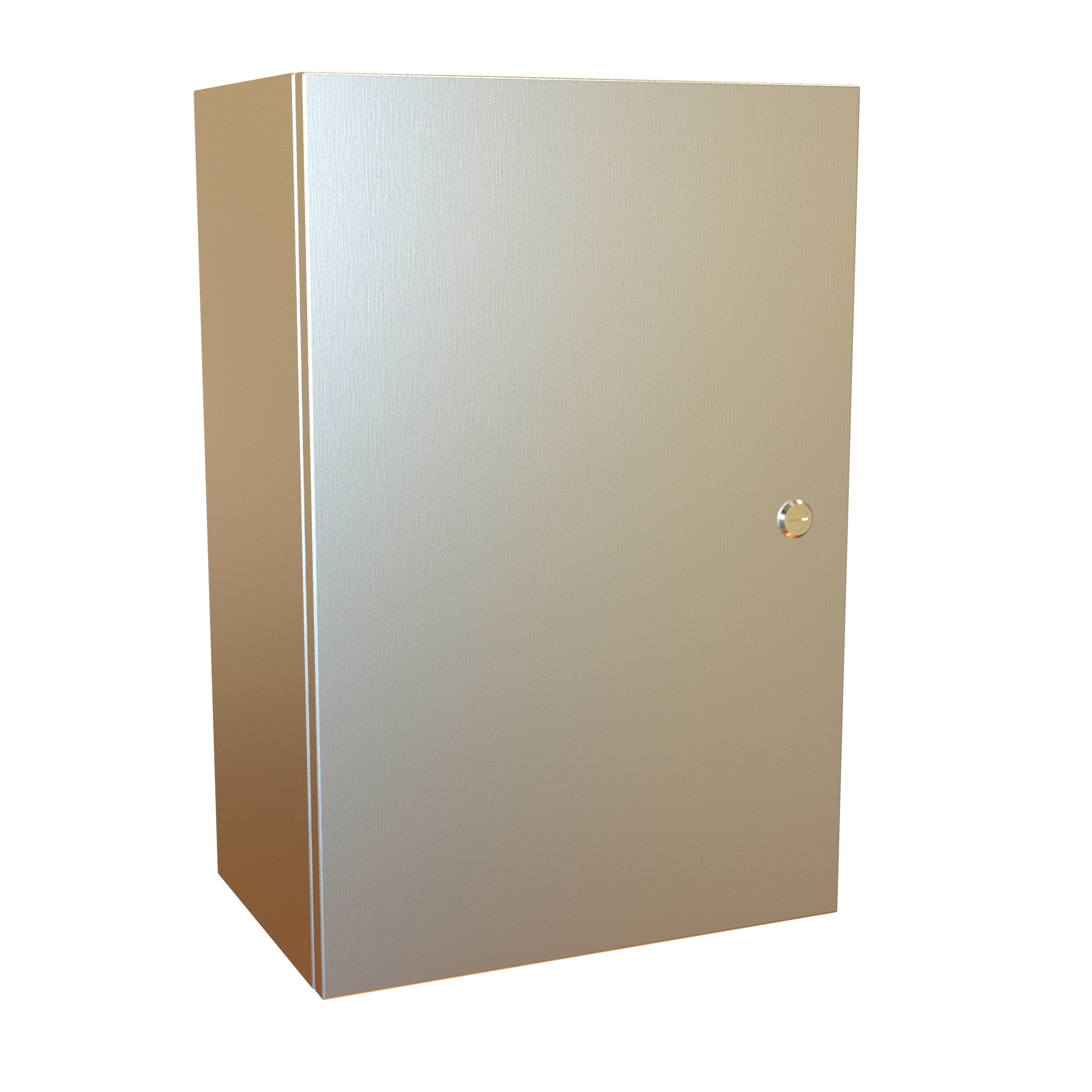

| EN4SD241610SS | EN4SD241610S16 | 24.00 | 16.00 | 10.00 | A | EP2416 | 22.20 | 14.20 |
| EN4SD242010SS | EN4SD242010S16 | 24.00 | 20.00 | 10.00 | A | EP2420 | 22.20 | 18.20 |

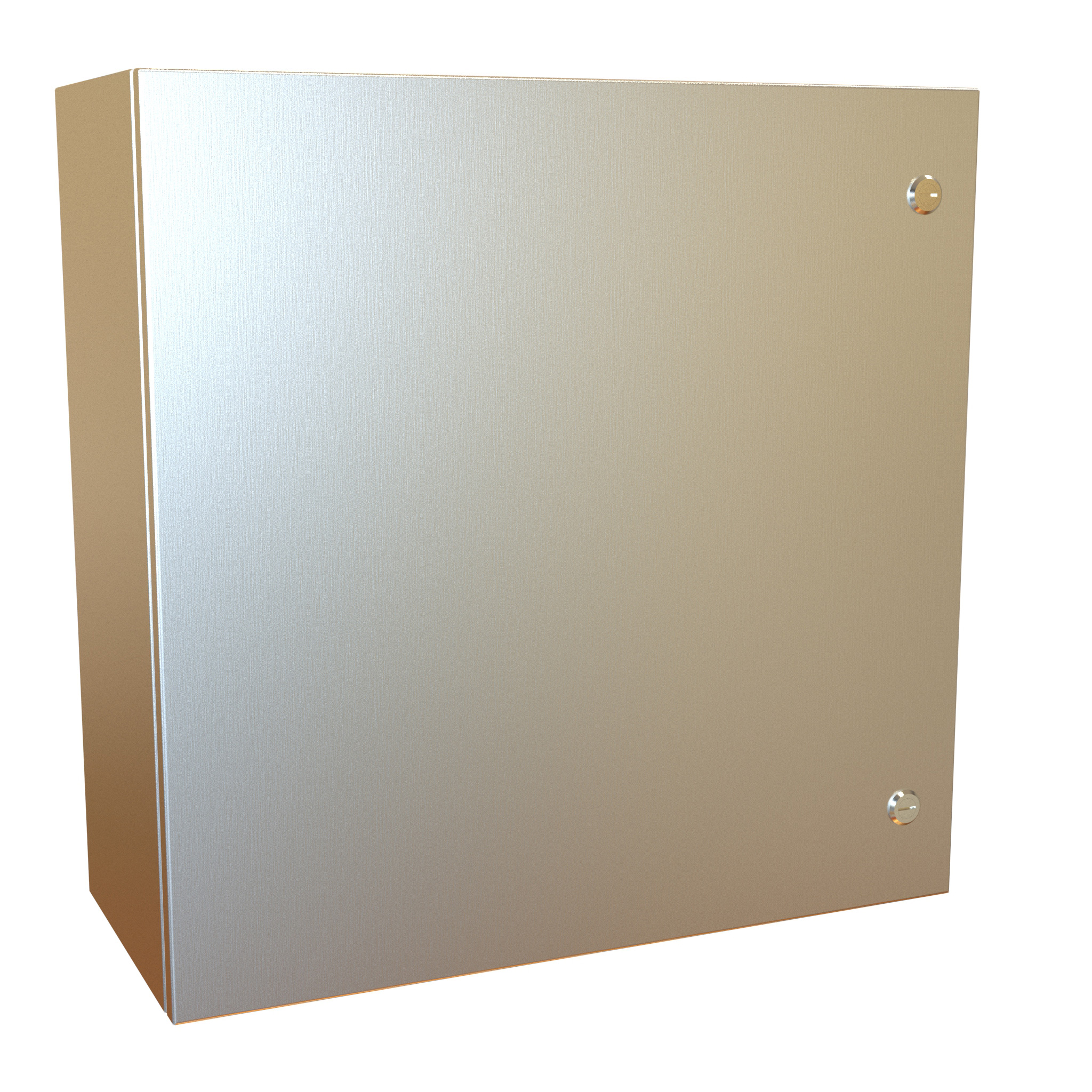

| EN4SD242410SS | EN4SD242410S16 | 24.00 | 24.00 | 10.00 | A | EP2424 | 22.20 | 22.20 |
| EN4SD243010SS | EN4SD243010S16 | 24.00 | 30.00 | 10.00 | A | EP2430 | 22.20 | 28.20 |
| EN4SD302010SS | EN4SD302010S16 | 30.00 | 20.00 | 10.00 | A | EP3020 | 28.20 | 18.20 |
| EN4SD302410SS | EN4SD302410S16 | 30.00 | 24.00 | 10.00 | A | EP3024 | 28.20 | 22.20 |
| EN4SD303010SS | EN4SD303010S16 | 30.00 | 30.00 | 10.00 | A | EP3030 | 28.20 | 28.20 |
| EN4SD362410SS | EN4SD362410S16 | 36.00 | 24.00 | 10.00 | A | EP3624 | 34.20 | 22.20 |
| EN4SD363010SS | EN4SD363010S16 | 36.00 | 30.00 | 10.00 | A | EP3630 | 34.20 | 28.20 |
| EN4SD363610SSR | EN4SD363610S16R | 36.00 | 36.00 | 10.00 | A | EP3636 | 34.20 | 34.20 |
| EN4SD423010SSR | - | 42.00 | 30.00 | 10.00 | A | EP4230 | 40.20 | 28.20 |
| EN4SD423610SSR | EN4SD423610S16R | 42.00 | 36.00 | 10.00 | A | EP4236 | 40.20 | 34.20 |
| EN4SD482410SS | EN4SD482410S16 | 48.00 | 24.00 | 10.00 | B | EP4824 | 46.20 | 26.20 |
| EN4SD483610SSR | EN4SD483610S16R | 48.00 | 36.00 | 10.00 | A | EP4836 | 46.20 | 34.20 |
| EN4SD603610SSR | EN4SD603610S16R | 60.00 | 36.00 | 10.00 | A | EP6036 | 58.20 | 34.20 |
| EN4SD202012SS | EN4SD202012S16 | 20.00 | 20.00 | 12.00 | A | EP2020 | 18.20 | 18.20 |

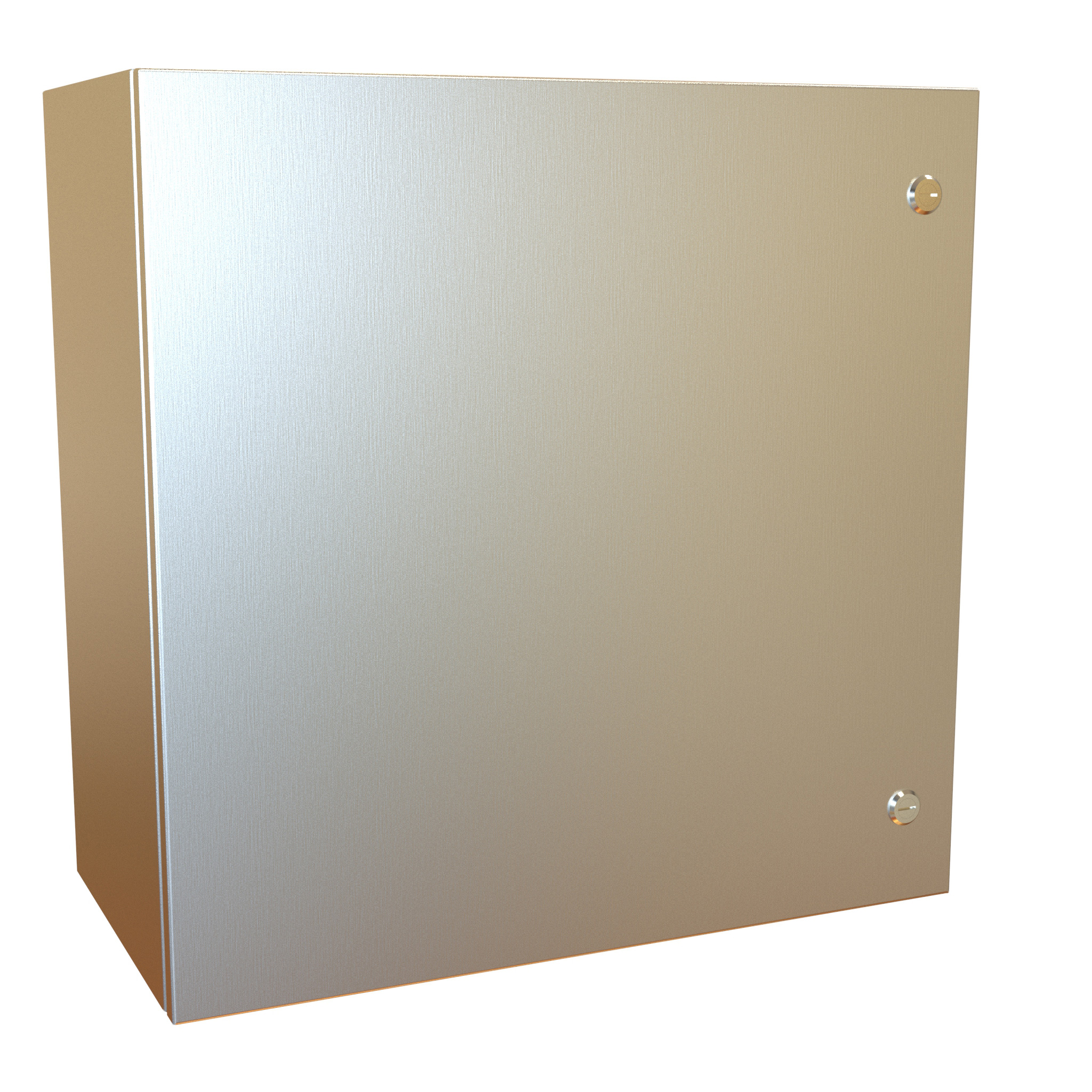

| EN4SD242412SS | EN4SD242412S16 | 24.00 | 24.00 | 12.00 | A | EP2424 | 22.20 | 22.20 |
| EN4SD302412SS | EN4SD302412S16 | 30.00 | 24.00 | 12.00 | A | EP3024 | 28.20 | 22.20 |
| EN4SD303012SS | EN4SD303012S16 | 30.00 | 30.00 | 12.00 | A | EP3030 | 28.20 | 28.20 |
| EN4SD362412SS | EN4SD362412S16 | 36.00 | 24.00 | 12.00 | A | EP3624 | 34.20 | 22.20 |
| EN4SD363012SS | EN4SD363012S16 | 36.00 | 30.00 | 12.00 | A | EP3630 | 34.20 | 28.20 |
| EN4SD363612SSR | EN4SD363612S16R | 36.00 | 36.00 | 12.00 | A | EP3636 | 34.20 | 34.20 |
| EN4SD423612SSR | EN4SD423612S16R | 42.00 | 36.00 | 12.00 | A | EP4236 | 40.20 | 34.20 |
| EN4SD483612SSR | EN4SD483612S16R | 48.00 | 36.00 | 12.00 | A | EP4836 | 46.20 | 34.20 |
| EN4SD603612SSR | EN4SD603612S16R | 60.00 | 36.00 | 12.00 | A | EP6036 | 58.20 | 34.20 |
| EN4SD723612SSR | EN4SD723612S16R | 72.00 | 36.00 | 12.00 | A | EP7236 | 70.20 | 34.20 |
| EN4SD302416SS | - | 30.00 | 24.00 | 16.00 | A | EP3024 | 28.20 | 22.20 |
| EN4SD363016SS | - | 36.00 | 30.00 | 16.00 | A | EP3630 | 34.20 | 28.20 |
| EN4SD483616SSR | EN4SD483616S16R | 48.00 | 36.00 | 16.00 | A | EP4836 | 46.20 | 34.20 |
Any questions? Talk with an expert
Call us (224) 955-1644Accessories for this series
Inner Panels · EP Series
from $11.37
Shop parts
Eclipse Swing Panel · ESP Series
from $123.72
Shop parts
Swing Out Rack Frame for Eclipse Enclosures · ESF Series
from $247.42
Shop parts
Eclipse DIN Rail Mounting Kit · DRMK Series
from $76.31
Shop parts
Eclipse DIN Rails · DR Series
from $87.87
Shop parts
Door Stop Kit
from $107.66
Shop parts
Eclipse Mounting Foot Kit · EMF Series
from $15.38
Shop parts
Eclipse Rear Mounting Hole Plugs
from $8.49
Shop partsRelated products
Type 4X Stainless Steel Junction Box · C4XSC Series
from $115.79
Shop parts
Type 4X Stainless Steel Junction Box · Eclipse Junior Series
from $195.73
Shop parts
Type 4X Stainless Steel Junction Box · 1414 N4 PH SS Series
from $202.95
Shop parts
Type 4X Stainless Steel Junction Box · 1414 N4 SS Series
from $136.02
Shop parts
Hygienic Type 4X Stainless Steel Junction Box · HYJ Series
from $4.35
Shop parts
Type 4X Stainless Steel Wallmount Enclosure w/ Window · Eclipse Series
from $14.98
Shop parts
Type 4X Stainless Steel Wallmount Enclosure · 1418 N4 SS Series
from $719.95
Shop parts
Type 4X Stainless Steel Wallmount Enclosure · HWSSHK Series
from $47.82
Shop parts
