Hammond EN4SD202010SS 20x20x10 in 304 Stainless NEMA 4X Wall Enclosure

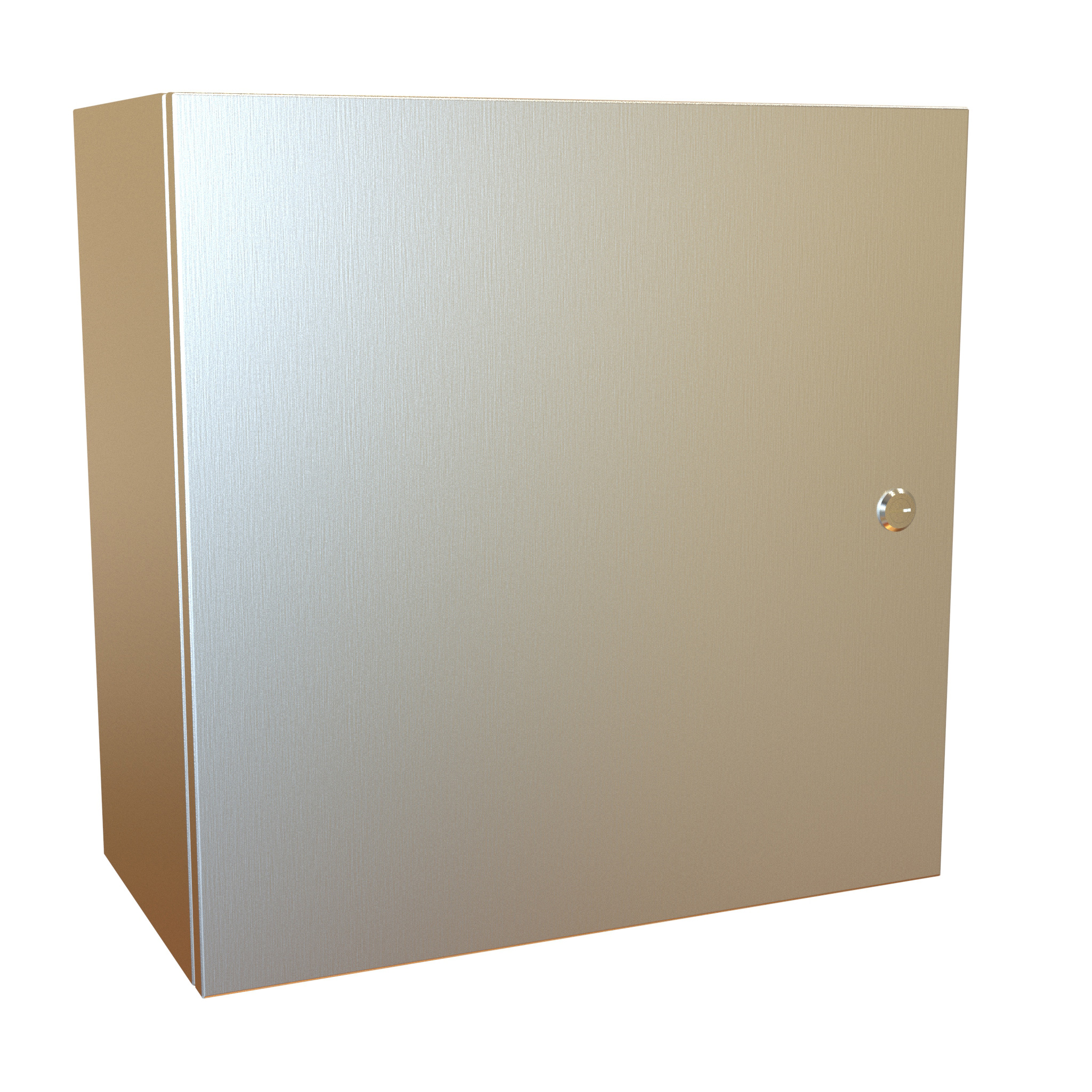

The EN4SD202010SS is a 304 stainless steel Eclipse Series wallmount enclosure measuring 20 in high x 20 in wide x 10 in deep. It gives integrators and panel builders a square Type 4X enclosure to house electrical and electronic equipment and protect it from harsh, industrial environments.

The body is made from formed 16 gauge stainless steel with continuously welded seams ground smooth and a natural, smooth brushed finish. A formed lip keeps out flowing liquids and contaminants, and a seamless poured-in place gasket seals the single hinged door. Type A stainless steel slotted quarter turns secure it, and stainless steel hinge pins let the door be removed for modifications. Door swing can be reversed with adapter kit EHLLSAK.

The drawing lists the door opening at 18.52 in x 18.52 in, the door at 19.97 in x 19.97 in, clear space on the door at 18.00 in x 18.00 in, and inside depth at 10.71 in. Ø 0.50 in wall mounting holes are sealed with the included panel mounting nuts and sealing washers.

The enclosure ships without a panel; the optional EP2020 inner panel (18.20 in x 18.20 in) fits the collar studs. It is rated UL 508A and CSA Type 3R, 4, 4X and 12 and complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66; a mounting foot kit is required to maintain UL/CSA external mounting requirements. Shipping weight is 31 lbs (14.06 kg). Related parts: EN4SD202010S16 (316 stainless) and EN4SD202012SS (12 in deep).
