Hammond EN4SD36308SS 36x30x8 in 304 Stainless NEMA 4X Wallmount Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 36 x 30 x 8 in (914 x 762 x 203 mm) single-door enclosure, 304 stainless
- Rated UL 508A / CSA Type 3R, 4, 4X and 12 and IP 66
- 14 gauge formed stainless with continuously welded seams
- Door opening 28.49 x 34.49 in; door 29.97 x 35.97 in
- Inner panel EP3630 required for UL/CSA on sizes over 24 in wide
- Type A stainless slotted quarter turns; reversible swing via EHLLSAK
- Shipping weight 78 lbs (35.38 kg)

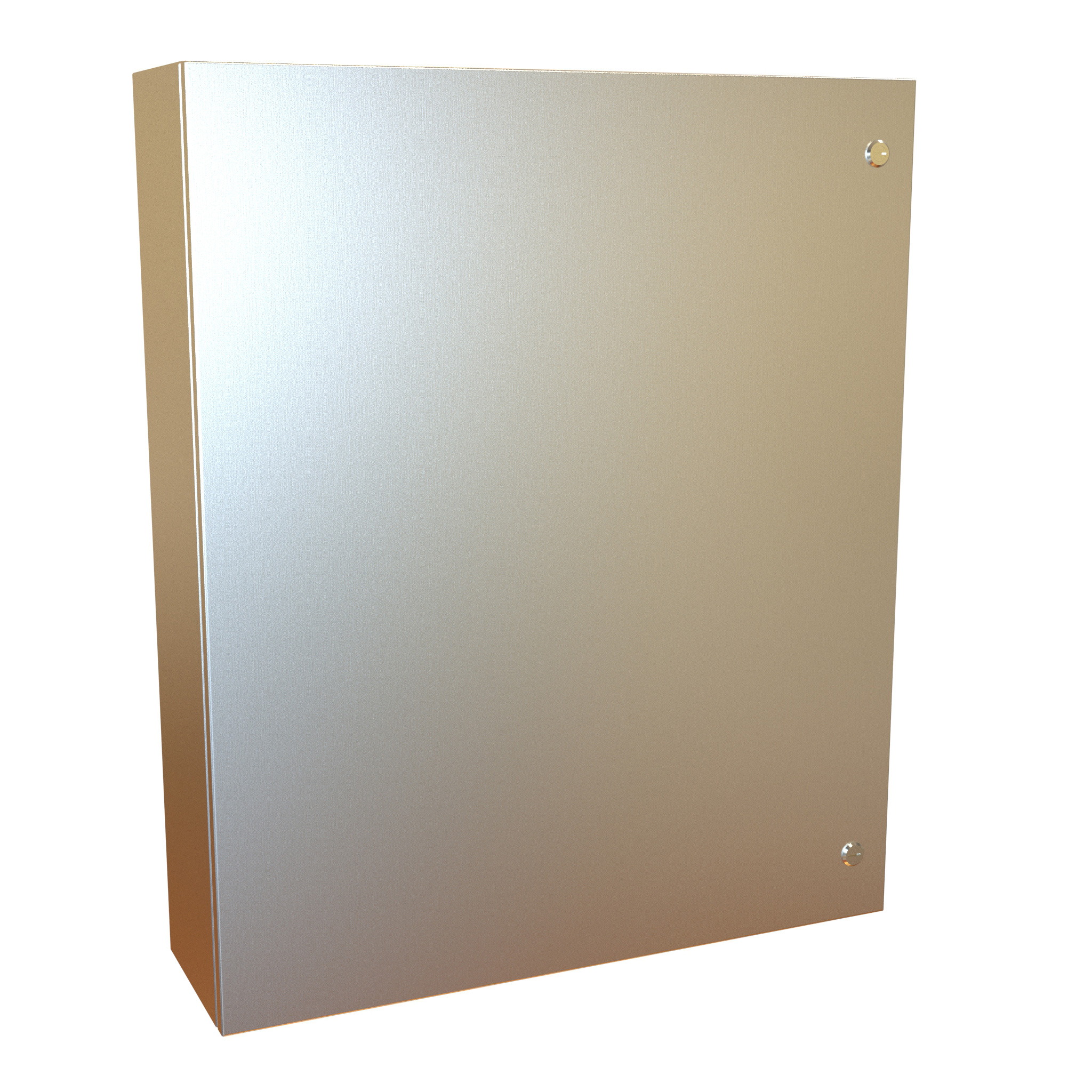

The EN4SD36308SS is one of the larger single-door Eclipse Series wallmount enclosures, measuring 36 in high x 30 in wide x 8 in deep in 304 stainless steel. It encloses electrical and electronic equipment on a wall and protects it against harsh, industrial environments.
Formed 14 gauge stainless steel with continuously welded seams ground smooth makes up the body, which has a formed lip to exclude flowing liquids and contaminants and a seamless poured-in place gasket. The door uses hidden hinges with stainless steel hinge pins and Type A stainless steel slotted quarter turns. Doors can be removed for modifications and are interchangeable; swing direction can be reversed by ordering adapter kit EHLLSAK. Cover and enclosure share a smooth brushed natural stainless finish.
Per the drawing, the door opening is 28.49 in x 34.49 in (W x H), the door is 29.97 in x 35.97 in, clear space on the door is 28.00 in x 34.00 in, and inside depth is 8.70 in. It mounts through Ø 0.50 in wall holes, sealed with the included panel mounting nuts and sealing washers.
- Optional EP3630 inner panel, 34.20 in (869 mm) x 28.20 in (716 mm), required to maintain UL/CSA on this 30 in wide size
- Mounting foot kit required to maintain UL/CSA external mounting requirements
- UL 508A and CSA Type 3R, 4, 4X and 12; NEMA 3R, 4, 4X, 12 and 13; IEC 60529 IP 66
Shipping weight is 78 lbs (35.38 kg). The 316 stainless version is EN4SD36308S16.
Ideal For
- Large wallmount enclosure for electrical and electronic equipment
- Harsh industrial environments needing Type 4X protection
- Wall-hung control panels built on the EP3630 inner panel
- High-tech equipment installations
Overview
| Series | Eclipse Series (EN4SD) |
| Door Style | Hinge Door with Quarter Turn/Handle |
| Latch Type | Type A — stainless steel slotted quarter turns |
| Inner Panel | Not included (sold separately as optional inner panel) |
| Part Number | EN4SD36308SS |
| Product Type | Type 4X Stainless Steel Wallmount Enclosure |
| Long Description | N4X Eclipse encl. - 36 x 30 x 8 - 304 SS |
| Short Description | ECLIPSE SS 1 DR. WALLMOUNT |
| Stainless Steel Grade | 304 stainless steel |
| Equivalent In 316 Stainless Steel | EN4SD36308S16 |
Dimensions
| Enclosure Depth | 8.00 in (203 mm) |
| Enclosure Width | 30.00 in (762 mm) |
| Enclosure Height | 36.00 in (914 mm) |
| Size (H X W X D) | 36 in x 30 in x 8 in (914 mm x 762 mm x 203 mm) |
| Inside Depth (Drawing) | 8.70 in |
| Door Size (W X H, Drawing) | 29.97 in x 35.97 in |
| Door Opening (W X H, Drawing) | 28.49 in x 34.49 in |
| Overall Depth (Drawing, Top View) | 8.87 in |
| Clear Space Available On Door (W X H, Drawing) | 28.00 in x 34.00 in |
Identifiers
| UPC | 623980363097 |
| UNSPSC | 39121324 |
| Drawing Date | May. 2, 2025 |
Wall Mounting
| Mounting Foot Kit | Required to maintain UL/CSA external mounting requirements (accessory) |
| Wall Mounting Hardware | Hardware kit with panel mounting nuts and sealing washers for wall mounting holes |
| Mounting Hole Diameter (Drawing) | Ø 0.50 in |
| Mounting Hole Spacing (W X H, Drawing Back View) | 28.50 in x 34.50 in |
Optional Inner Panel
| UL/CSA Note | Sizes >24" (600mm) wide require inner panel to maintain UL/CSA |
| Inner Panel Width | 28.20 in (716 mm) |
| Inner Panel Height | 34.20 in (869 mm) |
| Inner Panel Mounting | Collar studs provided for mounting inner panel |
| Inner Panel Part No. | EP3630 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 78 lbs (35.38 kg) |
Construction & Finish
| Door | Removable for modifications and interchangeable |
| Seams | Continuously welded seams ground smooth |
| Finish | Natural stainless steel with a smooth brushed finish (cover and enclosure) |
| Gasket | Seamless poured-in place gasket |
| Hinges | Hidden hinges; stainless steel hinge pins |
| Material | 304 stainless steel |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Door Swing | Reversible — requires adapter kit EHLLSAK |
| Enclosure Lip | Formed lip to exclude flowing liquids and contaminants |
| Quarter Turns | Stainless steel slotted quarter turns |
| Material Gauge | 14 gauge stainless steel (24x24" and larger) |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X and 12 |
| CSA | CSA Type 3R, 4, 4X and 12 |
| NEMA | Complies with NEMA 3R, 4, 4X, 12 and 13 |
| IP Rating | IEC 60529, IP 66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU (EN4SDSS series); EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does EN4SD36308SS include the inner panel?▾
No. The optional EP3630 inner panel (34.20 in x 28.20 in) is sold separately and is required to maintain UL/CSA because the enclosure is wider than 24 in.
What clear space is available on the door?▾
The drawing shows 28.00 in x 34.00 in (W x H) of clear space on the door.
Is there a 316 stainless version?▾
Yes, EN4SD36308S16.
What are the UL and CSA file numbers?▾
UL File E65324 and CSA Cert. LR21001.
How much does it weigh?▾
78 lbs (35.38 kg) shipping weight.
Related Products
Save 55%EN4SD36308S16 — N4X Eclipse encl. - 36 x 30 x 8 - 316 SS
Hammond Manufacturing · EN4SD36308S16
Save 55%EN4SD363610S16R — 36X36X10 S16 SS Wallmount
Hammond Manufacturing · EN4SD363610S16R

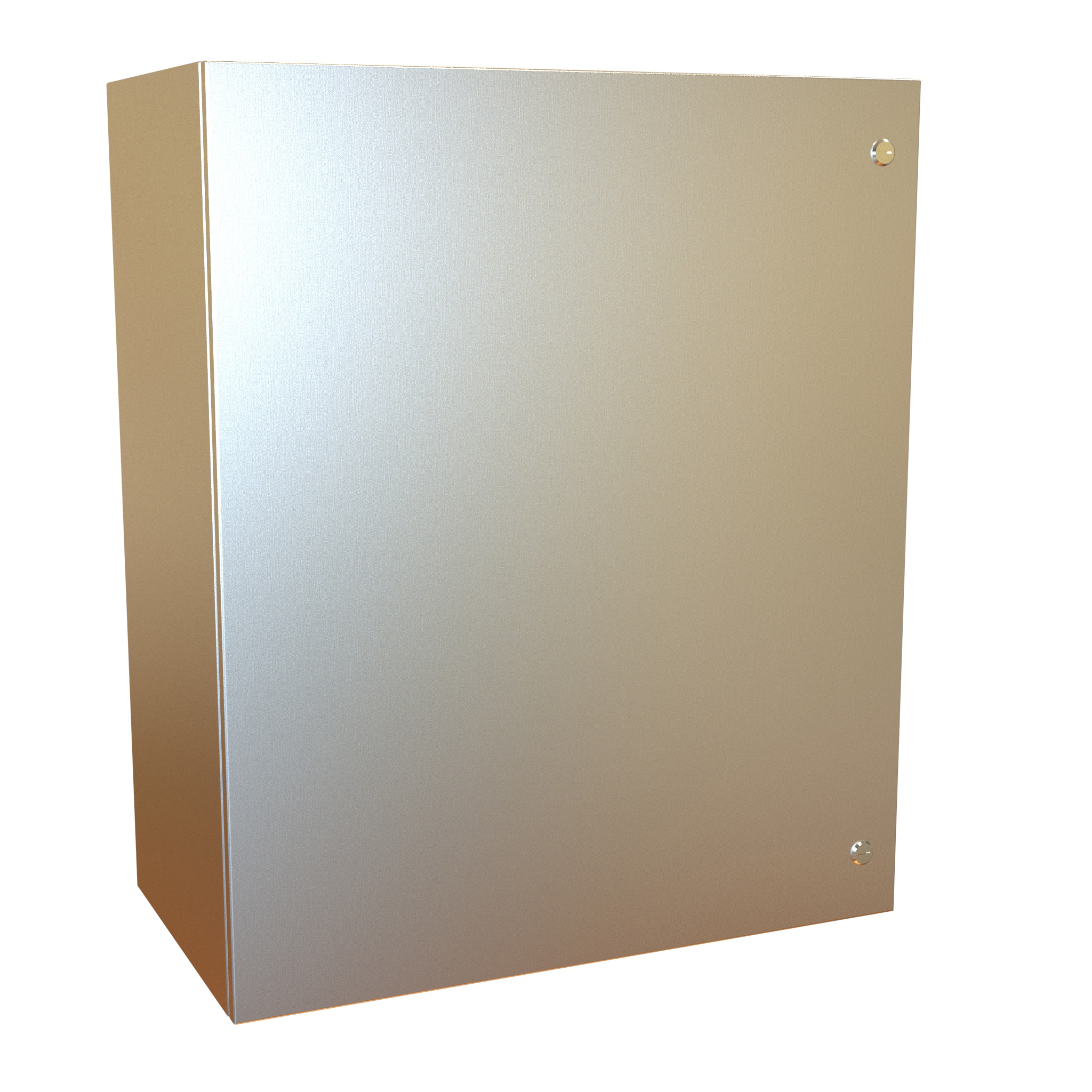

Save 55%EN4SD363016SS — N4X Eclipse encl. - 36 x 30 x 16 - 304 SS
Hammond Manufacturing · EN4SD363016SS

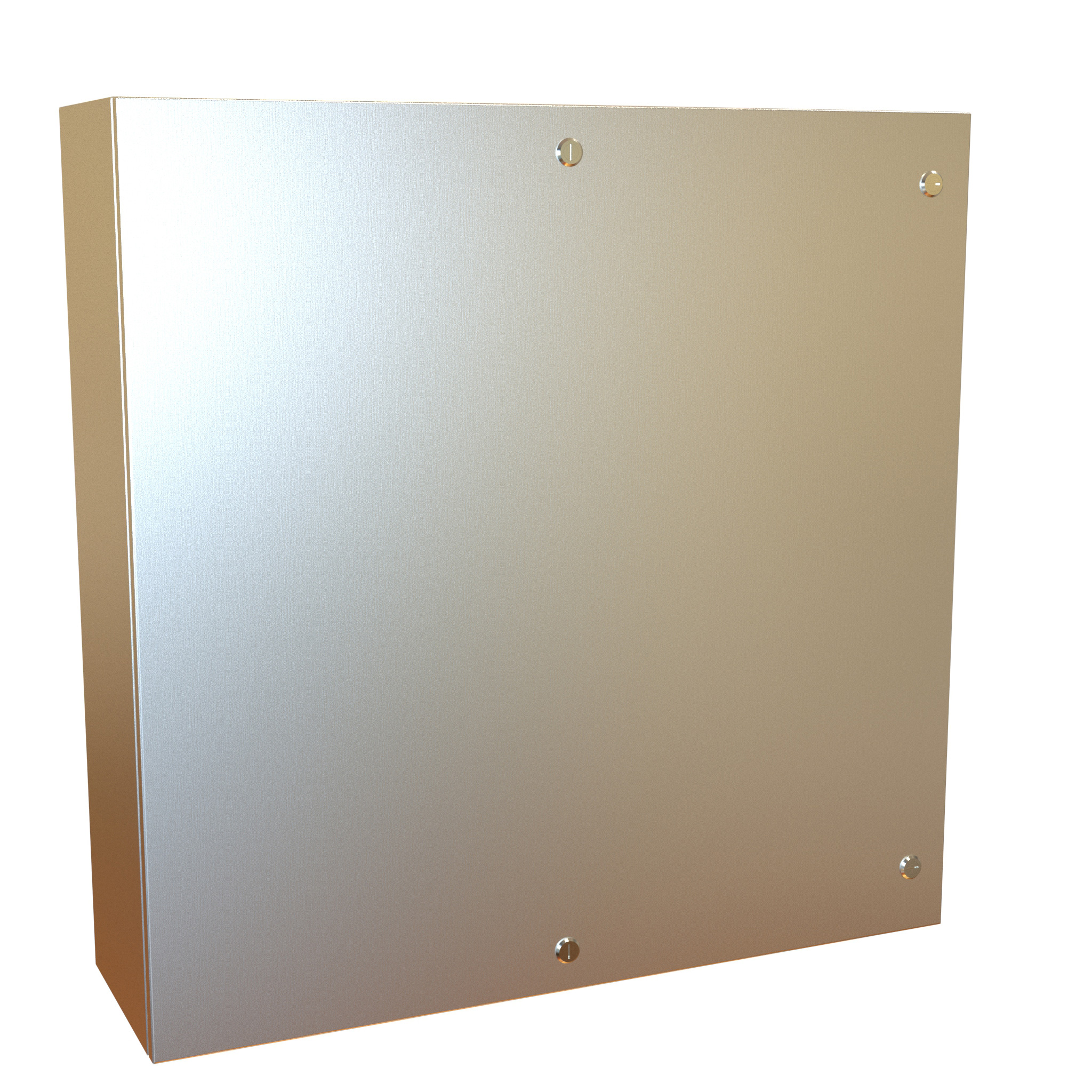

Save 55%EN4SD363610SSR — NEMA 4X Eclipse 304SS Qtr Turn
Hammond Manufacturing · EN4SD363610SSR

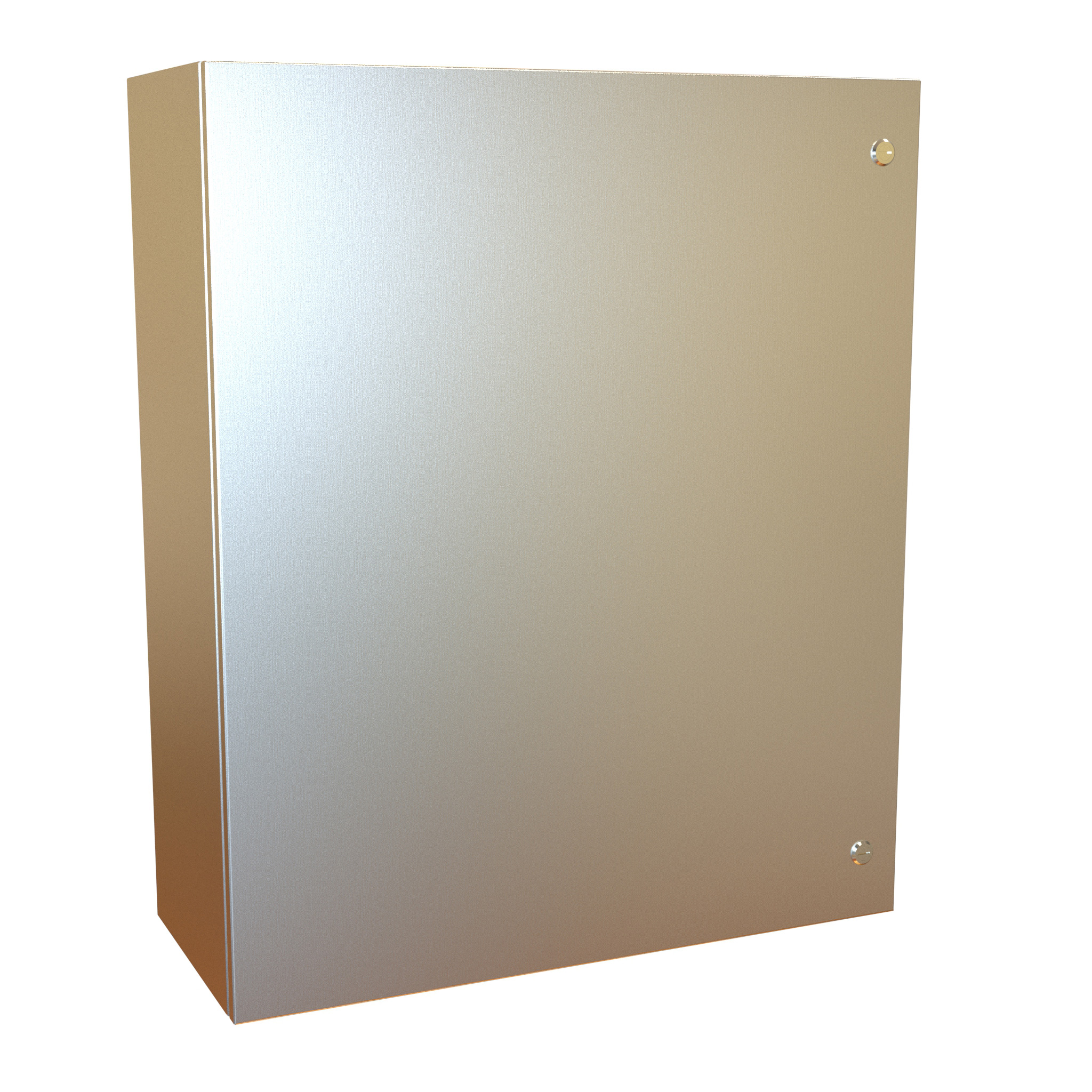

Save 55%EN4SD363012SS — N4X Eclipse encl. - 36 x 30 x 12 - 304 SS
