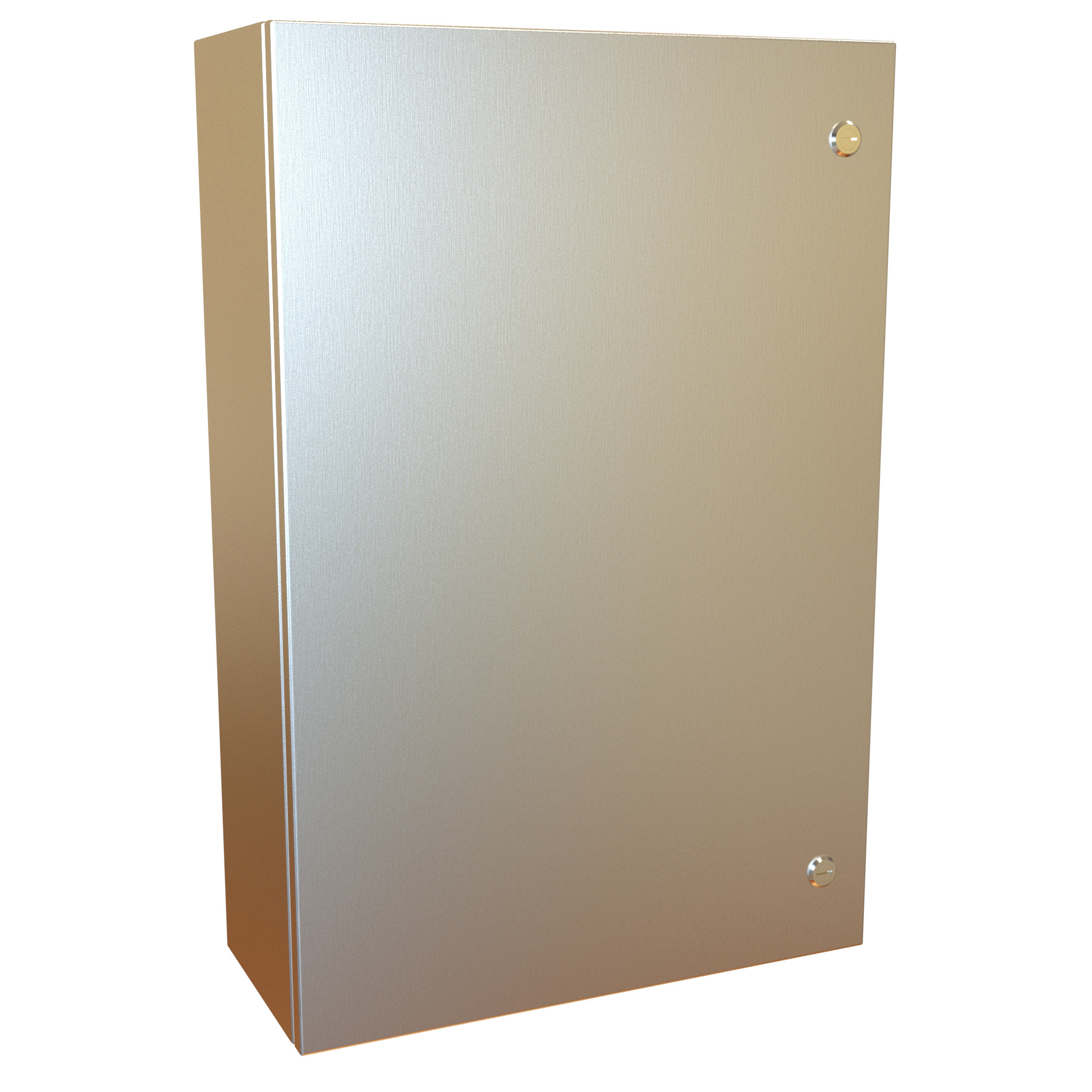

Hammond EN4SD30208SS 30x20x8 in 304 Stainless NEMA 4X Wallmount Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 30 x 20 x 8 in (762 x 508 x 203 mm) vertical-format enclosure in 304 stainless steel
- Type 3R, 4, 4X and 12 (UL 508A / CSA); IP 66 per IEC 60529
- Door opening 18.49 x 28.49 in with 18.00 x 28.00 in clear space on the door
- Type A stainless steel slotted quarter turns and stainless steel hinge pins
- Seamless poured-in place gasket and formed lip against flowing liquids
- Accepts optional EP3020 inner panel, 28.20 x 18.20 in, on collar studs
- Offered in 304 stainless only for this size
The EN4SD30208SS is a tall, narrow Eclipse Series wallmount enclosure measuring 30 in high x 20 in wide x 8 in deep (762 x 508 x 203 mm). Made from 304 stainless steel, it is intended to enclose electrical and/or electronic equipment and guard it against harsh, industrial conditions on a wall.
The body has continuously welded seams ground smooth and a formed lip to exclude flowing liquids and contaminants, sealed by a seamless poured-in place gasket. The single hinged door uses Type A stainless steel slotted quarter turns and stainless steel hinge pins, and it is removable and interchangeable. Door swing can be reversed with adapter kit EHLLSAK. Cover and enclosure are natural stainless steel with a smooth brushed finish.
Drawing dimensions show an 18.49 in x 28.49 in door opening (W x H), 18.00 in x 28.00 in of clear space available on the door, and an inside depth of 8.70 in. Ø 0.50 in wall mounting holes are provided, along with a hardware kit of panel mounting nuts and sealing washers.
No inner panel is included. The optional EP3020 panel measures 28.20 in (716 mm) x 18.20 in (462 mm) and fastens to the collar studs inside. This size is listed in 304 stainless only. Standards: UL 508A and CSA Type 3R, 4, 4X and 12, NEMA 3R, 4, 4X, 12 and 13, and IEC 60529 IP 66; a mounting foot kit is required to maintain UL/CSA external mounting requirements. Shipping weight is 53 lbs (24.04 kg).
Ideal For
- Vertical wallmount enclosure for electrical and electronic equipment
- Harsh industrial environments requiring NEMA 4X protection
- Wall-mounted control or terminal assemblies built on an EP3020 panel
- High-tech equipment installations
Overview
| Series | Eclipse Series (EN4SD) |
| Door Style | Hinge Door with Quarter Turn/Handle |
| Latch Type | Type A — stainless steel slotted quarter turns |
| Inner Panel | Not included (sold separately as optional inner panel) |
| Part Number | EN4SD30208SS |
| Product Type | Type 4X Stainless Steel Wallmount Enclosure |
| Long Description | N4X Eclipse encl. - 30 x 20 x 8 - 304 SS |
| Short Description | TYPE 4X 304SS 30X20X8 NO PANE |
| Stainless Steel Grade | 304 stainless steel |
Dimensions
| Enclosure Depth | 8.00 in (203 mm) |
| Enclosure Width | 20.00 in (508 mm) |
| Enclosure Height | 30.00 in (762 mm) |
| Size (H X W X D) | 30 in x 20 in x 8 in (762 mm x 508 mm x 203 mm) |
| Inside Depth (Drawing) | 8.70 in |
| Door Size (W X H, Drawing) | 19.97 in x 29.97 in |
| Door Opening (W X H, Drawing) | 18.49 in x 28.49 in |
| Overall Depth (Drawing, Top View) | 8.84 in |
| Clear Space Available On Door (W X H, Drawing) | 18.00 in x 28.00 in |
Identifiers
| UPC | 623980150468 |
| UNSPSC | 39121324 |
| Drawing Date | Jan. 31, 2025 |
Wall Mounting
| Mounting Foot Kit | Required to maintain UL/CSA external mounting requirements (accessory) |
| Wall Mounting Hardware | Hardware kit with panel mounting nuts and sealing washers for wall mounting holes |
| Mounting Hole Diameter (Drawing) | Ø 0.50 in |
| Mounting Hole Spacing (W X H, Drawing Back View) | 18.43 in x 28.50 in |
Optional Inner Panel
| Inner Panel Width | 18.20 in (462 mm) |
| Inner Panel Height | 28.20 in (716 mm) |
| Inner Panel Mounting | Collar studs provided for mounting inner panel |
| Inner Panel Part No. | EP3020 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 53 lbs (24.04 kg) |
Construction & Finish
| Door | Removable for modifications and interchangeable |
| Seams | Continuously welded seams ground smooth |
| Finish | Natural stainless steel with a smooth brushed finish (cover and enclosure) |
| Gasket | Seamless poured-in place gasket |
| Hinges | Hidden hinges; stainless steel hinge pins |
| Material | 304 stainless steel |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Door Swing | Reversible — requires adapter kit EHLLSAK |
| Enclosure Lip | Formed lip to exclude flowing liquids and contaminants |
| Quarter Turns | Stainless steel slotted quarter turns |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X and 12 |
| CSA | CSA Type 3R, 4, 4X and 12 |
| NEMA | Complies with NEMA 3R, 4, 4X, 12 and 13 |
| IP Rating | IEC 60529, IP 66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU (EN4SDSS series); EN 60204-1: 2006 / IEC 60204-1: 2005-10; EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is there a 316 stainless version of EN4SD30208SS?▾
No 316 equivalent is listed for the 30 x 20 x 8 in size in the ordering table; it is offered in 304 stainless steel.
Which inner panel fits?▾
The optional inner panel is EP3020, 28.20 in (716 mm) high x 18.20 in (462 mm) wide. It is not included.
What protection ratings does it carry?▾
UL 508A Type 3R, 4, 4X and 12, CSA Type 3R, 4, 4X and 12, NEMA 3R, 4, 4X, 12 and 13, and IEC 60529 IP 66. UL File E65324, CSA Cert. LR21001.
What mounting hardware comes with it?▾
A hardware kit with panel mounting nuts and sealing washers for the wall mounting holes. A mounting foot kit is required to maintain UL/CSA external mounting requirements.
How much does it weigh?▾
The shipping weight is 53 lbs (24.04 kg).
Related Products
Save 55%EN4SD302010SS — N4X Eclipse encl. - 30 x 20 x 10 - 304 SS
Hammond Manufacturing · EN4SD302010SS

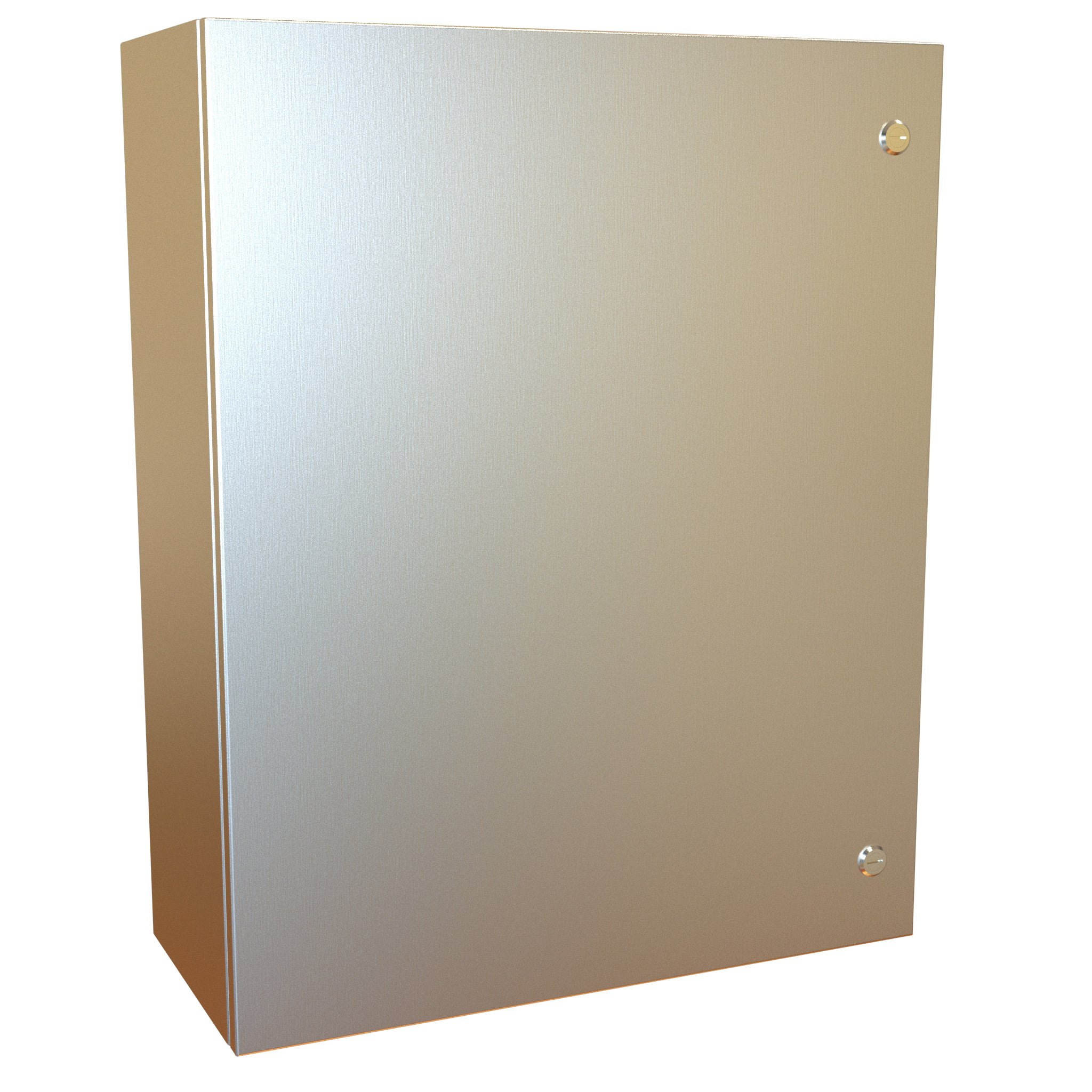

Save 55%EN4SD302410S16 — N4X Eclipse encl. - 30 x 24 x 10 - 316 SS
Hammond Manufacturing · EN4SD302410S16

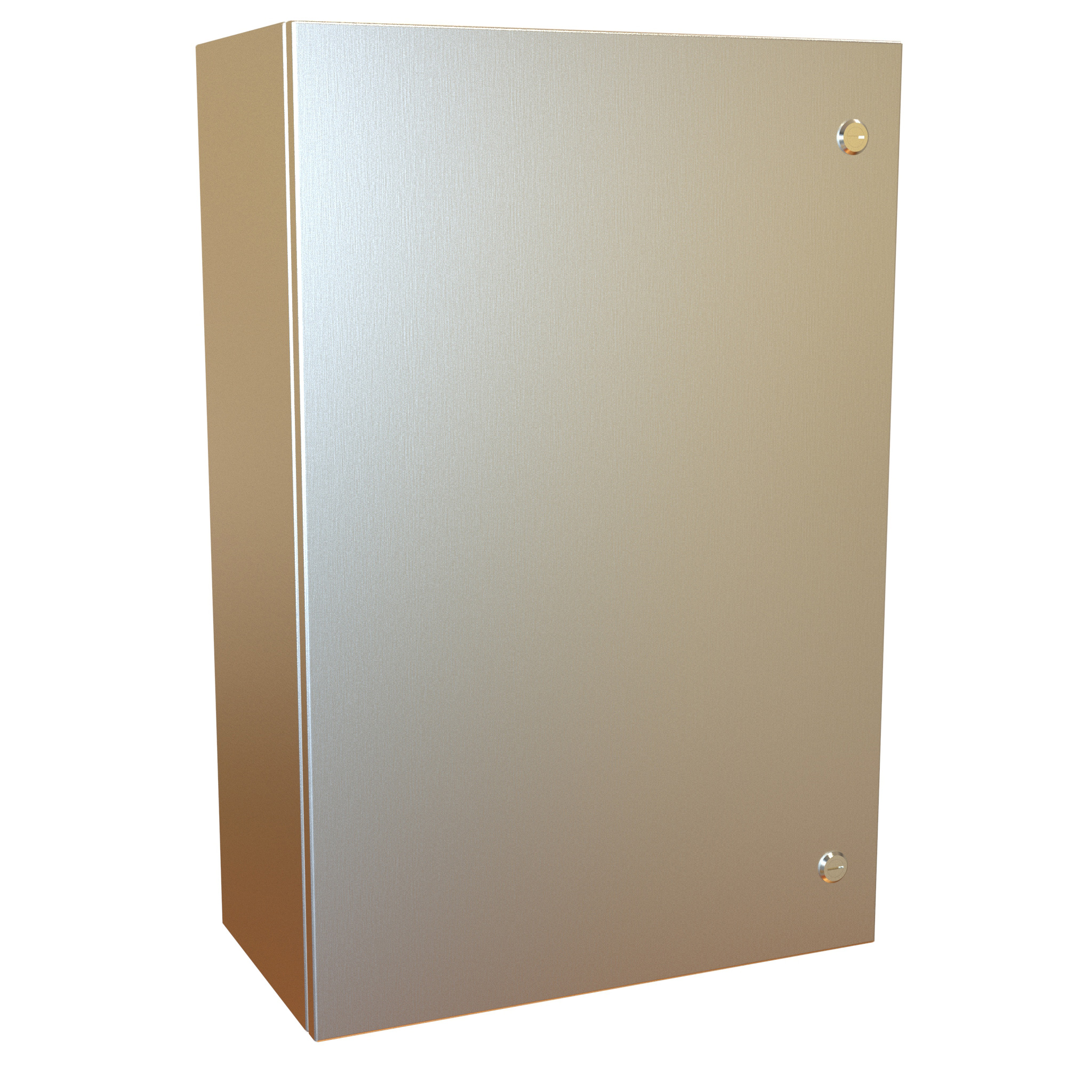

Save 55%EN4SD302010S16 — N4X Eclipse encl. - 30 x 20 x 10 - 316 SS
