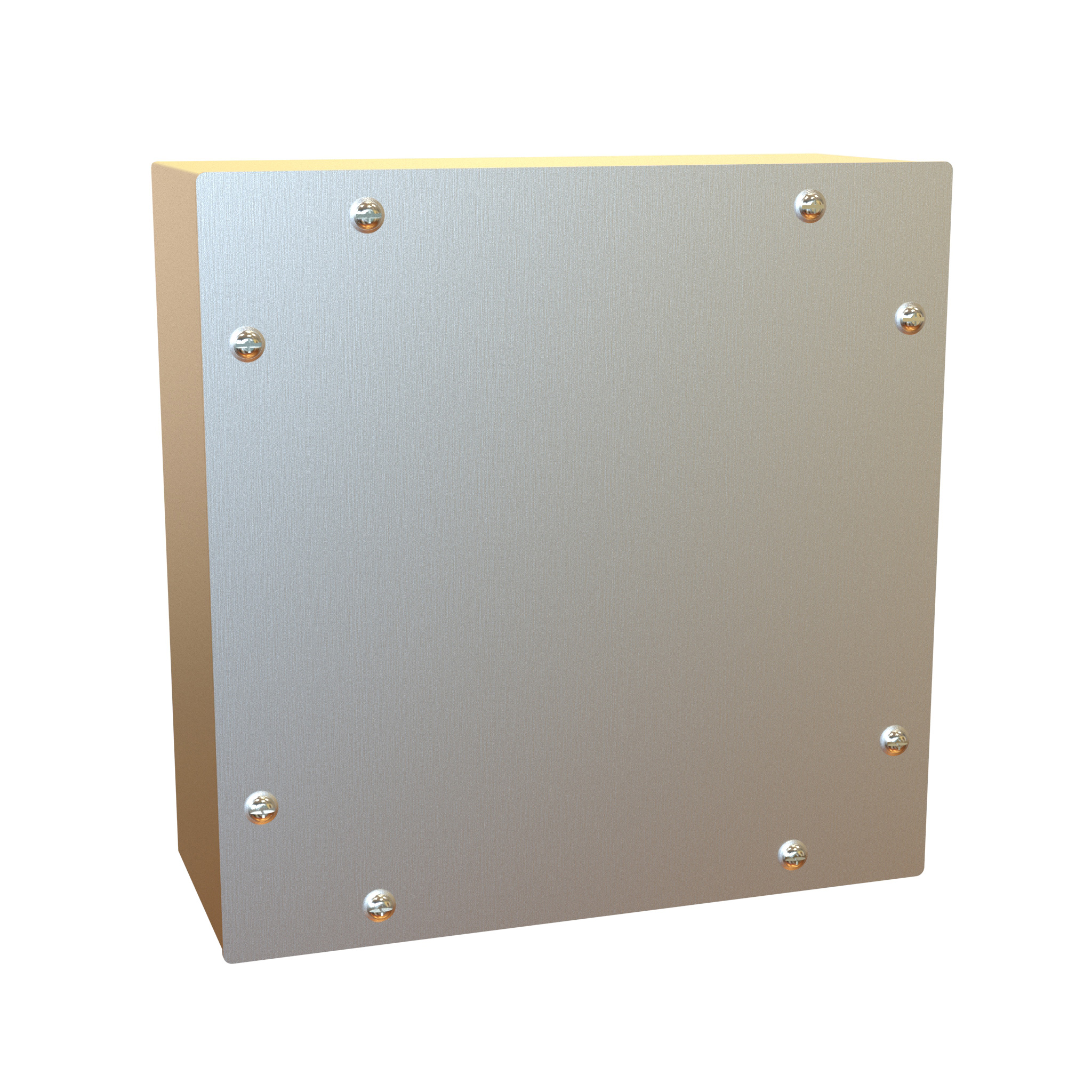

Type 4X Stainless Steel Junction Box · C4XSC Series

Application

• ■Designed for use as a wiring box, junction box, terminal or pull box in indoor or outdoor applications where subject to hose down/precipitation or corrosion.

Standards

• ■UL 508A Listed; Type 3, 4X, 12
• ■cULus Listed per CSA C22.2 No 94; Type 3, 4X, 12
• ■Complies with NEMA Type 3, 4X and 12 IEC 60529, IP66
• ■NEMA Type 3, 4X and 12
• ■IEC 60529, IP66

Construction

• ■14 gauge 304 stainless steel body up to 24”x24”; 12 gauge body when 30”x30” or larger
• ■14 gauge 304 stainless steel cover up to 24”x24”; 12 gauge cover when 30”x30” or larger
• ■Smooth, continuously welded seams without knockouts, cutouts, or holes
• ■Captivated stainless steel cover screws thread into sealed wells
• ■Seamless poured-in place gasket
• ■No provision for inner mounting panel
• ■Mounting Foot Kit sold separately - use C4XMTGFOOT
• ■Replacement lid cover screws (package of 25) - use 1421A4XLCS25SS
• ■Replacement lid cover washers/sealed wells (package of 25) - use 1421A4XLCW25

Finish

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■Enclosure and cover are unpainted, with a brushed #4 finish.
