Type 1 Unpainted Galvanized Steel Junction Box · CSG Series
Brand: Hammond Manufacturing · 29 part numbers
Screw Cover and without Knockouts
- ■Designed for general purpose indoor commercial use as a junction, pull or switch box.
- ■UL-50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
from $9.45
29 of 29 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CSG Series part number
Filter 29 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
29 of 29 part numbers · 29 priced online
Galv Scr Cover
$21.51In stock
Buy now
Galv Scr Cover
$27.97In stock
Buy now
Galv Scr Cover
$22.29In stock
Buy now
Galv Scr Cover
$27.57In stock
Buy now
Galv Scr Cover
$34.57In stock
Buy now
N1 Scrcov 16X16X6 Galv
$48.37In stock
Buy now
Galv Scr Cover
$37.75In stock
Buy now
N1 Scr Cov 18X18X12 Galv
$94.70Backorder
Buy now
N1 Scr Cov 18X18X4 Galv
$50.15In stock
Buy now
Galv Scr Cover
$50.41Backorder
Buy now
Galv Scr Cover
$65.73In stock
Buy now
N1 Scr Cov 24X24X12 Galv
$180.62In stock
Buy now
N1 Scr Cov 24X24X4 Galv
$97.27Backorder
Buy now
Galv Scr Cover
$97.61In stock
Buy now
Galv Scr Cover
$121.31In stock
Buy now
N1 Scr Cov 30X30X12 Galv
$307.05In stock
Buy now
N1 Scr Cov 30X30X6 Galv
$230.47In stock
Buy now
N1 Scr Cov 30X30X8 Galv
$234.51In stock
Buy now
Galv Scr Cover No Ko'S
$393.94Backorder
Buy now
N1 Scr Cov 36X36X16 Galv
$425.37In stock
Buy now
N1 Scr Cov 36X36X6 Galv
$309.43In stock
Buy now
N1 Scr Cov 36X36X8 Galv
$352.25In stock
Buy now
Galv Scr Cover No Ko'S
$682.28In stock
Buy now
Galv Scr Cover No Ko'S
$750.49Backorder
Buy now
Galv Scr Cover
$9.45Backorder
Buy now
Galv Scr Cover
$12.25In stock
Buy now
Galv Scr Cover
$13.40In stock
Buy now
Galv Scr Cover
$16.69In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| CSG664 | 6.00 | 6.00 | 4.00 | $9.45Backorder | Buy now |
| CSG884 | 8.00 | 8.00 | 4.00 | $13.40In stock | Buy now |

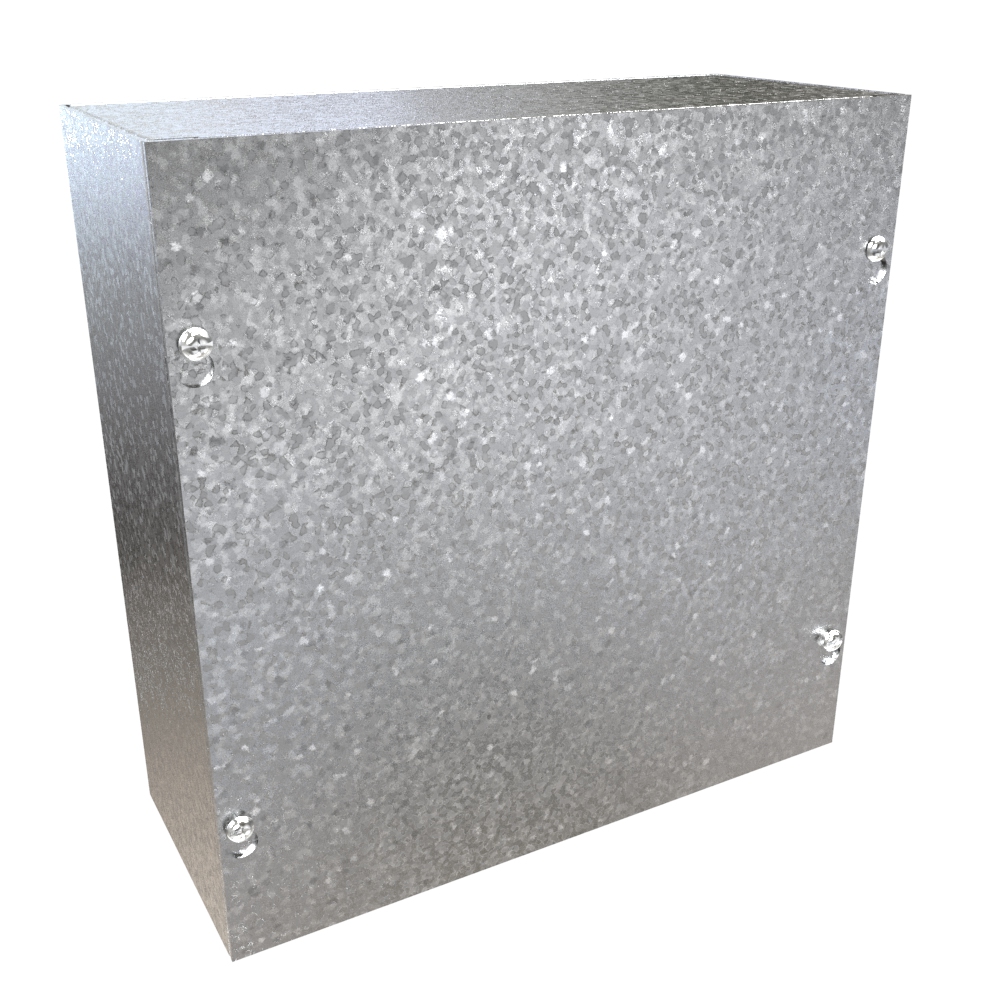

| CSG10104 | 10.00 | 10.00 | 4.00 | $18.35Backorder | Buy now |
| CSG12124 | 12.00 | 12.00 | 4.00 | $22.29In stock | Buy now |
| CSG18184 | 18.00 | 18.00 | 4.00 | $50.15In stock | Buy now |
| CSG24244 | 24.00 | 24.00 | 4.00 | $97.27Backorder | Buy now |
| CSG666 | 6.00 | 6.00 | 6.00 | $12.25In stock | Buy now |
| CSG886 | 8.00 | 8.00 | 6.00 | $16.69In stock | Buy now |
| CSG10106 | 10.00 | 10.00 | 6.00 | $21.51In stock | Buy now |
| CSG12106 | 12.00 | 10.00 | 6.00 | $27.97In stock | Buy now |

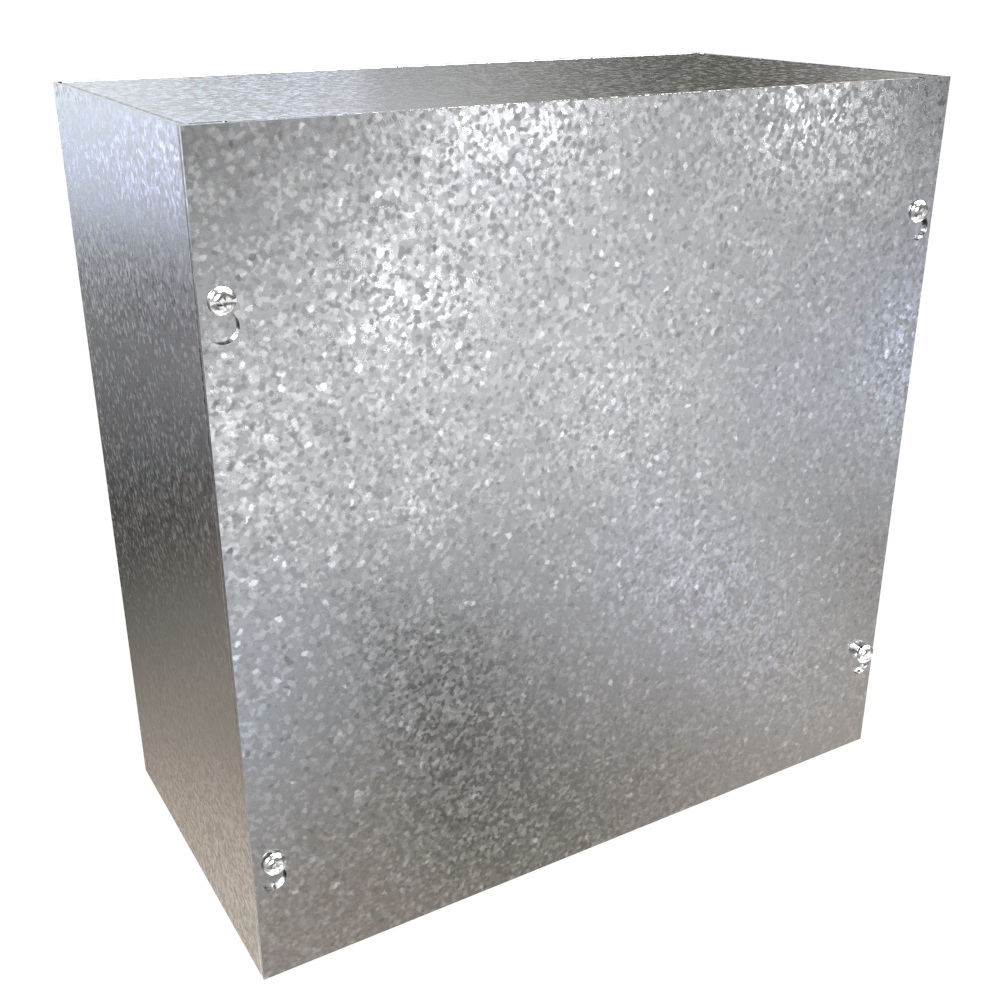

| CSG12126 | 12.00 | 12.00 | 6.00 | $27.57In stock | Buy now |
| CSG16166 | 16.00 | 16.00 | 6.00 | $48.37In stock | Buy now |
| CSG18126 | 18.00 | 12.00 | 6.00 | $37.75In stock | Buy now |
| CSG18186 | 18.00 | 18.00 | 6.00 | $50.41Backorder | Buy now |
| CSG24246 | 24.00 | 24.00 | 6.00 | $97.61In stock | Buy now |
| CSG30306 | 30.00 | 30.00 | 6.00 | $230.47In stock | Buy now |
| CSG36366 | 36.00 | 36.00 | 6.00 | $309.43In stock | Buy now |
| CSG12128 | 12.00 | 12.00 | 8.00 | $34.57In stock | Buy now |
| CSG18188 | 18.00 | 18.00 | 8.00 | $65.73In stock | Buy now |
| CSG24248 | 24.00 | 24.00 | 8.00 | $121.31In stock | Buy now |
| CSG30308 | 30.00 | 30.00 | 8.00 | $234.51In stock | Buy now |
| CSG36368 | 36.00 | 36.00 | 8.00 | $352.25In stock | Buy now |
| CSG181812 | 18.00 | 18.00 | 12.00 | $94.70Backorder | Buy now |
| CSG242412 | 24.00 | 24.00 | 12.00 | $180.62In stock | Buy now |
| CSG303012 | 30.00 | 30.00 | 12.00 | $307.05In stock | Buy now |
| CSG363612 | 36.00 | 36.00 | 12.00 | $393.94Backorder | Buy now |
| CSG484812 | 48.00 | 48.00 | 12.00 | $682.28In stock | Buy now |
| CSG363616 | 36.00 | 36.00 | 16.00 | $425.37In stock | Buy now |
| CSG484816 | 48.00 | 48.00 | 16.00 | $750.49Backorder | Buy now |
Application
- ■Designed for general purpose indoor commercial use as a junction, pull or switch box.
Standards
- ■UL-50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 16 gauge (up to 30"x24"), 14 gauge (36"x24") or 12 gauge (36"x36") G90 steel.
- ■Flat steel covers fastened with plated steel screws.
- ■Keyhole slots permit cover to be lifted off without removing screws entirely.
- ■Through holes in back for wall mounting.
- ■Grounding location embossed in body.
Finish
- ■Enclosure and cover are unpainted galvanized steel .
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| CSG664 | 6.00 | 6.00 | 4.00 |
| CSG884 | 8.00 | 8.00 | 4.00 |
| CSG10104 | 10.00 | 10.00 | 4.00 |
| CSG12124 | 12.00 | 12.00 | 4.00 |
| CSG18184 | 18.00 | 18.00 | 4.00 |
| CSG24244 | 24.00 | 24.00 | 4.00 |
| CSG666 | 6.00 | 6.00 | 6.00 |
| CSG886 | 8.00 | 8.00 | 6.00 |
| CSG10106 | 10.00 | 10.00 | 6.00 |
| CSG12106 | 12.00 | 10.00 | 6.00 |
| CSG12126 | 12.00 | 12.00 | 6.00 |
| CSG16166 | 16.00 | 16.00 | 6.00 |
| CSG18126 | 18.00 | 12.00 | 6.00 |
| CSG18186 | 18.00 | 18.00 | 6.00 |
| CSG24246 | 24.00 | 24.00 | 6.00 |
| CSG30306 | 30.00 | 30.00 | 6.00 |
| CSG36366 | 36.00 | 36.00 | 6.00 |
| CSG12128 | 12.00 | 12.00 | 8.00 |
| CSG18188 | 18.00 | 18.00 | 8.00 |
| CSG24248 | 24.00 | 24.00 | 8.00 |
| CSG30308 | 30.00 | 30.00 | 8.00 |
| CSG36368 | 36.00 | 36.00 | 8.00 |
| CSG181812 | 18.00 | 18.00 | 12.00 |
| CSG242412 | 24.00 | 24.00 | 12.00 |
| CSG303012 | 30.00 | 30.00 | 12.00 |
| CSG363612 | 36.00 | 36.00 | 12.00 |
| CSG484812 | 48.00 | 48.00 | 12.00 |
| CSG363616 | 36.00 | 36.00 | 16.00 |
| CSG484816 | 48.00 | 48.00 | 16.00 |
