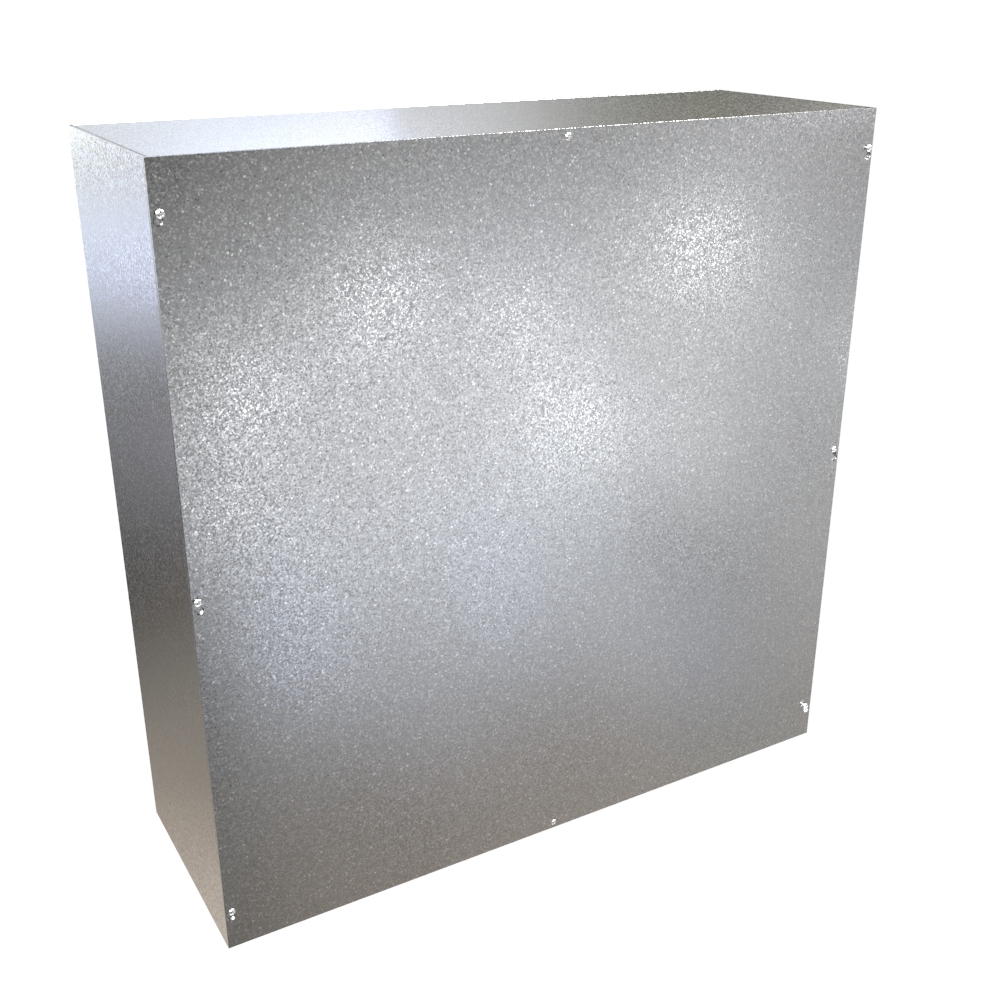

Hammond CSG363612 36x36x12 In Unpainted Galvanized Type 1 Junction Box
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 36 x 36 x 12 in (914 mm x 914 mm x 305 mm) Type 1 galvanized steel junction, pull or switch box
- Unpainted galvanized G90 steel enclosure and cover, 12 gauge
- No knockouts, so conduit entries can be placed where needed
- Flat steel screw cover with plated steel screws and keyhole slots for lift-off removal
- UL-50 Type 1 and CSA Type 1; complies with NEMA Type 1 and IEC 60529 IP20
- Through holes in back for wall mounting; embossed grounding location
- Shipping weight 130 lbs (58.97 kg); packaged in a box
The CSG363612 is a 36 x 36 x 12 in (914 mm x 914 mm x 305 mm) Type 1 unpainted galvanized steel junction box with a flat screw cover and no knockouts. It is designed for general purpose indoor commercial use as a junction, pull or switch box, making it a fit for electricians, electrical contractors and facilities teams who need a plain, unpunched steel box at this size.
The body is formed and spot welded from 12 gauge G90 steel, and both the enclosure and cover are left as unpainted galvanized steel. The flat steel cover is fastened with plated steel screws, and keyhole slots let the cover be lifted off without removing the screws entirely. Because the box has no knockouts, conduit entries can be located exactly where the installation requires them, and a grounding location is embossed in the body.
Enclosure dimensions are 36 in high, 36 in wide and 12 in deep (914 mm x 914 mm x 305 mm), with the drawing showing 12.10 in overall depth. Shipping weight is 130 lbs (58.97 kg), and the part ships packaged in a box. The 36 x 36 in face is available in 6, 8, 12 and 16 in depths; CSG363612 sits at 12 in, between the 8 in CSG36368 and the 16 in CSG363616.
Through holes in the back allow wall mounting. The box is rated UL-50 Type 1 (UL File E65324) and CSA Type 1 (CSA Cert. LR21001), complies with NEMA Type 1 and IEC 60529 IP20, and is listed as REACH and RoHS compliant.
Ideal For
- Indoor commercial junction box
- Pull box for conductor runs
- Switch box enclosure
- Wall-mounted wiring splice point
Mounting
| Mounting | Through holes in back for wall mounting |
Overview
| Series | CSG Series |
| Application | General purpose indoor commercial use as a junction, pull or switch box |
| Cover Style | Screw cover, without knockouts |
| Description | N1 Screw Cover - 36 x 36 x 12 - Galv |
| Product Type | Type 1 Unpainted Galvanized Steel Junction Box |
| Short Description | GALV SCR COVER NO KO'S |
| Series Accessories | CS Perforated Panels, Type 1 Extenders |
Dimensions
| Enclosure Depth | 12.00 in (305 mm) |
| Enclosure Width | 36.00 in (914 mm) |
| Enclosure Height | 36.00 in (914 mm) |
| Size (H X W X D) | 36 in x 36 in x 12 in (914 mm x 914 mm x 305 mm) per ordering table and description |
| Part Page Size Attribute | 24 in x 24 in x 8 in (610 mm x 610 mm x 203 mm) (conflicts with the 36 x 36 x 12 in description, ordering table and drawing) |
| Overall Depth (Per Drawing) | 12.10 in |
Identifiers
| UPC | 623980142203 |
| UNSPSC | 39121324 |
| Part Number | CSG363612 |
| Drawing Date | Mar. 23, 2019 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 130 lbs (58.97 kg) |
Construction & Finish
| Cover | Flat steel cover fastened with plated steel screws |
| Finish | Enclosure and cover are unpainted galvanized steel |
| Grounding | Grounding location embossed in body |
| Construction | Formed and spot welded, 12 gauge G90 steel |
| Cover Removal | Keyhole slots permit cover to be lifted off without removing screws entirely |
Environmental & Protection
| Environment | Indoor |
| Enclosure Rating | NEMA Type 1; IEC 60529 IP20 |
Compliance & Certifications
| UL | UL-50 Type 1 |
| CSA | CSA Type 1 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Complies With | NEMA Type 1, IEC 60529 IP20 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the CSG363612?▾
The enclosure measures 36 in high x 36 in wide x 12 in deep (914 mm x 914 mm x 305 mm); the drawing shows an overall depth of 12.10 in. Note that the part page size attribute lists 24 x 24 x 8 in, which conflicts with the description, ordering table and drawing.
Does the CSG363612 have knockouts?▾
No. The CSG series is supplied without knockouts, so entries can be made where the installation needs them.
Can it be used outdoors?▾
It is a Type 1 enclosure designed for general purpose indoor commercial use, rated UL-50 Type 1 and CSA Type 1 and complying with NEMA Type 1 and IEC 60529 IP20.
How is the cover attached?▾
A flat steel cover is fastened with plated steel screws. Keyhole slots permit the cover to be lifted off without removing the screws entirely.
What does the CSG363612 weigh and how is it packed?▾
Shipping weight is 130 lbs (58.97 kg), and the packaging type is box.
What finish does it have?▾
Enclosure and cover are unpainted galvanized steel, formed from 12 gauge G90 steel.
