Perforated Panel - 12X12 - Ste
$15.94In stock
Buy now
New
CS Perforated Panels · CSPP Series
Brand: Hammond Manufacturing · 5 part numbers
CS/CSKO/CHKO Accessory
- ■Inner mounting panel for use with CS/CSKO/CHKO Series screw junction boxes (painted or galvanized)
- ■Constructed of perforated 16 gauge steel
- ■Accepts self tapping screws eliminating timely measurement, marking and drilling of component mounting holes
- ■1/8" diameter holes on 1/4" staggered centers
- ■Mounts internally using wall-mounting hole locations
- ■Painted ANSI 61 gray
from $8.20
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CSPP Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Panel Size · H | Panel Size · W | For Use w/Enclosure · H | For Use w/Enclosure · W | Price | Order |
|---|---|---|---|---|---|---|

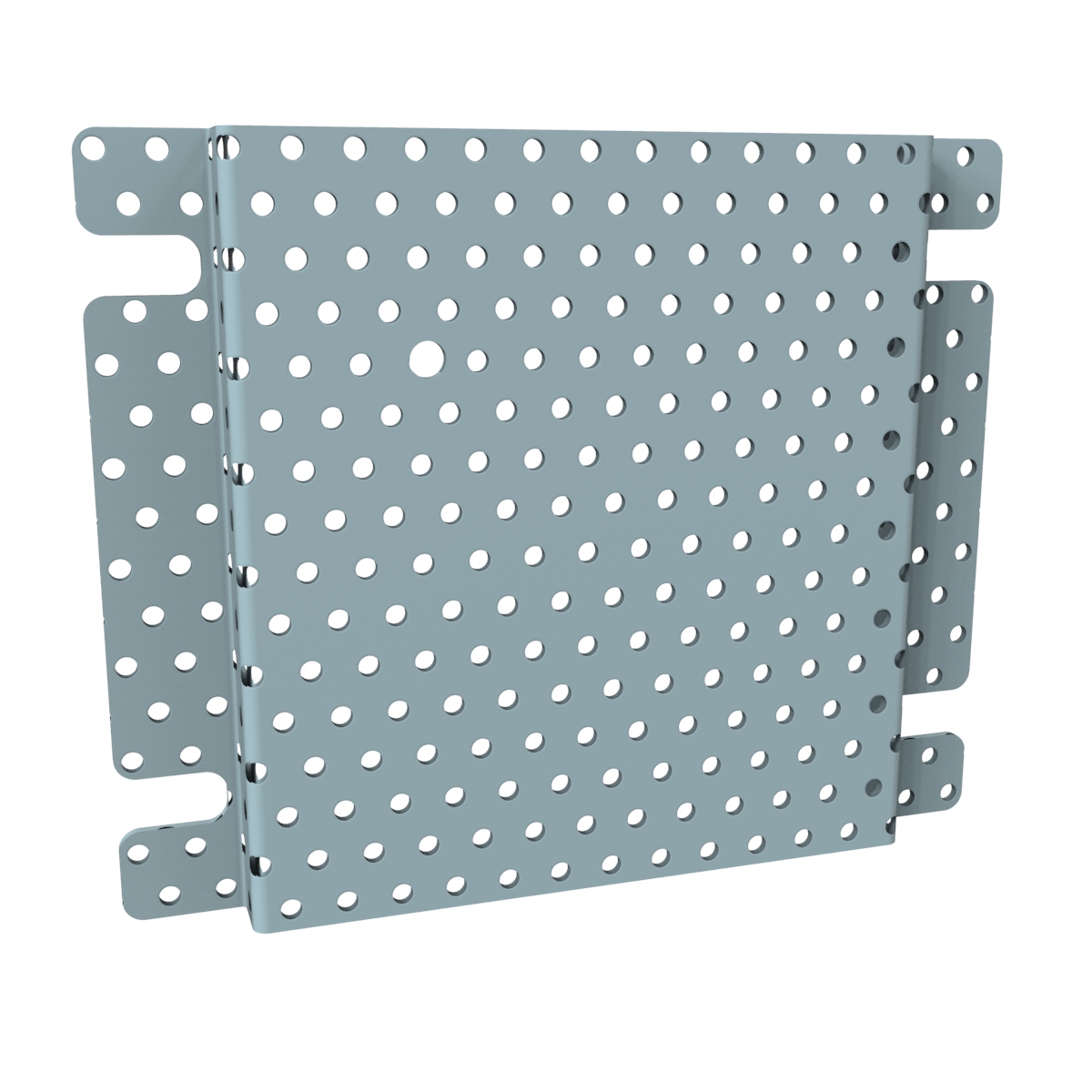

| CS66PP | 4.40 | 5.50 | 6.00 | 6.00 | $8.20In stock | Buy now |

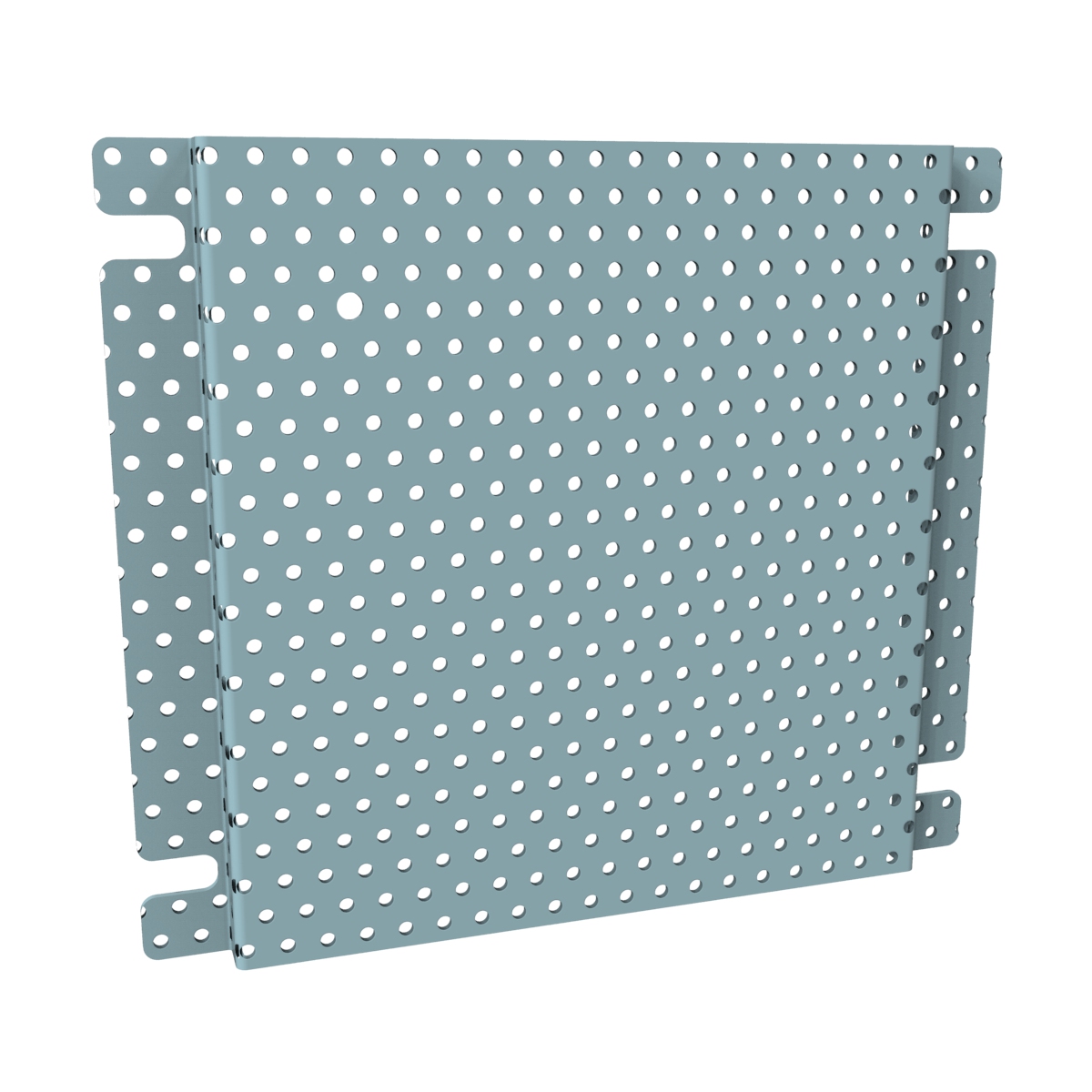

| CS88PP | 6.40 | 7.50 | 8.00 | 8.00 | $9.87In stock | Buy now |

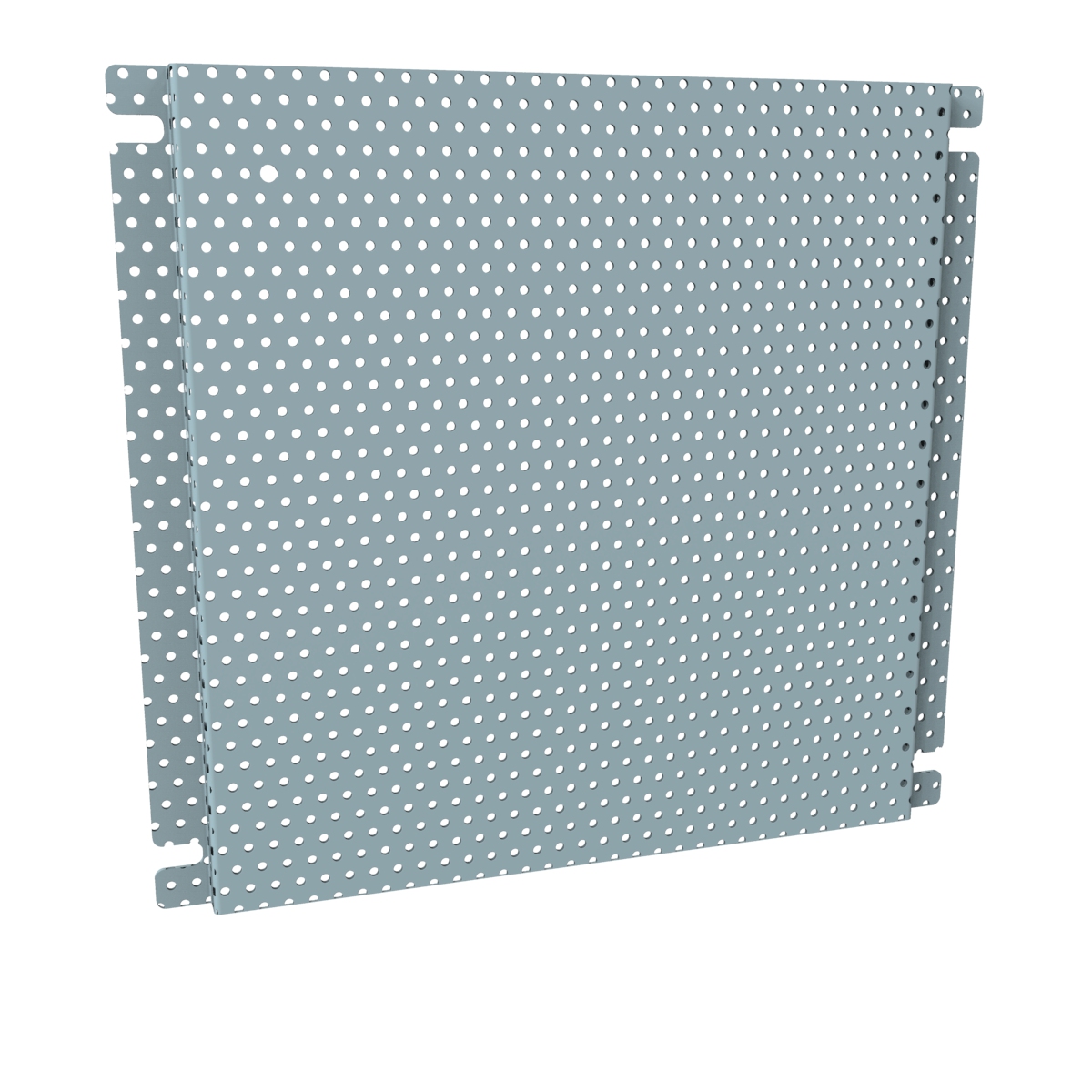

| CS1212PP | 10.40 | 11.50 | 12.00 | 12.00 | $15.94In stock | Buy now |

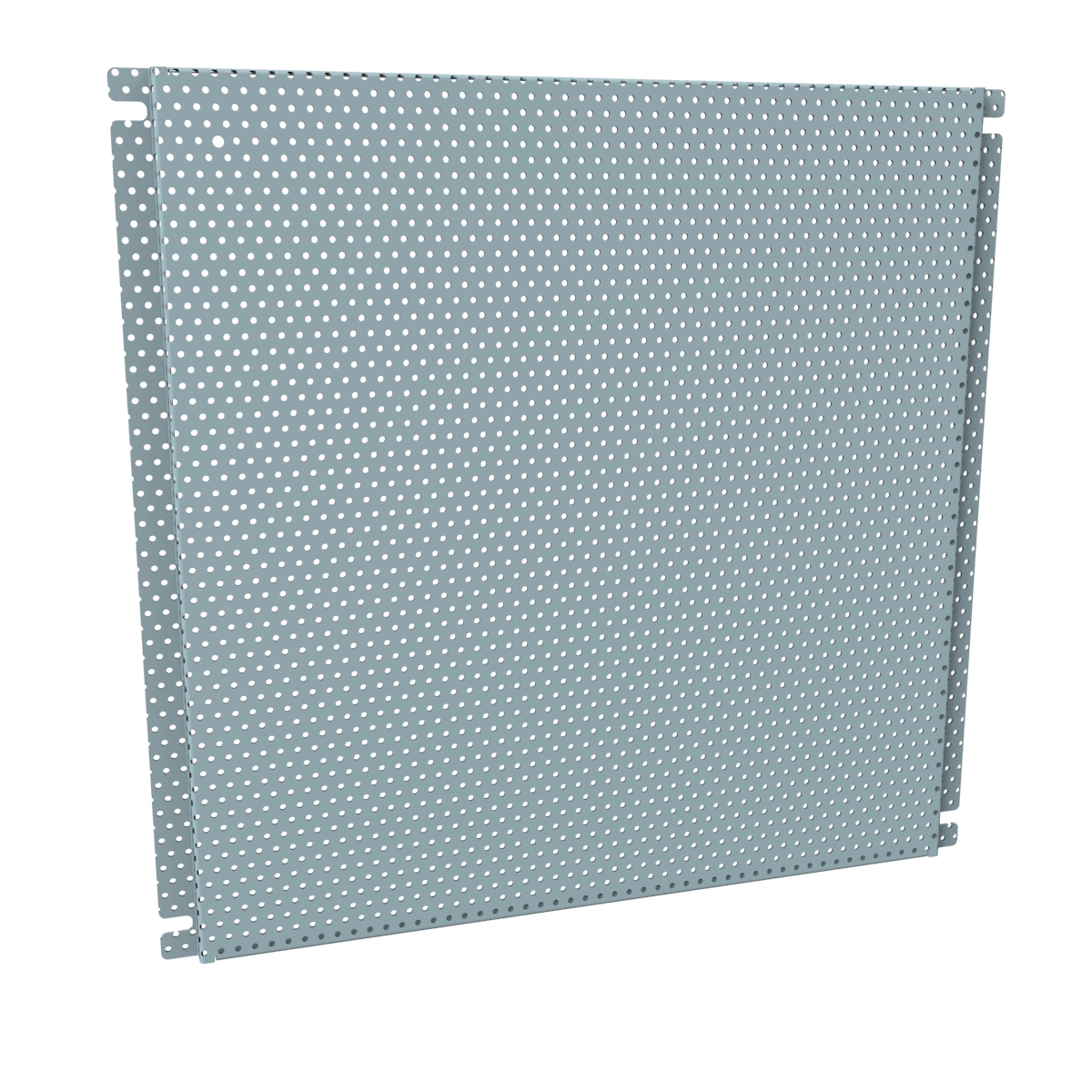

| CS1818PP | 16.40 | 17.50 | 18.00 | 18.00 | $29.87In stock | Buy now |

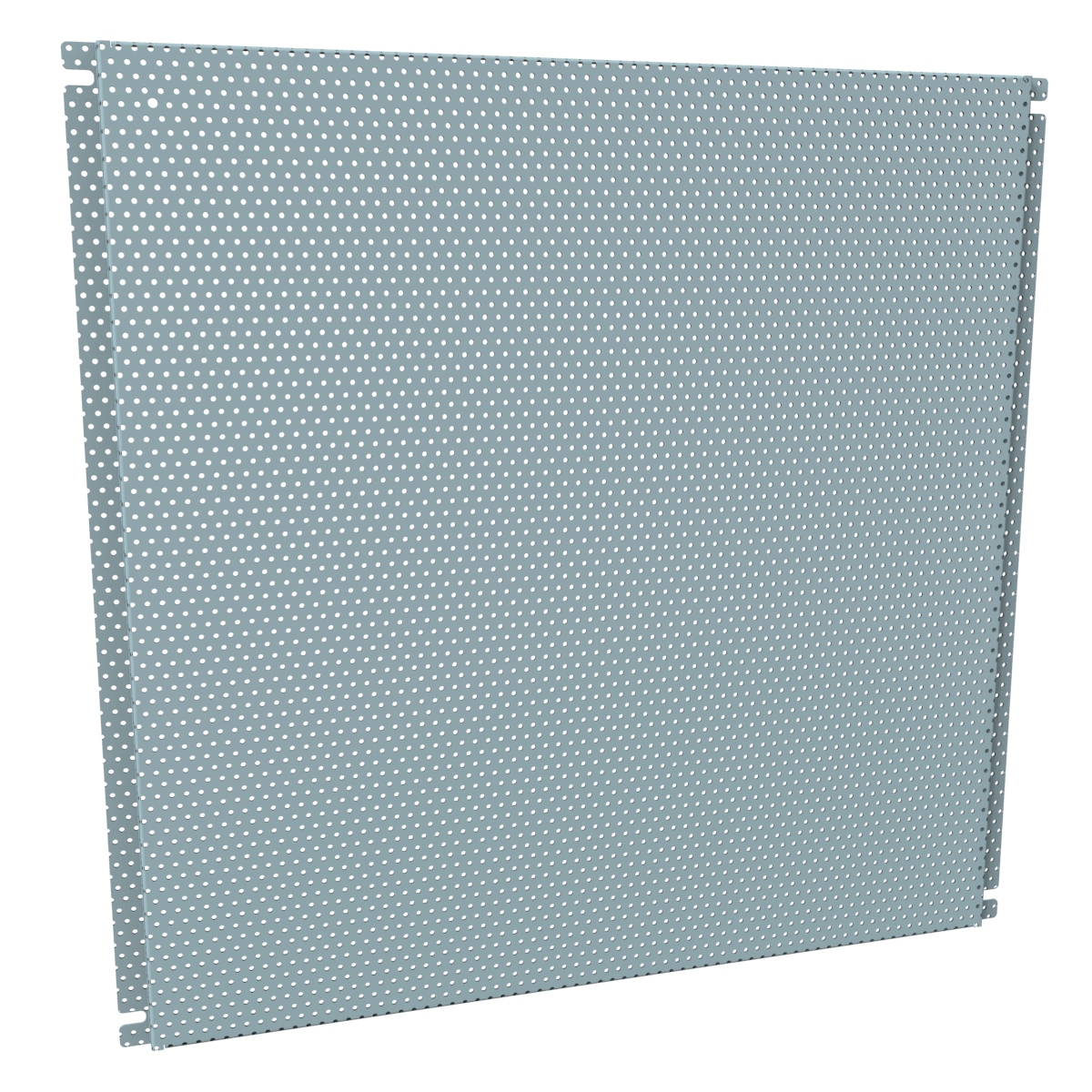

| CS2424PP | 22.40 | 23.50 | 24.00 | 24.00 | $42.91In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Inner mounting panel for use with CS/CSKO/CHKO Series screw junction boxes (painted or galvanized)
- ■Constructed of perforated 16 gauge steel
- ■Accepts self tapping screws eliminating timely measurement, marking and drilling of component mounting holes
- ■1/8" diameter holes on 1/4" staggered centers
- ■Mounts internally using wall-mounting hole locations
- ■Painted ANSI 61 gray
Documents
Additional information
Part Details
| Part No. | Panel Size · H | Panel Size · W | For Use w/Enclosure · H | For Use w/Enclosure · W |
|---|---|---|---|---|
| CS66PP | 4.40 | 5.50 | 6.00 | 6.00 |
| CS88PP | 6.40 | 7.50 | 8.00 | 8.00 |
| CS1212PP | 10.40 | 11.50 | 12.00 | 12.00 |
| CS1818PP | 16.40 | 17.50 | 18.00 | 18.00 |
| CS2424PP | 22.40 | 23.50 | 24.00 | 24.00 |
