Type 1 Mild Steel Junction Box CS Series

Type 1 Mild Steel Junction Box · CS Series

Brand: Hammond Manufacturing · 45 part numbers

Screw Cover and without Knockouts

  • ■Designed for general purpose indoor commercial use as a junction, pull or switch box.
  • ■UL-50 Type 1
  • ■CSA Type 1
  • ■Complies with NEMA Type 1 IEC 60529, IP20
  • ■NEMA Type 1
  • ■IEC 60529, IP20

from $8.87

45 of 45 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your CS Series part number

Filter 45 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

45 of 45 part numbers · 45 priced online

CS10104

Screw Cover No Ko'S 10X10X4

$19.26In stock
Buy now
CS10106

Screw Cover No Ko'S 10X10X6

$22.53In stock
Buy now
CS1084

Screw Cover No Ko'S 10X8X4

$17.18In stock
Buy now
CS1086

Screw Cover No Ko'S 10X8X6

$21.27In stock
Buy now
CS12104

Screw Cover No Ko'S 12X10X4

$24.79In stock
Buy now
CS12106

Screw Cover No Ko'S 12X10X6

$30.87In stock
Buy now
CS12124

Screw Cover No Ko'S 12X12X4

$23.34Backorder
Buy now
CS12126

Screw Cover No Ko'S 12X12X6

$28.92Backorder
Buy now
CS12128

Screw Cover No Ko'S 12X12X8

$36.27In stock
Buy now
CS1284

Screw Cover No Ko'S 12X8X4

$19.49In stock
Buy now
CS16124

Screw Cover No Ko'S 16X12X4

$29.65In stock
Buy now
CS16126

Screw Cover No Ko'S 16X12X6

$37.26In stock
Buy now
CS16143

Screw Cover No Ko'S 16X14X3

$41.89In stock
Buy now
CS16166

Screw Cover No Ko'S 16X16X6

$40.88Backorder
Buy now
CS16168

Screw Cover No Ko'S 16X16X8

$60.39In stock
Buy now
CS18124

Screw Cover No Ko'S 18X12X4

$35.74In stock
Buy now
CS18126

Screw Cover No Ko'S 18X12X6

$39.56In stock
Buy now
CS18143

Screw Cover No Ko'S 18X14X3

$57.67In stock
Buy now
CS18184

Screw Cover No Ko'S 18X18X4

$51.40In stock
Buy now
CS18186

Screw Cover No Ko'S 18X18X6

$52.87In stock
Buy now
CS18188

Screw Cover No Ko'S 18X18X8

$68.92In stock
Buy now
CS20143

Screw Cover No Ko'S 20X14X3

$46.01In stock
Buy now
CS202010

Screw Cover No Ko'S 20X20X10

$168.60In stock
Buy now
CS24186

Screw Cover No Ko'S 24X18X6

$80.87In stock
Buy now
CS242410

Screw Cover No Ko'S 24X24X10

$146.17In stock
Buy now
CS24244

Screw Cover No Ko'S 24X24X4

$103.25In stock
Buy now
CS24246

Screw Cover No Ko'S 24X24X6

$102.26In stock
Buy now
CS24248

Screw Cover No Ko'S 24X24X8

$127.12Backorder
Buy now
CS302010

Screw Cover No Ko'S 30X20X10

$222.72In stock
Buy now
CS30246

Screw Cover No Ko'S 30X24X6

$133.03In stock
Buy now
CS362410

Screw Cover No Ko'S 36X24X10

$225.72Backorder
Buy now
CS36246

Screw Cover No Ko'S 36X24X6

$172.39In stock
Buy now
CS36248

Screw Cover No Ko'S 36X24X8

$193.25In stock
Buy now
CS363612

Screw Cover No Ko'S 36X36X12

$405.12Backorder
Buy now
CS36366

Screw Cover No Ko'S 36X36X6

$309.43In stock
Buy now
CS443

Screw Cover No Ko'S 4X4X3

$10.03In stock
Buy now
CS444

Screw Cover No Ko'S 4X4X4

$8.87In stock
Buy now
CS644

Screw Cover No Ko'S 6X4X4

$9.78In stock
Buy now
CS663

Screw Cover No Ko'S 6X6X3

$14.38In stock
Buy now
CS664

Screw Cover No Ko'S 6X6X4

$9.96In stock
Buy now
CS666

Screw Cover No Ko'S 6X6X6

$12.86In stock
Buy now
CS863

Screw Cover No Ko'S 8X6X3

$16.92In stock
Buy now

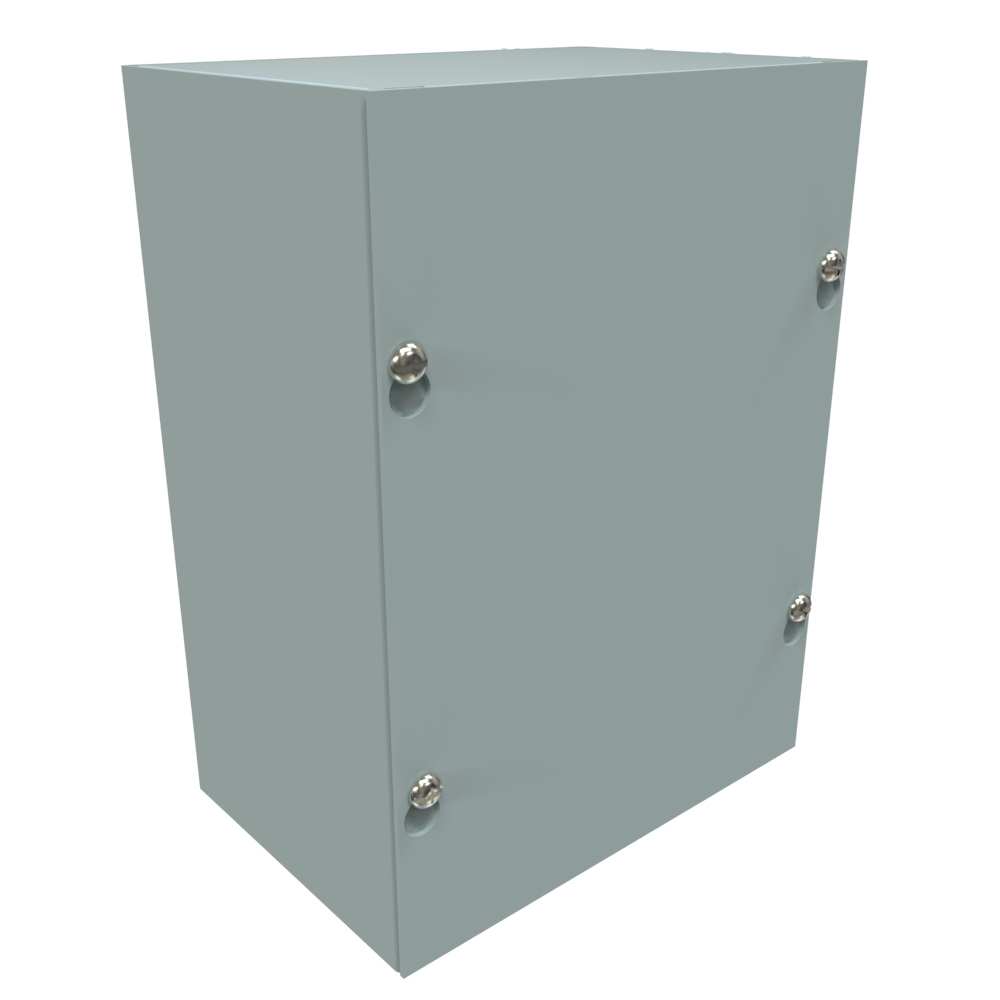

CS864

Screw Cover No Ko'S 8X6X4

$11.81In stock
Buy now
CS884

Screw Cover No Ko'S 8X8X4

$14.06In stock
Buy now
CS886

Screw Cover No Ko'S 8X8X6

$17.48In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DPriceOrder
CS4434.004.003.00$10.03In stockBuy now
CS6636.006.003.00$14.38In stockBuy now
CS8638.006.003.00$16.92In stockBuy now
CS1614316.0014.003.00$41.89In stockBuy now
CS1814318.0014.003.00$57.67In stockBuy now
CS2014320.0014.003.00$46.01In stockBuy now
CS4444.004.004.00$8.87In stockBuy now
CS6446.004.004.00$9.78In stockBuy now
CS6646.006.004.00$9.96In stockBuy now
CS8648.006.004.00$11.81In stockBuy now
CS8848.008.004.00$14.06In stockBuy now
CS108410.008.004.00$17.18In stockBuy now
CS1010410.0010.004.00$19.26In stockBuy now
CS128412.008.004.00$19.49In stockBuy now
CS1210412.0010.004.00$24.79In stockBuy now
CS1212412.0012.004.00$23.34BackorderBuy now
CS1612416.0012.004.00$29.65In stockBuy now
CS1812418.0012.004.00$35.74In stockBuy now
CS1818418.0018.004.00$51.40In stockBuy now
CS2424424.0024.004.00$103.25In stockBuy now
CS6666.006.006.00$12.86In stockBuy now
CS8868.008.006.00$17.48In stockBuy now
CS108610.008.006.00$21.27In stockBuy now
CS1010610.0010.006.00$22.53In stockBuy now
CS1210612.0010.006.00$30.87In stockBuy now

Application

  • ■Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

  • ■UL-50 Type 1
  • ■CSA Type 1
  • ■Complies with NEMA Type 1 IEC 60529, IP20
  • ■NEMA Type 1
  • ■IEC 60529, IP20

Construction

  • ■Formed and spot welded from 16 gauge (up to 30"x24"), 14 gauge (36"x24") or 12 gauge (36"x36") steel.
  • ■Flat steel covers fastened with plated steel screws.
  • ■Keyhole slots permit cover to be lifted off without removing screws entirely.
  • ■Through holes in back for wall mounting.
  • ■Grounding location embossed in body.

Finish

  • ■Enclosure and cover are finished in ANSI 61 gray powder coating.

Documents

Specification Sheet

Additional information

Part Details

Part No.Enclosure · HEnclosure · WEnclosure · D
CS4434.004.003.00
CS6636.006.003.00
CS8638.006.003.00
CS1614316.0014.003.00
CS1814318.0014.003.00
CS2014320.0014.003.00
CS4444.004.004.00
CS6446.004.004.00
CS6646.006.004.00
CS8648.006.004.00
CS8848.008.004.00
CS108410.008.004.00
CS1010410.0010.004.00
CS128412.008.004.00
CS1210412.0010.004.00
CS1212412.0012.004.00
CS1612416.0012.004.00
CS1812418.0012.004.00
CS1818418.0018.004.00
CS2424424.0024.004.00
CS6666.006.006.00
CS8868.008.006.00
CS108610.008.006.00
CS1010610.0010.006.00
CS1210612.0010.006.00
CS1212612.0012.006.00
CS1612616.0012.006.00
CS1616616.0016.006.00
CS1812618.0012.006.00
CS1818618.0018.006.00
CS2418624.0018.006.00
CS2424624.0024.006.00
CS3024630.0024.006.00
CS3624636.0024.006.00
CS3636636.0036.006.00
CS1212812.0012.008.00
CS1616816.0016.008.00
CS1818818.0018.008.00
CS2424824.0024.008.00
CS3624836.0024.008.00
CS20201020.0020.0010.00
CS24241024.0024.0010.00
CS30201030.0020.0010.00
CS36241036.0024.0010.00
CS36361236.0036.0012.00
