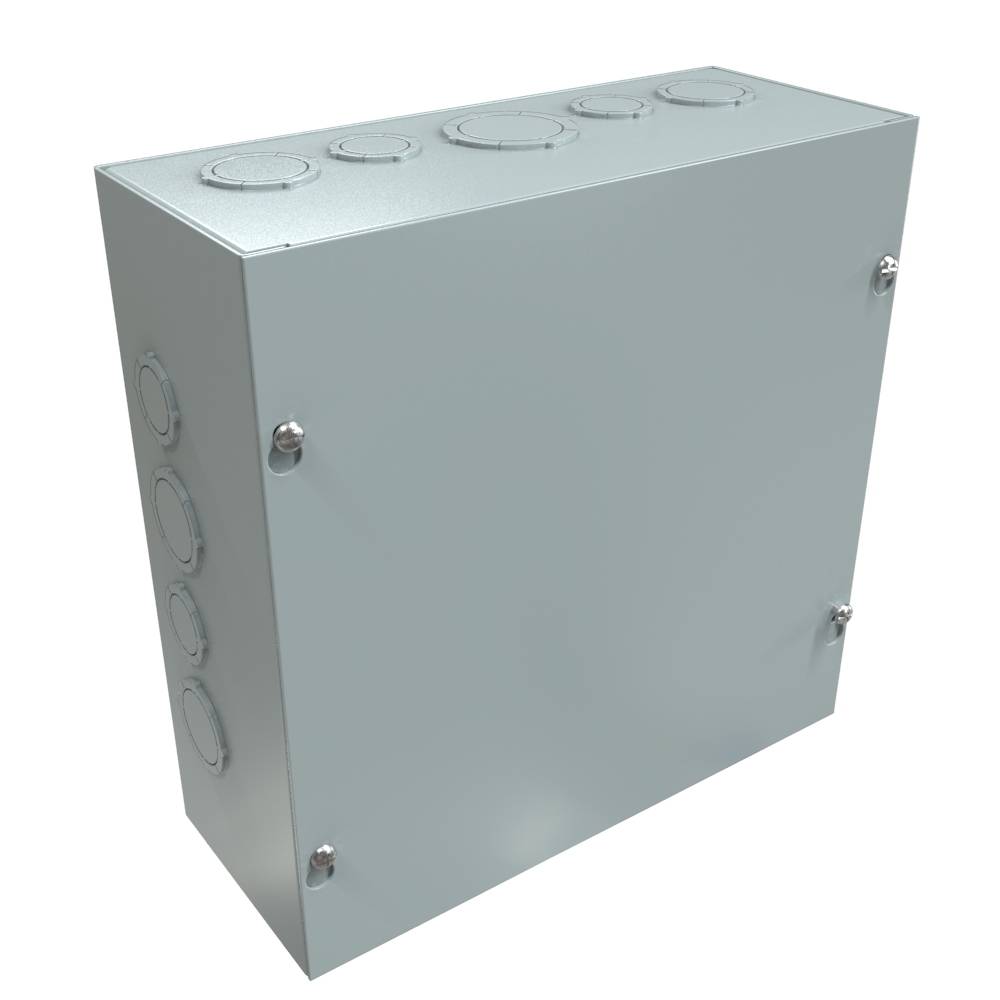

Type 1 Mild Steel Junction Box CSKO Series

Type 1 Mild Steel Junction Box · CSKO Series

Brand: Hammond Manufacturing · 41 part numbers

Screw Cover and w/ Knockouts

  • ■Designed for general purpose indoor commercial use as a junction, pull or switch box.
  • ■UL-50 Type 1
  • ■CSA Type 1
  • ■Complies with: NEMA Type 1 IEC 60529, IP20
  • ■NEMA Type 1
  • ■IEC 60529, IP20

from $8.87

41 of 41 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your CSKO Series part number

Filter 41 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

41 of 41 part numbers · 41 priced online

CSKO443

Screw Cover W/Ko'S 4X4X3

$10.03In stock
Buy now
CSKO444

Screw Cover W/Ko'S 4X4X4

$8.87In stock
Buy now
CSKO644

Screw Cover W/Ko'S 6X4X4

$9.78In stock
Buy now
CSKO663

Screw Cover W/Ko'S 6X6X3

$14.38In stock
Buy now
CSKO664

Screw Cover W/Ko'S 6X6X4

$9.96Backorder
Buy now
CSKO666

Screw Cover W/Ko'S 6X6X6

$12.86Backorder
Buy now
CSKO863

Screw Cover W/Ko'S 8X6X3

$16.92In stock
Buy now
CSKO864

Screw Cover W/Ko'S 8X6X4

$11.81In stock
Buy now
CSKO884

Screw Cover W/Ko'S 8X8X4

$14.06In stock
Buy now
CSKO886

Screw Cover W/Ko'S 8X8X6

$17.48In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DPriceOrder
CSKO4434.004.003.00$10.03In stockBuy now
CSKO6636.006.003.00$14.38In stockBuy now
CSKO8638.006.003.00$16.92In stockBuy now
CSKO1614316.0014.003.00$41.89In stockBuy now
CSKO1814318.0014.003.00$45.77In stockBuy now
CSKO2014320.0014.003.00$47.91In stockBuy now
CSKO4444.004.004.00$8.87In stockBuy now
CSKO6446.004.004.00$9.78In stockBuy now
CSKO6646.006.004.00$9.96BackorderBuy now
CSKO8648.006.004.00$11.81In stockBuy now
CSKO8848.008.004.00$14.06In stockBuy now
CSKO108410.008.004.00$17.18In stockBuy now
CSKO1010410.0010.004.00$19.26In stockBuy now
CSKO128412.008.004.00$19.49In stockBuy now
CSKO1210412.0010.004.00$24.79In stockBuy now
CSKO1212412.0012.004.00$23.34In stockBuy now
CSKO1612416.0012.004.00$28.22BackorderBuy now
CSKO1812418.0012.004.00$35.74In stockBuy now
CSKO1818418.0018.004.00$51.40In stockBuy now
CSKO2424424.0024.004.00$103.25In stockBuy now
CSKO6666.006.006.00$12.86BackorderBuy now
CSKO8868.008.006.00$17.48In stockBuy now
CSKO108610.008.006.00$21.27In stockBuy now
CSKO1010610.0010.006.00$22.53In stockBuy now
CSKO1210612.0010.006.00$30.87In stockBuy now

Application

  • ■Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards

  • ■UL-50 Type 1
  • ■CSA Type 1
  • ■Complies with: NEMA Type 1 IEC 60529, IP20
  • ■NEMA Type 1
  • ■IEC 60529, IP20

Construction

  • ■Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
  • ■Flat steel covers fastened with plated steel screws.
  • ■Keyhole slots permit cover to be lifted off without removing screws entirely.
  • ■Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
  • ■Through holes in back for wall mounting.
  • ■Grounding location embossed in body.

Finish

  • ■Enclosure and cover are finished in ANSI 61 gray powder coating.

Documents

Specification Sheet

Additional information

Part Details

Part No.Enclosure · HEnclosure · WEnclosure · D
CSKO4434.004.003.00
CSKO6636.006.003.00
CSKO8638.006.003.00
CSKO1614316.0014.003.00
CSKO1814318.0014.003.00
CSKO2014320.0014.003.00
CSKO4444.004.004.00
CSKO6446.004.004.00
CSKO6646.006.004.00
CSKO8648.006.004.00
CSKO8848.008.004.00
CSKO108410.008.004.00
CSKO1010410.0010.004.00
CSKO128412.008.004.00
CSKO1210412.0010.004.00
CSKO1212412.0012.004.00
CSKO1612416.0012.004.00
CSKO1812418.0012.004.00
CSKO1818418.0018.004.00
CSKO2424424.0024.004.00
CSKO6666.006.006.00
CSKO8868.008.006.00
CSKO108610.008.006.00
CSKO1010610.0010.006.00
CSKO1210612.0010.006.00
CSKO1212612.0012.006.00
CSKO1612616.0012.006.00
CSKO1616616.0016.006.00
CSKO1812618.0012.006.00
CSKO1818618.0018.006.00
CSKO2418624.0018.006.00
CSKO2424624.0024.006.00
CSKO3024630.0024.006.00
CSKO3624636.0024.006.00
CSKO1212812.0012.008.00
CSKO1616816.0016.008.00
CSKO2424824.0024.008.00
CSKO20201020.0020.0010.00
CSKO24241024.0024.0010.00
CSKO30201030.0020.0010.00
CSKO36241036.0024.0010.00
