Hinge Cover W/Ko'S 10X10X4
$21.62In stock
Buy now
Type 1 Mild Steel Junction Box · CHKO Series
Brand: Hammond Manufacturing · 27 part numbers
Hinge Door with Quarter Turn and w/ Knockouts
- ■Designed for general purpose indoor commercial use as a junction, pull or switch box.
- ■Hinged cover with latch provides easy access during installation and maintenance.
- ■UL-50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
from $10.80
27 of 27 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CHKO Series part number
Filter 27 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
27 of 27 part numbers · 27 priced online
Hinge Cover W/Ko'S 10X10X6
$26.58Backorder
Buy now
Hinge Cover W/Ko'S 10X8X4
$19.72In stock
Buy now
Hinge Cover W/Ko'S 10X8X6
$23.43In stock
Buy now
Hinge Cover W/Ko'S 12X10X4
$27.25Backorder
Buy now
Hinge Cover W/Ko'S 12X10X6
$33.96In stock
Buy now
Hinge Cover W/Ko'S 12X12X4
$26.22In stock
Buy now
Hinge Cover W/Ko'S 12X12X6
$32.44Backorder
Buy now
Hinge Cover W/Ko'S 12X8X4
$22.55In stock
Buy now
Hinge Cover W/Ko'S 16X12X4
$32.62In stock
Buy now
Hinge Cover W/Ko'S 16X12X6
$40.96In stock
Buy now
Hinge Cover W/Ko'S 16X16X6
$45.84In stock
Buy now
Hinge Cover W/Ko'S 18X12X4
$39.29In stock
Buy now
Hinge Cover W/Ko'S 18X12X6
$45.84In stock
Buy now
Hinge Cover W/Ko'S 18X18X6
$58.15In stock
Buy now
Hinge Cover W/Ko'S 24X18X6
$106.89In stock
Buy now
Hinge Cover W/Ko'S 24X24X6
$132.95In stock
Buy now
Hinge Cover W/Ko'S 30X24X6
$159.24In stock
Buy now
Hinge Cover W/Ko'S 36X24X6
$185.49In stock
Buy now
Hinge Cover W/Ko'S 36X24X8
$199.23In stock
Buy now
Hinge Cover W/Ko'S 6X4X4
$10.80In stock
Buy now
Hinge Cover W/Ko'S 6X6X3.5
$11.70In stock
Buy now
Hinge Cover W/Ko'S 6X6X4
$11.09In stock
Buy now
Hinge Cover W/Ko'S 6X6X6
$14.88In stock
Buy now
Hinge Cover W/Ko'S 8X6X4
$13.68Backorder
Buy now
Hinge Cover W/Ko'S 8X8X4
$15.73In stock
Buy now
Hinge Cover W/Ko'S 8X8X6
$22.43In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| CHKO663 | 6.00 | 6.00 | 3.50 | $11.70In stock | Buy now |
| CHKO644 | 6.00 | 4.00 | 4.00 | $10.80In stock | Buy now |
| CHKO664 | 6.00 | 6.00 | 4.00 | $11.09In stock | Buy now |
| CHKO864 | 8.00 | 6.00 | 4.00 | $13.68Backorder | Buy now |

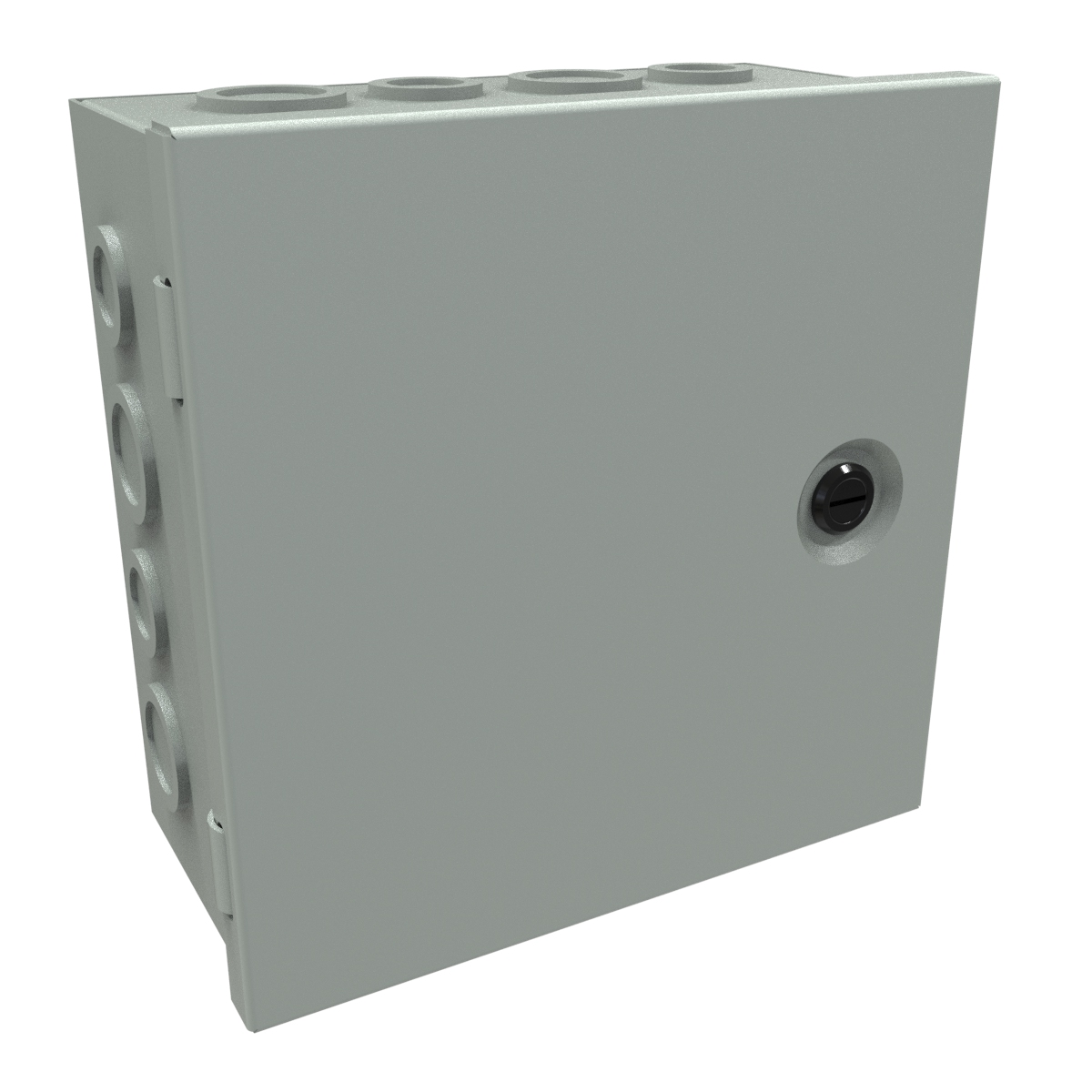

| CHKO884 | 8.00 | 8.00 | 4.00 | $15.73In stock | Buy now |
| CHKO1084 | 10.00 | 8.00 | 4.00 | $19.72In stock | Buy now |

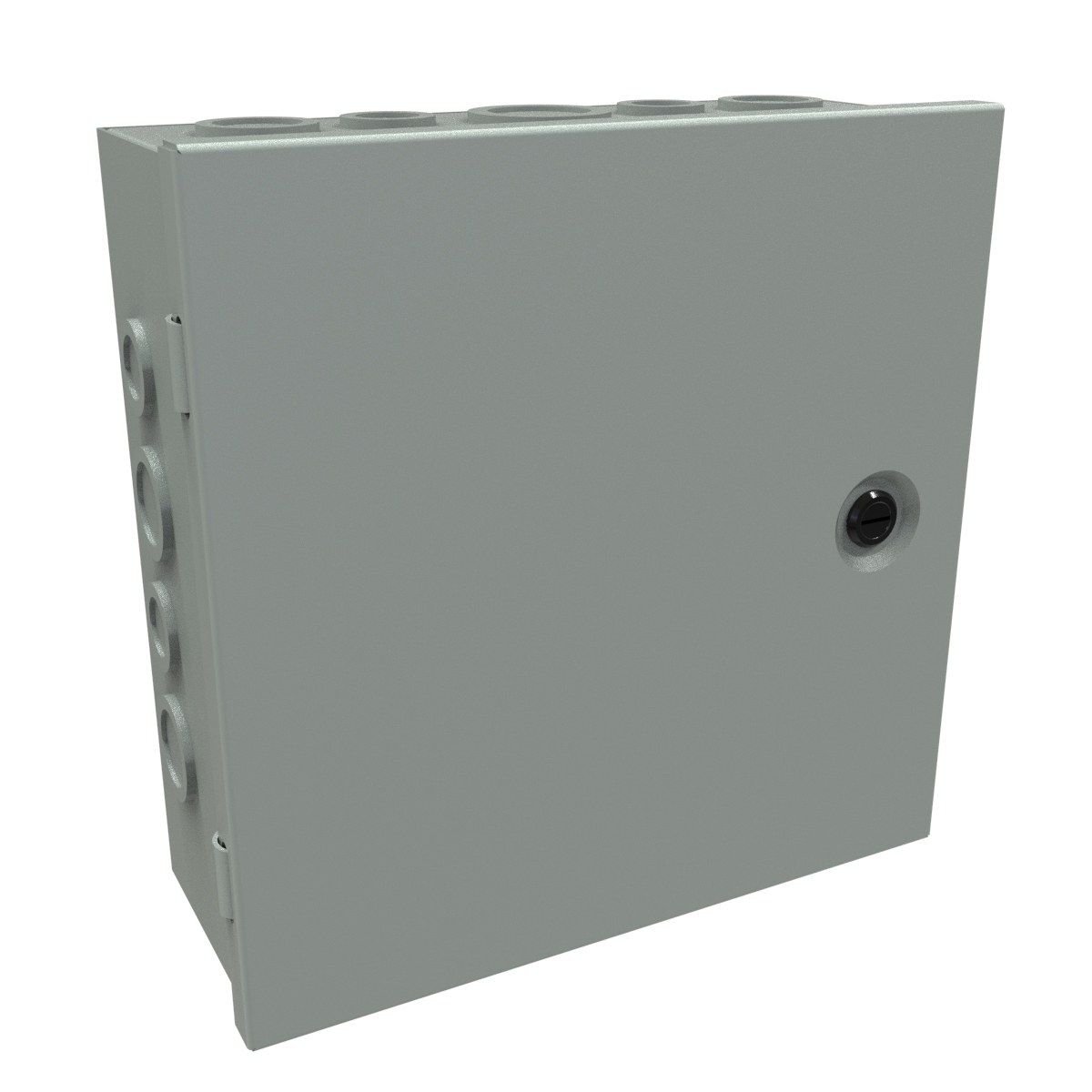

| CHKO10104 | 10.00 | 10.00 | 4.00 | $21.62In stock | Buy now |
| CHKO1284 | 12.00 | 8.00 | 4.00 | $22.55In stock | Buy now |
| CHKO12104 | 12.00 | 10.00 | 4.00 | $27.25Backorder | Buy now |
| CHKO12124 | 12.00 | 12.00 | 4.00 | $26.22In stock | Buy now |
| CHKO16124 | 16.00 | 12.00 | 4.00 | $32.62In stock | Buy now |
| CHKO18124 | 18.00 | 12.00 | 4.00 | $39.29In stock | Buy now |
| CHKO666 | 6.00 | 6.00 | 6.00 | $14.88In stock | Buy now |
| CHKO886 | 8.00 | 8.00 | 6.00 | $22.43In stock | Buy now |

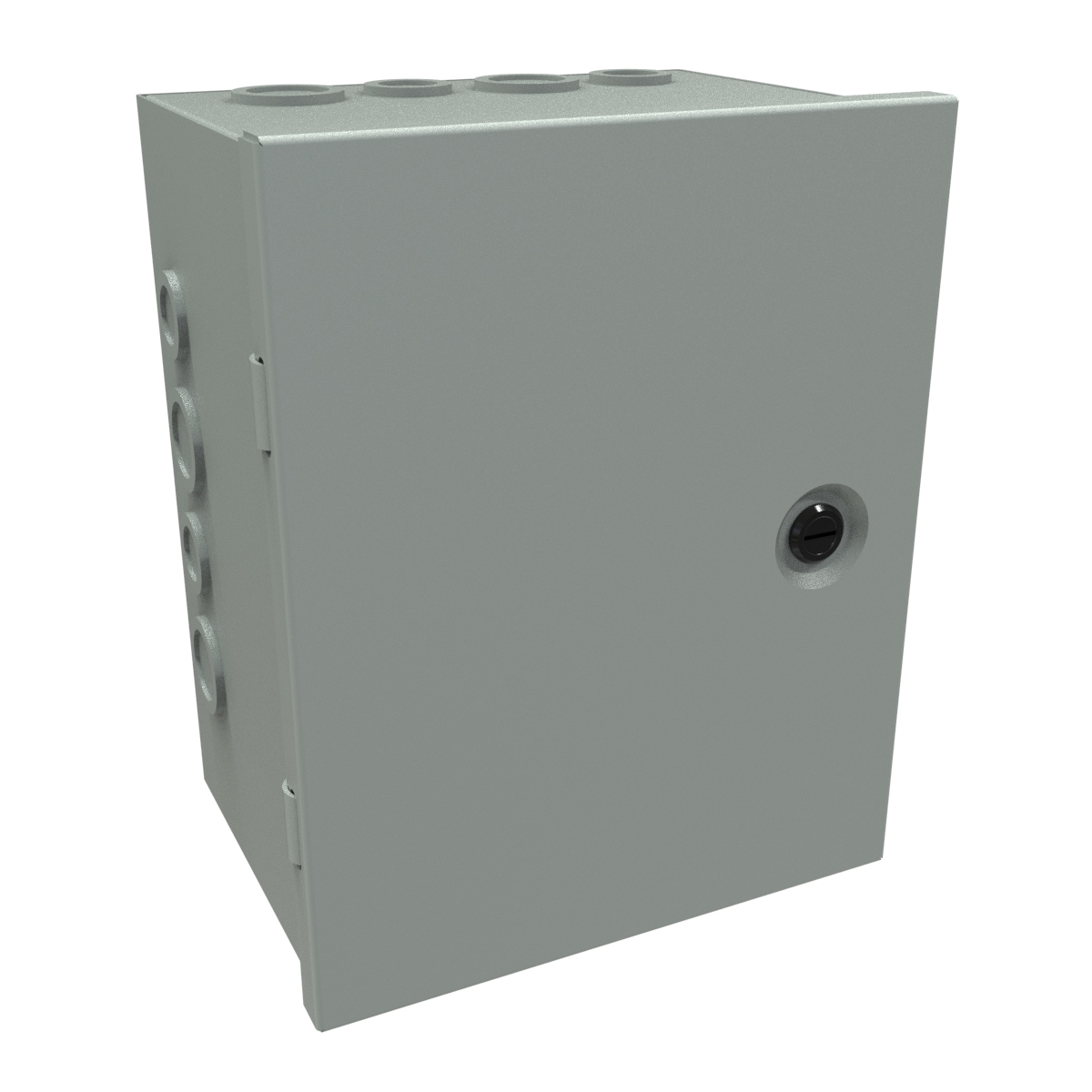

| CHKO1086 | 10.00 | 8.00 | 6.00 | $23.43In stock | Buy now |
| CHKO10106 | 10.00 | 10.00 | 6.00 | $26.58Backorder | Buy now |

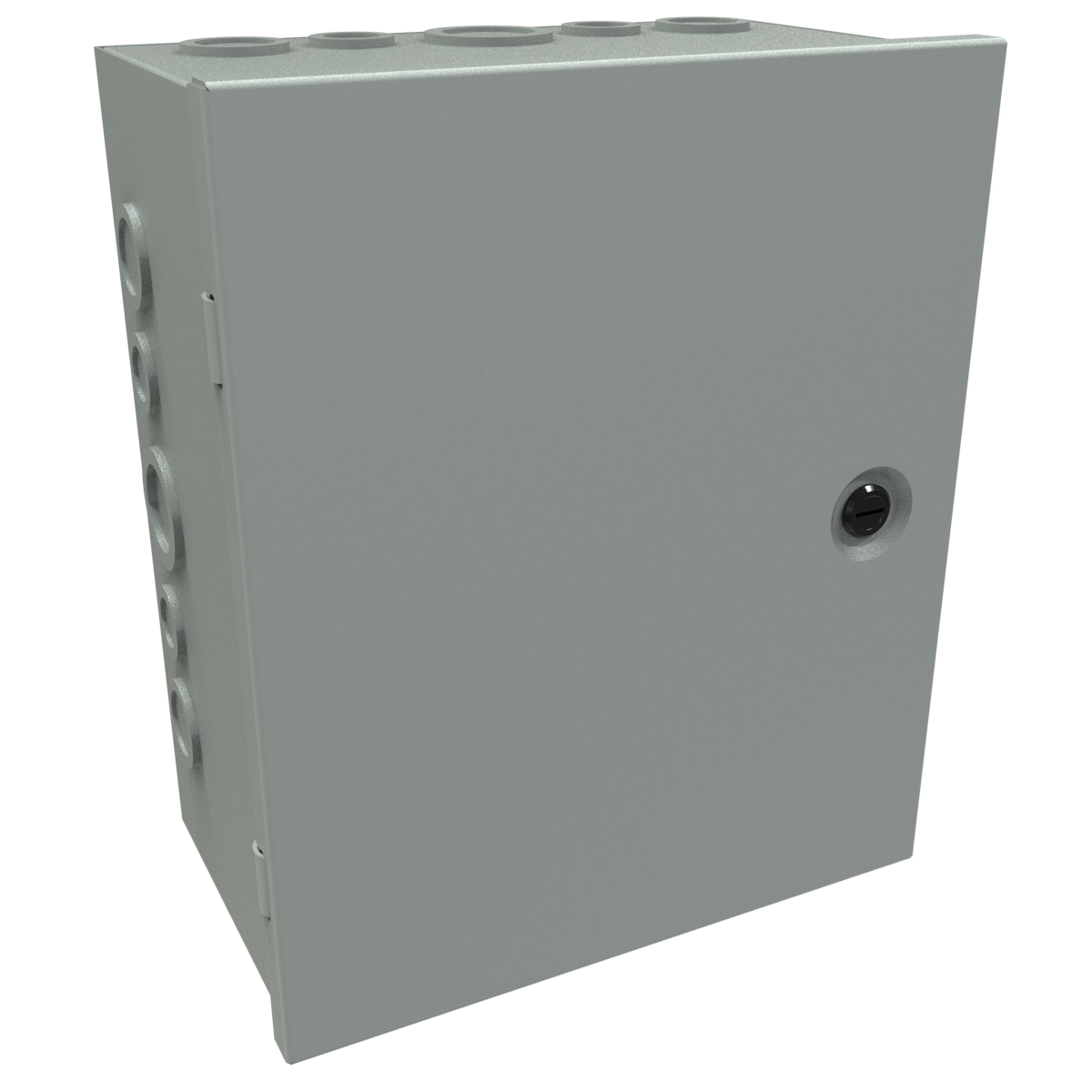

| CHKO12106 | 12.00 | 10.00 | 6.00 | $33.96In stock | Buy now |

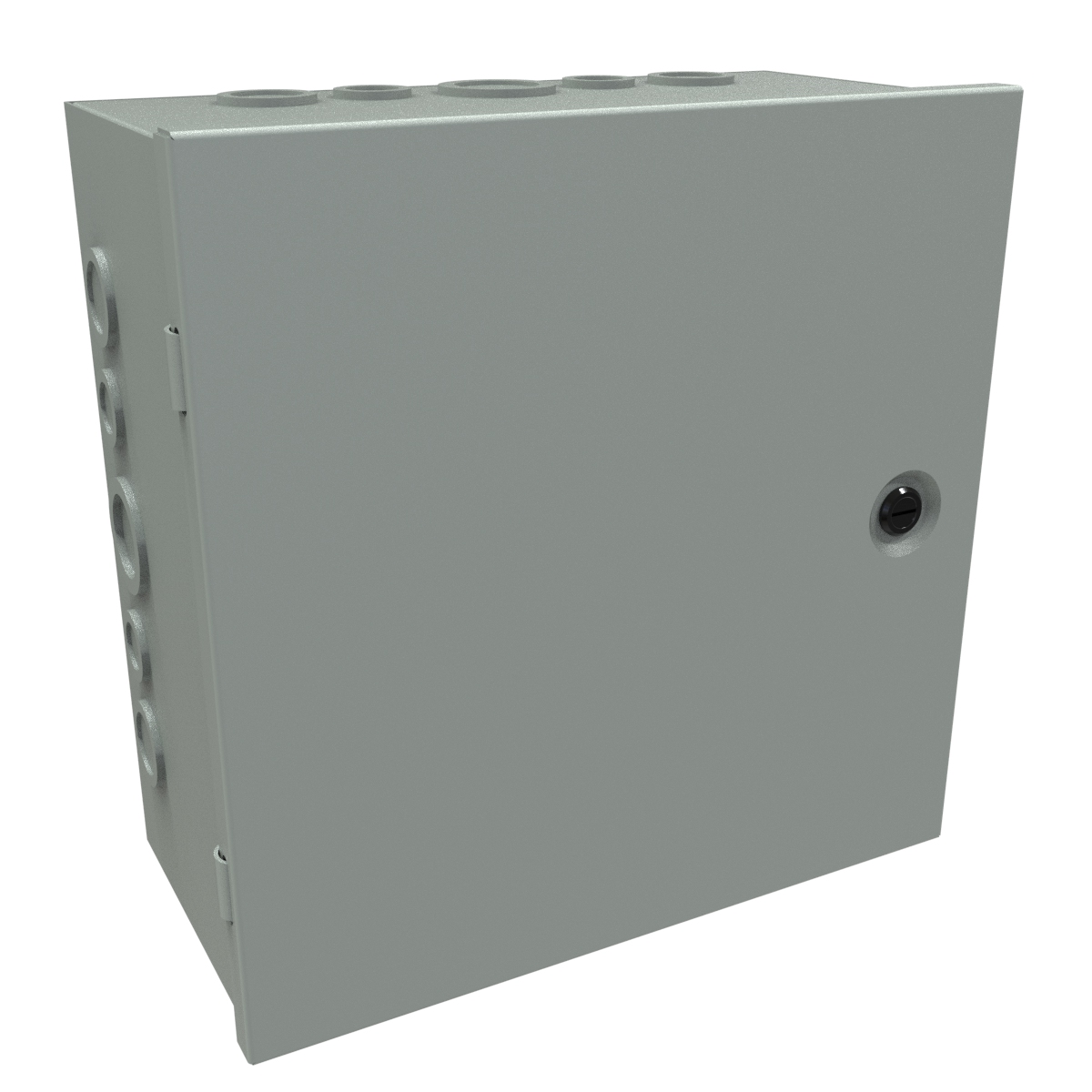

| CHKO12126 | 12.00 | 12.00 | 6.00 | $32.44Backorder | Buy now |

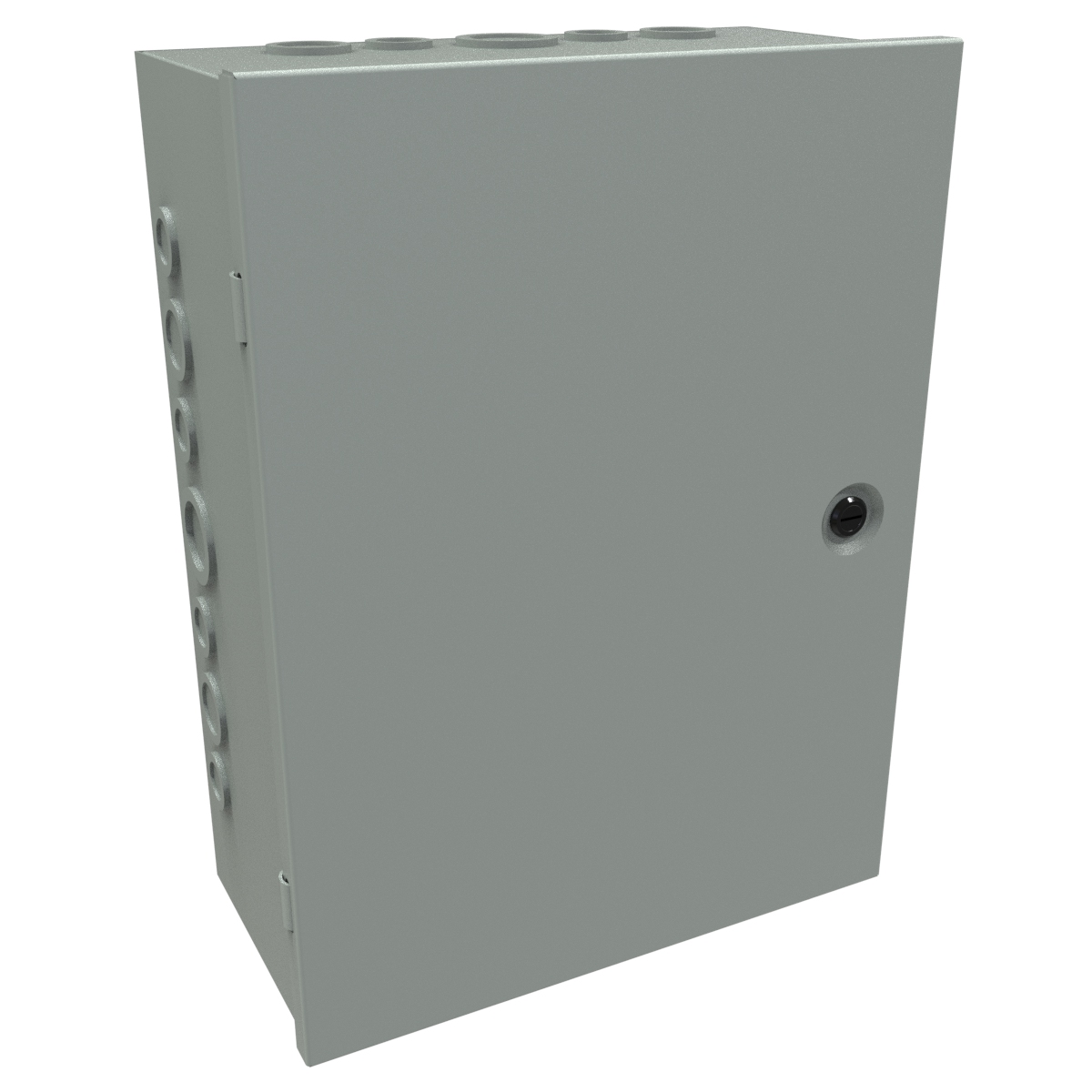

| CHKO16126 | 16.00 | 12.00 | 6.00 | $40.96In stock | Buy now |
| CHKO16166 | 16.00 | 16.00 | 6.00 | $45.84In stock | Buy now |

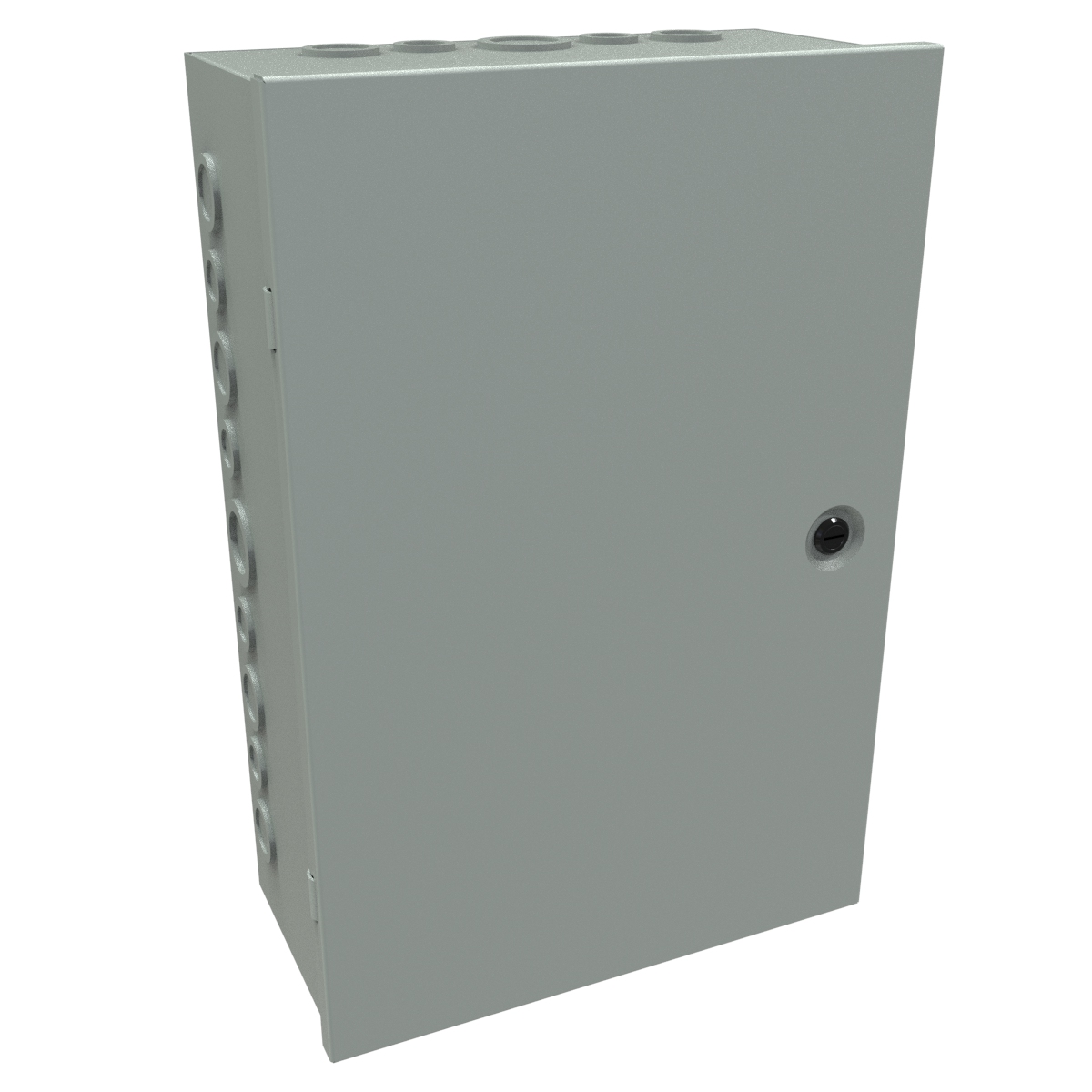

| CHKO18126 | 18.00 | 12.00 | 6.00 | $45.84In stock | Buy now |
| CHKO18186 | 18.00 | 18.00 | 6.00 | $58.15In stock | Buy now |

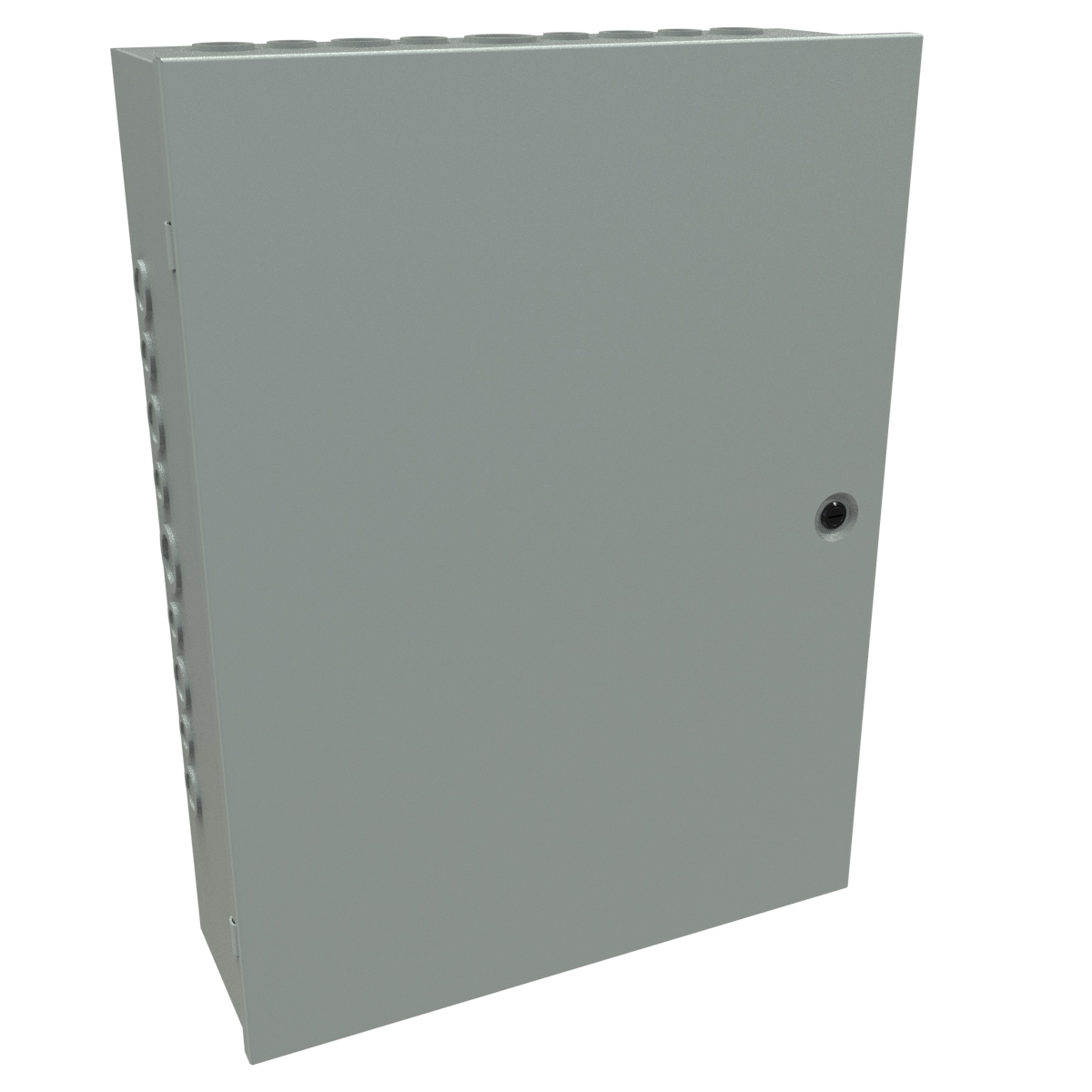

| CHKO24186 | 24.00 | 18.00 | 6.00 | $106.89In stock | Buy now |
| CHKO24246 | 24.00 | 24.00 | 6.00 | $132.95In stock | Buy now |
| CHKO30246 | 30.00 | 24.00 | 6.00 | $159.24In stock | Buy now |

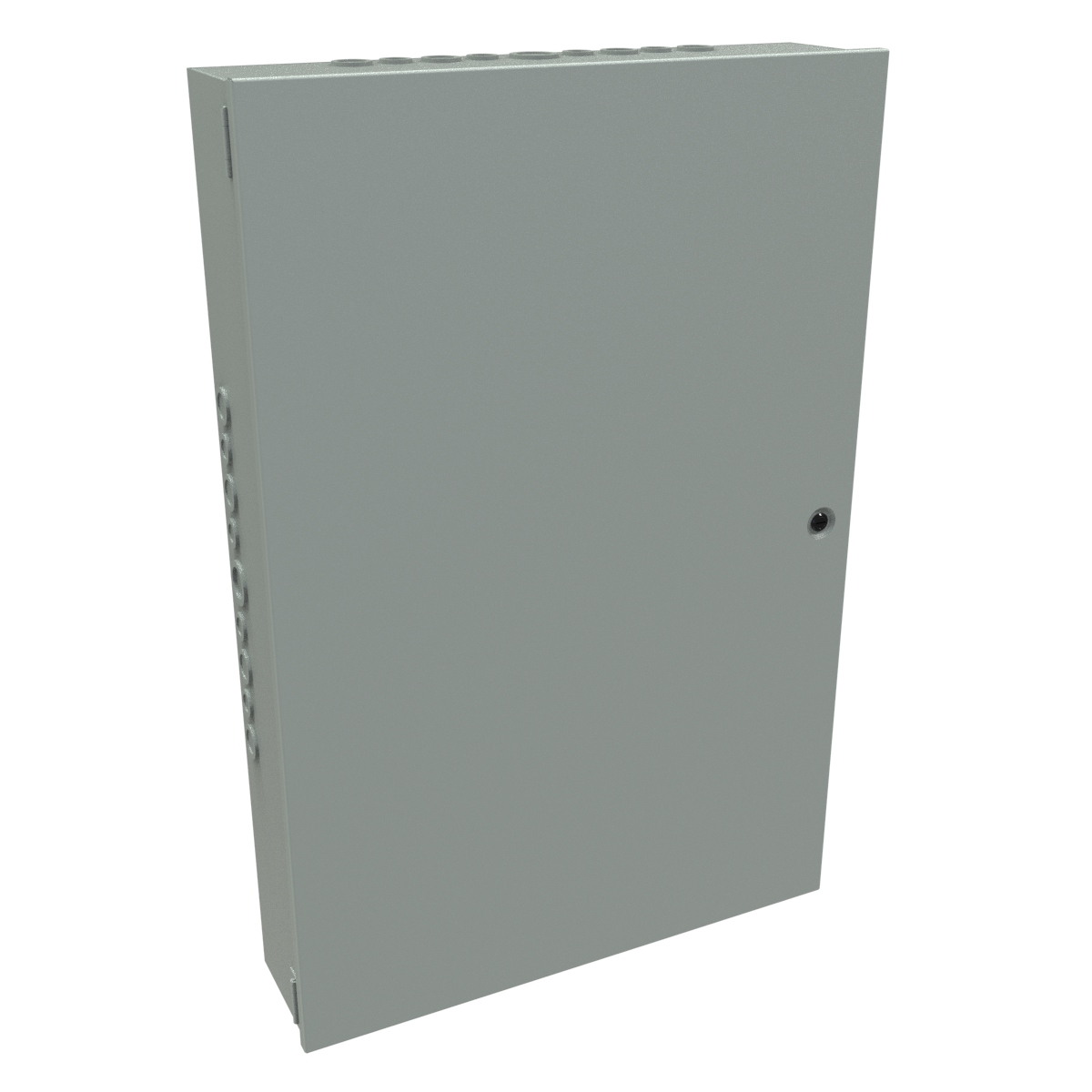

| CHKO36246 | 36.00 | 24.00 | 6.00 | $185.49In stock | Buy now |
| CHKO36248 | 36.00 | 24.00 | 8.00 | $199.23In stock | Buy now |
Application
- ■Designed for general purpose indoor commercial use as a junction, pull or switch box.
- ■Hinged cover with latch provides easy access during installation and maintenance.
Standards
- ■UL-50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 16 gauge (up to 30"x24") or 14 gauge (36"x24") steel.
- ■Formed steel covers close by use of slotted quarter turn latch.

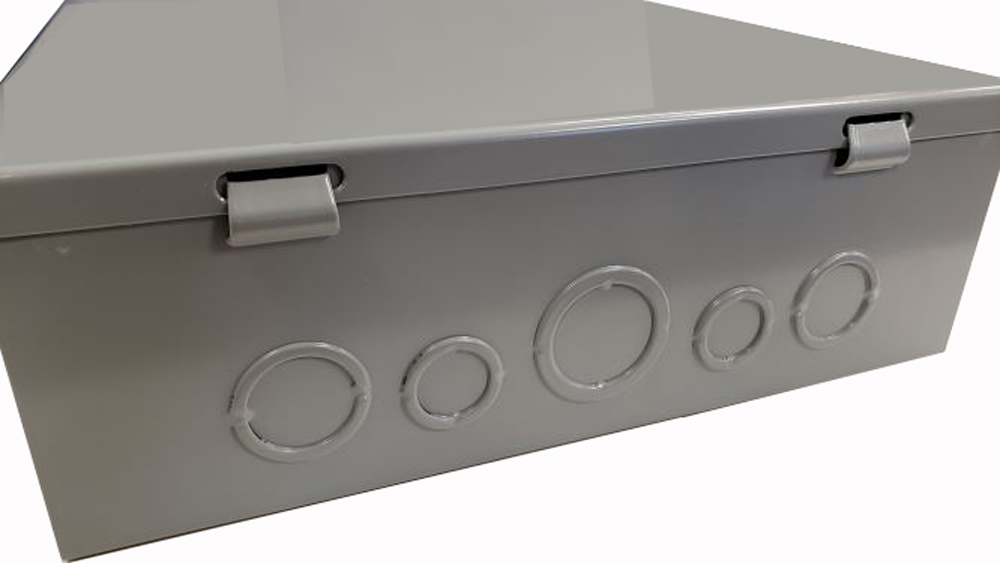

- ■Full swing, hinged door. NOTE: Former butt hinge being transitioned to new integral design starting late 2020. See image gallery for view of new hinge.
- ■Easily removed knockouts on all 4 sides (see drawings for sizes and locations).
- ■Through holes in back for wall mounting.
- ■Grounding location embossed in body.
Finish
- ■Enclosure and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| CHKO663 | 6.00 | 6.00 | 3.50 |
| CHKO644 | 6.00 | 4.00 | 4.00 |
| CHKO664 | 6.00 | 6.00 | 4.00 |
| CHKO864 | 8.00 | 6.00 | 4.00 |
| CHKO884 | 8.00 | 8.00 | 4.00 |
| CHKO1084 | 10.00 | 8.00 | 4.00 |
| CHKO10104 | 10.00 | 10.00 | 4.00 |
| CHKO1284 | 12.00 | 8.00 | 4.00 |
| CHKO12104 | 12.00 | 10.00 | 4.00 |
| CHKO12124 | 12.00 | 12.00 | 4.00 |
| CHKO16124 | 16.00 | 12.00 | 4.00 |
| CHKO18124 | 18.00 | 12.00 | 4.00 |
| CHKO666 | 6.00 | 6.00 | 6.00 |
| CHKO886 | 8.00 | 8.00 | 6.00 |
| CHKO1086 | 10.00 | 8.00 | 6.00 |
| CHKO10106 | 10.00 | 10.00 | 6.00 |
| CHKO12106 | 12.00 | 10.00 | 6.00 |
| CHKO12126 | 12.00 | 12.00 | 6.00 |
| CHKO16126 | 16.00 | 12.00 | 6.00 |
| CHKO16166 | 16.00 | 16.00 | 6.00 |
| CHKO18126 | 18.00 | 12.00 | 6.00 |
| CHKO18186 | 18.00 | 18.00 | 6.00 |
| CHKO24186 | 24.00 | 18.00 | 6.00 |
| CHKO24246 | 24.00 | 24.00 | 6.00 |
| CHKO30246 | 30.00 | 24.00 | 6.00 |
| CHKO36246 | 36.00 | 24.00 | 6.00 |
| CHKO36248 | 36.00 | 24.00 | 8.00 |
