Hammond CHKO884 8x8x4 in NEMA 1 Hinged Junction Box, Knockouts
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8 x 8 x 4 in (203 x 203 x 102 mm) NEMA Type 1 junction box
- Full swing hinged door with slotted quarter turn latch
- Easily removed knockouts on all 4 sides
- 16 gauge steel, formed and spot welded
- ANSI 61 gray powder coat finish
- UL-50 Type 1, CSA Type 1, IEC 60529 IP20
- Through holes in back for wall mounting; embossed grounding location

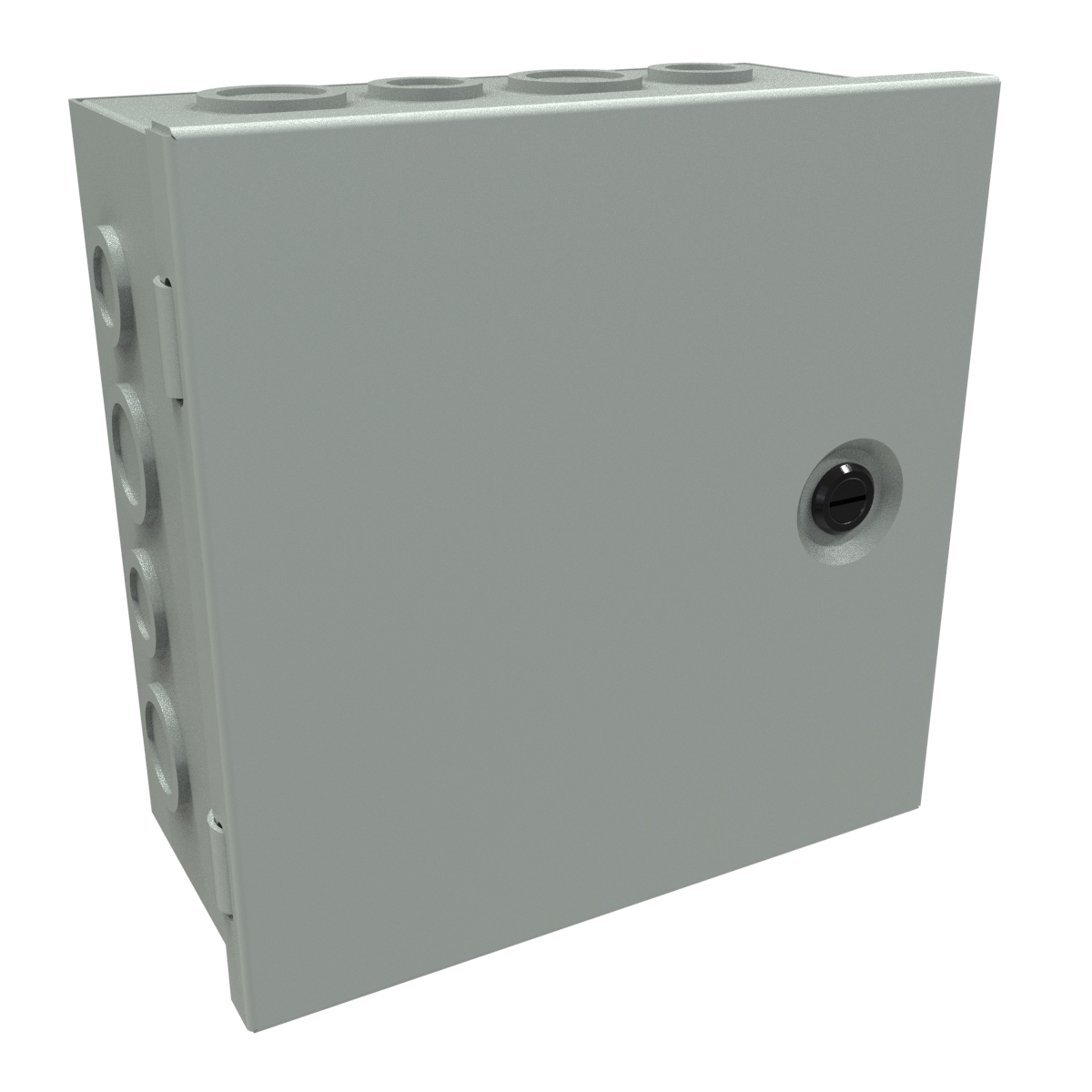

The CHKO884 is a square 8 x 8 x 4 in (203 x 203 x 102 mm) Type 1 mild steel junction box with a hinged door and quarter turn latch. A 7.00 in wide door opening gives more working width than the 6 in wide sizes, for general purpose indoor junction, pull or switch box installations.
The body is formed and spot welded from 16 gauge steel, and the formed steel cover closes with a slotted quarter turn latch. Easily removed knockouts are provided on all 4 sides, through holes in the back allow wall mounting, and a grounding location is embossed in the body. Enclosure and cover are finished in ANSI 61 gray powder coating. Hammond notes that the former butt hinge is being transitioned to a new integral hinge design starting late 2020.
- Overall size: 8 in x 8 in x 4 in (203 mm x 203 mm x 102 mm)
- Door: 8.30 in wide x 8.38 in high (drawing)
- Door opening: 7.00 in wide x 6.75 in high (drawing)
- Knockouts: Ø1.01 / Ø1.38 and Ø0.76 / Ø1.13 (drawing details Z and Y)
- Shipping weight: 6 lbs (2.72 kg)
The CHKO884 is UL-50 Type 1 and CSA Type 1, and complies with NEMA Type 1 and IEC 60529 IP20 (UL File E65324, CSA Cert. LR21001). It is REACH and RoHS compliant and ships in a bag. The series specification sheet lists a Type 1 Lock Kit and CS Perforated Panels as accessories.
Ideal For
- Indoor commercial junction box
- Pull box for building wiring
- Switch box
- General purpose indoor wiring enclosure
Mounting
| Accessories | Type 1 Lock Kit; CS Perforated Panels |
| Wall Mounting | Through holes in back for wall mounting |
Overview
| Style | Hinge Door with Quarter Turn and w/ Knockouts |
| Series | CHKO Series - Type 1 Mild Steel Junction Box |
| Application | General purpose indoor commercial use as a junction, pull or switch box |
| Part Number | CHKO884 |
| Long Description | N1 Hinge Cover w/KO's - 8 x 8 x 4 - Steel/Gray |
| Short Description | HINGE COVER W/KO'S 8X8X4 |
Dimensions
| Enclosure Depth | 4.00 in (102 mm) |
| Enclosure Width | 8.00 in (203 mm) |
| Enclosure Height | 8.00 in (203 mm) |
| Size (H X W X D) | 8 in x 8 in x 4 in (203 mm x 203 mm x 102 mm) |
| Door Size (W X H, Drawing) | 8.30 in x 8.38 in |
| Door Opening (W X H, Drawing) | 7.00 in x 6.75 in |
| Hole Diameter (Drawing, Bottom View) | Ø0.28 (typ.) |
Identifiers
| UPC | 623980361017 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 6 lbs (2.72 kg) |
Construction & Finish
| Door | Full swing, hinged door (former butt hinge transitioning to new integral design starting late 2020) |
| Cover | Formed steel cover, closes by slotted quarter turn latch |
| Gauge | 16 gauge |
| Colour | Painted gray |
| Finish | ANSI 61 gray powder coating (enclosure and cover) |
| Material | Steel (mild steel) |
| Grounding | Grounding location embossed in body |
| Knockouts | Easily removed knockouts on all 4 sides |
| Construction | Formed and spot welded |
| Knockout Sizes (Drawing) | Ø1.01 / Ø1.38 (Detail Z); Ø0.76 / Ø1.13 (Detail Y) |
Environmental & Protection
| Enclosure Rating | NEMA Type 1 |
| Ingress Protection | IEC 60529, IP20 |
Compliance & Certifications
| UL | UL-50 Type 1 |
| CSA | CSA Type 1 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the CHKO884 suitable for outdoor use?▾
It is rated NEMA Type 1 and IP20 and is designed for general purpose indoor commercial use.
Is there a deeper 8 x 8 in version?▾
Yes. The series lists the CHKO886 at 8 x 8 x 6 in alongside this 4 in deep CHKO884.
How does the door close?▾
The formed steel cover is a full swing hinged door that closes with a slotted quarter turn latch.
Does it have knockouts?▾
Yes. Easily removed knockouts are on all 4 sides; the drawing shows knockout sizes of Ø1.01/Ø1.38 and Ø0.76/Ø1.13.
How is it mounted?▾
Through holes in the back of the enclosure are provided for wall mounting.
What certifications does it have?▾
UL-50 Type 1 (UL File E65324) and CSA Type 1 (CSA Cert. LR21001); it complies with NEMA Type 1 and IEC 60529 IP20 and is REACH and RoHS compliant.
