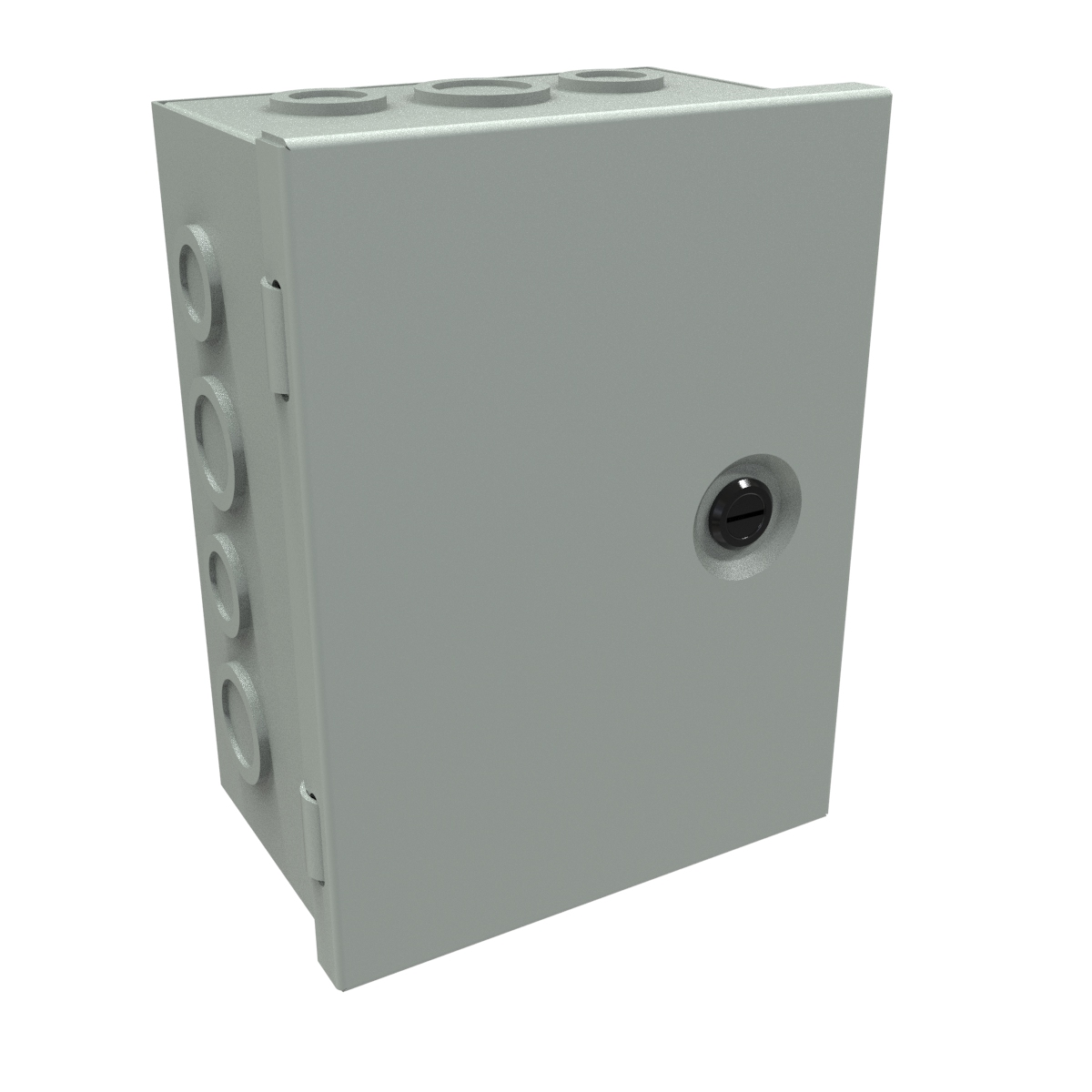

Hammond CHKO864 8x6x4 in NEMA 1 Hinged Junction Box, Knockouts
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 8 x 6 x 4 in (203 x 152 x 102 mm) NEMA Type 1 junction box
- Full swing hinged door with slotted quarter turn latch
- Easily removed knockouts on all 4 sides
- 16 gauge steel, formed and spot welded
- ANSI 61 gray powder coat finish
- UL-50 Type 1, CSA Type 1, IEC 60529 IP20
- Through holes in back for wall mounting; embossed grounding location
The CHKO864 is an 8 in high x 6 in wide x 4 in deep (203 x 152 x 102 mm) NEMA Type 1 junction box in mild steel. Its vertical format gives a 6.75 in high door opening behind a full swing hinged door with a slotted quarter turn latch, for indoor commercial junction, pull or switch box use.
The body is formed and spot welded from 16 gauge steel, and the formed steel cover closes with a slotted quarter turn latch. Easily removed knockouts are provided on all 4 sides, through holes in the back allow wall mounting, and a grounding location is embossed in the body. Enclosure and cover are finished in ANSI 61 gray powder coating. Hammond notes that the former butt hinge is being transitioned to a new integral hinge design starting late 2020.
- Overall size: 8 in x 6 in x 4 in (203 mm x 152 mm x 102 mm)
- Door: 6.30 in wide x 8.38 in high (drawing)
- Door opening: 5.00 in wide x 6.75 in high (drawing)
- Knockouts: Ø1.01 / Ø1.38 and Ø0.76 / Ø1.13 (drawing details Z and Y)
- Shipping weight: 4 lbs (1.81 kg)
The CHKO864 is UL-50 Type 1 and CSA Type 1, and complies with NEMA Type 1 and IEC 60529 IP20 (UL File E65324, CSA Cert. LR21001). It is REACH and RoHS compliant and ships in a bag. The series specification sheet lists a Type 1 Lock Kit and CS Perforated Panels as accessories.
Ideal For
- Indoor commercial junction box
- Pull box for building wiring
- Switch box
- General purpose indoor wiring enclosure
Mounting
| Accessories | Type 1 Lock Kit; CS Perforated Panels |
| Wall Mounting | Through holes in back for wall mounting |
Overview
| Style | Hinge Door with Quarter Turn and w/ Knockouts |
| Series | CHKO Series - Type 1 Mild Steel Junction Box |
| Application | General purpose indoor commercial use as a junction, pull or switch box |
| Part Number | CHKO864 |
| Long Description | N1 Hinge Cover w/KO's - 8 x 6 x 4 - Steel/Gray |
| Short Description | HINGE COVER W/KO'S 8X6X4 |
Dimensions
| Enclosure Depth | 4.00 in (102 mm) |
| Enclosure Width | 6.00 in (152 mm) |
| Enclosure Height | 8.00 in (203 mm) |
| Size (H X W X D) | 8 in x 6 in x 4 in (203 mm x 152 mm x 102 mm) |
| Door Size (W X H, Drawing) | 6.30 in x 8.38 in |
| Door Opening (W X H, Drawing) | 5.00 in x 6.75 in |
| Hole Diameter (Drawing, Bottom View) | Ø0.28 (typ.) |
Identifiers
| UPC | 623980360997 |
| UNSPSC | 39121324 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 4 lbs (1.81 kg) |
Construction & Finish
| Door | Full swing, hinged door (former butt hinge transitioning to new integral design starting late 2020) |
| Cover | Formed steel cover, closes by slotted quarter turn latch |
| Gauge | 16 gauge |
| Colour | Painted gray |
| Finish | ANSI 61 gray powder coating (enclosure and cover) |
| Material | Steel (mild steel) |
| Grounding | Grounding location embossed in body |
| Knockouts | Easily removed knockouts on all 4 sides |
| Construction | Formed and spot welded |
| Knockout Sizes (Drawing) | Ø1.01 / Ø1.38 (Detail Z); Ø0.76 / Ø1.13 (Detail Y) |
Environmental & Protection
| Enclosure Rating | NEMA Type 1 |
| Ingress Protection | IEC 60529, IP20 |
Compliance & Certifications
| UL | UL-50 Type 1 |
| CSA | CSA Type 1 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the CHKO864 suitable for outdoor use?▾
It is rated NEMA Type 1 and IP20 and is designed for general purpose indoor commercial use.
What is the door opening on the CHKO864?▾
The drawing shows a door opening of 5.00 in wide by 6.75 in high, with a 6.30 x 8.38 in door.
How does the door close?▾
The formed steel cover is a full swing hinged door that closes with a slotted quarter turn latch.
Does it have knockouts?▾
Yes. Easily removed knockouts are on all 4 sides; the drawing shows knockout sizes of Ø1.01/Ø1.38 and Ø0.76/Ø1.13.
How is it mounted?▾
Through holes in the back of the enclosure are provided for wall mounting.
What certifications does it have?▾
UL-50 Type 1 (UL File E65324) and CSA Type 1 (CSA Cert. LR21001); it complies with NEMA Type 1 and IEC 60529 IP20 and is REACH and RoHS compliant.
