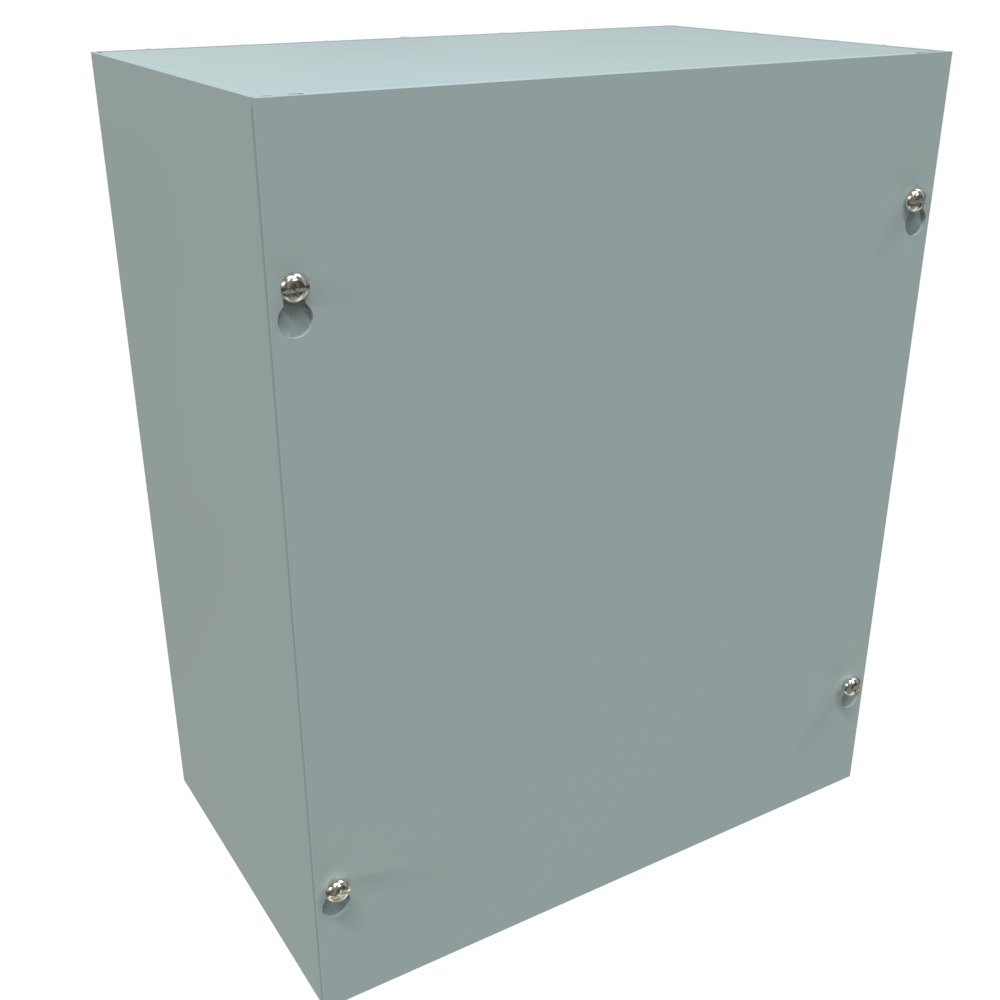

Hammond CS12106 12x10x6 in Type 1 Screw Cover Junction Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 12 x 10 x 6 in (305 x 254 x 152 mm) Type 1 junction, pull or switch box
- UL-50 Type 1 and CSA Type 1; complies with NEMA Type 1 and IEC 60529, IP20
- Flat steel screw cover with keyhole slots, lifts off without fully removing screws
- No knockouts, so conduit entries can be made where needed
- 16 gauge formed and spot welded steel, ANSI 61 gray powder coating
- Through holes in back for wall mounting; embossed grounding location
- Shipping weight 9 lbs (4.08 kg); packaged in a bag
The CS12106 is the 6 in deep version of the 12 x 10 in CS box, adding interior depth for heavier conductors and more splices. Designed for general purpose indoor commercial use as a junction, pull or switch box, it suits electricians, contractors and facilities teams working on indoor wiring.
The CS12106 is formed and spot welded from 16 gauge steel (the series uses 16 gauge for sizes up to 30 x 24 in). A flat steel cover is fastened with plated steel screws, and keyhole slots let the cover be lifted off without removing the screws entirely. The enclosure and cover are finished in ANSI 61 gray powder coating, and a grounding location is embossed in the body. The box has no knockouts.
Nominal size is 12 in x 10 in x 6 in (305 mm x 254 mm x 152 mm). The part drawing shows an overall depth of 6.06 in with the cover fitted, and through holes in the back allow wall mounting. Shipping weight is 9 lbs (4.08 kg), and it is packaged in a bag.
The CS series is UL-50 Type 1 (UL File E65324) and CSA Type 1 (CSA Cert. LR21001), and complies with NEMA Type 1 and IEC 60529, IP20. The part is listed as REACH and RoHS compliant. Series accessories include flush covers, Type 1 extenders and CS perforated panels.
Ideal For
- Indoor commercial junction box
- Pull box for indoor conduit runs
- Switch box for general purpose indoor use
- Commercial building wiring and splicing
Overview
| Series | CS |
| Application | General purpose indoor commercial use as a junction, pull or switch box |
| Cover Style | Screw cover, without knockouts |
| Product Type | Type 1 Mild Steel Junction Box |
| Long Description | N1 Screw Cover - 12 x 10 x 6 - Steel/Gray |
| Short Description | SCREW COVER NO KO'S 12X10X6 |
Dimensions
| Enclosure Depth | 6.00 in (152 mm) |
| Enclosure Width | 10.00 in (254 mm) |
| Enclosure Height | 12.00 in (305 mm) |
| Nominal Size (H X W X D) | 12 in x 10 in x 6 in (305 mm x 254 mm x 152 mm) |
| Bottom View Hole Spacing (Drawing) | 9.00 in x 9.00 in |
| Bottom View Hole Diameter (Drawing) | 0.28 in |
| Overall Depth Incl. Cover (Drawing) | 6.06 in |
Accessories
| Available Accessories | Flush covers, Type 1 extenders, CS perforated panels |
Identifiers
| UPC | 623980360270 |
| UNSPSC | 39121324 |
| Part Number | CS12106 |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 9 lbs (4.08 kg) |
Construction & Finish
| Cover | Flat steel cover fastened with plated steel screws |
| Gauge | 16 gauge (series sizes up to 30 x 24 in) |
| Colour | Gray |
| Finish | Enclosure and cover in ANSI 61 gray powder coating |
| Material | Mild steel, formed and spot welded |
| Mounting | Through holes in back for wall mounting |
| Grounding | Grounding location embossed in body |
| Cover Removal | Keyhole slots permit cover to be lifted off without removing screws entirely |
Environmental & Protection
| Enclosure Type | Type 1 (indoor) |
| Ingress Protection | IEC 60529, IP20 |
Compliance & Certifications
| UL | UL-50 Type 1 |
| CSA | CSA Type 1 |
| NEMA | Complies with NEMA Type 1 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the CS12106?▾
The CS12106 measures 12 in x 10 in x 6 in (305 mm x 254 mm x 152 mm). The drawing shows an overall depth of 6.06 in including the cover.
Does the CS12106 have knockouts?▾
No. The CS series is a screw cover box without knockouts.
Can it be used outdoors?▾
The CS series is designed for general purpose indoor commercial use. It is rated UL-50 Type 1 and CSA Type 1 and complies with NEMA Type 1 and IEC 60529, IP20.
How is the cover attached?▾
A flat steel cover is fastened with plated steel screws. Keyhole slots let the cover be lifted off without removing the screws entirely.
How is the box mounted and grounded?▾
Through holes in the back allow wall mounting, and a grounding location is embossed in the body.
What material and finish is it?▾
It is formed and spot welded from 16 gauge steel, with the enclosure and cover finished in ANSI 61 gray powder coating.
