Hammond CSG484812 48x48x12 In Unpainted Galvanized Type 1 Junction Box

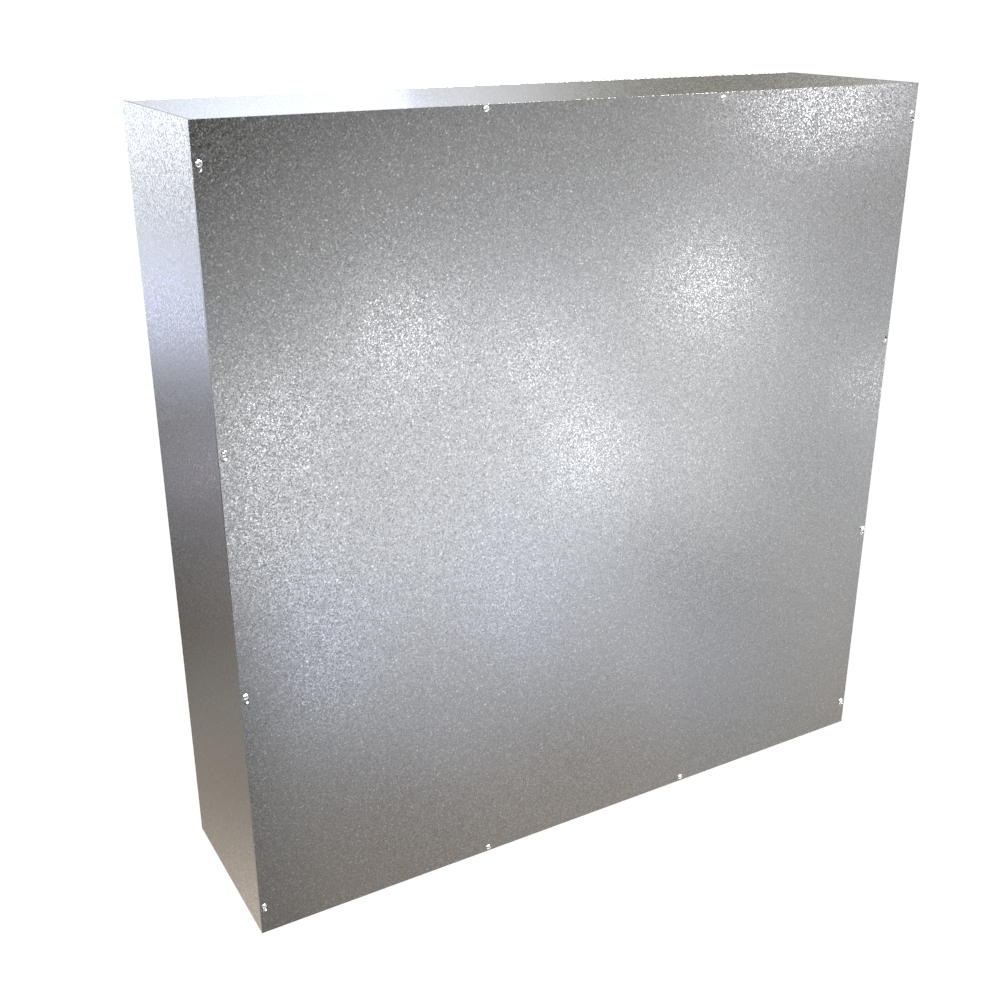

The CSG484812 is a 48 x 48 x 12 in (1219 mm x 1219 mm x 305 mm) Type 1 unpainted galvanized steel junction box with a flat screw cover and no knockouts. It is designed for general purpose indoor commercial use as a junction, pull or switch box, making it a fit for electricians, electrical contractors and facilities teams who need a plain, unpunched steel box at this size.

The body is formed and spot welded from G90 steel, and both the enclosure and cover are left as unpainted galvanized steel. The flat steel cover is fastened with plated steel screws, and keyhole slots let the cover be lifted off without removing the screws entirely. Because the box has no knockouts, conduit entries can be located exactly where the installation requires them, and a grounding location is embossed in the body.

Enclosure dimensions are 48 in high, 48 in wide and 12 in deep (1219 mm x 1219 mm x 305 mm), with the drawing showing 12.10 in overall depth. Shipping weight is 208 lbs (94.35 kg), and the part ships packaged in a skid. At 48 x 48 in, CSG484812 shares the largest face size in the CSG series with CSG484816, and is the 12 in deep version of that size.

Through holes in the back allow wall mounting. The box is rated UL-50 Type 1 (UL File E65324) and CSA Type 1 (CSA Cert. LR21001), complies with NEMA Type 1 and IEC 60529 IP20, and is listed as REACH and RoHS compliant.
