Hammond EN4SD242010SS 24x20x10 in 304 Stainless NEMA 4X Wallmount Enclosure

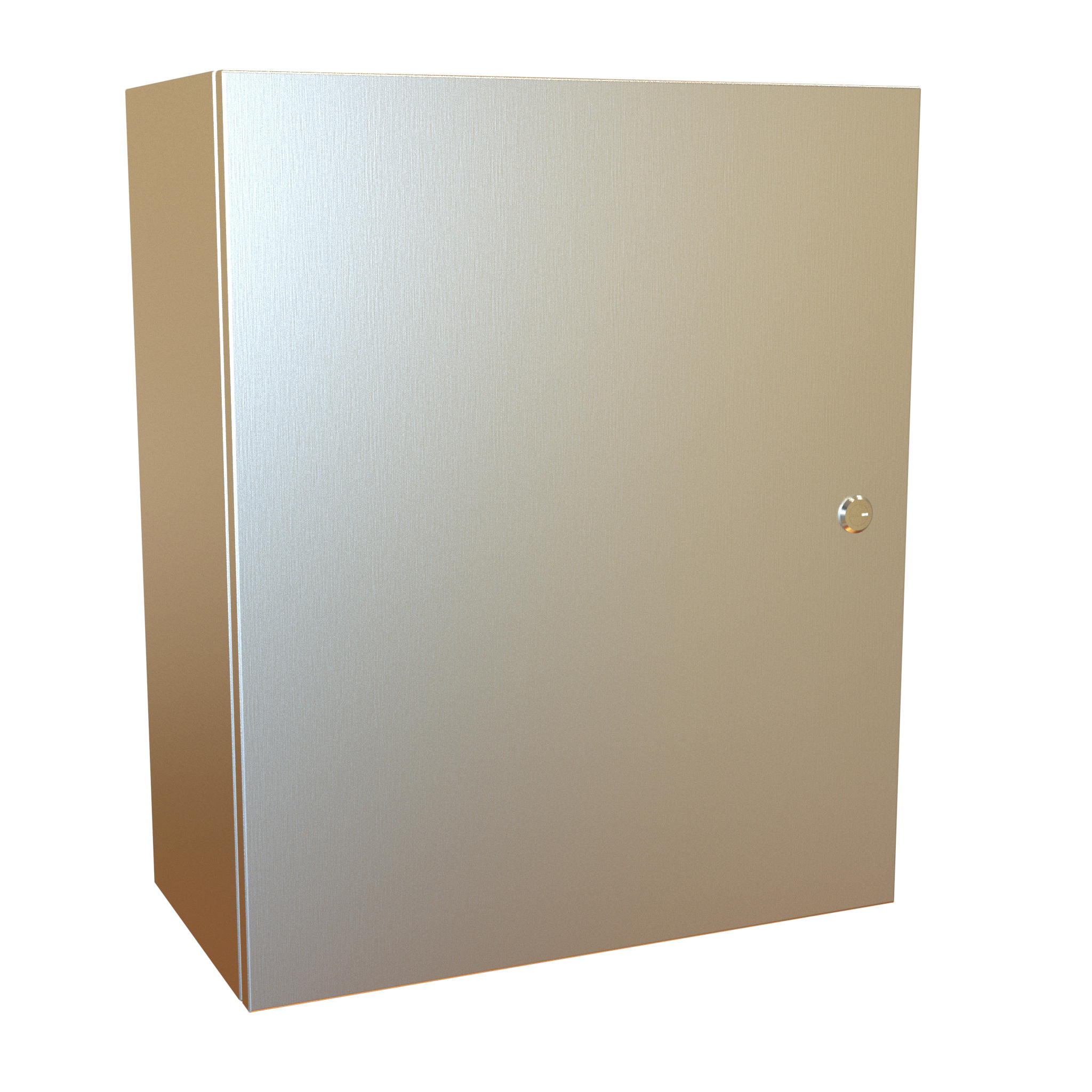

The EN4SD242010SS is a single-door Eclipse Series wallmount enclosure in 304 stainless steel, 24 in high x 20 in wide x 10 in deep (610 x 508 x 254 mm). It is designed to enclose electrical and electronic equipment and protect it in harsh, industrial environments, and suits panel builders and electricians wanting a mid-size Type 4X enclosure.

The body is formed 16 gauge stainless steel with continuously welded seams ground smooth. A formed lip on the enclosure excludes flowing liquids and contaminants, and the door seals on a seamless poured-in place gasket. Type A stainless steel slotted quarter turns and stainless steel hinge pins are used; the door is removable, interchangeable, and reversible by ordering adapter kit EHLLSAK. The finish is natural stainless steel, smooth brushed.

Drawing values: door opening 18.52 in x 22.52 in (W x H), door 19.97 in x 23.97 in, clear space on the door 18.00 in x 22.00 in, inside depth 10.71 in. Ø 0.50 in wall mounting holes are provided, and the hardware kit includes panel mounting nuts and sealing washers.

No panel is supplied; the optional EP2420 inner panel measures 22.20 in x 18.20 in and fits the collar studs. The enclosure is rated UL 508A and CSA Type 3R, 4, 4X and 12 (UL File E65324, CSA LR21001) and complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66. A mounting foot kit is required to maintain UL/CSA external mounting requirements. Shipping weight is 30 lbs (13.61 kg). EN4SD242010S16 is the 316 version.
