Swing Out Rack Frame for Eclipse Enclosures · ESF Series

Key Features and Benefits

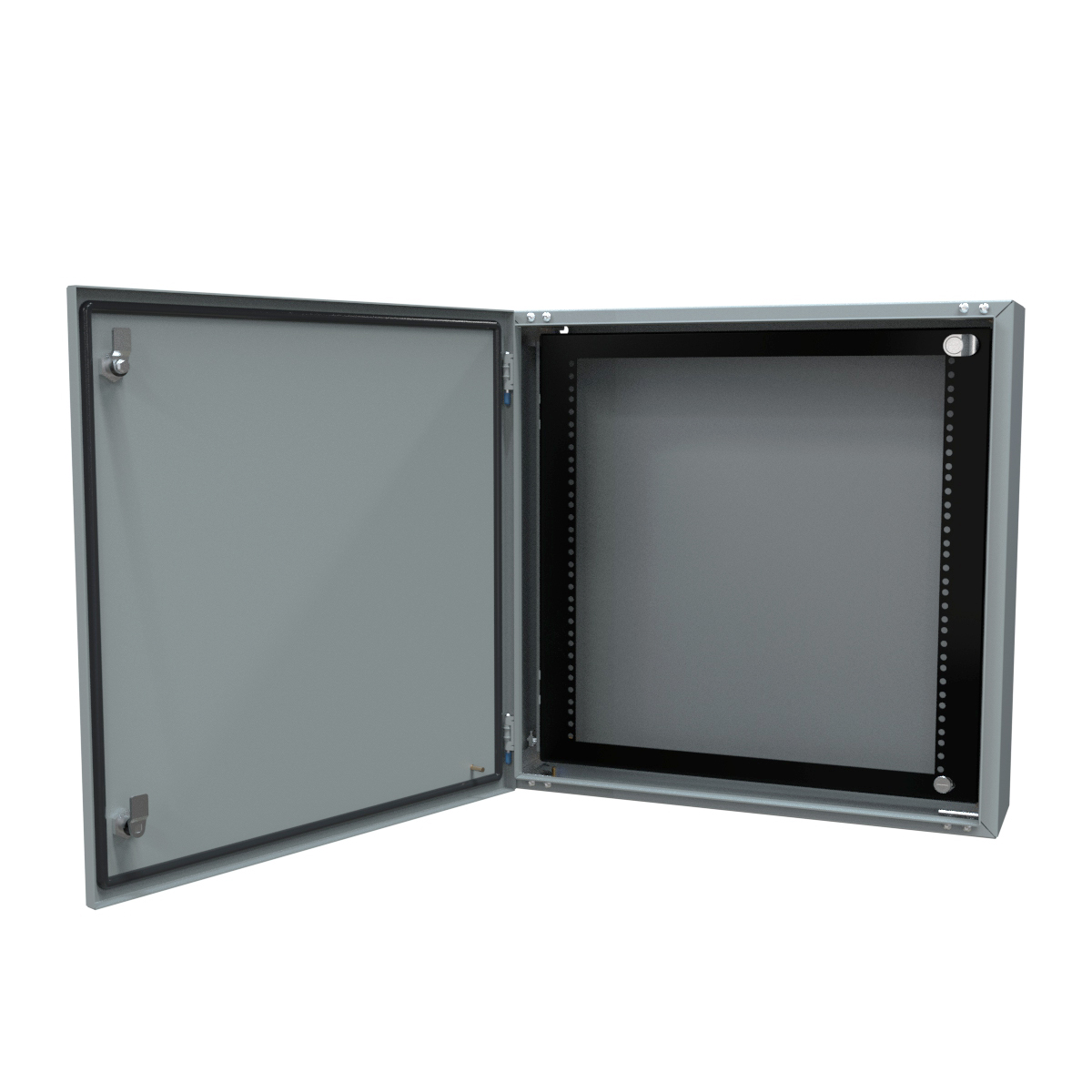

The ESF Series swing-out rack frames provide a flexible solution for integrating 19-inch rack equipment into Hammond Eclipse enclosures. Designed with a hinged frame, they allow mounted equipment to swing out for easy rear access, simplifying installation, maintenance, and cable management.

With adjustable depth and dual-hinge capability, the ESF Series supports a wide range of equipment layouts while maintaining enclosure ratings when properly installed. Manufactured in North America, these frames provide a reliable solution for industrial, automation, and hybrid IT/OT applications.

• ■Steel construction supports up to 62 lb, providing reliable mounting for rack equipment inside Eclipse enclosures.
• ■Provides standard 19 in rack mounting with EIA spacing and round hole rails for use with clip nuts, enabling flexible installation of IT, network, and control equipment ( CLPKIT1032-25 sold separately).
• ■Swing-out frame opens to 90 degrees, providing full rear access for installation, wiring, and maintenance.
• ■Can be hinged from either side, offering flexible installation based on enclosure layout and access requirements.
• ■Includes depth adjustment brackets to position equipment within the enclosure.
• ■Slotted quarter-turn latches secure the frame, with optional locking latch EQTRL available for added security.
• ■Designed specifically for Eclipse enclosure series, ensuring proper fit and integration.
• ■Maintains UL, CSA, and NEMA ratings when properly installed with hardware kit, preserving enclosure integrity.
• ■Manufactured in North America, ensuring consistent quality and production standards.
• ■TAA-compliant, manufactured in North America within an ISO 9001 certified facility.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
• ■(Note: Not compatible with DSTOPK door stop kit.)
