2-POST To 4-POST Adapter
$207.68In stock
Buy now
Most Popular

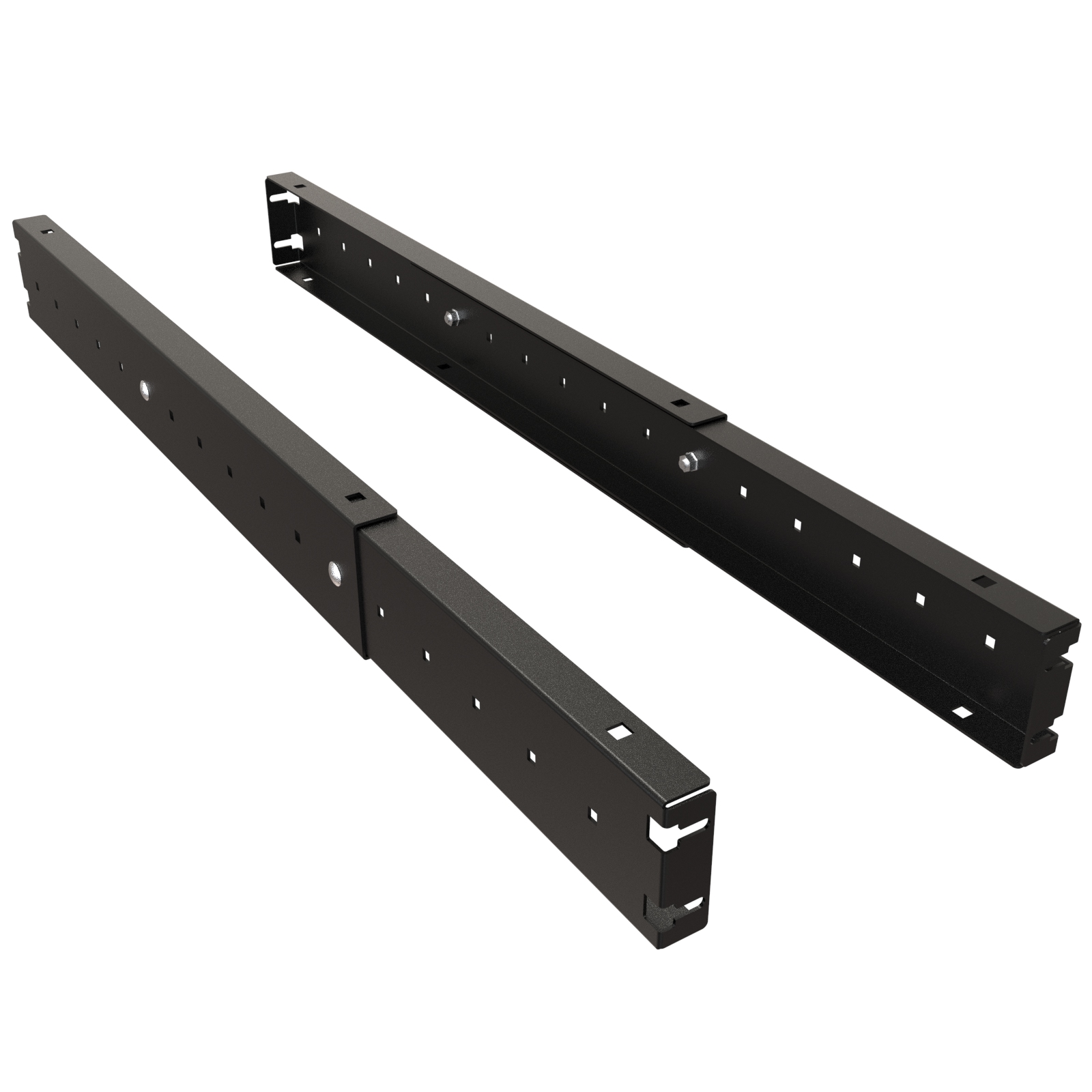

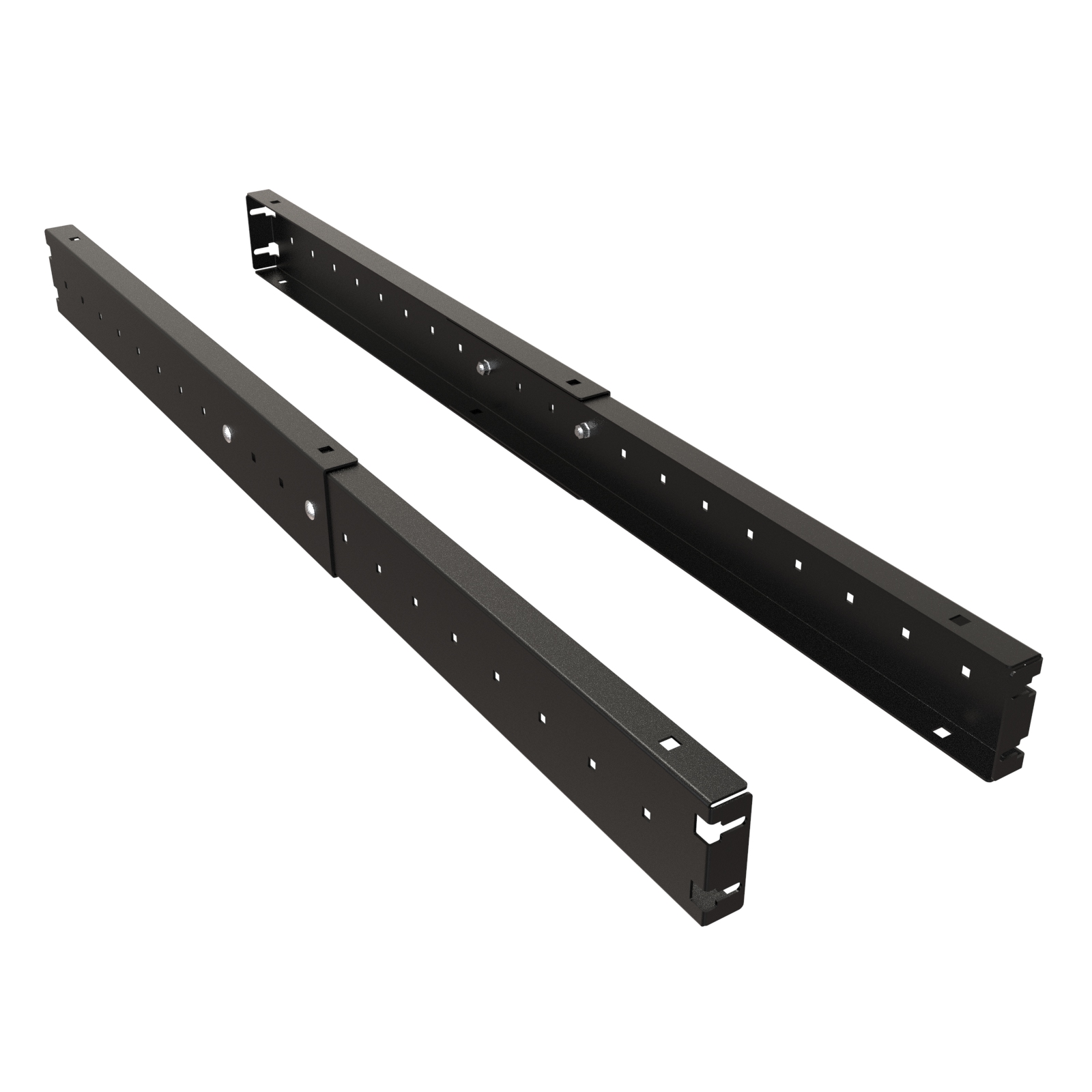

Universal Four Post Rack Kit 2-Post to 4-Post Rack Conversion · FPRK Series
Brand: Hammond Manufacturing · 2 part numbers

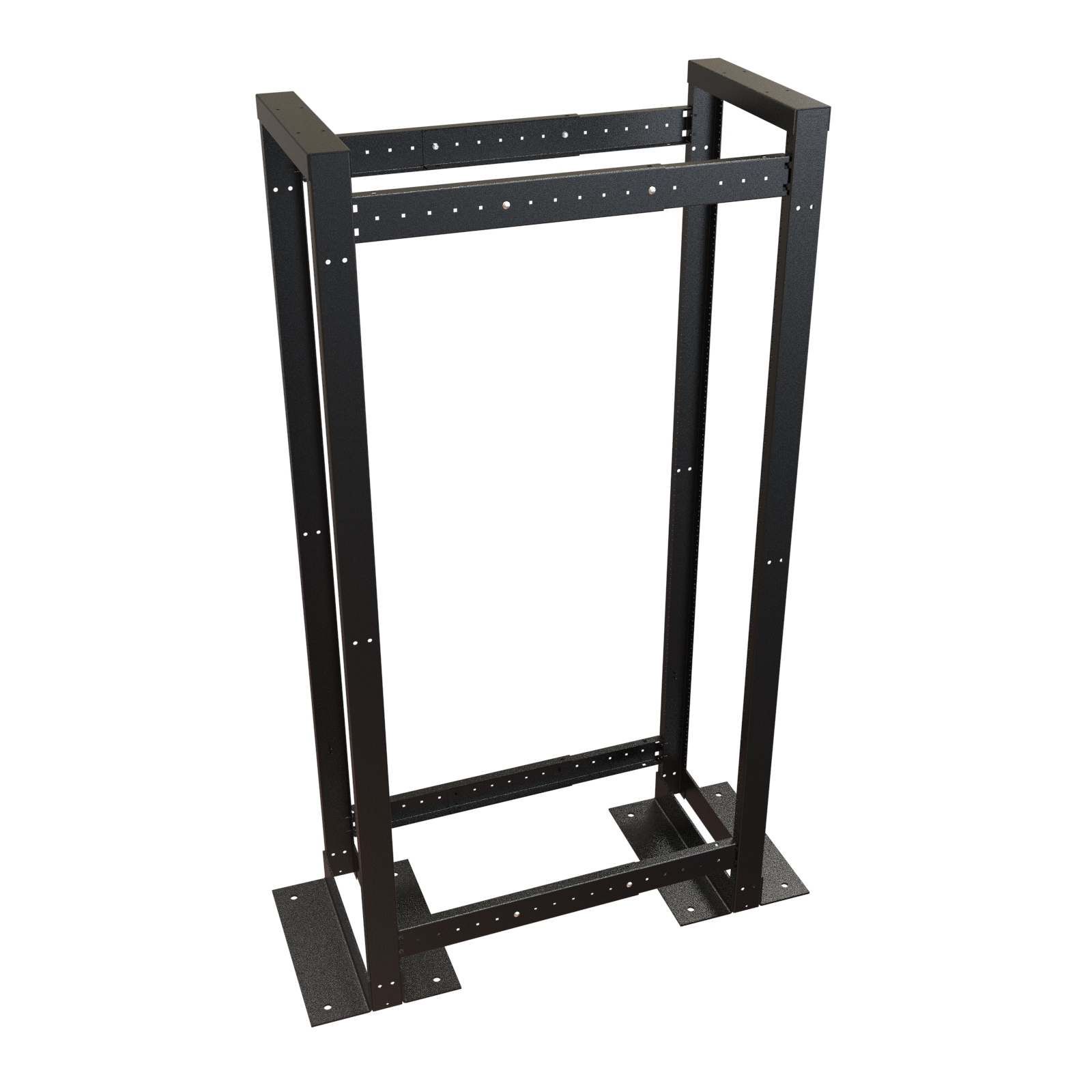

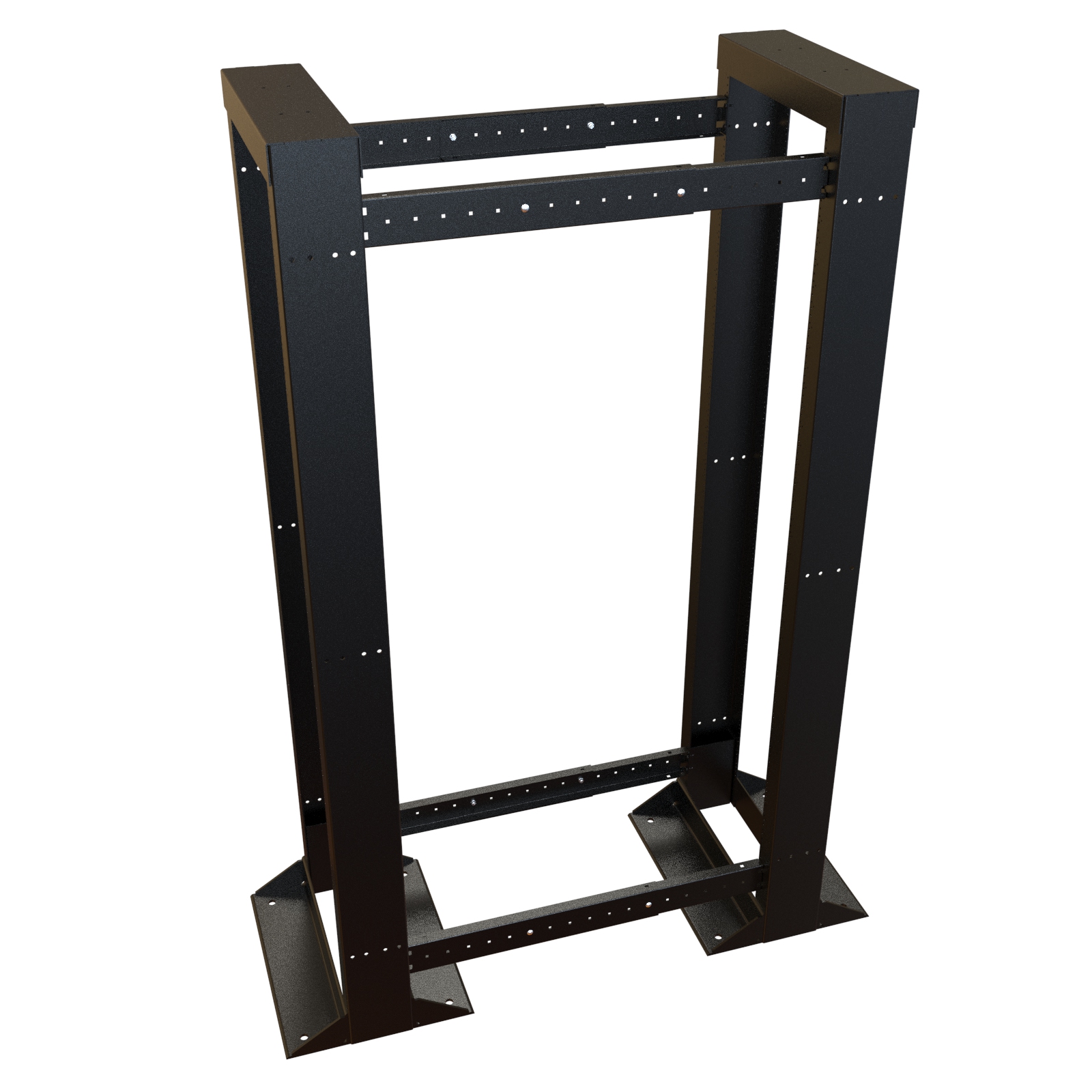

Convert two compatible 2-post racks into a fully adjustable 4-post rack while maintaining industry certifications.
- ■16-gauge steel construction converts two compatible 2-post racks into a rigid 4-post rack frame, providing additional support for deeper and heavier rack-mounted equipment.
- ■Universal design fits any EIA-310-E compliant rack with mounting rails on both sides, allowing compatibility with Hammond and most third-party rack manufacturers.
- ■Available in two adjustable depth ranges, 22 to 34 inches and 26 to 42 inches, to accommodate a wide variety of equipment depths and installation requirements.
- ■Compatible with 10-32 threaded, 12-24 threaded, and square-hole rack rails, simplifying integration into mixed rack environments.
- ■Includes four support angles, two sets of mounting brackets, and all required installation hardware for quick installation and consistent rack spacing.
- ■Simple bolt-on installation upgrades existing rack infrastructure without replacing installed racks, reducing project costs and deployment time.
from $207.68
2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your FPRK Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
2 of 2 part numbers · 2 priced online
2-POST To 4-POST Adapter
$259.60In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Overall Dimensions · Height | RB-2P / RB-2PA / DNRRHDW · Min Depth | RB-2P / RB-2PA / DNRRHDW · Max Depth | Installed on DRZ4 · Min Depth | Installed on DRZ4 · Max Depth | Price | Order |
|---|---|---|---|---|---|---|---|
| FPRK2234BK | 3.50 | 28.00 | 40.00 | 34.00 | 46.00 | $207.68In stock | Buy now |
| FPRK2642BK | 3.50 | 29.00 | 45.00 | 38.00 | 54.00 | $259.60In stock | Buy now |
Key Features and Benefits
The FPRK Series Universal Four Post Rack Kit provides a cost-effective way to convert two compatible 2-post racks into a stable, adjustable-depth 4-post rack without replacing existing infrastructure. Designed to work with Hammond and most industry-standard EIA-310-E compliant racks, the kit supports a wide range of equipment while preserving valuable floor space and reducing installation costs.
Available in two adjustable depth ranges, the FPRK Series is compatible with threaded and square-hole rack rails and maintains UL, Telcordia GR-63-CORE, and seismic standards when installed on compatible Hammond racks. Manufactured in North America, it offers a practical upgrade path for expanding rack capabilities while protecting existing investments.
- ■16-gauge steel construction converts two compatible 2-post racks into a rigid 4-post rack frame, providing additional support for deeper and heavier rack-mounted equipment.
- ■Universal design fits any EIA-310-E compliant rack with mounting rails on both sides, allowing compatibility with Hammond and most third-party rack manufacturers.
- ■Available in two adjustable depth ranges, 22 to 34 inches and 26 to 42 inches, to accommodate a wide variety of equipment depths and installation requirements.
- ■Compatible with 10-32 threaded, 12-24 threaded, and square-hole rack rails, simplifying integration into mixed rack environments.
- ■Includes four support angles, two sets of mounting brackets, and all required installation hardware for quick installation and consistent rack spacing.
- ■Simple bolt-on installation upgrades existing rack infrastructure without replacing installed racks, reducing project costs and deployment time.
- ■Maintains UL, Telcordia GR-63-CORE, and seismic compliance when installed with compatible Hammond racks, helping preserve rack certifications.
- ■Manufactured in North America, ensuring consistent quality, materials, and production standards.
- ■TAA-compliant, manufactured in North America within an ISO 9001 certified facility.
- ■Black powder coat finish (GREENGUARD Gold Certified, TSCA, and RoHS compliant) provides a durable, environmentally responsible finish.
Documents
Additional information
Where the FPRK Series Works Best
- ■Data centers and server rooms.
- ■Telecommunications facilities.
- ■Industrial automation systems.
- ■Network closets.
- ■Retrofit and rack expansion projects.
- ■Applications requiring 4-post equipment support without replacing existing racks.
- ■Converting existing 2-post racks into 4-post rack systems.
- ■Supporting deeper servers, UPS systems, and network equipment.
- ■Upgrading rack infrastructure while minimizing project costs.
- ■Standardizing mixed rack environments.
- ■Expanding rack capacity while maintaining existing certifications.
