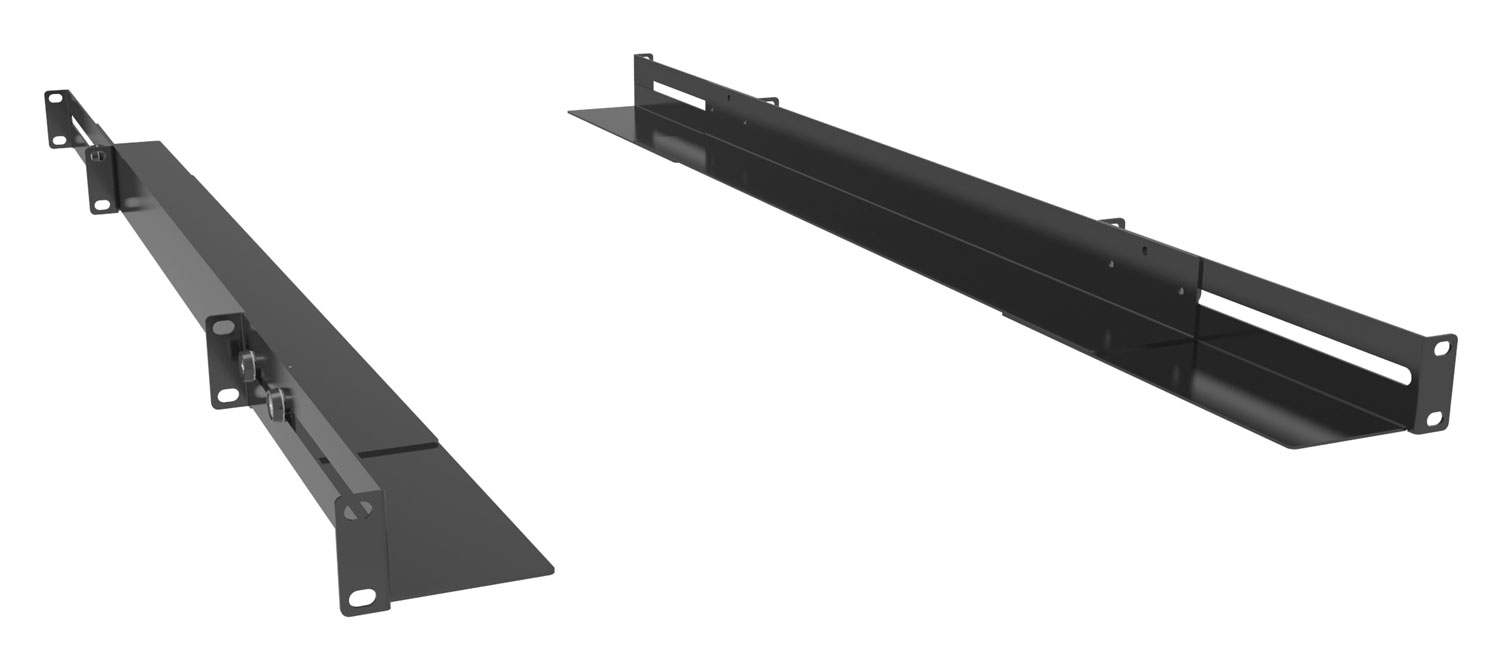

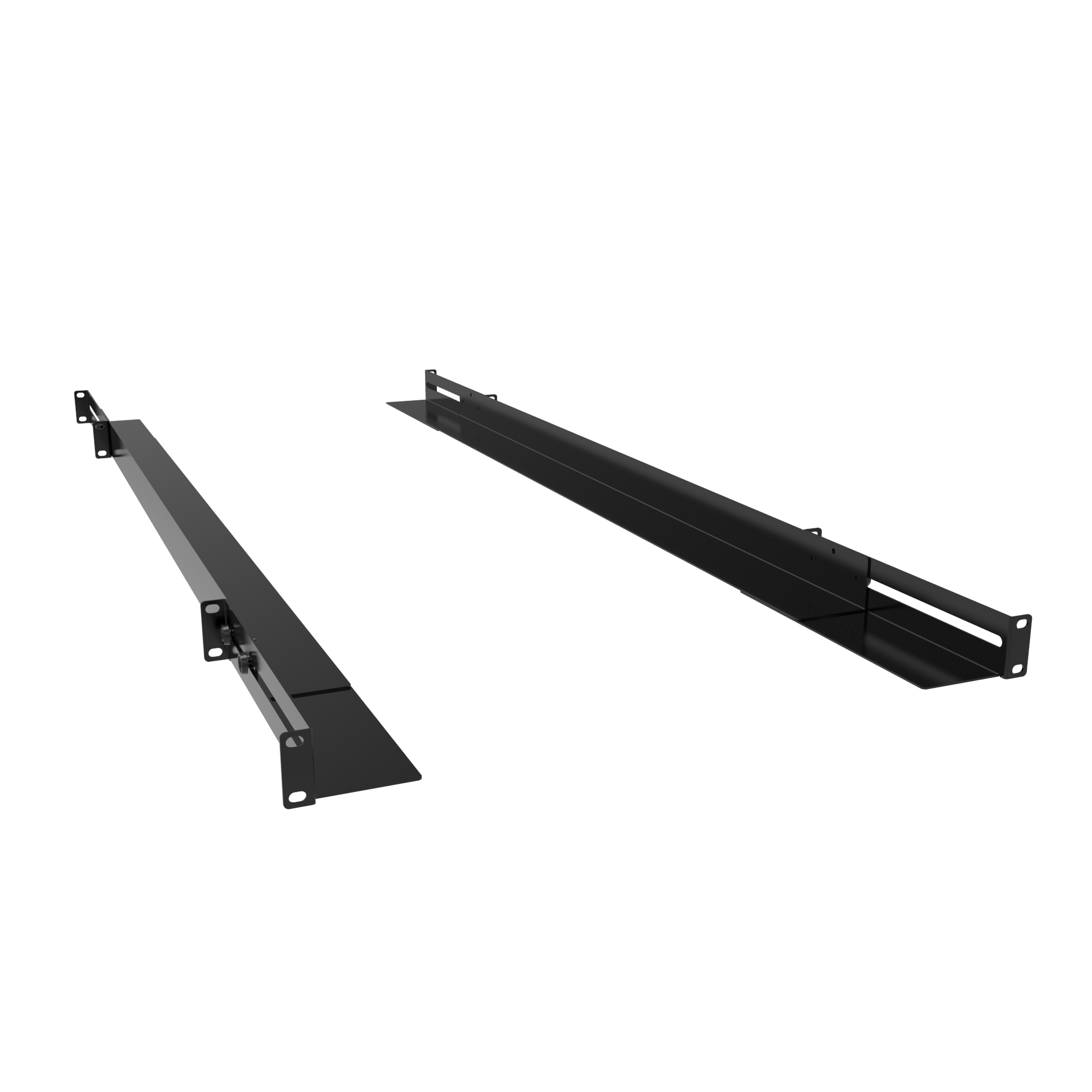

Adjustable Rack Mount Angle Bracket (200 lb Capacity) · RAAB Series

Key Features and Benefits

The RAAB Series adjustable rack mount angle brackets provide critical support for heavy, non-rackmount equipment in 19-inch and 23-inch rack systems. Designed to span the depth of the rack, these adjustable support angles allow equipment to be securely supported even when it cannot be directly mounted to rack rails.

With adjustable depth from 24 to 48 inches, the RAAB Series accommodates a wide range of equipment sizes, including servers, switchgear, and chassis. This makes it an ideal solution for front-mounted equipment that requires rear support, improving load distribution and equipment stability.

• ■16-gauge steel construction (200 lb capacity ) supports heavy servers, chassis, and non-rackmount equipment.
• ■Adjustable depth design supports equipment from 24 to 48 inches deep for flexible installation.
• ■Designed to support heavy equipment that cannot be mounted directly to rack rails.
• ■Ideal for front-only mounted equipment requiring rear support.
• ■Mounts to any rack system with EIA-310-E compliant 1U mounting patterns, enabling use across 19-inch, 23-inch, and other rack widths.
• ■Free-floating design allows depth adjustment to match equipment dimensions.
• ■Sold in pairs and requires two pairs of mounting rails for installation.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

When Another Product May Be a Better Choice

• ■When you need a reinforced fixed shelf for higher load capacity, consider our RASA Series.
• ■When you need an adjustable depth shelf with a full support platform, consider our ADS Series Adjustable Rack Shelves.
