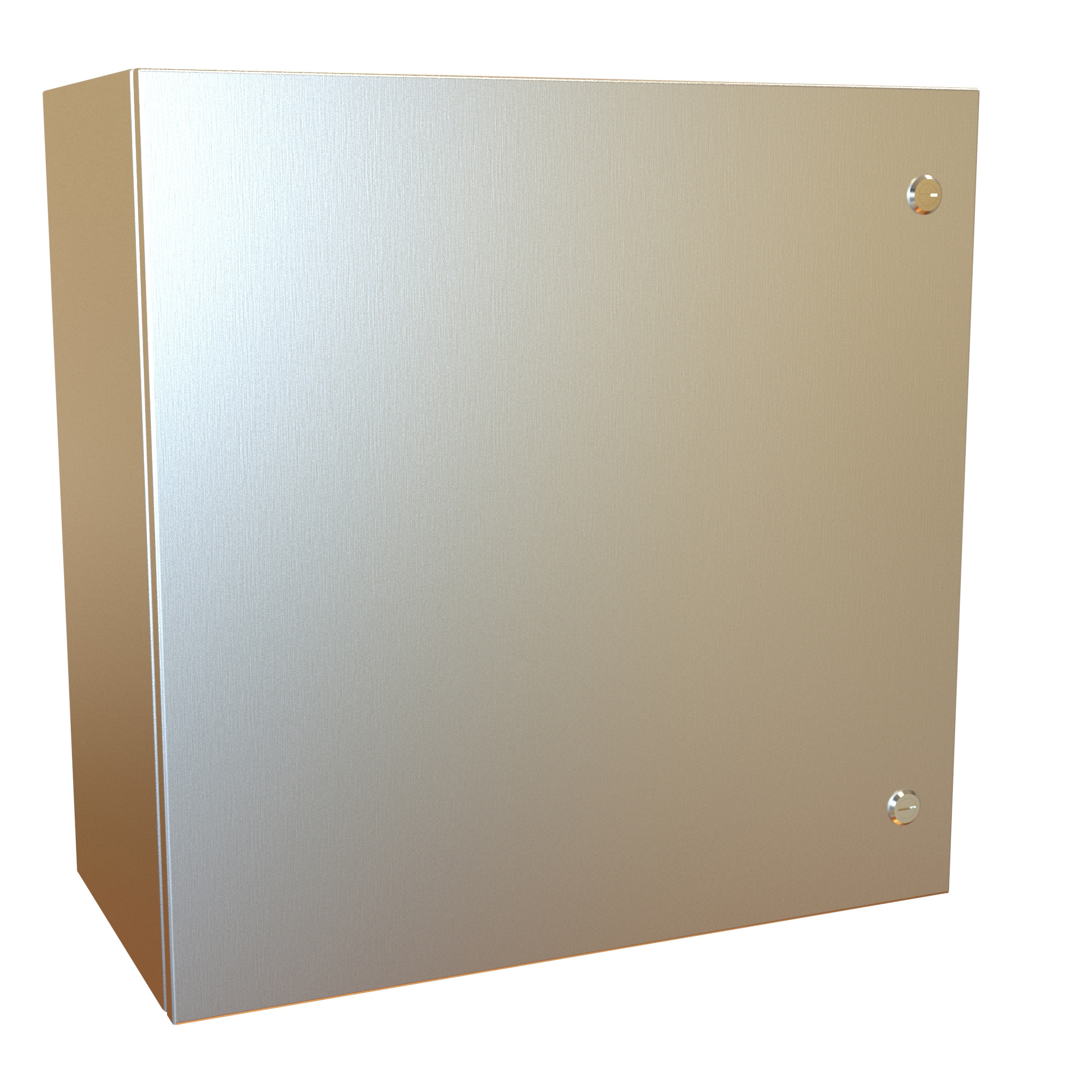

Hammond EN4SD242410SS 24x24x10 Type 4X 304 Stainless Wallmount Enclosure

Part EN4SD242410SS is an Eclipse Series Type 4X wallmount enclosure in 304 stainless steel, sized 24 in high by 24 in wide by 10 in deep (610 x 610 x 254 mm). It is intended for housing electrical and/or electronic equipment where the surroundings are harsh and industrial, and its hidden hinges and clean latching give it a tidy look beside high-tech equipment.

Construction is formed 14 gauge stainless steel with continuously welded seams that are ground smooth. A formed lip around the opening sheds flowing liquids and contaminants, and the door seals on a seamless poured-in-place gasket. Latching is Type A: stainless steel slotted quarter turns. The door can be removed for modification, is interchangeable, and its swing can be reversed with adapter kit EHLLSAK.

• Door opening: 22.49 x 22.49 in (drawing)
• Inside depth: 10.70 in; depth including door: 10.84 in
• Clear space on door: 22.00 x 22.00 in
• Optional inner panel: EP2424, 22.20 x 22.20 in

Mounting is straightforward: the included hardware kit supplies panel mounting nuts and sealing washers for the wall mounting holes, and collar studs are provided for the inner panel. The door has a bonding stud and the body a grounding stud. Listings cover UL 508A and CSA Type 3R, 4, 4X and 12, with compliance to NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66; use a mounting foot kit to keep UL/CSA external mounting requirements. Shipping weight is 52 lbs (23.59 kg). Need 316 stainless? Order EN4SD242410S16.
